NGK Ignition Coil U5033, Model 48127 Instruction Manual

1. محصول ختم شوview

The NGK Ignition Coil U5033, model 48127, is a critical component within your vehicle's ignition system. Its primary function is to transform the low voltagد موټر له بیټرۍ څخه لوړ حجم تهtage necessary to create an ignition spark. This spark ignites the air-fuel mixture in the combustion chamber, initiating the engine's power stroke. NGK ignition coils are engineered with a specialized design and utilize innovative materials to ensure reliable ignition even under demanding conditions. They offer excellent resistance to vibrations, short circuits, and humidity, contributing to a long operational lifespan.

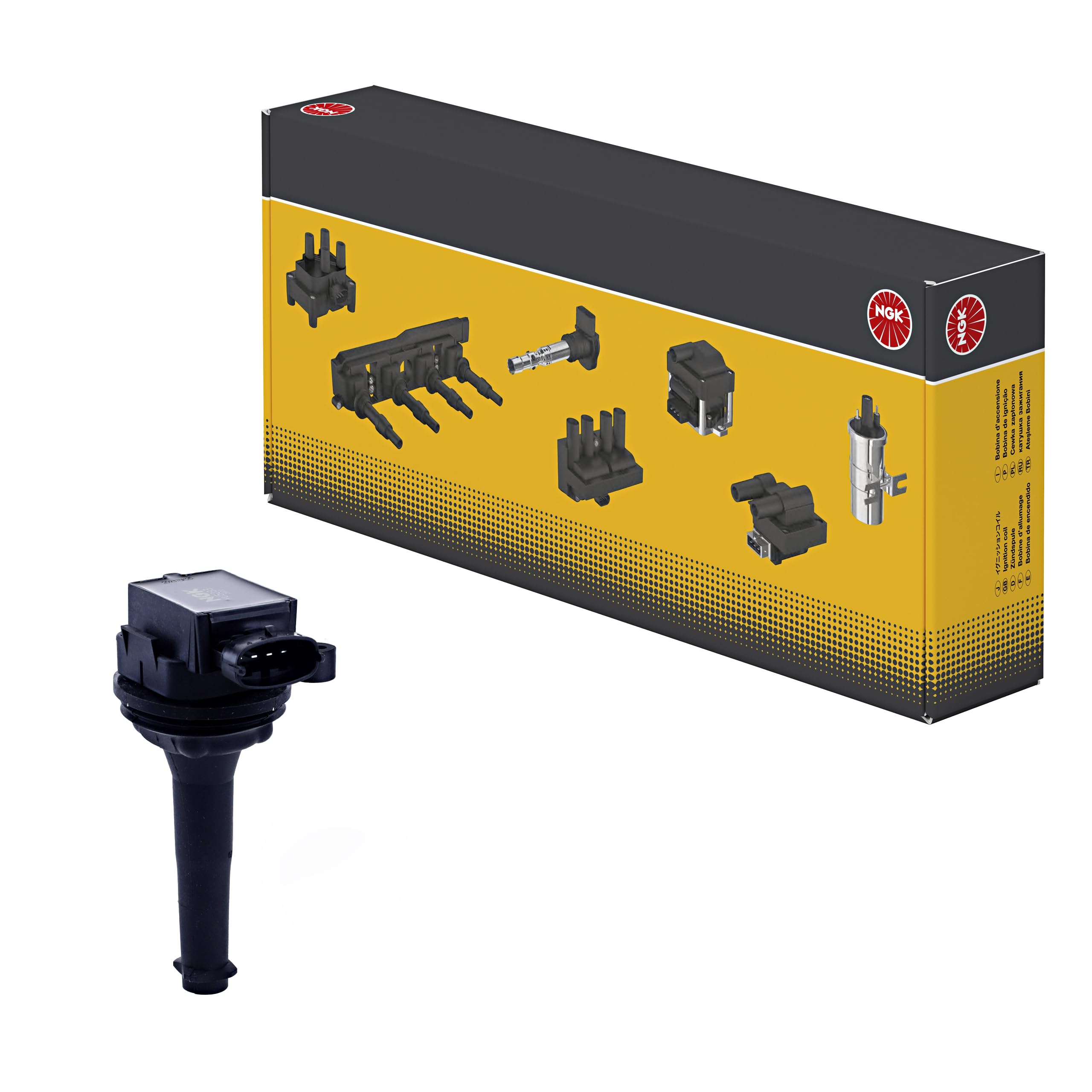

شکل 1.1: NGK Ignition Coil U5033, Model 48127. This image displays the complete ignition coil unit, highlighting its robust construction and electrical connector.

2. د خوندیتوب معلومات

Always prioritize safety when working on your vehicle's electrical system. High voltages are present in the ignition system, which can cause severe injury or death. Follow these guidelines:

• د بیټرۍ قطع کول: Before beginning any work on the ignition system, always disconnect the negative terminal of the vehicle's battery to prevent accidental electrical discharge.
• انجن ته اجازه ورکړئ چې یخ شي: Ensure the engine is cool to the touch before working to avoid burns from hot engine components.
• محافظتي جامې واغوندئ: د مناسب شخصي محافظتي تجهیزاتو څخه کار واخلئ، په شمول د خوندیتوب عینکې او دستکشې.
• د مسلکي سره مشوره وکړئ: If you are unsure about any step of the installation or maintenance process, consult a qualified automotive technician.
• Avoid Contact with High Voltage: Do not touch ignition components while the engine is running or the ignition is on.

3. ترتیب او نصب کول

The NGK Ignition Coil U5033, model 48127, is designed for vehicle-specific fitment and typically features a screw-in installation type. Proper installation is crucial for optimal engine performance and longevity of the component.

3.1 د نصب کولو دمخه چکونه

• Verify that the NGK Ignition Coil U5033 (model 48127) is the correct part for your specific vehicle make and model. Refer to your vehicle's service manual or a reputable parts catalog.
• Inspect the new ignition coil for any visible damage or defects before installation.
• Gather all necessary tools, which may include wrenches, sockets, screwdrivers, and a torque wrench.

3.2 د نصب کولو طرزالعمل

1. د بیټرۍ قطع کول: As a safety precaution, disconnect the negative terminal of your vehicle's battery.
2. د زوړ کویل موندل: Identify the location of the existing ignition coil(s) in your engine compartment.
3. د بریښنایی نښلونکی قطع کول: Carefully disconnect the electrical connector from the old ignition coil. Avoid pulling on the wires.
4. فاسټینرونه لرې کړئ: Unscrew any bolts or fasteners securing the old ignition coil in place.
5. زوړ کویل لرې کړئ: Gently remove the old ignition coil from its mounting.
6. نوی کویل نصب کړئ: Insert the new NGK Ignition Coil U5033 into the mounting location. Ensure it seats properly.
7. خوندي فاسټینرونه: Reinstall the bolts or fasteners, tightening them to the manufacturer's specified torque. Refer to your vehicle's service manual for exact torque specifications.
8. د بریښنا نښلونکی وصل کړئ: Reconnect the electrical connector to the new ignition coil, ensuring a secure connection.
9. بیټرۍ بیا وصل کړئ: د موټر د بیټرۍ منفي ټرمینل بیا وصل کړئ.
10. د ازموینې سیسټم: Start the engine and check for proper operation. Listen for any unusual noises or observe any warning lights.

مهمه یادونه: For vehicles equipped with multiple individual ignition coils, it is often recommended to replace the complete set rather than just a single defective coil to ensure balanced performance and prevent future issues.

شکل 3.1: NGK Ignition Coil in its packaging. Always ensure the part number matches your requirements before opening and installing.

۴. د کار اصول

The ignition coil operates on the principle of electromagnetic induction. When the engine's control unit sends a signal, current flows through the primary winding of the coil, creating a magnetic field. When this current is interrupted, the magnetic field collapses rapidly, inducing a very high voltage (typically tens of thousands of volts) in the secondary winding. This high voltage is then directed to the spark plug, creating an electrical arc that ignites the fuel-air mixture in the engine cylinder. This precise and powerful spark is essential for efficient combustion and optimal engine performance.

5. ساتنه

While NGK ignition coils are designed for durability and a long service life, they are considered wear parts within the ignition system. Regular inspection and timely replacement are essential for maintaining optimal engine performance and preventing potential issues.

5.1 تفتیش

• بصری معاینه: Periodically inspect the ignition coils for any signs of physical damage, cracks, discoloration, or corrosion on the terminals.
• بریښنایی پیوستون: Ensure all electrical connectors are clean, secure, and free from corrosion.
• شاوخوا برخې: Check spark plugs and spark plug wires (if applicable) for wear, as these can affect coil performance.

5.2 بدلول

The lifespan of an ignition coil can vary depending on driving conditions and vehicle usage. If an ignition coil is found to be faulty during inspection or if symptoms of failure arise, it should be replaced promptly. Follow the installation procedure outlined in Section 3.2 for replacement.

شکل 5.1: A mechanic inspecting an ignition coil. Regular checks are vital for identifying wear and ensuring proper function.

6. ستونزه حل کول

A malfunctioning ignition coil can lead to various engine performance issues. If you experience any of the following symptoms, your ignition coil may require inspection or replacement:

• د انجن خرابوالی: The engine may run rough, especially during acceleration, or feel like it's skipping a beat.
• د تیلو کم شوی اقتصاد: د کمزوري چنګک له امله د احتراق بې کفایته کول کولی شي د سونګ توکو د مصرف زیاتوالي لامل شي.
• د انجن څراغ وګورئ: The vehicle's onboard diagnostic system may illuminate the check engine light, often accompanied by specific trouble codes related to ignition system faults.
• بې کاره کېدل: The engine may vibrate excessively or have an inconsistent idle speed.
• د پیل کولو مشکل: یو کمزوری یا غیر حاضر سپارک کولی شي د انجن پیل کول ستونزمن کړي یا یې په بشپړ ډول د پیل کیدو مخه ونیسي.
• د ځواک له لاسه ورکول: The vehicle may experience a noticeable decrease in acceleration and overall power.

سپارښتنه: If you suspect an ignition coil issue, it is recommended to have your vehicle diagnosed by a qualified technician. They can accurately identify the faulty component and ensure proper repair.

7. مشخصات

The following specifications apply to the NGK Ignition Coil U5033, Model 48127:

8. تضمین او ملاتړ

۸.۱ د جوړونکي تضمین

The NGK Ignition Coil U5033, Model 48127, is covered by a د جوړونکي یو کلن تضمین. This warranty typically covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

8.2 د پیرودونکي ملاتړ

For technical assistance, warranty inquiries, or further information regarding the NGK Ignition Coil U5033, Model 48127, please refer to the official NGK website or contact their customer service department. Contact details can typically be found on the product packaging or the manufacturer's official online resources.
