iJDMTOY H11/H8 Relay Harness Wire Kit with LED Light ON/Off Switch Instruction Manual

محصول پای ته ورسیدview

This iJDMTOY H11/H8 Relay Harness Wire Kit is designed to provide a reliable and efficient electrical connection for automotive driving lights, fog lights, off-road lighting, and other heavy-duty electronic devices. It ensures proper power management by drawing power directly from the battery, preventing excessive load on your vehicle's existing wiring system.

کلیدي ځانګړتیاوې:

• One relay wiring harness set includes a 4-pin SPST relay module box, in-line safety fuse box, pushbutton switch, input +/- terminals, and dual H11/H8/H9 outputs for reliable and efficient electrical connections.
• The pre-wired SPST 4-pin electrical relay unit, complete with socket and rated at 12V DC with a maximum of 30-40AMP, is ideal for most heavy duty electronic devices, light applications between 9-16V DC, with a wattagد 160W څخه ډیر نه وي.
• Universal fit teardrop shape push button toggle switch with double sided tape on the back, featuring a green/red LED on/off indicator light, easy to install anywhere you need to.
• Perfect for power management, this relay harness is ideal for applications like front fog/driving lights and off-road lightbars, pod lamps drawing power directly from the battery to prevent excessive load on the vehicle's existing wiring system and ensuring safe, easy on/off operation.

د بسته محتويات

The iJDMTOY H11/H8 Relay Harness Wire Kit includes the following components:

• 1x 4-pin SPST Relay Module Box
• 1x In-line Safety Fuse Box (with 30A fuse)
• 1x Pushbutton ON/OFF Switch with LED Indicator
• Input +/- Terminals (Red/Black O-ring/C-ring connectors)
• Dual H11/H8/H9 Output Connectors
• Associated Wiring

Image: The complete iJDMTOY H11/H8 Relay Harness Wire Kit, showing all components coiled together.

ترتیب او نصب کول

Follow these steps for proper installation of your iJDMTOY H11/H8 Relay Harness Wire Kit. Professional installation is recommended if you are unfamiliar with automotive electrical systems.

1. Wiring Diagram Overview

Image: Detailed wiring diagram illustrating connections for the power switch, relay, fuse, battery terminals, and fog lamps.

The diagram above shows the layout of the harness. The power switch connects to a positive trigger and ground. The 40A relay and 30A fuse are integrated. Battery connections are made via red (+) and black (-) terminals. Dual H11/H8/H9 outputs connect to your fog lamps.

2. Connecting to Fog Lamps

Connect the dual H11/H8/H9 output contacts from the harness to your light applications/devices. Ensure a secure connection for both the short and long side outputs, routing the long side to the furthest light.

Image: Close-up of the H11/H8 connectors, which are designed to plug directly into compatible fog light housings.

۲. د بریښنا او ځمکې اړیکې

Attach the red O-ring/C-ring connector to the positive (+) terminal of your vehicle's battery or an accessory 12V+ source. Attach the black O-ring/C-ring connector to the negative (-) terminal of the battery or a suitable ground point on the vehicle chassis.

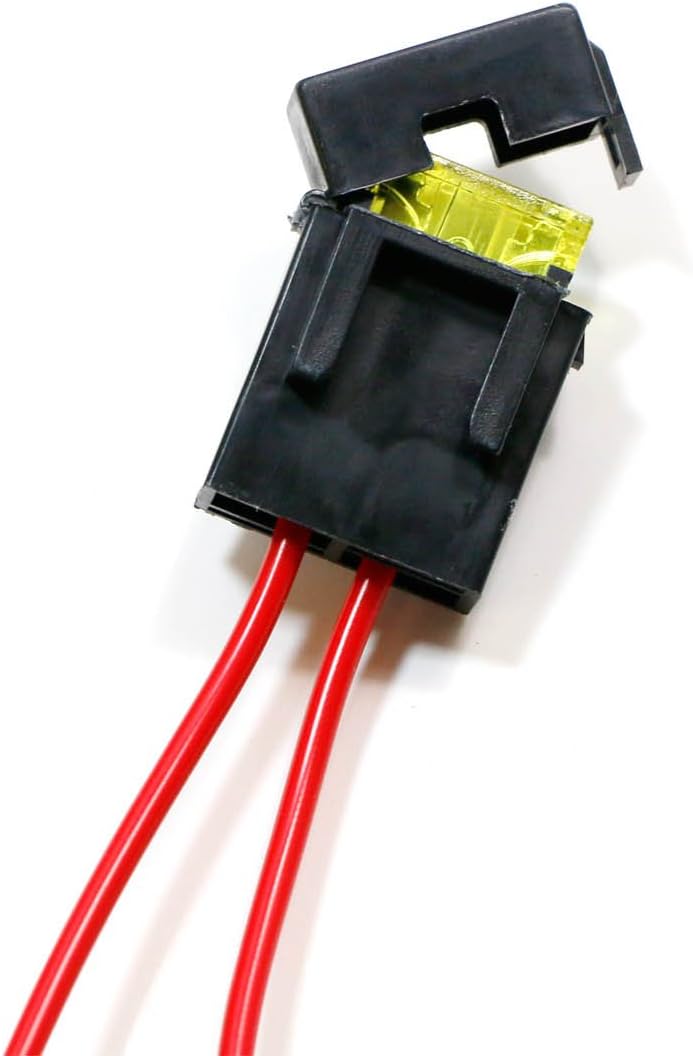

Image: The in-line fuse holder, which contains a 30A fuse for circuit protection. Ensure the fuse is properly seated.

Image: The 4-pin SPST relay, which manages power flow to the lights. This component should be mounted in a secure, dry location.

4. Installing the Pushbutton Switch

Route the signal triggering wires into the car interior near the dashboard. The universal fit teardrop shape push button toggle switch features double-sided tape for easy installation. Connect the switch to the designated wires from the harness.

Image: Close-up of the pushbutton ON/OFF switch, showing its green/red LED indicator. This switch allows for convenient control of your auxiliary lights.

انځور: یو پخوانیample of the pushbutton switch installed in a car's interior, demonstrating its compact size and discreet placement.

عملیاتي لارښوونې

Once the iJDMTOY H11/H8 Relay Harness Wire Kit is correctly installed, operating your auxiliary lights is straightforward:

1. Ensure your vehicle's ignition is in the "ON" or "ACC" position.
2. Locate the installed pushbutton ON/OFF switch in your vehicle's interior.
3. Press the button once to turn the connected lights ON. The LED indicator on the switch will illuminate (typically green) to confirm the lights are active.
4. Press the button again to turn the connected lights OFF. The LED indicator will change color (typically red) or turn off.

Image: A vehicle demonstrating the iJDMTOY fog lights in operation, showcasing the illumination provided by the installed kit.

ساتنه

The iJDMTOY H11/H8 Relay Harness Wire Kit is designed for durability and minimal maintenance. To ensure optimal performance and longevity:

• منظم معاینه: په دوره یي ډول د تارونو ټولې اړیکې د ټینګښت او د اغوستلو یا زنګ وهلو نښو لپاره وګورئ.
• د فیوز چک: If your lights stop working, first check the in-line 30A fuse. Replace it with a fuse of the same rating if it is blown.
• پاکوالی: Keep the relay module and fuse box free from excessive dirt and moisture.
• د کیبل مدیریت: Ensure all cables are securely routed and tied away from moving parts or hot engine components to prevent damage.

د ستونزو حل کول

If you encounter issues with your iJDMTOY H11/H8 Relay Harness Wire Kit, consider the following troubleshooting steps:

مشخصات

تضمین او ملاتړ

For warranty information or technical support regarding your iJDMTOY H11/H8 Relay Harness Wire Kit, please refer to the official iJDMTOY webسایټ ته مراجعه وکړئ یا مستقیم د دوی د پیرودونکو خدماتو سره اړیکه ونیسئ. د هر ډول تضمین ادعا لپاره د پیرود ثبوت په توګه د پیرود رسید وساتئ.

iJDMTOY Customer Service: مهرباني وکړئ لیدنه وکړئ iJDMTOY Store on Amazon د اړیکو جزئیاتو او نورو محصولاتو معلوماتو لپاره.
