Jiayin JYPC-4C Electromagnetic Solenoid Self-priming Steam Water Pump Instruction Manual

1. پیژندنه

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Jiayin JYPC-4C Electromagnetic Solenoid Self-priming Steam Water Pump. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage or injury.

شکل 1: مخکی view of the Jiayin JYPC-4C pump, showing the solenoid coil and water inlet/outlet connections. This image displays the main components and labeling.

2. د خوندیتوب لارښوونې

د بریښنایی شاک، اور لګیدو یا ټپي کیدو خطر کمولو لپاره تل لاندې خوندیتوب احتیاطي تدابیر په پام کې ونیسئ.

• بریښنایی خوندیتوب: Ensure the pump is connected to a power supply matching the specified voltage (AC220-240V 50Hz). Disconnect power before installation, maintenance, or troubleshooting. All electrical connections should be performed by a qualified electrician.
• د اوبو خوندیتوب: This pump is designed for water. Do not use it with flammable liquids or corrosive chemicals. Ensure all water connections are secure to prevent leaks.
• د نصب کولو چاپیریال: Install the pump in a dry, well-ventilated area, protected from extreme temperatures and direct sunlight.
• ماشومان او څاروي: Keep the pump out of reach of children and pets.
• د زیانونو معاینه: Before each use, inspect the pump for any signs of damage. Do not operate a damaged pump.

3. د محصول ب Featuresې

The Jiayin JYPC-4C pump offers the following key features:

• Original Jiayin electromagnetic pump, model: JYPC-4C.
• Certified with CE and VDE authority, ensuring high product quality.
• Operates on AC220-240V 50Hz power supply with a power consumption of 22W.
• Capable of achieving a maximum pressure of 6.5 bar.
• Provides an average flow rate of 75cc/min.

4. ترتیب او نصب کول

Proper installation is crucial for the pump's performance and longevity. If you are unsure about any step, consult a qualified professional.

1. پورته کول: Securely mount the pump in a stable position, ensuring it is level. Consider vibration isolation if necessary.
2. د اوبو د ننوتلو اتصال: Connect the water supply line to the pump's inlet. Ensure a tight, leak-free connection. The inlet typically has a larger diameter.
3. Water Outlet Connection: Connect the output line to the pump's outlet. Verify secure connections to prevent leaks under pressure. The outlet typically has a smaller diameter.
4. بریښنایی پیوستون: Connect the pump to a compatible AC220-240V 50Hz power source. Ensure the wiring is correct and secure. It is recommended to use a dedicated circuit with appropriate overcurrent protection.
5. پرائمینګ (که اړتیا وي): As a self-priming pump, it should draw water automatically. However, for initial setup or after extended dry periods, ensure the inlet line is submerged in water before powering on to assist with priming.

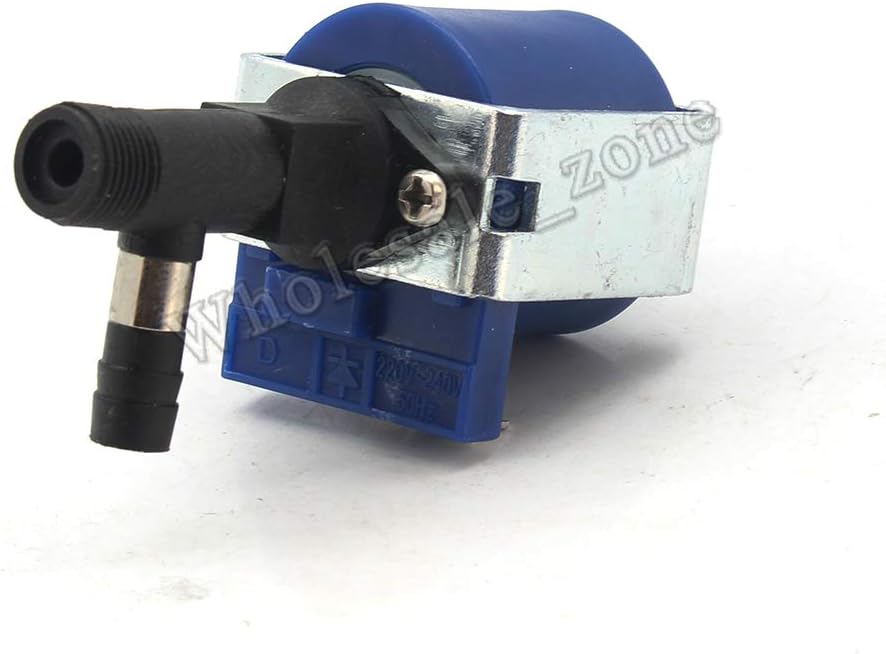

شکل 2: مختلف views of the JYPC-4C pump, illustrating the water connections and electrical terminals for proper setup.

5. عملیاتي لارښوونې

Once installed, operating the JYPC-4C pump is straightforward:

1. پاور آن: Ensure all connections are secure and the water source is available. Apply power to the pump. The pump will begin to operate, drawing water.
2. څارنه: Observe the pump during its initial operation for any unusual noises, vibrations, or leaks.
3. بندول: To stop the pump, simply disconnect the power supply.

Note: This pump is designed for intermittent or continuous duty as specified by its ED100% rating, indicating it can operate continuously. Refer to the product label for specific duty cycle information.

6. ساتنه

Regular maintenance helps ensure the longevity and reliable performance of your pump.

• منظم معاینه: Periodically check all water connections for leaks and electrical connections for signs of wear or corrosion.
• پاکول: Keep the exterior of the pump clean and free from dust and debris. Do not use harsh chemicals for cleaning.
• Filter Check (if applicable): If your system includes an inline filter before the pump, inspect and clean it regularly to prevent clogging and maintain flow rate.
• ژمی کول (که د تطبیق وړ وي): If the pump is used in an environment where temperatures drop below freezing, ensure it is drained completely to prevent damage from freezing water.

7. ستونزه حل کول

د عامو ستونزو او د هغوی د احتمالي حل لارو لپاره لاندې جدول ته مراجعه وکړئ.

8. مشخصات

Detailed technical specifications for the Jiayin JYPC-4C pump:

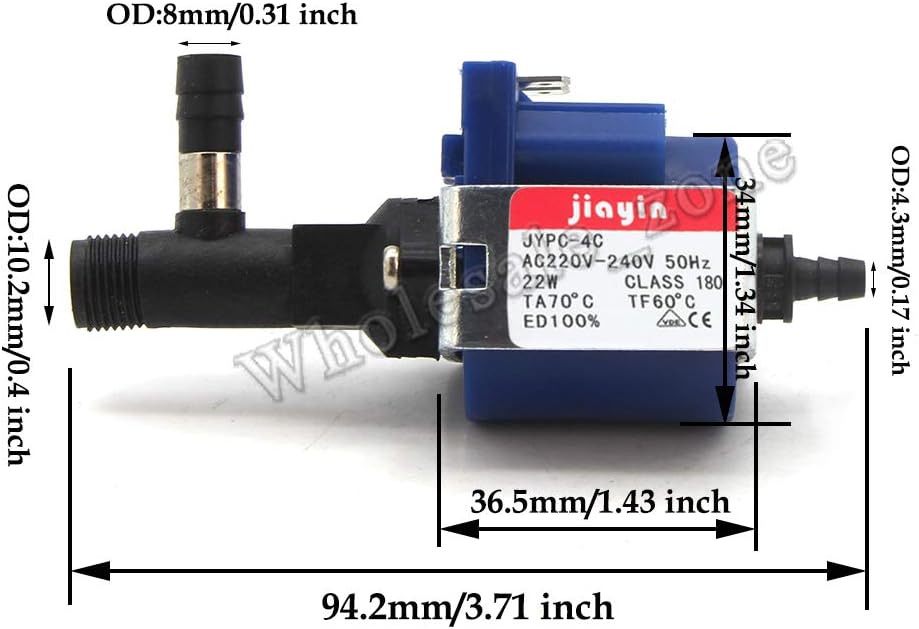

شکل 3: Dimensional drawing of the JYPC-4C pump, showing key measurements for installation planning.

9. تضمین او ملاتړ

د تضمین معلوماتو او تخنیکي ملاتړ لپاره، مهرباني وکړئ د خپل پیرود سره چمتو شوي اسنادو ته مراجعه وکړئ یا مستقیم له تولیدونکي سره اړیکه ونیسئ. د پیرود ثبوت په توګه د پیرود رسید وساتئ.

Manufacturer: Fankerba
