Hbada W203 Gaming Chair Instruction Manual

1. پیژندنه او وروستهview

The Hbada W203 Gaming Chair is designed to provide ergonomic support and comfort for extended periods of sitting, whether for gaming or office work. It features a robust construction, adjustable components, and a design focused on user well-being.

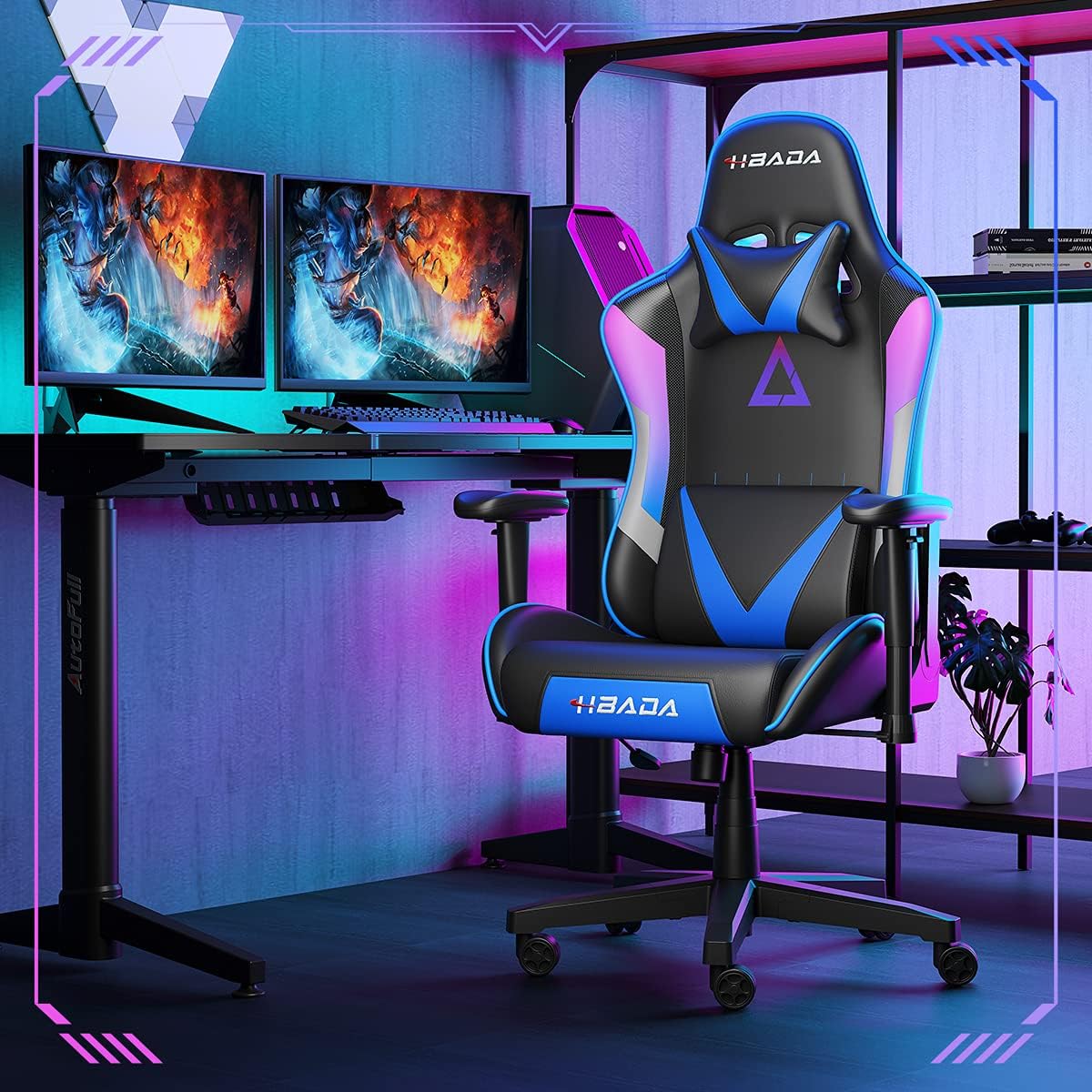

Image 1.1: The Hbada W203 Gaming Chair in a typical gaming environment, showcasing its design and presence.

2. د خوندیتوب معلومات

• د وزن اعظمي ظرفیت له ۳۴۰ کیلوګرامه (۷۵۰ پونډه) څخه زیات مه کوئ.
• ډاډ ترلاسه کړئ چې ټول بولټونه او پیچونه د کارولو دمخه په خوندي ډول ټینګ شوي دي او په دوره یي ډول د نرموالي لپاره وګورئ.
• په څوکۍ د ودرېدو یا د زینې د څوکۍ په توګه د کارولو څخه ډډه وکړئ.
• د تنظیم کولو پرمهال لاسونه او ګوتې د حرکت کونکو برخو څخه لرې وساتئ.
• څوکۍ په یوه فلیټ او مستحکم سطحه وکاروئ ترڅو د ټیپ کولو مخه ونیسئ.

3. د بسته محتويات

د اسمبلۍ پیل کولو دمخه ډاډ ترلاسه کړئ چې ټولې برخې شتون لري. که چیرې کومې برخې ورکې یا زیانمنې وي، د پیرودونکي خدماتو سره اړیکه ونیسئ.

• شالید
• د څوکۍ کشن
• وسله (2)
• سټار بیس
• کاسټر (5)
• د ګاز سلنډر
• د ګاز لفټ پوښ
• د میکانیزم پلیټ
• د سر بالښت
• د لمر ملاتړ بالښت
• د هارډویر پیک (پیچونه، واشیرونه، د ایلن رنچ)
• د لارښوونې لارښود

4. د مجلس لارښوونې

Assembly typically requires two people due to the weight of some components. Follow these steps carefully.

1. کاسټرونه له اساس سره وصل کړئ: Insert each of the five casters into the holes at the end of each leg of the star base until they click into place.
2. د ګازو لفټ داخل کړئ: د ګازو د پورته کولو سلنډر د ستوري اساس په مرکزي سوري کې ځای په ځای کړئ. د ګازو د پورته کولو پوښ سره یې پوښ کړئ.
3. د څوکۍ سره د میکانیزم پلیټ وصل کړئ: Align the mechanism plate with the screw holes on the underside of the seat cushion. Secure it with the provided screws and Allen wrench. Ensure the front of the mechanism faces the front of the seat.
4. د څوکۍ سره د بازو پټۍ وصل کړئ: Secure the armrests to the sides of the seat cushion using the designated screws. Do not overtighten initially to allow for minor adjustments.
5. د څوکۍ سره شاته برخه وصل کړئ: Align the backrest with the mounting brackets on the seat cushion. Secure it with screws.
6. د څوکۍ اسمبلۍ له بیس سره وصل کړئ: Carefully place the assembled seat onto the gas lift cylinder, ensuring it is centered. Apply downward pressure to secure it.
7. Attach Headrest and Lumbar Support: Position the headrest pillow and lumbar support pillow as desired. They are typically secured with straps.
8. وروستی کلکوالی: Once fully assembled, go back and tighten all screws firmly.

انځور 4.1: اوورview of chair features, including lift function, height-adjustable armrests, 155-degree recline, silent casters, 360-degree rotation, and durable base.

5. عملیاتي لارښوونې

۱. د څوکۍ لوړوالی تنظیمول

To adjust the chair height, locate the lever on the right side, beneath the seat. While seated, pull the lever up to lower the chair. To raise the chair, stand up slightly and pull the lever up. Release the lever at the desired height.

۵.۱. د تکیه کولو فعالیت

The chair offers a recline angle of up to 155 degrees with a 17-degree locking feature. To recline, pull the recline lever (typically on the left side) upwards and lean back. Release the lever to lock the backrest in position. To return to an upright position, pull the lever and lean forward.

Image 5.1: The chair's backrest can recline up to 155 degrees, allowing for various comfortable positions.

۵. د بازو تنظیمول

The armrests can be lifted to adjust their height. Locate the button or lever on the side of each armrest. Press or lift it and move the armrest up or down to your preferred height. Release the button/lever to lock it.

5.4. Lumbar Support and Headrest

The chair includes removable and adjustable headrest and lumbar support pillows. Adjust their position by sliding them along the backrest straps to provide optimal support for your head, neck, and lower back.

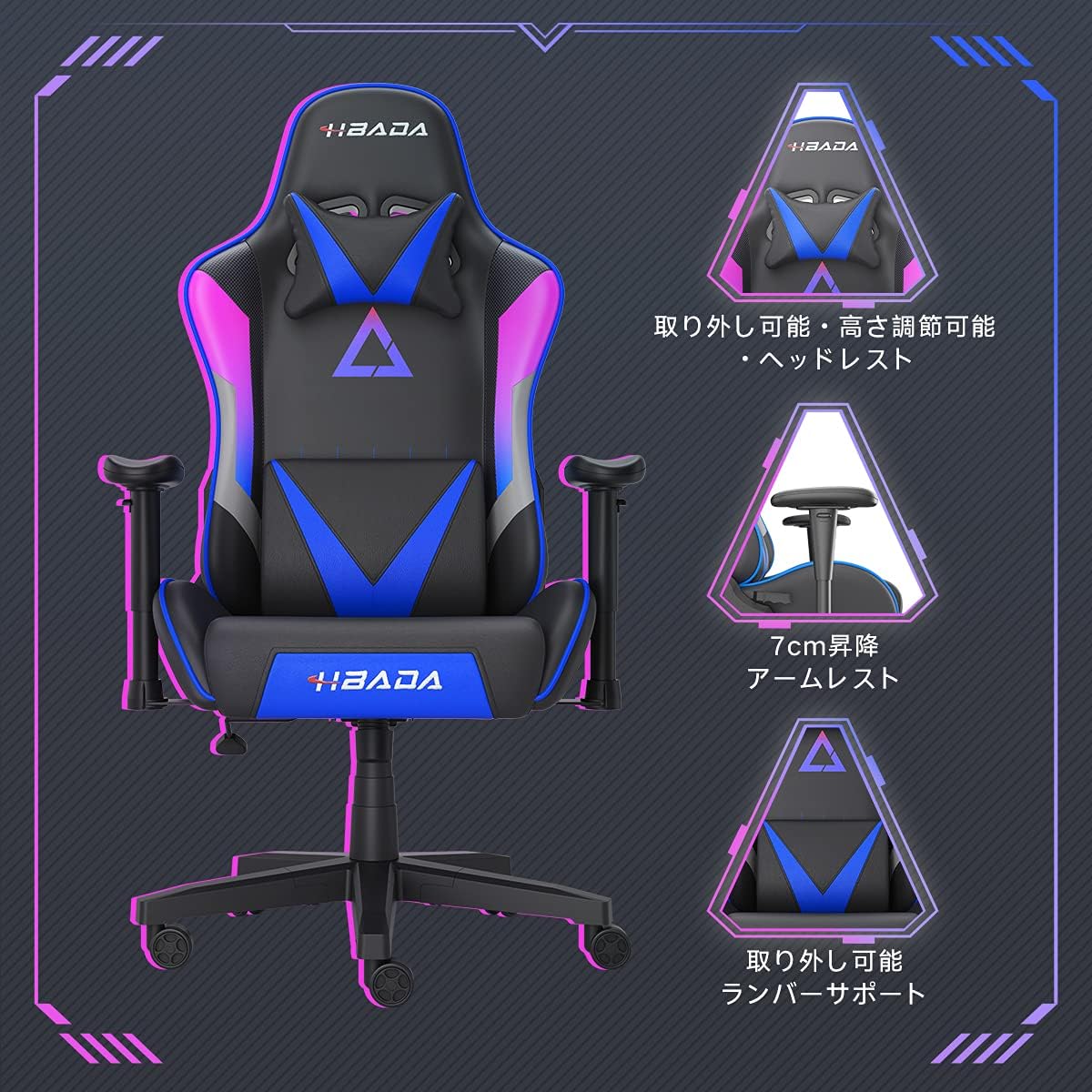

انځور ۲: تفصیلي view of the adjustable headrest, lifting armrests, and removable lumbar support.

۵.۲. د څرخيدو دنده

The chair features a 360-degree swivel function, allowing for easy rotation without moving the base.

6. ساتنه

• پاکول: The chair's synthetic leather (PU) material can be wiped clean with a damp ټوکر. د سختو کیمیاوي موادو یا د کثافاتو پاکوونکو څخه ډډه وکړئ.
• بندونکي: Periodically check all screws and bolts to ensure they remain tight. Retighten as necessary to maintain stability and prevent squeaking.
• کاسټرې: Keep the casters free of hair and debris to ensure smooth movement.

7. ستونزه حل کول

• د څوکۍ چیغې: Check and tighten all assembly screws. Applying a small amount of lubricant to moving metal parts (like the mechanism plate) may help.
• د لوړوالي تنظیم کار نه کوي: Ensure the gas lift lever is fully engaged. If the issue persists, the gas lift cylinder may need replacement. Contact customer service.
• څوکۍ بې ثباته احساسوي: Verify that the star base is correctly assembled and all casters are fully inserted. Ensure all screws are tightened.
• کاسټرونه چې په اسانۍ سره نه ګرځي: د کاسټر څرخونو څخه هر ډول کثافات (ویښتان، دوړې) پاک کړئ.

For issues not listed here or persistent problems, please contact Hbada customer service.

8. مشخصات

Image 8.1: Key dimensions of the Hbada W203 Gaming Chair.

Image 8.2: Internal construction details, showing high-density foam and a robust metal frame.

9. تضمین او ملاتړ

The Hbada W203 Gaming Chair comes with a د 1 کال تضمین خدمت. This warranty covers initial defects and manufacturing faults.

If you encounter any initial defects, malfunctions, or have any concerns regarding your product, please contact our customer service center. Our support team aims to respond within 24 hours and will assist with free exchanges or repairs as applicable.

For customer service inquiries, please refer to the contact information provided on your purchase receipt or the official Hbada webسایټ
