vidaXL Galvanized Steel Outdoor Storage Shed (Model 3147440) - User Manual

1. پیژندنه

This manual provides essential instructions for the assembly, operation, and maintenance of your vidaXL Galvanized Steel Outdoor Storage Shed. Please read this manual thoroughly before beginning assembly or using the product to ensure safe and correct usage. This shed is designed to provide a durable and spacious outdoor storage solution for tools, gardening equipment, and other outdoor items.

Image 1: The vidaXL Galvanized Steel Outdoor Storage Shed situated in an outdoor garden environment.

2. د خوندیتوب معلومات

خبرداری: د دې خوندیتوب لارښوونو په تعقیب کې پاتې راتلل ممکن د ټپي کیدو یا ملکیت زیان لامل شي.

• د راټولولو پرمهال تل مناسب شخصي محافظتي تجهیزات (PPE) واغوندئ، په شمول د دستکشو او سترګو محافظت.
• Ensure the assembly area is clear of obstructions and children or pets.
• Assemble the shed on a level, stable surface.
• د تیزو بادونو یا د هوا د خرابو شرایطو په جریان کې د شیډ د راټولولو هڅه مه کوئ.
• دا محصول د کالیفورنیا ایالت ته پیژندل شوي کیمیاوي توکي لري چې د سرطان او زیږون نیمګړتیاو یا نورو زیږون زیان لامل کیږي. له مینځلو وروسته لاسونه ومینځئ.
• Secure the shed to the ground after assembly to prevent tipping in high winds. Anchoring hardware may be required and is not always included.
• د شیډ دننه د اور اخیستونکي مایعات یا خطرناک توکي مه ساتئ.
• Keep the shed door closed when not in use to prevent unauthorized access or accidental entry.

3. د بسته محتويات

The vidaXL Galvanized Steel Outdoor Storage Shed is delivered as an assembly kit. Please verify all components are present and undamaged before beginning assembly. Refer to the detailed parts list provided in your separate assembly manual for specific component identification.

عادي محتويات پکې شامل دي:

• Galvanized steel panels for walls and roof
• Frame components (beams, supports)
• د سلایډینګ دروازې اسمبلۍ
• د هوا د وتلو برخې
• Fasteners (screws, bolts, nuts)
• د شورا لارښود

۴. د تنظیم او راټولولو لارښوونې

Assembly of the vidaXL storage shed requires careful attention to detail. It is recommended that at least two adults perform the assembly. A comprehensive assembly manual is included with your product, providing step-by-step diagrams and instructions.

۵.۱ اړین وسایل (شامل نه دي)

• د کار دستکشې
• د خوندیتوب شیشې
• سکریو ډرایور (د فیلیپس سر سپارښتنه کیږي)
• د رنچ یا ساکټ سیټ
• د اندازه کولو ټیپ
• کچه
• Drill (optional, for pilot holes if needed)

۴.۱ د غونډې څخه مخکې مرحلې

1. د سایټ چمتو کول: Choose a level, well-drained area for your shed. A concrete slab or treated timber foundation is recommended for optimal stability and longevity.
2. برخې خلاصې کړئ او وپیژنئ: Carefully unpack all components and compare them against the parts list in your assembly manual. Report any missing or damaged parts immediately.
3. اجزا تنظیم کړئ: Group similar parts together to streamline the assembly process.

4.3 مجلس ختم شوview

Follow the detailed instructions in your provided assembly manual. The general sequence involves:

1. د اساس چوکاټ راټولول.
2. Attaching wall panels.
3. Installing the roof structure and panels.
4. Mounting the sliding door assembly.
5. Installing air vents and any remaining trim.

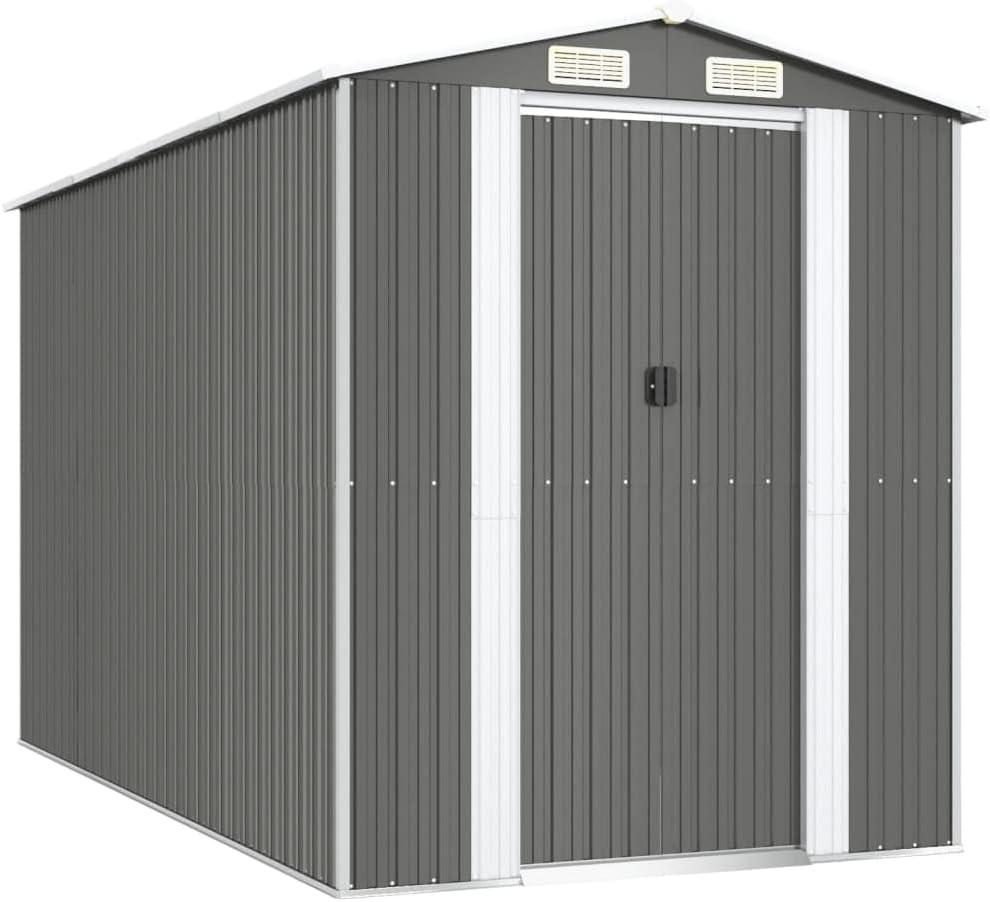

انځور 2: مخکی view of the assembled shed, showcasing the closed sliding door and roof vents.

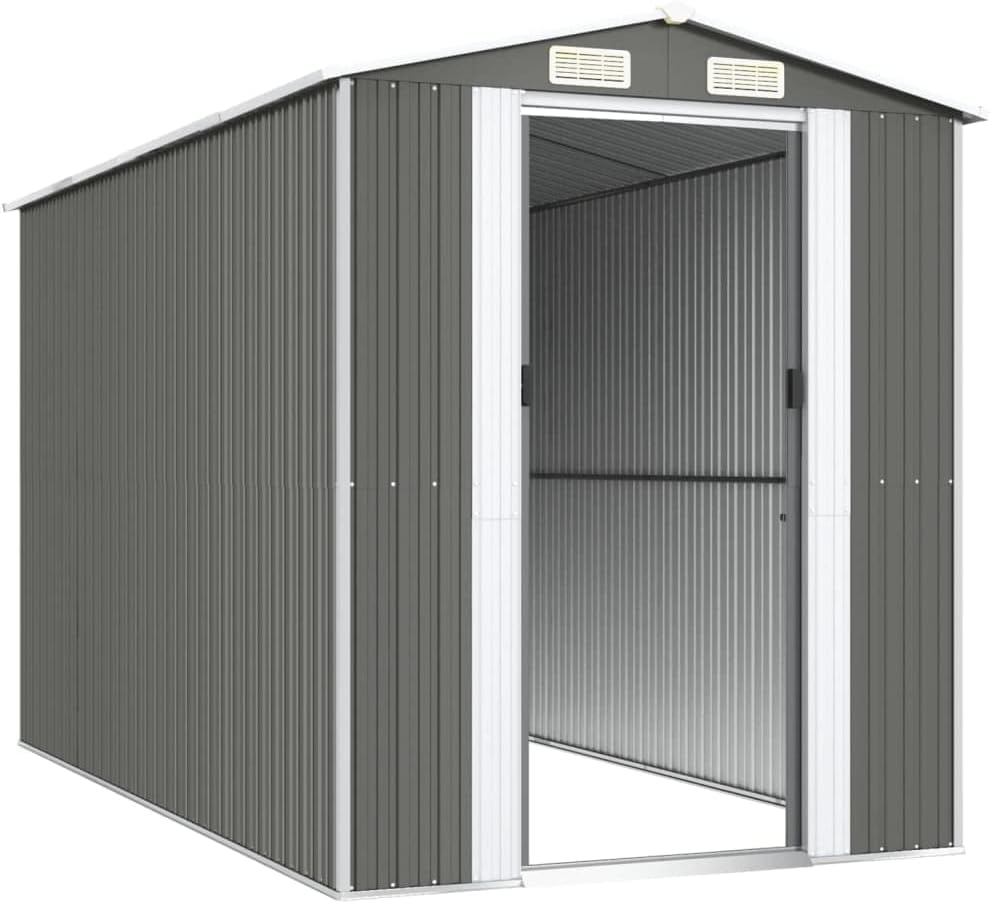

انځور 3: مخکی view of the shed with the sliding door open, revealing the interior space.

انځور ۵.۱: اړخ view of the assembled shed, showing the corrugated galvanized steel panels.

5. عملیاتي لارښوونې

5.1 Sliding Door Operation

The shed features a convenient sliding gate for access. To open, gently slide the door along its track. To close, slide it back until it meets the frame. Ensure the track is clear of debris for smooth operation.

Image 5: Detail of the ergonomic handle on the sliding door for easy opening and closing.

5.2 د هوا تنفس

The shed is equipped with integrated air vents located near the roofline. These vents facilitate air circulation, helping to reduce moisture buildup and maintain a fresh environment inside the shed. No manual operation is required for the vents; they are designed for passive airflow.

6. ساتنه

Regular maintenance will extend the life and appearance of your vidaXL storage shed.

• پاکول: د کوټې بهرنۍ برخه په منظم ډول په نرمو صابون او اوبو سره پاکه کړئ. د کثافاتو پاکوونکو یا سختو کیمیاوي موادو څخه ډډه وکړئ چې کولی شي د ګالوانیز فولادو پای ته زیان ورسوي. په پاکو اوبو سره په بشپړه توګه ومینځئ.
• د دروازې لارې: Keep the sliding door tracks clean and free of dirt, leaves, or other debris to ensure smooth operation. Lubricate tracks with a silicone-based spray if movement becomes stiff.
• بندونکي: Periodically check all screws and bolts for tightness, especially after strong winds. Tighten any loose fasteners.
• د زنګونو معاینه: Although made of galvanized steel, inspect for any signs of rust, particularly in areas where the coating might be scratched or damaged. Address any rust spots promptly with appropriate rust-inhibiting paint.
• وینټیلیشن: Ensure air vents remain unobstructed to allow for proper airflow.

7. ستونزه حل کول

• Door sticks or is difficult to slide:
  • Check the door tracks for debris and clean them thoroughly.
  • Ensure the shed is assembled on a level surface. Uneven ground can cause the frame to twist, affecting door alignment.
  • Apply a silicone lubricant to the door rollers and tracks.
• Water leakage inside the shed:
  • Inspect roof panels and wall seams for proper overlap and secure fastening.
  • Check for any gaps around the base or door frame. Seal with appropriate outdoor sealant if necessary.
  • Ensure the shed is on a raised foundation to prevent water ingress from the ground.
• شیډ بې ثباته احساس کوي:
  • Verify all fasteners are securely tightened.
  • Ensure the shed is anchored to the ground using appropriate anchoring kits (sold separately).
  • Confirm the foundation is level and stable.

8. مشخصات

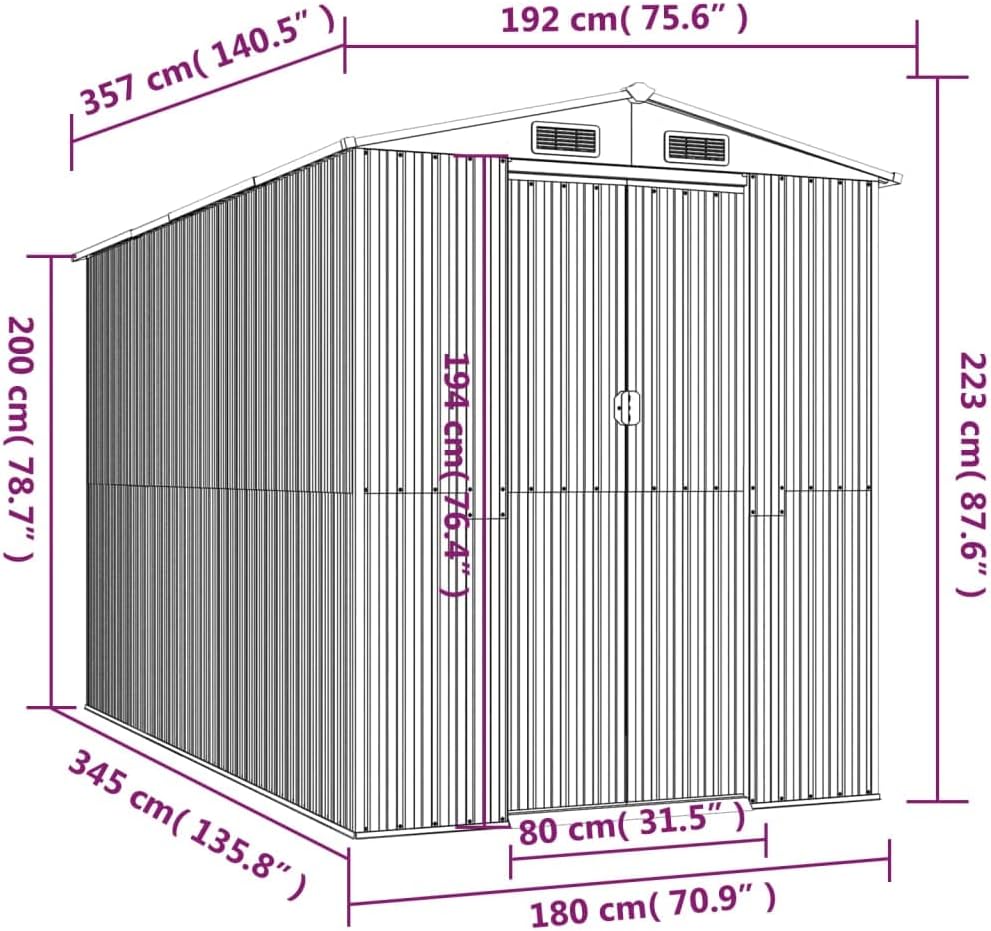

Image 6: Dimensional diagram of the shed, indicating width, length, and height measurements in both inches and centimeters.

9. تضمین او ملاتړ

For specific warranty details, please refer to the documentation included with your purchase or contact your retailer. vidaXL offers customer support for product inquiries and assistance.

If you require assistance with assembly, missing parts, or have questions regarding your shed, please contact vidaXL customer service. Contact information can typically be found on the product packaging or the official vidaXL webسایټ

د راستنیدو پالیسي: This product typically includes a 30-day easy return policy. Please consult your purchase receipt or retailer for specific return conditions.
