AirWire 12' x 20' Heavy Duty Portable Carport Instruction Manual

1. پیژندنه

Thank you for choosing the AirWire 12' x 20' Heavy Duty Portable Carport. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new carport. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This carport is designed to provide robust protection for vehicles, boats, or serve as a versatile shelter for outdoor events. Its durable construction and thoughtful features ensure long-lasting performance.

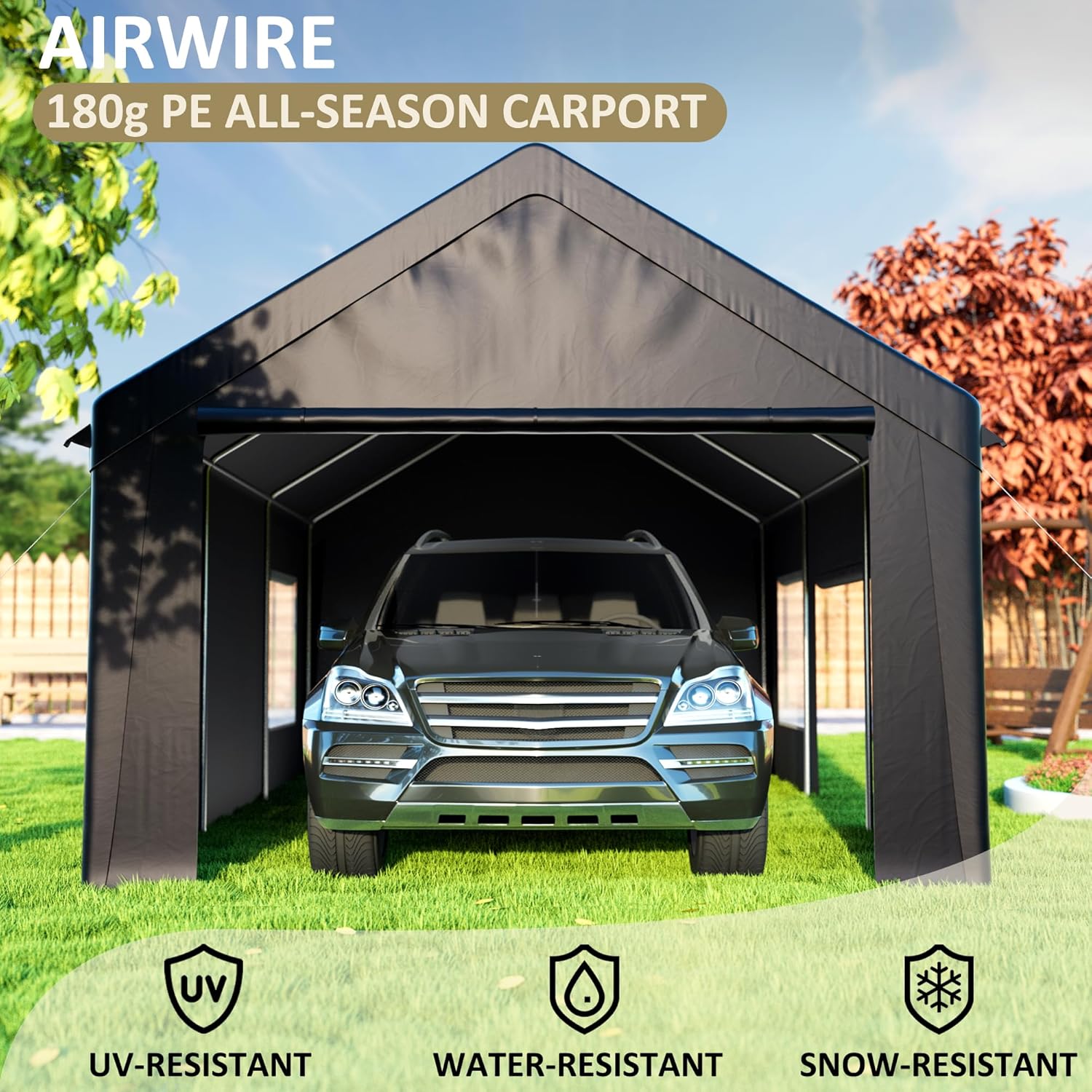

Figure 1.1: The AirWire 12' x 20' Heavy Duty Portable Carport, providing shelter for a vehicle.

2. د خوندیتوب مهم ګواښونه

د دې خوندیتوب لارښوونو په تعقیب کې پاتې راتلل ممکن د جدي ټپي کیدو یا ملکیت زیان لامل شي.

• مناسب لنگر کول: Ensure the carport is securely anchored to the ground using all provided ground stakes and cables. In areas prone to high winds or severe weather, additional anchoring methods (e.g., concrete anchors, heavy-duty auger anchors, sandbags) are strongly recommended.
• د وزن ظرفیت: Do not exceed the structural weight capacity of the carport. Avoid hanging heavy objects from the frame.
• مجلس او بې ځایه کول: Exercise extreme caution during assembly and disassembly. Wear appropriate personal protective equipment, including gloves and safety glasses. Work with at least two people for safe handling of components.
• د اور خطر: Keep the carport away from open flames, heaters, and other ignition sources. The polyethylene material is flammable.
• Snow and Ice Removal: In snowy conditions, regularly remove accumulated snow and ice from the canopy to prevent structural collapse. Do not allow heavy snow loads to remain on the roof.
• د سایټ انتخاب: Choose a level, well-drained area for installation. Avoid placing the carport under power lines or near trees with falling branches.

3. د بسته محتويات

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer service immediately.

Figure 3.1: Detail of the upgraded square base with four anchoring points.

4. تنظیم او مجلس

Assembly is designed to be straightforward. Each part is specifically numbered. No additional tools are typically required beyond what may be included or commonly available household items (e.g., a hammer for stakes).

1. سایټ چمتو کړئ: Select a flat, clear area for assembly. Ensure adequate space around the carport for installation and future access.
2. Assemble the Top Frame (Step 1): Begin by connecting the top frame poles and joints according to the numbered parts in your specific parts list. Lay them out on the ground to form the roof structure.
3. Assemble 8 Pillar Steel Pipes (Step 2): Attach the vertical support poles (pillars) to the assembled top frame. Ensure all connections are secure.
4. Cover the Frame with Tarpaulin (Step 3): Carefully drape the main canopy cover over the assembled frame. Align it properly to ensure even coverage.
5. Cover the Sides with Tarpaulins (Step 4): Attach the side panels, including those with roll-up windows and the side-opening door, to the main frame. Secure them as per the instructions.
6. Secure Carport with Ground Nails (Step 5): Once the structure is complete, use the provided ground stakes and cables to firmly anchor the carport to the ground. Ensure all anchoring points are utilized for maximum stability.

Figure 4.1: Visual guide for the carport assembly steps.

Figure 4.2: The assembled carport highlighting its all-season protective qualities.

5. عملیات او کارول

The AirWire carport offers flexible usage options thanks to its thoughtful design.

5.1 Roll-Up Windows and Side-Opening Door

The carport features four roll-up mesh windows on both sides and a unique side-opening door. These features are designed to provide excellent ventilation and easy access.

• To open a window, unfasten the securing straps or zippers and roll the window panel upwards. Secure it in the rolled-up position using the attached fasteners.
• To close a window, unfasten it from the rolled-up position and carefully unroll it downwards, securing it with the straps or zippers.
• The side-opening door operates similarly, allowing for convenient entry and exit without needing to open the main front or rear panels.

Figure 5.1: Accessible design with enhanced ventilation through roll-up windows and side door.

5.2 Versatile Usage

Beyond vehicle storage, the carport's removable sidewalls make it adaptable for various outdoor functions:

• د وسایطو ذخیره کول: Protects cars, trucks, boats, and other vehicles from sun, rain, and snow.
• بهرنۍ پیښې: With sidewalls removed, it can serve as an open canopy for parties, gatherings, or business functions, providing shade and a designated space.
• عمومي ذخیره: Ideal for storing lawnmowers, bikes, garden equipment, and other items that require protection from the elements.

Figure 5.2: Multi-purpose use as an open canopy for outdoor gatherings.

6. ساتنه

Regular maintenance will extend the life of your AirWire carport.

• پاکول: Clean the canopy and frame periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material or finish. Rinse thoroughly.
• معاینات: Regularly inspect all frame connections, anchoring points, ropes, and the canopy material for any signs of wear, damage, or loosening. Tighten connections and replace damaged parts as needed.
• Snow and Ice: As mentioned in safety warnings, promptly remove snow and ice accumulation from the canopy to prevent structural strain. Use a soft brush or broom to avoid damaging the material.
• ذخیره کول: If disassembling for storage, ensure all components are clean and dry before packing. Store in a cool, dry place away from direct sunlight and extreme temperatures.

7. ستونزه حل کول

دا برخه هغه عامې ستونزې په ګوته کوي چې تاسو ورسره مخ کیدی شئ.

8. مشخصات

Figure 8.1: Key dimensions of the AirWire Carport.

9. تضمین او ملاتړ

For information regarding warranty coverage, replacement parts, or technical support, please refer to the warranty card included with your product or contact AirWire customer service directly. Contact details can typically be found on the product packaging or the official AirWire webسایټ

Please have your model number (ACP2012BQ) and purchase date ready when contacting support.
