MOKA SFX Electric Confetti Cannon MK-CN07 User Manual

1. پیژندنه

Thank you for choosing the MOKA SFX Electric Confetti Cannon MK-CN07. This device is designed to create spectacular confetti effects for various events such as DJ performances, stage shows, weddings, parties, nightclubs, concerts, and more. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your confetti cannon.

2. د خوندیتوب معلومات

Please read all safety warnings and instructions carefully before operating this device. Failure to do so may result in injury or damage to the product.

• Always ensure the device is placed on a stable, level surface.
• Keep a safe distance from the nozzle when operating. Do not look directly into the nozzle.
• Do not insert any objects into the confetti outlet.
• Ensure the power supply matches the device's requirements (110V 60Hz or 220V 50Hz).
• Disconnect power before cleaning, maintenance, or when the device is not in use.
• This device is for indoor use or covered outdoor use only, protected from moisture.
• Keep out of reach of children and unauthorized personnel.
• Use only approved confetti cartridges or bulk confetti suitable for this machine.

3. د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په بسته کې شامل دي:

• 1 x MOKA SFX Electric Confetti Cannon (MK-CN07)
• 1 x د بریښنا کیبل
• 1 x DMX کیبل
• 1 x Remote Control (requires 23A battery, not included)
• 1 x د کارونکي لارښود

Image: Contents of the MOKA SFX Electric Confetti Cannon package.

4. محصول ختم شوview

The MOKA SFX Electric Confetti Cannon MK-CN07 is a robust and versatile device designed for dynamic confetti effects. It features a compact aluminum design, adjustable confetti dispersion, and multiple control options.

انځور: مخکینۍ برخه view of the MOKA SFX Electric Confetti Cannon.

کلیدي ځانګړتیاوې:

• Adjustable Confetti Dispersion: Manual angle adjustment up to 180 degrees for precise control over confetti direction and spread.
• تړون ډیزاین: Ideal for venues with limited space, easily integrating into event setups.
• Enhanced DMX Signal Transmission: Ensures accurate and rapid DMX signal transmission, minimizing delays.
• د څو اړخیز کنټرول اختیارونه: Supports manual operation, remote control, and DMX compatibility.

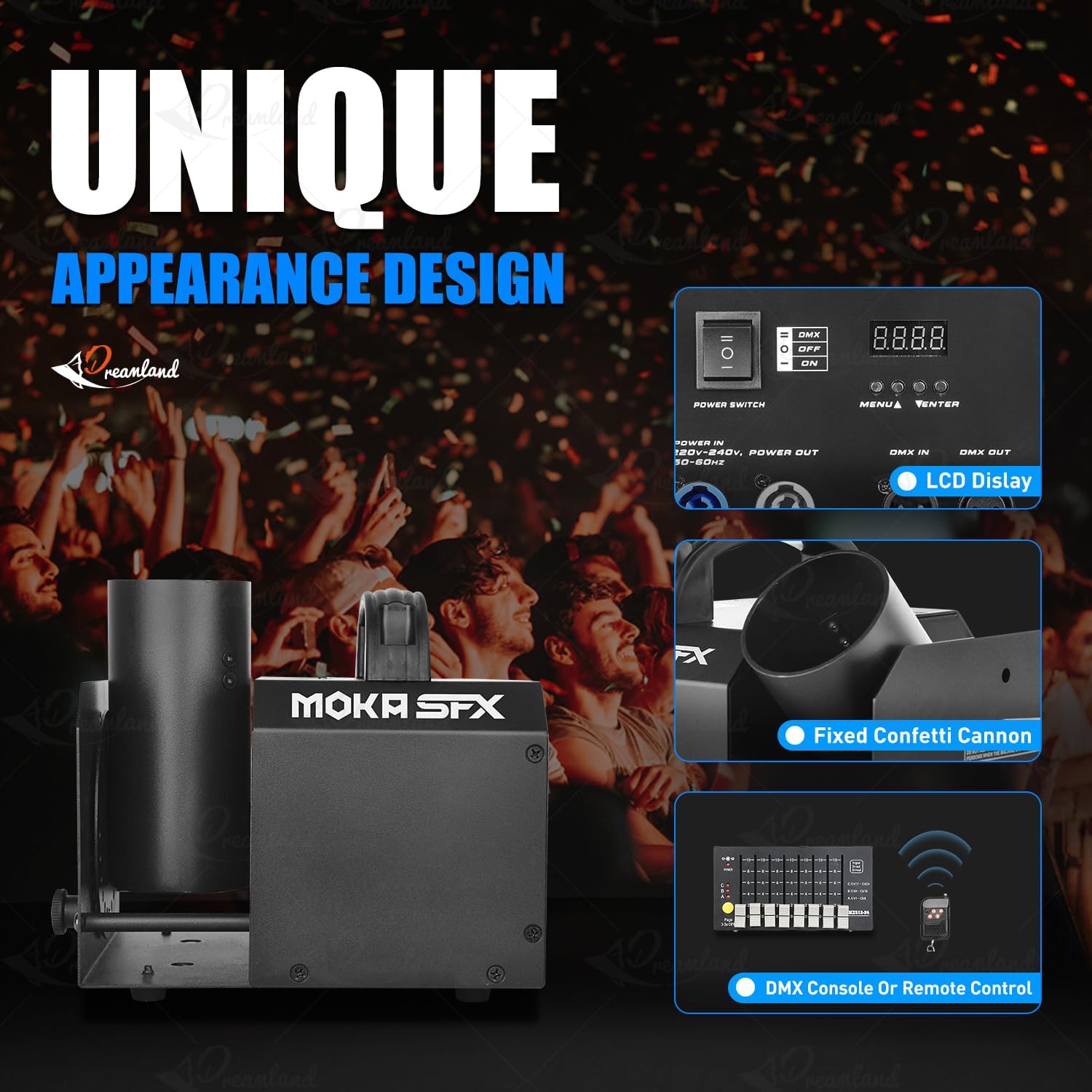

Image: Control panel and key features of the confetti cannon.

Image: Manual angle adjustment mechanism.

5. ترتیب کول

1. بسته بندي کول: Carefully remove the confetti cannon and all accessories from the packaging. Inspect for any signs of damage.
2. ځای په ځای کول: Position the machine on a stable, flat surface. Ensure there is adequate space around the device for operation and safety.
3. Confetti Loading: Insert the confetti cannon cartridge into the designated slot on the machine. Ensure it is securely seated. If using bulk confetti, load it into the appropriate compartment according to the machine's design.
4. زاویه تعدیل: Manually adjust the nozzle angle up to 180 degrees to achieve the desired confetti dispersion direction. Use the adjustment knob or lever if available.
5. د بریښنا پیوستون: Connect the power cable to the machine and then to a suitable power outlet (110V 60Hz or 220V 50Hz).
6. Control Connection (Optional):
   • د DMX کنټرول: Connect a DMX cable from your DMX controller to the DMX IN port on the confetti cannon. If linking multiple units, connect from DMX OUT of the first unit to DMX IN of the next.
   • ریموټ کنټرول: Ensure the remote control has a working 23A battery installed.

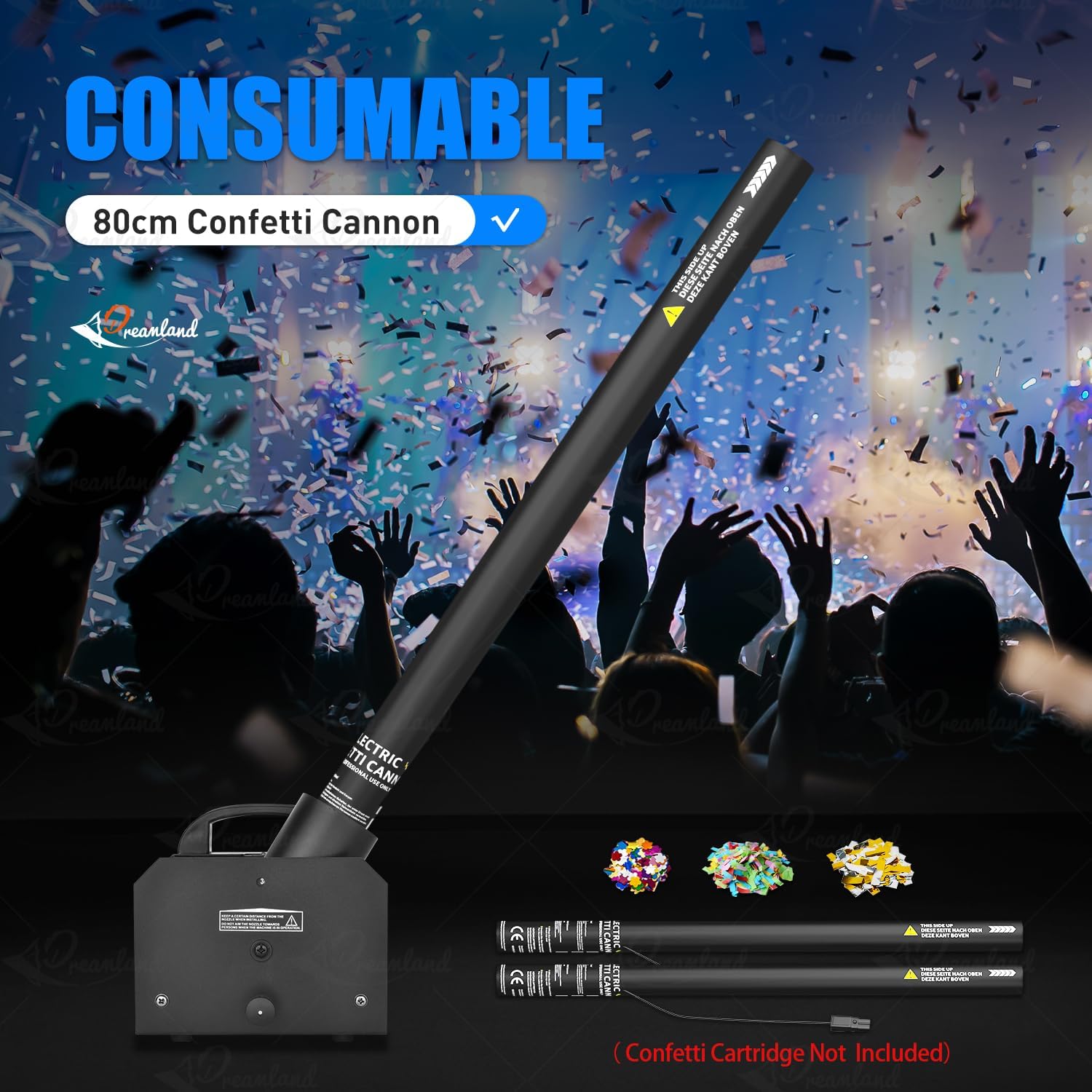

Image: Loading a confetti cannon consumable into the machine.

6. عملیاتي لارښوونې

فعالول:

Flip the main power switch to the 'ON' position. The LCD display (if present) will illuminate, indicating the machine is ready.

د کنټرول حالتونه:

The MOKA SFX Electric Confetti Cannon offers multiple control options:

• لاسي عملیات: Some models may have a direct trigger button on the unit for immediate confetti release.
• ریموټ کنټرول: Use the provided wireless remote control to activate the confetti effect. Press the designated button on the remote to trigger the confetti. Ensure the remote has a fresh 23A battery.
• د DMX512 کنټرول: For professional setups, connect the machine to a DMX controller.

Image: Available control modes: DMX512 and Remote Control.

د DMX عملیات:

The device uses 5 DMX channels. Refer to your DMX controller's manual for specific programming instructions. Typically, one channel will control the confetti release, while others might control effects like angle or duration if applicable.

1. Set the DMX address on the confetti cannon using the onboard display and buttons (MENU, UP, DOWN, ENTER).
2. Consult the DMX chart in the full user manual for channel assignments and values.
3. Use your DMX controller to send commands to the assigned channels to trigger confetti effects.

7. ساتنه

Regular maintenance ensures the longevity and reliable operation of your confetti cannon.

• پاکول: After each use, especially after large events, clean any residual confetti from the machine, particularly around the nozzle and internal mechanisms. Use a soft, dry cloth. Do not use liquids or abrasive cleaners.
• معاینه: Periodically check all cables, connections, and the housing for any signs of wear or damage. Replace damaged parts immediately.
• ذخیره کول: کله چې کارول نه وي، وسیله په وچ، دوړو څخه پاک چاپیریال کې وساتئ.

8. ستونزه حل کول

If you encounter issues with your MOKA SFX Electric Confetti Cannon, refer to the following common problems and solutions:

9. مشخصات

Detailed technical specifications for the MOKA SFX Electric Confetti Cannon MK-CN07:

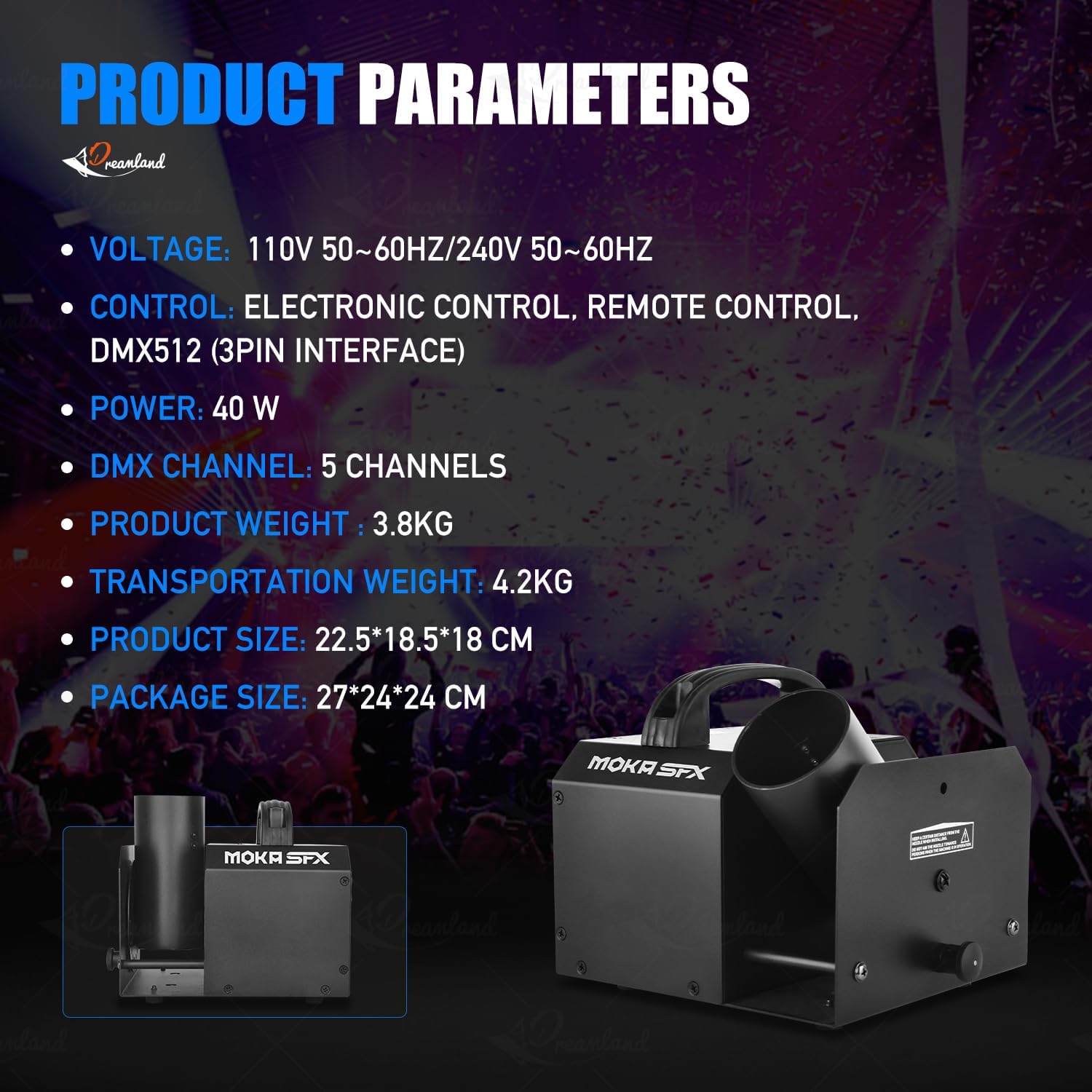

Image: Product parameters overview.

انځور: د محصول ابعاد.

10. تضمین او ملاتړ

MOKA SFX products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided with your purchase or contact your retailer. If you require technical support or have questions not covered in this manual, please contact MOKA SFX customer service through their official webسایټ یا ستاسو د پیرود ځای.
