SUNER POWER 30W Solar Panel Kit with 10A MPPT Charge Controller User Manual

پیژندنه

This manual provides comprehensive instructions for the SUNER POWER 30W Solar Panel Kit, which includes a high-efficiency 30-watt solar panel and an Ultra-Smart 10A MPPT charge controller. This kit is designed for efficient charging and maintenance of 12V batteries in various applications such as boats, cars, RVs, motorcycles, and marine vehicles. Please read this manual thoroughly before installation and operation to ensure proper use and safety.

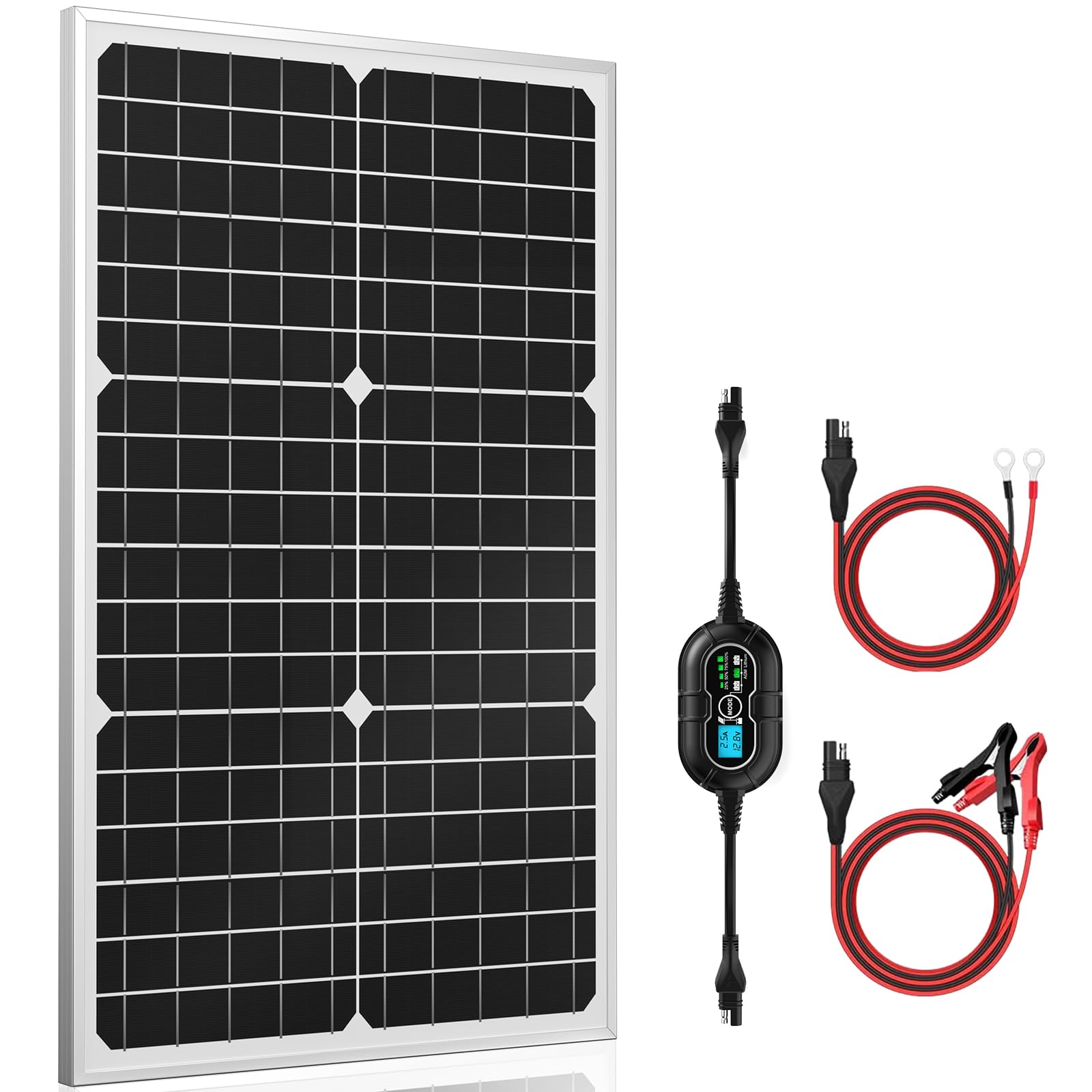

Image: The complete SUNER POWER 30W Solar Panel Kit, showcasing the solar panel and charge controller.

څه پکې شامل دي

Your SUNER POWER 30W Solar Panel Kit includes the following components:

• 1 x 10A MPPT Solar Charge Controller
• 1 x 30W سولر پینل
• 1 x SAE-Alligator Clips Cable
• 1 x SAE-Battery Eyelet Cable

کلیدي ځانګړتیاوې

The SUNER POWER 30W Solar Panel Kit is equipped with advanced features for optimal performance and safety:

• Ultra-Smart MPPT Technology: Achieves up to 99% tracking efficiency and 98% peak conversion efficiency, improving utilization by 20%-30% compared to other technologies.
• Improved 3-Stagد چارج کول: Utilizes Bulk, Absorption, and Float stages for effective 12-volt battery charging, ensuring safety and extending battery life.
• Full Safety Protections: Includes safeguards against over-charge, over-discharge, over-voltage, over-current, over-load, short circuit, reverse polarity, and over-temperature. The system is waterproof and spark-proof.
• Three Battery Modes: Supports 12V, 12V AGM, and 12V Lithium battery types, compatible with flooded, gel, AGM, SLA, VRLA, maintenance-free, and LiFePO4 lithium batteries.
• Visual Charging Status: Digital charge controller displays PV charge current, battery voltage, and state-of-charge (25%-50%-75%-100%).

Image: A diagram illustrating the enhanced performance characteristics of the solar panel, including high efficiency and transparency.

Image: An illustration detailing the smart 3-stage charging process (Bulk, Absorption, Float) employed by the charge controller.

Image: A visual representation of the charge controller's compatibility with various 12V battery chemistries and types.

د تنظیم کولو لارښوونې

Follow these steps to properly set up your solar panel kit:

1. د سولر پینل نصب کړئ: Position the 30W solar panel in a location that receives maximum direct sunlight throughout the day. Ensure it is securely mounted using appropriate brackets (not included).
2. د چارج کنټرولر سره وصل کړئ:
   • First, connect the charge controller to your 12V battery using the provided SAE-Alligator Clips Cable or SAE-Battery Eyelet Cable. Ensure correct polarity (red to positive, black to negative). The controller display should illuminate.
   • Next, connect the solar panel to the charge controller using the SAE connector. Ensure the connection is secure.
3. اړیکې تایید کړئ: Check all connections for tightness and correct polarity. The charge controller display will show the battery voltage او د چارج کولو حالت.

Image: A diagram illustrating various easy installation methods for the solar panel, including flat and pole mounting options.

عملیاتي لارښوونې

Understand how to operate your solar panel kit effectively:

1. د چارج کولو حالت څارنه: The digital display on the charge controller shows the current battery voltage, PV charge current, and state-of-charge (25%, 50%, 75%, 100%).
2. د بیټرۍ ډول غوره کړئ: Use the "MODE" button on the controller to select the appropriate battery type (12V, 12V AGM, or 12V Lithium) for your connected battery. This ensures optimal charging.
3. Understanding Charging Stages: کنټرولر څلور ثانیې کارويtagد چارج کولو الګوریتم:
   • ګ Bulه: بیټرۍ په چټکۍ سره شاوخوا 80٪ ظرفیت ته چارج کوي.
   • جذب: بیټرۍ په کموالي سره ۱۰۰٪ چارج کويasinد g جریان.
   • تیریدل: Maintains the battery at full charge, preventing overcharging.
4. د USB چارج کول: The controller features two USB ports for charging compatible devices directly from the solar panel, even without a connected battery.

Image: The digital display of the charge controller indicating various charge levels from 25% to 100% and maintenance mode.

د خوندیتوب ځانګړتیاوې

Your SUNER POWER charge controller is designed with multiple safety protections:

• د تودوخې څخه ډیر محافظت
• ډیر ولtage ساتنه
• په اوسني وخت کې د ساتنې
• د لنډ سرکټ ساتنه
• د خارجیدو ساتنه
• د ډیر لګښت څخه ساتنه
• د قطبي محافظت برعکس
• Waterproof and Spark-Proof Design

Image: A visual representation of the various safety protections integrated into the charge controller, ensuring secure operation.

تخنیکي مشخصات

ساتنه

Proper maintenance ensures the longevity and efficiency of your solar panel kit:

1. منظم پاکول: په دوره یي ډول د سولر پینل سطحه د نرم، ډ سره پاکه کړئamp cloth to remove dust, dirt, and debris. A clean panel ensures maximum sunlight absorption.
2. اړیکې معاینه کړئ: Routinely check all electrical connections for corrosion, looseness, or damage. Ensure cables are securely fastened.
3. د چاپیریال ساتنه: The solar panel and controller are designed to be waterproof and weather-resistant. However, avoid prolonged submersion or exposure to extreme conditions beyond specified operating temperatures (-40°F to 140°F for the panel).
4. د بیټرۍ روغتیا: Monitor your battery's health and ensure it is compatible with the selected charging mode on the controller.

Image: A visual representation highlighting the waterproof and weather-resistant design of the solar panel, suitable for various outdoor conditions.

د ستونزو حل کول

که تاسو د خپل سولر پینل کټ سره ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:

• No Power Output from Panel: Ensure the solar panel is receiving direct sunlight and is not shaded. Check all connections from the panel to the controller.
• د بیټرۍ چارج نه کول: Verify that the charge controller is correctly connected to the battery with proper polarity. Confirm the battery type selected on the controller matches your battery. Check for any error indicators on the controller display.
• Battery Drains When No Sun: The SUNER POWER charge controller includes reverse polarity protection and is designed to prevent reverse current flow. If your battery is draining, ensure all connections are correct and that there are no external loads drawing power from the battery when the solar panel is not active. Consult the controller's display for any error messages.
• د کنټرولر ښودنه کار نه کوي: Check the battery connection to the controller. Ensure the battery has sufficient voltage to power the controller's display.

تضمین او ملاتړ

For warranty information or technical assistance regarding your SUNER POWER 30W Solar Panel Kit, please contact SUNER POWER customer support. Refer to your purchase documentation or visit the official SUNER POWER webد اړیکو جزئیاتو او نورو مرستو لپاره سایټ.
