د لارښوونې لارښود

1. پیژندنه

This instruction manual provides essential information for the safe and effective use of the Generic SGT70N65FDM1 Series Power Transistor. This component is designed for high-power switching applications in various electronic circuits. Please read this manual thoroughly before installation and operation to ensure proper functionality and to prevent damage to the device or associated equipment.

2. د خوندیتوب معلومات

Electronic components, especially power transistors, can be sensitive to improper handling and can pose electrical hazards. Adhere to the following safety guidelines:

• د الیکتروسټیک خارج کیدو (ESD) احتیاطي تدابیر: Always handle the transistor in an ESD-safe environment. Use grounding straps and mats to prevent static damage.
• بریښنایی خطرونه: This component operates in high-voltage and high-current circuits. Ensure all power is disconnected before installation or maintenance. Only qualified personnel should perform installation and servicing.
• حرارتي مدیریت: Power transistors generate heat during operation. Adequate heat sinking is crucial to prevent overheating and device failure.
• Proper Soldering: Use appropriate soldering techniques and equipment to avoid thermal stress or damage to the component leads.
• د اجزاو بشپړتیا: Do not use components that show visible signs of damage, such as bent leads, cracks, or discoloration.

3. محصول ختم شوview

The SGT70N65FDM1 series comprises high-performance power transistors, typically Insulated Gate Bipolar Transistors (IGBTs) or Power MOSFETs, designed for efficient switching in applications such as power supplies, motor drives, and inverters. These devices are housed in a robust TO-247 package, which facilitates effective heat dissipation.

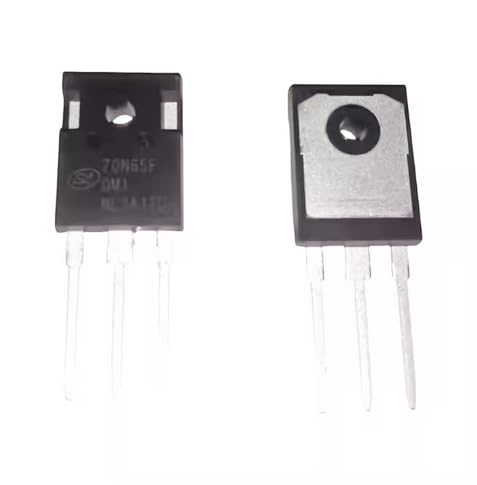

This image displays the SGT70N65FDM1 power transistor, typically housed in a TO-247 package, showing its three leads and heat sink tab. The TO-247 package is designed for high power dissipation.

4. ترتیب او نصب کول

Proper installation is critical for the performance and longevity of the SGT70N65FDM1 power transistor.

1. د نصب کولو دمخه چک: Verify that the component matches the required specifications for your circuit design. Inspect the component for any physical damage.
2. Heat Sink Attachment: The TO-247 package requires a heat sink for proper thermal management. Apply a thin, even layer of thermal paste between the transistor's metal tab and the heat sink. Securely mount the transistor to the heat sink using appropriate hardware, ensuring good thermal contact.
3. Lead Forming: If necessary, carefully form the leads to fit the PCB without stressing the package. Avoid bending leads close to the package body.
4. سولډرینګ: Solder the leads to the Printed Circuit Board (PCB) using a temperature-controlled soldering iron. Ensure solder joints are clean and robust. Avoid prolonged heat application to prevent internal damage.
5. بریښنایی پیوستون: Connect the gate/base, collector/drain, and emitter/source leads to their respective points on the circuit board as per your design. Double-check all connections for correct polarity and continuity before applying power.

5. عملیاتي لارښوونې

The SGT70N65FDM1 series functions as an electronic switch. Its operation is controlled by a signal applied to its gate (for MOSFETs/IGBTs) or base (for BJTs).

• دروازه/بیس ډرایو: Apply the appropriate control voltage/current to the gate/base terminal to turn the transistor ON or OFF. Refer to the device's datasheet for specific gate threshold voltages and drive requirements.
• والیtage او اوسني محدودیتونه: د اعظمي حجم څخه ډیر مه کوئtage (وی_CE/V_DS) and current (I_C/I_D) ratings specified in the datasheet. Exceeding these limits will lead to irreversible damage.
• د فریکونسی بدلول: Operate the device within its specified switching frequency range. High switching frequencies can increase power losses and heat generation.
• حرارتي څارنه: Continuously monitor the operating temperature of the transistor. If the temperature exceeds safe limits, reduce the load or improve heat dissipation.

6. ساتنه

Power transistors are generally robust and require minimal maintenance. However, periodic checks can help ensure long-term reliability.

• بصری معاینه: Periodically inspect the component and its surroundings for signs of overheating (discoloration), loose connections, or physical damage.
• پاکوالی: Ensure the heat sink and component are free from dust and debris, which can impede airflow and reduce cooling efficiency. Use compressed air or a soft brush for cleaning.
• حرارتي پیسټ: Over time, thermal paste can degrade. If signs of overheating persist despite adequate heat sinking, consider reapplying fresh thermal paste.

7. ستونزه حل کول

If the SGT70N65FDM1 series transistor is not functioning as expected, consider the following common issues and solutions:

8. مشخصات

The following are general specifications for the SGT70N65FDM1 series power transistor. For detailed electrical characteristics, refer to the manufacturer's official datasheet.

• نښه: عمومي
• جوړونکی: جيني
• د ماډل شمیره: SGT70N65FDM1, SGT70N65FDM1P7, 70N65FDM1, 70N65F
• د بسته بندۍ ډول: ته-247
• د برخې ډول: Power Transistor (e.g., IGBT or Power MOSFET)
• عادي ټوکtage درجه بندي: 600V - 700V (Collector-Emitter / Drain-Source)
• Typical Current Rating: 50A - 70A (Collector / Drain)
• حالت: نوی
• د شتون لومړۍ نیټه: د سپتمبر ۲۵، ۲۰۲۴

9. تضمین او ملاتړ

The product comes with a manufacturer's warranty. In case of any quality issues or manufacturing defects, please contact the seller or manufacturer directly.

• د تضمین پوښښ: The product warranty covers manufacturing defects for a specified period.
• بیرته ستنیدل او ځای ناستی: If the product is found to be defective, you may be eligible for a full refund or a replacement with a new product of the same type and quality.
• د پیرودونکي ملاتړ: For any issues, damaged products, or incorrect items, please contact our customer service team. We are committed to providing prompt assistance and the best possible solution.
