1. پیژندنه
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the COKYIS 1226BL-4151 Permanent Magnet Motor Controller. This controller is designed for use in forklift and similar electric vehicle applications, managing power delivery to permanent magnet motors. Please read this manual thoroughly before attempting any installation or operation.
2. د خوندیتوب معلومات
Always observe the following safety precautions to prevent injury, damage to the controller, or damage to the vehicle:
- د بریښنا قطع کول: Always disconnect the vehicle's battery power before performing any installation, maintenance, or troubleshooting.
- وړ پرسونل: Installation and service should only be performed by qualified and trained personnel.
- مناسب تارونه: Ensure all wiring connections are correct, secure, and insulated according to the wiring diagram and local electrical codes. Incorrect wiring can cause severe damage or fire.
- والیtage او اوسنۍ درجه بندي: د ټاکل شوي حجم څخه ډیر مه کوئtage and current ratings of the controller.
- د چاپیریال شرایط: Avoid exposing the controller to excessive moisture, dust, extreme temperatures, or corrosive environments.
- جامد خارجول: Take precautions against electrostatic discharge (ESD) when handling the controller, especially its internal components.
3. محصول ختم شوview
The COKYIS 1226BL-4151 is a brushless motor controller designed for robust performance in demanding applications. It operates within a 36-48V voltage range and provides a continuous current of 90A. Key features include power terminals for battery and motor connections, and multiple control signal connectors.

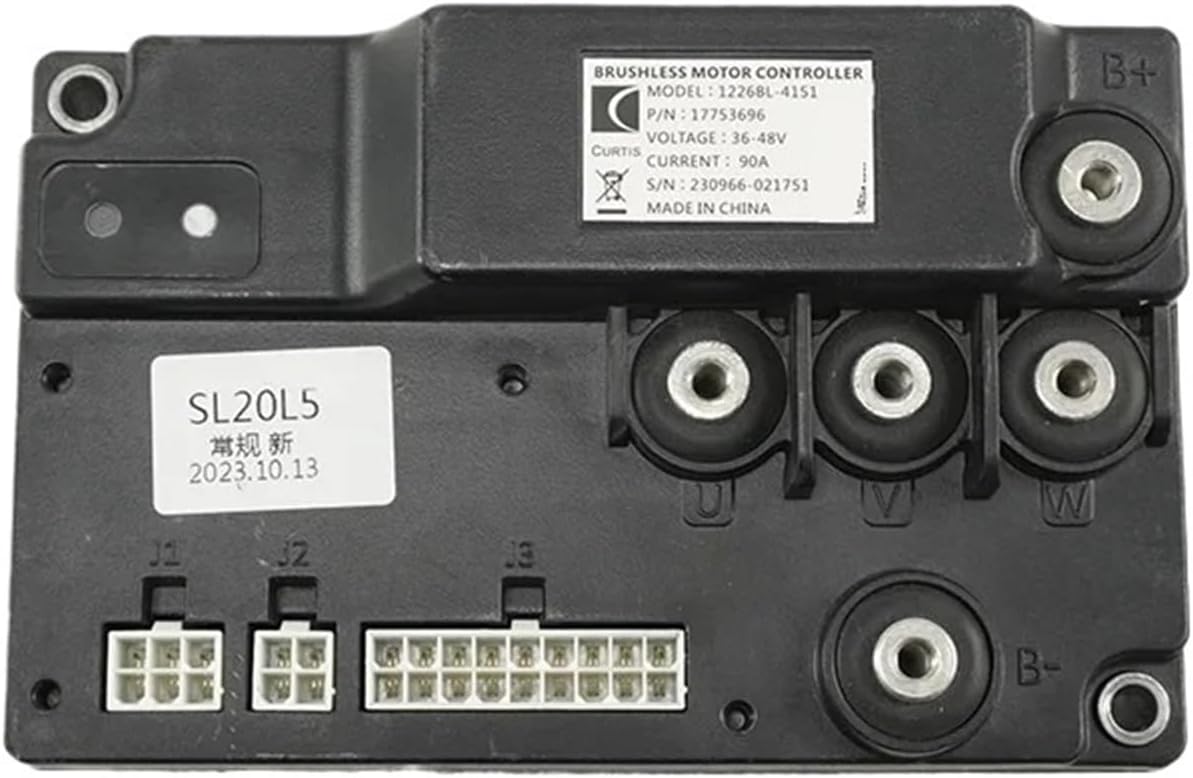

شکل 3.1: پورته view of the COKYIS 1226BL-4151 Permanent Magnet Motor Controller. This image displays the main power terminals (B+, B-, U, V, W) for battery and motor connections, along with the control signal connectors labeled J1, J2, and J3. The product label indicates the model number (1226BL-4151), voltage range (36-48V), and current rating (90A).
شکل 3.2: Alternative top view of the COKYIS 1226BL-4151 Permanent Magnet Motor Controller. This perspective provides a slightly different angle of the controller, highlighting the overall layout of the terminals and connectors, and confirming the presence of the product identification label.
4. ترتیب کول
4.1 پورته کول
Mount the controller in a location that is protected from direct exposure to water, excessive dust, and mechanical impact. Ensure adequate airflow around the unit for proper heat dissipation. Use appropriate fasteners to secure the controller firmly to a stable surface.
4.2 د تارونو نښلول
Refer to the vehicle's specific wiring diagram for detailed connection instructions. The general connections are as follows:
- B+ Terminal: Connect to the positive (+) terminal of the battery pack.
- B- Terminal: Connect to the negative (-) terminal of the battery pack.
- U, V, W Terminals: Connect to the corresponding phase wires of the brushless permanent magnet motor. Ensure correct phase sequence.
- J1, J2, J3 Connectors: These are for control signals, sensors (e.g., Hall sensors), throttle input, and communication. Consult the vehicle's wiring diagram for specific pin assignments and functions.
Use appropriately sized cables and terminals to handle the maximum current draw. All connections must be tight and free from corrosion.
۵.۱ لومړنی پاور اپ
After all connections are made and verified, connect the battery power. Observe any indicator lights on the controller (if present) for initial status. Do not operate the motor immediately. Perform a functional check of all safety interlocks and control inputs before full operation.
5. عملیاتي لارښوونې
The COKYIS 1226BL-4151 controller operates in conjunction with the vehicle's control system (e.g., throttle, direction switch, brake). Ensure all vehicle controls are functioning correctly before operating.
- پاور آن: Turn on the vehicle's main power switch. The controller will perform a self-test.
- د غلو کنټرول: Gradually apply the throttle to initiate motor movement. The controller will regulate motor speed based on the throttle input.
- د لارښوونې کنټرول: Use the vehicle's direction switch (forward/reverse) as required.
- بریک لګول: The controller supports regenerative braking and/or electromagnetic braking depending on the vehicle's configuration.
Always operate the vehicle within its design limits and follow all manufacturer guidelines for the vehicle itself.
6. ساتنه
Regular maintenance ensures the longevity and reliable operation of the controller.
- پاکول: Periodically clean the exterior of the controller to remove dust and debris. Use a dry, soft cloth. Do not use solvents or abrasive cleaners. Ensure no moisture enters the unit.
- د ارتباط معاینه: Regularly inspect all wiring connections for tightness, signs of corrosion, or damage. Re-tighten loose connections and replace any damaged wiring.
- د چاپیریال معاینه: Ensure the mounting environment remains suitable, free from excessive heat, moisture, or vibration.
- وینټیلیشن: Verify that cooling fins (if present) are not obstructed to allow for proper heat dissipation.
7. ستونزه حل کول
If the controller or motor is not functioning as expected, perform the following basic checks:
| علامه | احتمالي لامل | عمل |
|---|---|---|
| موټروان نه چلیږي | No power to controller, faulty throttle, motor wiring issue, safety interlock engaged. | د بیټرۍ حجم چیک کړئtage, verify all power and control connections, inspect throttle operation, ensure all safety switches are disengaged. |
| موقتي عملیات | Loose connections, overheating, sensor issue. | Inspect all wiring for loose connections. Ensure adequate ventilation. Check motor sensor connections. |
| Controller is hot | Overload, insufficient cooling, short circuit. | Reduce load, improve ventilation, check for short circuits in motor or wiring. |
If troubleshooting steps do not resolve the issue, contact a qualified service technician or the manufacturer for further assistance.
8. مشخصات
| پیرامیټر | ارزښت |
|---|---|
| د ماډل شمیره | 1226BL-4151 |
| د عملیاتو Voltage | 36-48V |
| اوسنۍ درجه بندي | 90A |
| جوړونکی | COKYIS |
| د کڅوړې ابعاد | 1.18 x 0.79 x 0.39 انچه |
| د توکي وزن | 1.76 اونس |
| د ټوټو شمیر | 1 |
Note: Package dimensions and item weight are as provided and may refer to the shipping package rather than the exact physical dimensions and weight of the controller unit itself.
9. تضمین او ملاتړ
Specific warranty information for the COKYIS 1226BL-4151 Permanent Magnet Motor Controller is not provided in this document. For warranty details, technical support, or service inquiries, please contact your point of purchase or the COKYIS manufacturer directly. Keep your purchase receipt as proof of purchase.
