Generic 112 Digital Egg Poultry Hatcher Instruction Manual

1. پیژندنه

Thank you for choosing the Generic 112 Digital Egg Poultry Hatcher. This fully automatic incubator is designed to provide an optimal environment for hatching various poultry eggs, including chicken, duck, goose, and quail. It features intelligent temperature and humidity control, automatic egg turning, and an LED display for easy monitoring. Please read this manual thoroughly before operation to ensure proper use and successful hatching results.

2. د خوندیتوب لارښوونې

• Always connect the incubator to a grounded power outlet.
• Do not operate the incubator with a damaged power cord or plug.
• Keep the incubator away from water or high humidity environments to prevent electrical shock.
• Ensure proper ventilation around the incubator.
• Unplug the incubator before cleaning or performing any maintenance.
• د ماشومانو او څارویو د لاسرسي څخه لرې وساتئ.
• Do not attempt to modify or repair the incubator yourself. Contact qualified personnel for service.

3. محصول ختم شوview

The Generic 112 Digital Egg Poultry Hatcher is designed for efficient and automatic incubation. It features a clear casing for observation, a control panel for settings, and multiple egg trays.

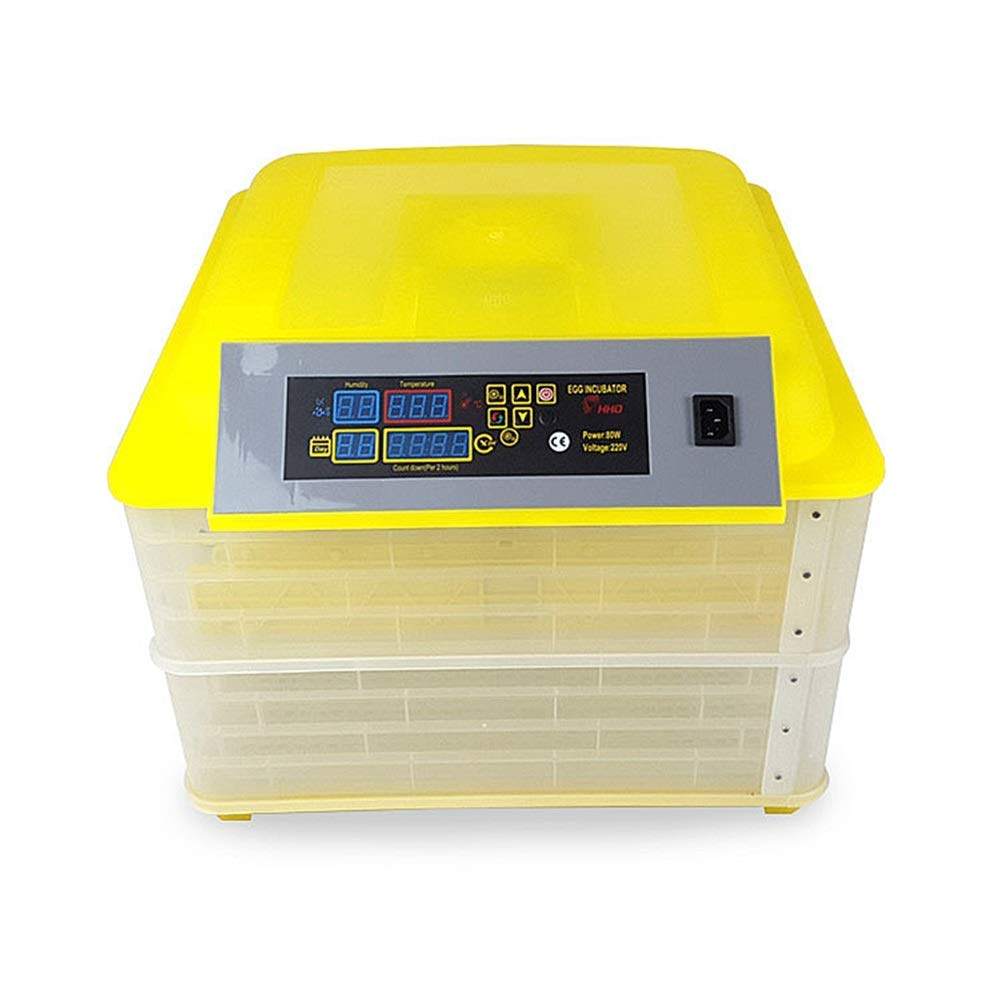

شکل 1: مخکی view of the Generic 112 Digital Egg Poultry Hatcher, showing the control panel and two incubation layers.

شکل 2: داخلي view of the incubator, illustrating the egg turning trays and internal structure.

د کنټرول پینل ډایگرام

Figure 3: Detailed diagram of the control panel, indicating the functions of each display and button.

• د رطوبت ښودنه: Shows current humidity level.
• د تودوخې ښودنه: Shows current temperature inside the incubator.
• Incubation Days Display: Tracks the number of days since incubation started.
• Egg Turning Countdown: Displays the time remaining until the next automatic egg turn.
• د تنظیم کولو تڼۍ: د ترتیباتو د ننوتلو او تایید لپاره کارول کیږي.
• Setting + / Setting - Buttons: Adjust values up or down during setting.
• د بیا تنظیم تڼۍ: Resets certain parameters or alarms.
• Turn the Egg Button: Manually initiates an egg turning cycle.
• د تودوخې شاخص: کله چې د تودوخې عنصر فعال وي نو روښانه کیږي.
• Setting Indicator: Illuminates when in setting mode.
• بدلول: بریښنا آن/آف سویچ.
• بریښنا/Voltagای ښودنه: Shows power consumption and voltage.
• د الارم فعالیت: Automatically activates when temperature or humidity are outside the set range.

4. ترتیب کول

4.1 مجلس

1. په احتیاط سره ټولې برخې خلاص کړئ او د کوم زیان لپاره یې وګورئ.
2. Place the incubator on a stable, level surface in a room with a consistent ambient temperature, away from direct sunlight or drafts.
3. Ensure the egg turning trays are correctly seated within the incubator layers.

4.2 Adding Water for Humidity

Humidity is crucial for successful hatching. The incubator requires water to maintain the correct humidity levels.

1. Locate the water channels or reservoirs at the bottom of the incubator.
2. Carefully pour distilled or demineralized water into the channels. Avoid overfilling.
3. Monitor the humidity display and add water as needed throughout the incubation period.

5. عملیاتي لارښوونې

5.1 Initial Power-On and Pre-heating

1. د بريښنا تار په مناسبه بريښنايي دستګاه کې ولګوئ.
2. Turn on the power switch. The LED display will illuminate.
3. Allow the incubator to run for at least 2-3 hours to stabilize the internal temperature and humidity before placing eggs.

۴.۲ د تودوخې او رطوبت تنظیمول

The incubator comes with factory default settings, but these can be adjusted if necessary.

• فشار ورکړئ د ترتیب تڼۍ once to enter temperature setting mode. The temperature display will flash.
• د کارولو ترتیب + او تنظیم کول - buttons to adjust the desired temperature (recommended range: 20℃ ~ 40℃).
• فشار ورکړئ د ترتیب تڼۍ again to confirm the temperature and move to humidity setting (if applicable).
• Adjust humidity using the ترتیب + او تنظیم کول - تڼۍ
• فشار ورکړئ د ترتیب تڼۍ one more time to save all settings and exit setting mode.

5.3 Egg Placement

1. Once the incubator has stabilized at the desired temperature and humidity, carefully place the fertilized eggs into the egg trays.
2. Ensure eggs are placed with the larger end slightly elevated, if possible, for optimal development.
3. Close the incubator lid securely.

۶.۳ د هګیو اتوماتیک ګرځول

The incubator automatically turns eggs every 2 hours to prevent the embryo from sticking to the shell and promote even development.

• د Egg Turning Countdown display shows the time until the next automatic turn.
• To manually initiate an egg turn, press the Turn the Egg Button.
• یادونه: Automatic turning should be disabled for the last 3 days of incubation (lockdown period) to allow chicks to position themselves for hatching. Refer to specific egg type incubation guides for exact timings.

5.5 Monitoring and Adjustments

• Regularly check the temperature and humidity displays.
• Refill water channels as needed to maintain humidity.
• The built-in fan circulates air for even temperature and humidity distribution.
• The incubator will sound an alarm if temperature or humidity deviates significantly from the set parameters. Address the issue promptly.

6. ساتنه

6.1 پاکول

1. After each hatch, unplug the incubator and allow it to cool completely.
2. Remove all egg trays and the bottom grid.
3. ټولې سطحې د اعلان سره پاک کړئamp cloth and a mild disinfectant solution. Avoid harsh chemicals.
4. ډاډ ترلاسه کړئ چې ټولې برخې د بیا راټولولو یا ذخیره کولو دمخه په بشپړه توګه وچې دي.

6.2 ذخیره کول

Store the incubator in a clean, dry place, away from direct sunlight and extreme temperatures, when not in use.

7. ستونزه حل کول

8. مشخصات
