MACFOX X1S Electric Bike User Manual

1. پیژندنه

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MACFOX X1S Electric Bike. Please read this manual thoroughly before your first ride and retain it for future reference. Adherence to these instructions will ensure optimal performance and longevity of your electric bike.

انځور: اړخ view of the MACFOX X1S Electric Bike, showcasing its design and fat tires.

2. د خوندیتوب لارښوونې

• Always wear a helmet that meets safety standards (e.g., CPSC, EN 1078) when riding.
• د بریښنایی بایسکلونو په اړه د سیمه ایزو ترافیکي قوانینو او مقرراتو سره ځان آشنا کړئ.
• Perform a pre-ride safety check before each use, including brakes, tires, and battery.
• د الکول یا مخدره توکو تر اغیز لاندې مه چلوئ.
• په ناوړه هوا شرایطو لکه دروند باران، واوره یا یخ کې د موټر چلولو څخه ډډه وکړئ.
• ډاډ ترلاسه کړئ چې ټولې برخې د سواری کولو دمخه په خوندي ډول تړل شوي دي.

3. تنظیم او مجلس

Your MACFOX X1S Electric Bike requires some assembly upon arrival. Follow these steps carefully:

1. بسته بندي کول: Carefully remove all components from the packaging. Retain the original box for potential warranty returns.
2. د دستګاه نصبول: لاسي بارونه د ډډ سره وصل کړئ، ډاډ ترلاسه کړئ چې دوی په مرکز کې دي او په خوندي ډول ټینګ شوي دي.
3. د پیډل نصب کول: کیڼ (L) او ښي (R) پیډلونه وپیژنئ. کیڼ پیډل د ساعت په مخالف لوري او ښي پیډل د ساعت په لور د کرینک بازوګانو ته وصل کړئ. په کلکه ټینګ کړئ.
4. د څوکۍ سمون: Adjust the seat height to a comfortable and safe riding position, ensuring your feet can touch the ground when stopped. Secure the quick-release lever or bolt.
5. د ټایرونو انفلاسیون: Inflate the 20"x4" fat tires to the recommended pressure indicated on the tire sidewall.
6. د بیټرۍ چارج کول: Fully charge the removable 48V/10.5Ah battery before the first use. Connect the charger to the battery and a power outlet. The indicator light on the charger will show charging status.
7. د بریک چک کول: Test both front and rear brakes to ensure they engage properly and bring the bike to a complete stop. Adjust if necessary.

۴. ستاسو د برقي بایسکل چلول

The MACFOX X1S offers multiple riding modes for various terrains and preferences.

• پاور آن/بند: Press and hold the power button on the display to turn the bike on or off.
• Pedal-Assist Modes: The bike features 3 pedal-assist levels. Use the control panel to select your desired level. Higher levels provide more motor assistance.
• د تختو عملیات: The throttle provides instant power without pedaling. Twist the throttle grip to engage the motor. Exercise caution when using the throttle, especially at higher speeds.
• د بریک سیسټم: Your bike is equipped with triple braking protection, including front and rear dual disc brakes and an e-brake. Apply both brakes simultaneously for effective stopping.
• دندې دندې: The LCD display shows speed, battery level, pedal-assist level, and trip distance. Refer to the separate display manual for detailed functions.

5. ساتنه

Regular maintenance is crucial for the safety and performance of your electric bike.

• د بیټرۍ پاملرنه: Charge the battery regularly, even if not in use, to maintain its health. Store the battery in a cool, dry place. Avoid fully discharging the battery frequently.
• د ټایر فشار: Check tire pressure before each ride. Proper inflation improves efficiency and reduces the risk of punctures.
• د بریک سیسټم: Inspect brake pads and rotors for wear. Ensure brake levers are responsive and provide adequate stopping power. Adjust or replace components as needed.
• د زنځیر غوړول: Keep the chain clean and lubricated to ensure smooth pedaling and prevent rust.
• د چوکاټ معاینه: Periodically inspect the high-strength steel frame for any signs of damage or cracks.
• عمومي پاکول: د موټرسایکل پاکولamp ټوکر. په بریښنایی برخو کې د لوړ فشار واشیرونو کارولو څخه ډډه وکړئ.

6. ستونزه حل کول

لاندې عامې ستونزې او د هغوی احتمالي حل لارې وګورئ:

For issues not listed here or if solutions do not resolve the problem, please contact MACFOX customer support.

7. مشخصات

Key technical details for the MACFOX X1S Electric Bike:

• ماډل: EL-X1S
• د بایسکل ډول: برقی موټرسایکل
• د عمر حد: بالغ
• موټروان: 500W Brushless (750W Peak Output)
• تورک: 65 NM
• اعظمي سرعت: 25 MPH+ (Class 3 legal, up to 28 MPH)
• بیټرۍ: 48V 10.5Ah د لرې کولو وړ لیتیم آئن
• Estimated Range: 38 miles (in pedal-assist mode)
• ګیرونه: 3-speed system
• د څرخ اندازه: ۷۸۷ انچه
• ټایرونه: ۲۰" x ۴.۰" غوړ ټایرونه
• د چوکاټ مواد: لوړ کاربن فولاد
• تعلیق: د مخکینۍ فورک تعلیق
• د بریک سټایل: Triple Braking Protection (Front and Rear Dual Disc Brakes + E-brake)
• ځانګړي ځانګړتیاوې: Lightweight Frame, UL-Certified Circuit System (UL2849), Upgradeable Hydraulic Brakes
• جوړونکی: E-Link Technology Co., Ltd

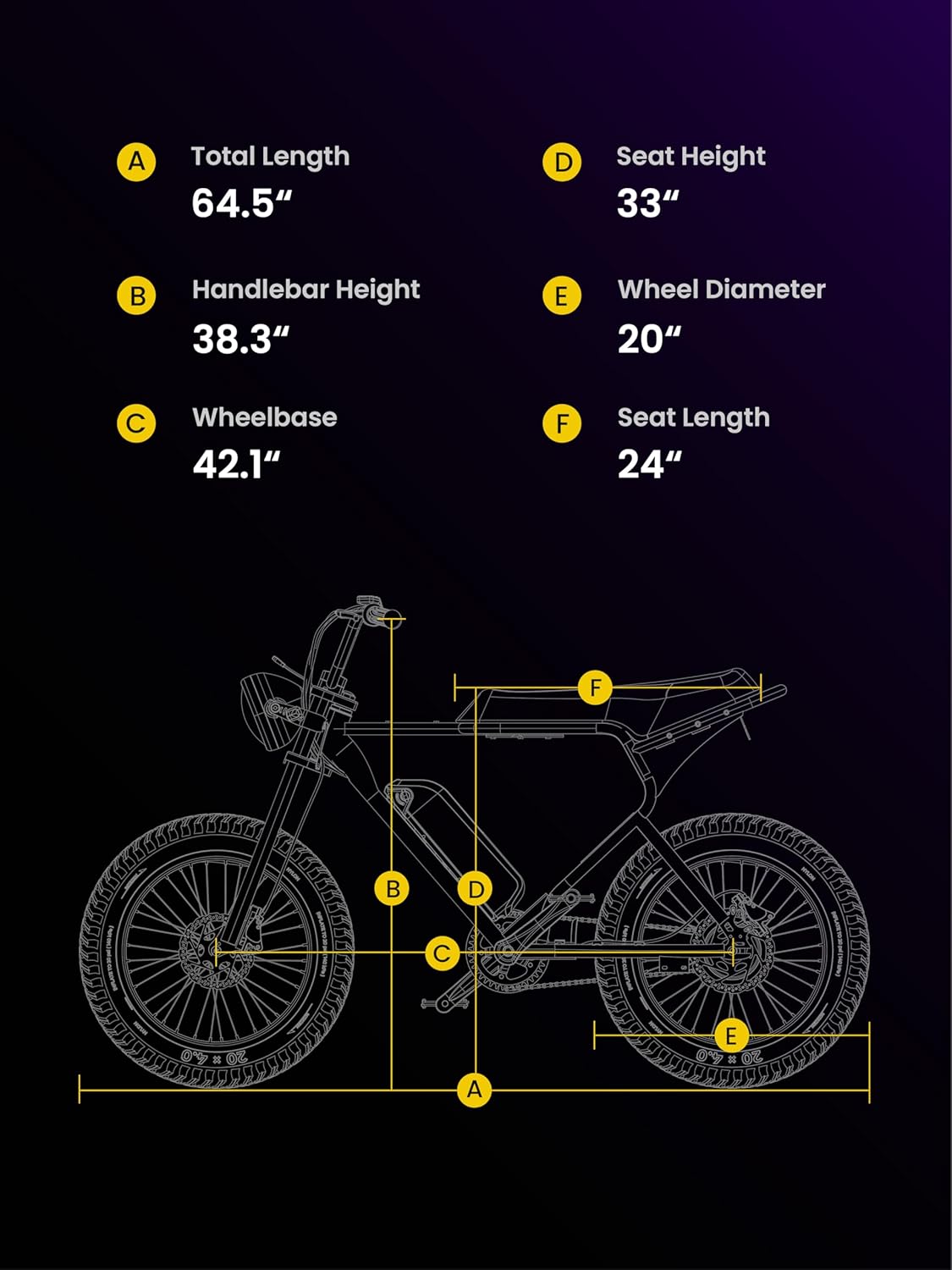

Image: Diagram illustrating the key dimensions of the MACFOX X1S Electric Bike, including total length, handlebar height, wheelbase, seat height, wheel diameter, and seat length.

Image: Visual representation of the MACFOX X1S Electric Bike's motor, highlighting its 750W peak power, 25 MPH top speed, 65 N.M climbing slope, and 30° incline capability.

8. د تضمین معلومات

MACFOX offers a one-year warranty on key parts against non-human damage. This warranty covers manufacturing defects and component failures under normal use.

• پوښښ: One year on key parts against non-human damage.
• د ادعا پروسه: If a problem occurs, provide video and pictures to MACFOX customer support. Technicians will review and analyze the cause.
• بیرته ستنیدل/تبادله: The return or exchange window is within one month from the date the order is generated.
• بیرته لېږل: If the return is not due to product quality, the customer is responsible for return logistics costs.
• بسته بندي: Returns or exchanges require the original box. Please retain the original packaging.

9. د پیرودونکي ملاتړ

For any questions, technical assistance, or warranty claims, please contact MACFOX customer support. When contacting support, please have your model number (EL-X1S) and purchase details ready. Providing clear descriptions, videos, or pictures of any issues will help expedite the support process.
