SAIJI F7 Magnetic Overbed Table Instruction Manual

1. پیژندنه

Thank you for choosing the SAIJI F7 Magnetic Overbed Table. This manual provides essential information for the safe and efficient use of your new overbed table. Please read it thoroughly before assembly and operation, and retain it for future reference.

Image: The SAIJI F7 Magnetic Overbed Table highlighting its key features.

2. د محصول ب Featuresې

• پراخ شوی لاسرسی: Designed to extend further over the bed compared to standard overbed tables, providing a larger effective workspace.
• مقناطیسي سطحه: The tabletop features a magnetic metal layer for secure attachment of included accessories like an LED desk lamp, stoppers, and a phone holder.
• User-Friendly Surface: Covered in a soft, leather-textured material for comfortable use and smooth mouse operation.
• بشپړ انعطاف: Desktop rotates 360° for angle adjustment and height adjusts seamlessly from 26 to 42.1 inches using simple push-button mechanisms.
• اسانه خوځښت: Equipped with 4 hidden wheels for effortless movement between locations.
• Sturdy & Stable Build: Constructed from durable metal with thickened tubing and a triangular base design for enhanced stability.
• مدغم ذخیره: Features a built-in side storage box for drinks, snacks, or small items.
• Adjustable & Magnetic Lamp: Includes an LED desk lamp with adjustable angle and 3 brightness levels, providing up to 12 hours of power.
• د فضا خوندي کولو ډیزاین: The table can be positioned to save space when not in use.

Image: Comparison of usable area, highlighting the SAIJI table's extended reach.

Image: The leather surface is mouse-compatible and comfortable.

3. د بسته محتويات

مهرباني وکړئ ډاډ ترلاسه کړئ چې ټولې برخې د غونډې پیل کولو دمخه شتون لري:

• Tabletop with integrated height adjustment mechanism
• I-Beam Base (Legs)
• د غاړې ذخیره کولو بکس
• د LED ډیسک ایلamp (مقناطیسي)
• Two Stoppers (Magnetic)
• Phone Holder (Magnetic)
• د شورا لارښود
• All necessary screws (Screws A*8, Screws B*4, Screws C*2, Screws D*2)
• د غونډو لپاره وسایل

۴. د تنظیم لارښوونې

Assembly of the SAIJI F7 Overbed Table is designed to be quick and simple, typically completed in three steps. An installation video is provided for visual guidance.

4.1. د نصبولو ویډیو

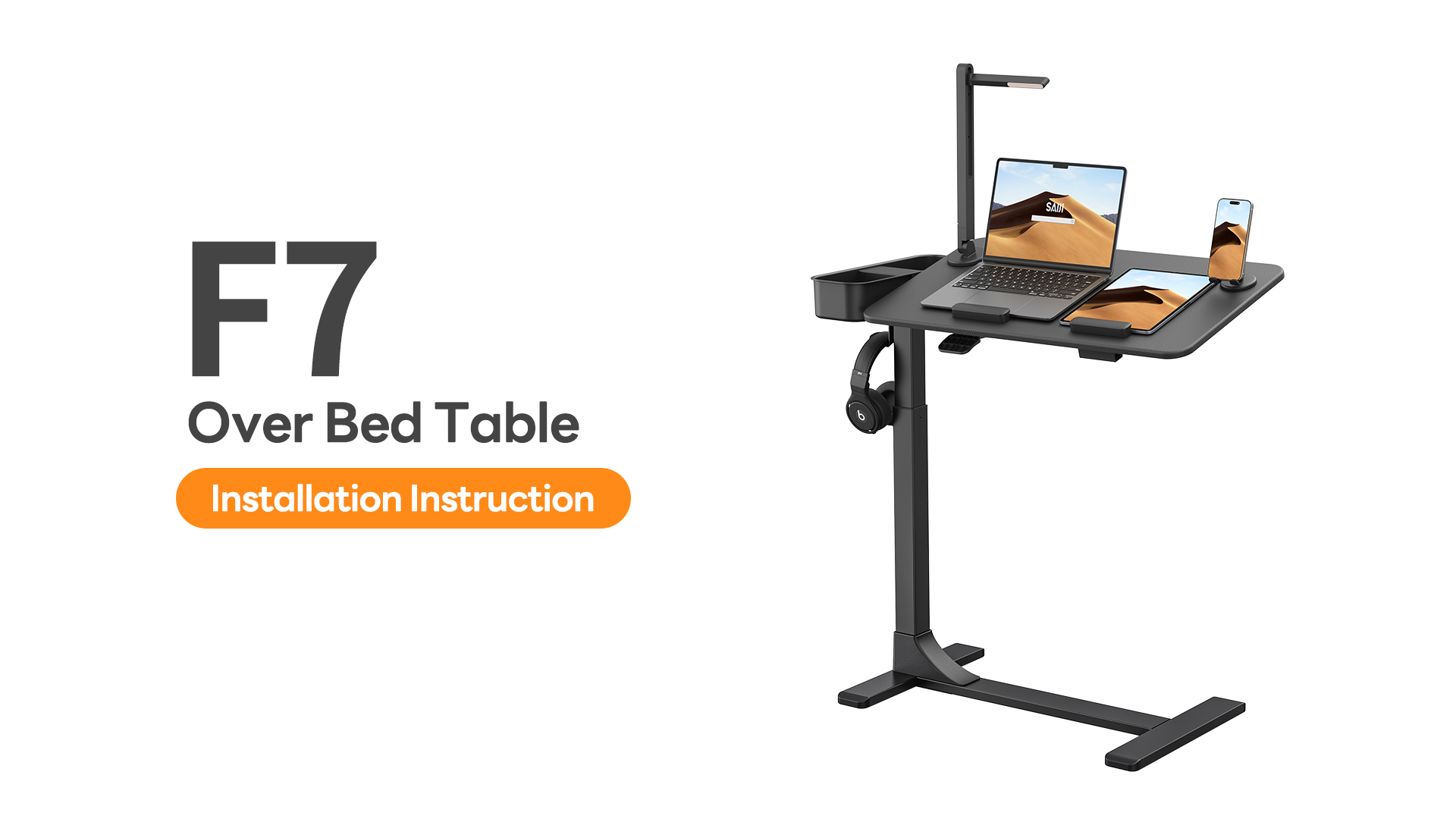

Video: Official installation instructions for the SAIJI F7 Overbed Table.

۲. ګام په ګام مجلس

1. Attach the Height Adjustable Legs to the Tabletop:

   Align the height-adjustable leg mechanism with the designated mounting points on the underside of the tabletop. Secure it using the provided Screws A (8 pieces).



   انځور: تفصیلي view of attaching the height adjustable legs to the tabletop.

2. Install the I-Beam Base:

   Connect the I-beam base to the bottom of the height-adjustable leg assembly. Use Screws B (4 pieces) and Screws C (2 pieces) to firmly secure the base.



   Image: The heavy-duty construction of the table's base.

3. Install the Storage Box and Hooks:

   Attach the side storage box to the designated slot on the side of the tabletop using Screws D (2 pieces). Ensure it is securely fastened. The hooks for headphones or cables are integrated into the design.



   Image: The side storage box, optimizing space and providing easy access.

5. عملیاتي لارښوونې

5.1. د لوړوالی سمون

To adjust the table height:

• پورته کول: Hold the switch located on the underside of the tabletop, and the table will automatically rise.
• ښکته کول: Hold the switch and gently press down on the tabletop to lower it to your desired position.

Image: Visual guide for height and tilt adjustments.

5.2. Angle Adjustment (Desktop Tilt)

The desktop can be tilted 360° for optimal viewing and working angles:

• د خښتو لپاره: Hold the switch and tilt the tabletop to your desired angle. Release the switch to lock it in place.

Image: Demonstrating 360° rotation for versatile use.

5.3. Using Magnetic Accessories

The tabletop's magnetic surface allows for flexible placement of accessories:

• د LED ډیسک ایلamp: Place the magnetic base of the lamp on any desired spot on the tabletop. Adjust the lamp's arm and head for optimal lighting. The lamp offers 3 brightness levels and up to 12 hours of power. It can also be folded and stored under the desktop.
• Stoppers: Position the two magnetic stoppers to prevent your laptop, tablet, or books from sliding, especially when the tabletop is tilted.
• د تلیفون لرونکی: Attach the magnetic phone holder to keep your smartphone upright and accessible.

Image: Fully magnetic surface with accessories positioned.

Image: Features of the adjustable and magnetic lamp.

Image: The storable lamp feature for space saving.

۴. خوځښت

The SAIJI F7 table is equipped with 4 hidden wheels for easy movement. Simply push or pull the table to reposition it as needed. The wheels are designed for smooth gliding on various floor types.

Image: The silent, hidden, and wear-resistant scroll wheels.

6. ساتنه

• پاکول: د میز سر او چوکاټ د نرم، d سره پاک کړئamp ټوکر د کثافاتو پاکونکو یا سخت کیمیاوي موادو څخه ډډه وکړئ چې ممکن پای ته زیان ورسوي.
• معاینه: په دوره یي ډول ټول پیچونه او اړیکې وګورئ ترڅو ډاډ ترلاسه شي چې دوی کلک دي. که اړتیا وي نو بیا یې ټینګ کړئ.
• حرکت کول: When moving the table, lift slightly to reduce strain on the wheels, especially over uneven surfaces or carpets.

7. ستونزه حل کول

• Tabletop Tilts Slightly at Highest Position: If the arm tends to tilt slightly when extended to the highest position, it may be due to manufacturing tolerances. Gently shake the unit to help it retract smoothly.
• Difficulty Moving on Carpet: The included wheels are designed for smooth surfaces. On plush carpeting, mobility may be reduced. Consider using a mat or replacing with larger, desk-style wheels if frequent movement on carpet is required.
• موږک په اسانۍ نه تیریږي: The leather-textured surface is designed to prevent sliding. If your mouse experiences too much friction, using a dedicated mousepad is recommended for smoother operation.
• Tabletop Swings Freely: The rotating top does not have a locking mechanism. Be mindful of this when getting up or moving the table to prevent accidental swinging.

8. مشخصات

Image: Detailed desk size and dimensions.

9. د خوندیتوب معلومات

• Avoid placing heavy objects on the table that exceed the maximum weight recommendation (44 Pounds) to prevent instability or collapse.
• Ensure all screws are securely tightened after assembly and periodically checked to maintain stability.
• Do not allow children to climb on or play with the table.
• Use caution when adjusting height or angle to avoid pinching fingers or damaging items on the tabletop.

10. تضمین او ملاتړ

For warranty information, technical support, or any inquiries regarding your SAIJI F7 Magnetic Overbed Table, please refer to the contact information provided with your purchase or visit the official SAIJI webسایټ. د تضمین ادعاوو لپاره د پیرود ثبوت په توګه د پیرود رسید وساتئ.
