SEESII L40 pro Multi-Functional Gardening Tool User Manual

1. پیژندنه

Thank you for choosing the SEESII L40 pro Multi-Functional Gardening Tool. This 8-in-1 cordless tool is designed to simplify various gardening tasks, including high and low branch cutting, pruning, hedge shaping, and lawn care. It integrates an 8-inch electric chainsaw, pole pruning shears, pole hedge trimmer, pole grass trimmer, cordless pruning shears, handheld chainsaw, cordless hedge trimmer, and electric grass trimmer into one versatile system. This manual provides essential information for safe and efficient operation, maintenance, and troubleshooting.

انځور: اوورview of the SEESII L40 pro 8-in-1 Multi-Functional Gardening Tool, illustrating its various attachments and applications for different gardening tasks.

2. د خوندیتوب لارښوونې

د بریښنا وسایلو د چلولو پر مهال تل خوندیتوب ته لومړیتوب ورکړئ. د کارولو دمخه ټول خوندیتوب اخطارونه او لارښوونې ولولئ او پوه شئ. د دې لارښوونو په تعقیب کې پاتې راتلل ممکن د بریښنا شاک، اور، او/یا جدي ټپي کیدو لامل شي.

• شخصي محافظتي تجهیزات: تل مناسب شخصي محافظتي تجهیزات (PPE) واغوندئ پشمول د خوندیتوب عینکې، دستکشې، د اوریدلو محافظت، او قوي بوټان.
• د کار ساحه: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Keep children and bystanders away while operating the tool.
• بریښنایی خوندیتوب: باران یا لوند شرایطو ته د بریښنا وسیلې مه اخلئ. د بریښنا وسیلې ته د اوبو ننوتل به د بریښنا شاک خطر ډیر کړي.
• د وسایلو ساتنه: وسایل په احتیاط سره وساتئ. د حرکت کوونکو برخو د غلط تنظیم یا تړلو، د برخو د ماتیدو، او نورو شرایطو لپاره وګورئ چې ممکن د وسیلې فعالیت اغیزمن کړي.
• د بیټرۍ خوندیتوب: Use only SEESII brand batteries with this product. Using other batteries may create a risk of injury and fire.
• خوندي گرفت: Always maintain a firm grip on the tool, especially when using the extension pole.
• Chain Saw Specific: Be aware of kickback when operating the chainsaw. Ensure proper chain tension.
• Hedge Trimmer Specific: Keep hands away from blades. Ensure blades are properly installed and secured.

3. د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په بسته کې شامل دي:

• Electric Chainsaw (x1)
• Electric Pruning Shears (x1)
• Extendable Pole (x1)
• Trimmer Body (x1)
• Hedge Trimmer Blade (x1)
• Grass Trimmer Blade (x1)
• Hedge Trimmer Blade Protective Cover (x1)
• Grass Trimmer Blade Protective Cover (x1)
• Chainsaw Protective Cover (x1)
• 4000mAh Battery (x2)
• چارجر (x1)
• د اوږې تسمه (x1)
• User Manual (Japanese) (x1)

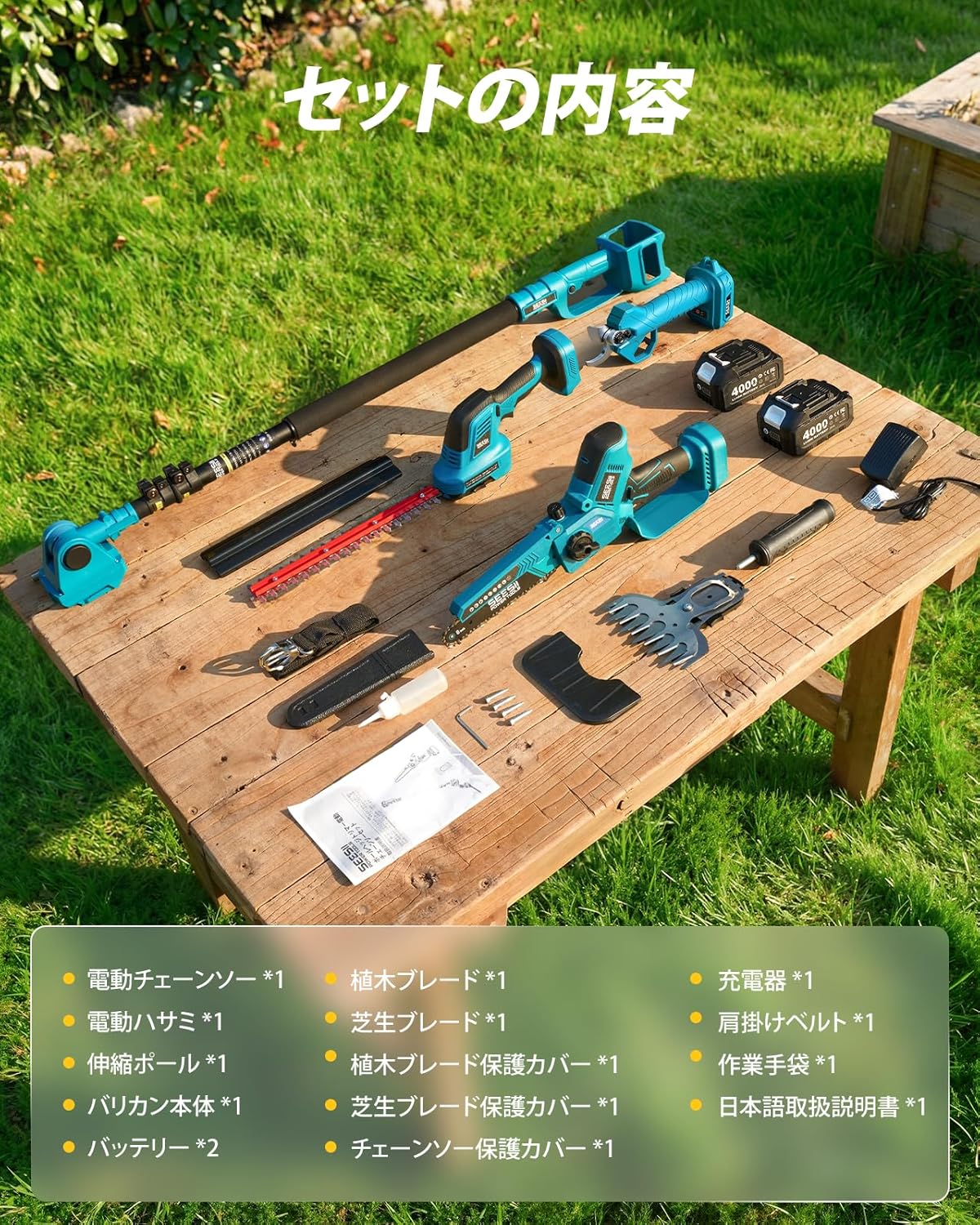

Image: All components included in the SEESII L40 pro package, neatly arranged on a wooden surface.

4. ترتیب کول

4.1. د بیټرۍ نصب کول

Insert the 4000mAh battery into the designated slot on the tool until it clicks securely into place. Ensure the battery is fully charged before first use. The batteries feature a charge indicator for easy monitoring.

Image: Two 4000mAh batteries, highlighting their capacity and importance for extended operation.

4.2. Chainsaw Chain Installation and Tensioning

1. Use the provided wrench to loosen the two fixing bolts on the chainsaw cover.
2. Remove the cover and the guide bar.
3. Carefully place the chain around the sprocket and guide bar, ensuring the cutting direction of the chain is correct.
4. Align the guide bar with the mounting holes on the chainsaw body.
5. Replace the cover and loosely tighten the bolts.
6. Use a screwdriver to adjust the chain tension through the adjustment hole. The chain should have a slight give (2-3mm) when pulled lightly.
7. Once the tension is correct, fully tighten the two fixing bolts with the wrench.

4.3. Hedge Trimmer Blade Installation

To install the hedge trimmer blade, ensure the power tool is off and the battery is removed. Align the blade with the gear mechanism and secure it with the cover and screws. Refer to the video for a visual guide.

5. عملیاتي لارښوونې

5.1. عمومي عملیات

After attaching the desired tool head and battery, press and hold the safety switch, then quickly press the operating switch twice to start the tool. Release the safety switch once the tool is running.

5.2. Extendable Pole Usage

The extendable pole can be adjusted steplessly from 130cm to 240cm, providing a maximum working range of up to 450cm (including user height). This allows for safe and easy trimming of high branches without a ladder. The tool head can be adjusted from 0° to 180° for optimal cutting angles.

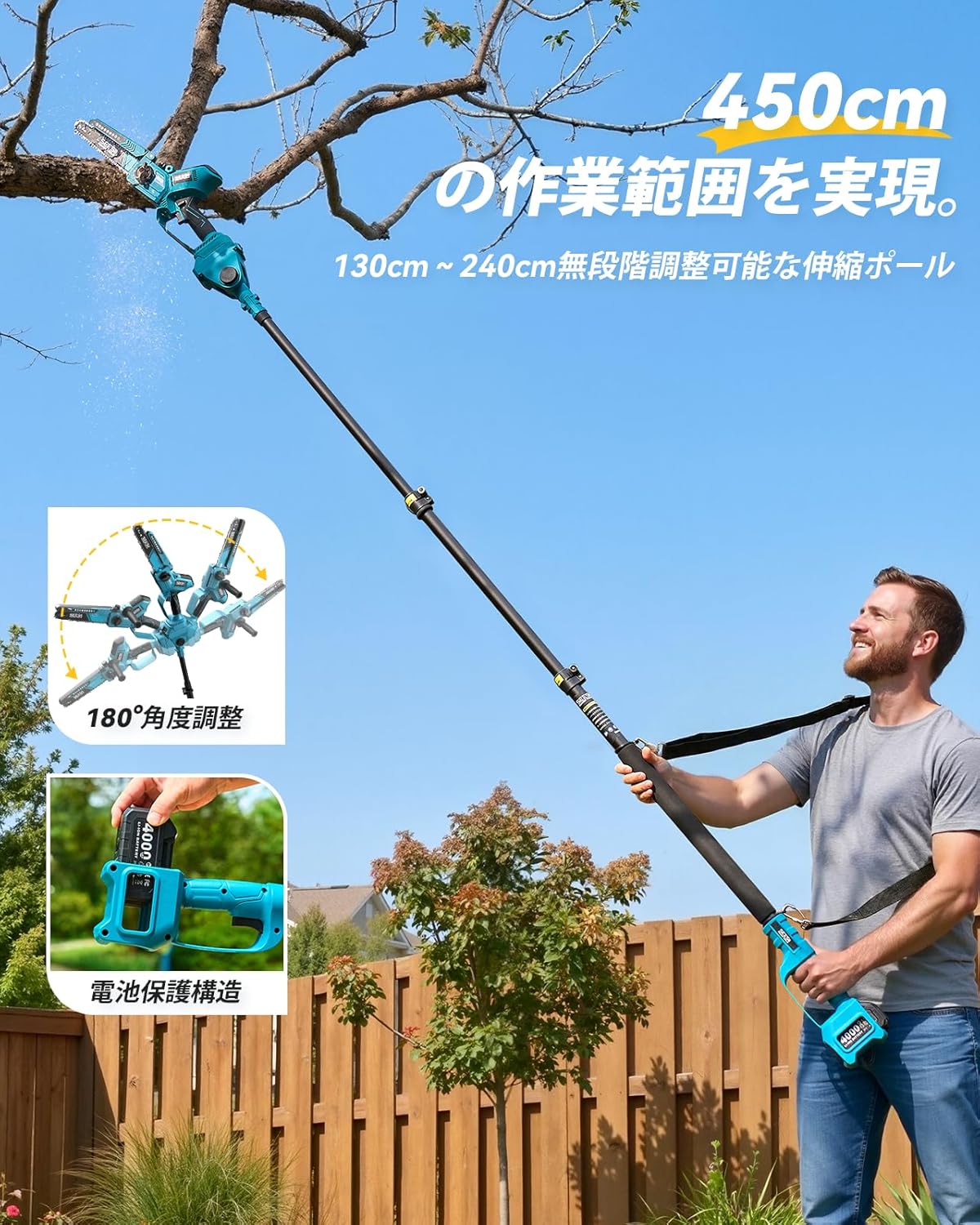

Image: Demonstrates the extendable pole in use for high branch pruning, highlighting its adjustable length and head angle.

5.3. Electric Pruning Shears Operation

The cordless pruning shears are equipped with a brushless motor, capable of smoothly cutting branches up to 30mm in diameter. The anti-slip design ensures comfortable use during long periods of work, and the cutting diameter can be easily switched between two stages.

6. ساتنه

6.1. Chainsaw Chain Lubrication

The 8-inch chainsaw features an automatic lubrication system. Ensure the oil reservoir is filled with appropriate chain oil. Check the oil level regularly and refill as needed (approximately 30ml each time). Proper lubrication extends chain life and ensures smooth operation.

6.2. پاکول او ذخیره کول

After each use, clean all tool heads and the main body. Remove any debris, sawdust, or grass clippings. Store the tool and batteries in a dry, secure place, away from direct sunlight and extreme temperatures. Always attach protective covers to blades and chains when storing.

7. ستونزه حل کول

که تاسو له کومې ستونزې سره مخ شئ، نو لاندې عام د ستونزو حل کولو لارښوونو ته مراجعه وکړئ:

• وسیله نه پیل کیږي: Ensure the battery is fully charged and properly installed. Check that the safety switch is pressed before activating the operating switch.
• Chainsaw not cutting efficiently: Check chain tension and sharpness. Ensure the oil reservoir is filled for proper lubrication.
• Hedge/Grass Trimmer blades jamming: Ensure blades are clean and free of debris. Avoid cutting branches thicker than the recommended maximum diameter.
• بیټرۍ چارج نه کوي: Verify the charger is properly connected to both the battery and a power outlet. Ensure the charger is functioning correctly.

د دوامداره ستونزو لپاره، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.

8. مشخصات

9. تضمین او ملاتړ

SEESII products come with a 1-year warranty. If you experience any product defects or have questions during use, please contact us. We offer free exchanges for initial defects. Our customer support team aims to respond within 24 hours.

د ملاتړ سره څنګه اړیکه ونیسئ:

1. خپل د امر تاریخ ته لاړ شئ.
2. Select the relevant order.
3. Click on the product to view د امر توضیحات.
4. Click on the 'Seller Name' (Seesii-JP).
5. Click 'Ask a Question'.

We are committed to providing prompt assistance.
