Naifay 8Core Android Car Radio Instruction Manual

۲. د مطابقت مهم معلومات

This Naifay Android car radio is designed for Ford Transit Connect models from 2010 to 2013. Before installation, it is crucial to verify compatibility with your vehicle's dashboard configuration.

یادونه: دا واحد دی مطابقت نلري with car models that have three buttons on the OEM center console. Please examine the year, dimensions, and shape of your vehicle's center console.

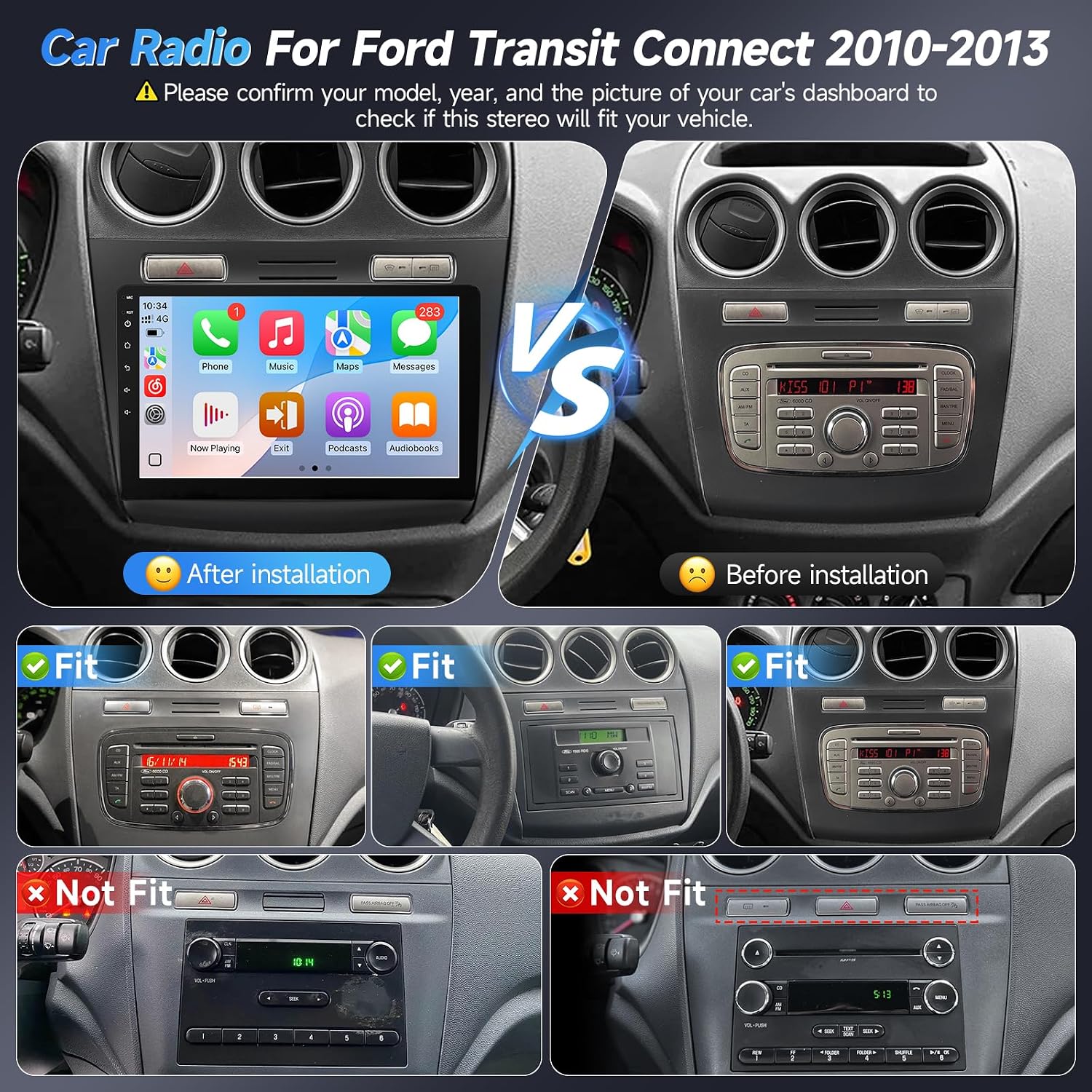

Image 1.1: Visual guide for checking dashboard compatibility. The image displays various Ford Transit Connect dashboards, indicating which configurations are compatible ('Fit') and which are not ('Not Fit'), specifically highlighting dashboards with three buttons on the OEM center console as incompatible.

If you are uncertain about compatibility, please consult the seller with your vehicle's model year and a picture of your car's dashboard and original radio interface.

2. د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې لیست شوي ټولې برخې ستاسو په بسته کې شاملې دي:

• Naifay 10.1-inch Android Car Radio Unit
• بیک اپ کیمره
• د RCA کیبل سیټ
• شاته View ننوت کیبل
• د GPS انتن
• مایکروفون (MIC)
• د USB کیبلونه (x2)
• د بریښنا کیبل
• د راډیو اډاپټر
• د کارن لارښود

Image 2.1: Diagram showing the dimensions of the 10.1-inch head unit and a visual representation of all included accessories in the package.

3. د نصب لارښود

Professional installation is recommended. If performing self-installation, ensure the vehicle's battery is disconnected before starting. Refer to the included user manual and any provided installation videos for detailed steps.

3.1 Wiring Harness Instruction

Carefully connect the wiring harness to the corresponding ports on the car radio and your vehicle's electrical system. Ensure all connections are secure.

• د بریښنا تار: د موټر د بریښنا رسولو سره وصل کړئ.
• RCA: د آډیو/ویډیو ان پټ/آؤټ پټ اتصالاتو لپاره.
• USB: Connect the two USB cables for external devices.
• برعکس ننوتل: For the backup camera connection.
• GPS: Connect the GPS antenna.
• Radio Cable: د راډیو انتن سره وصل کړئ.

مهم: The white plug must be connected to the car radio to ensure proper Bluetooth and Wi-Fi signal reception. If you do not connect the camera, please plug the camera input cable on the back of the car radio to enhance Bluetooth and Wi-Fi signals.

Image 3.1: Detailed diagram illustrating the connections for the power cord, RCA cables, USB ports, reverse input, GPS antenna, and radio cable.

3.2 Reversing Camera Wiring

The backup camera requires specific wiring for power and video signal transmission. There are typically two choices for wiring: roof wiring or under-seat wiring.

• Connect the camera power cable (red wire) to the reversing lamp ځواک
• Connect the black wire to ground (GND).
• Connect the video signal cable from the camera to the 'CAM-IN' input on the car stereo.
• The pink or brown wire from the car stereo needs to be connected to the reversing lamp signal wire.

Image 3.2: Diagram detailing the wiring connections for the backup camera, including power and video signal lines, and options for cable routing.

4. عملیاتي لارښوونې

This Android car radio offers a range of features for enhanced in-car entertainment and navigation.

۶.۲ بېسیم کارپلی او انډرایډ آټو

Connect your iPhone or Android smartphone wirelessly or via USB to access CarPlay or Android Auto. This allows for hands-free calling, navigation, music playback, and access to compatible apps directly on the car radio's screen.

• بې سیم اړیکه: Enable Bluetooth and Wi-Fi on your phone and connect to the car radio.
• د تار نښلول: Use a USB cable to connect your phone to one of the car radio's USB ports.

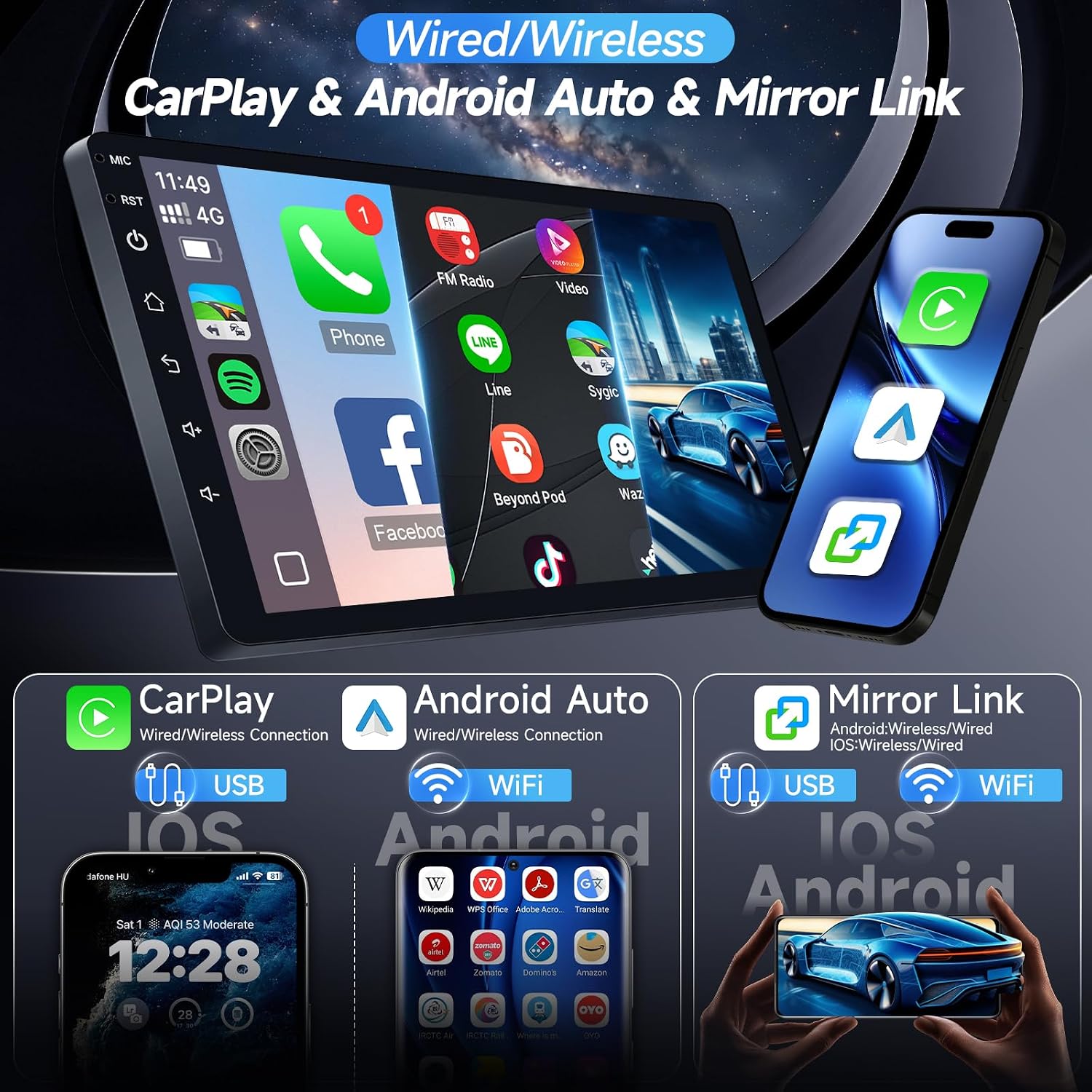

Image 4.1: Display showing the user interface for Wireless CarPlay and Android Auto, demonstrating phone integration for navigation, music, and calls.

۵.۵ د عکس لینک

Mirror Link functionality allows you to display your smartphone's screen directly onto the car radio's 10.1-inch display. This feature supports both iOS and Android devices via Wi-Fi or USB connection.

Image 4.2: Illustration of the Mirror Link function, showing a smartphone screen duplicated on the car radio display.

4.3 د GPS نیویګیشن

The unit includes a GPS module, supporting both offline and online navigation. Connect to Wi-Fi or a mobile hotspot for real-time traffic updates and online map services. Pre-installed maps or downloadable map applications can be used for navigation.

Image 4.3: Screenshot of the GPS navigation system, showing map display and route information.

4.4 د وای فای اتصال

Connect the car radio to a Wi-Fi network or your phone's mobile hotspot to access online features, download applications, stream music and videos, and browse the internet.

Image 4.4: Visual representation of Wi-Fi connectivity, showing access to various online applications like YouTube and Spotify.

۶.۴ د بلوتوث فعالیت

Pair your smartphone via Bluetooth for hands-free calling and audio streaming. The system supports phonebook synchronization for convenient access to your contacts.

• د لاسونو څخه وړیا تلیفون کول: Make and receive calls directly from the car radio screen.
• بلوتوث د خپل جوړه شوي وسیلې څخه آډیو سټریم کړئ.

Image 4.5: Display showing Bluetooth interface for calls and music, alongside FM radio and EQ settings.

4.6 ایف ایم راډیو

Access a wide range of FM radio stations with clear reception. The system allows for unlimited presets to quickly switch between your favorite channels.

Image 4.6: Screenshot of the FM radio interface, showing frequency display and station presets.

۶.۸ د سټیرینګ ویل کنټرول (SWC)

The unit supports steering wheel controls, allowing you to manage audio playback, answer calls, and navigate menus without taking your hands off the wheel. This enhances driving safety and convenience.

Image 4.7: Diagram illustrating how steering wheel controls can be mapped and used with the car radio.

۳.۲ د سپلایټ سکرین فعالیت

Utilize the split-screen feature to run two applications simultaneously on the 10.1-inch display. For exampلی، تاسو کولی شئ view navigation maps on one side while controlling music playback or another app on the other.

Image 4.8: Visual demonstration of the split-screen mode, displaying navigation and a video player side-by-side.

4.9 EQ Adjustable

Customize your audio experience with the built-in EQ (Equalizer) settings. Adjust various frequency bands to fine-tune the sound output to your preference.

۷.۶. د بیک اپ کیمره

The included AHD (Analog High Definition) backup camera provides a clear, wide-angle view of the area behind your vehicle. The display automatically switches to the camera feed when the vehicle is put into reverse, enhancing safety during parking and maneuvering.

• HD Image: Provides high-definition video feed.
• د IR شپې لید: په ټیټ رڼا شرایطو کې لید ښه کوي.
• پنروک: د مختلف هوا شرایطو سره مقاومت کولو لپاره ډیزاین شوی.
• 170° Wide-Angle: پراخه ساحه وړاندې کوي view.

Image 5.1: Screen display of the AHD backup camera, showing parking guidelines and a wide-angle view.

6. مشخصات

7. ستونزه حل کول

دا برخه عامې ستونزې حل کوي او حل لارې وړاندې کوي.

۵.۱ د نصبولو عمومي لارښوونې

• والیtage چک کول: Ensure the car's voltage is 12V. Over 12V may damage the unit.
• CAM-IN Connection: You MUST connect the 'CAM-IN' reversing input cable. This cable, which comes with two small antennas, enhances the radio's Bluetooth and Wi-Fi signals. Failure to connect it may result in unstable connections.
• Power Cable/Accessories: If the power cable is different or accessories are missing/damaged, contact customer support for assistance.

7.2 How to Reach Support

If you encounter problems that cannot be resolved using this manual, please contact customer support:

1. په ایمیزون کې د محصول پاڼې ته لاړ شئ.
2. Click on the seller name "Naifay".
3. Click "Ask a question" to send a message.
4. Provide details of the issue and attach relevant pictures or videos to help resolve the problem faster.

Image 7.1: Guide for installation tips and how to contact customer support for problem resolution.

8. تضمین او ملاتړ

Naifay is committed to providing quality products and customer satisfaction. For any product-related inquiries, technical support, or warranty claims, please contact our customer service team through the methods described in the Troubleshooting section.

The product typically includes a standard return policy. Please refer to your purchase details for specific return and warranty periods.
