Afidano L6 Electric Cigar Humidor Cabinet User Manual

1. محصول ختم شوview

The Afidano L6 Electric Cigar Humidor Cabinet is engineered to provide an optimal environment for the long-term aging and storage of cigars. This unit features an integrated climate control system that includes humidity regulation, PTC heating, fan cooling, and dehumidification, ensuring stable temperature and humidity levels essential for cigar preservation. The cabinet's construction utilizes a solid wood frame and a Spanish cedar interior, which naturally assists in moisture absorption and enhances cigar aroma. Its sophisticated design, characterized by a high-gloss piano black finish, incorporates a user-friendly digital control panel for precise monitoring and adjustment of environmental settings.

شکل ۱: بهرنۍ برخه view of the Afidano L6 Electric Cigar Humidor Cabinet.

۴. د تنظیم لارښوونې

2.1 پاکول او ځای پرځای کول

1. Carefully remove the humidor from its packaging. Inspect for any shipping damage.
2. Place the humidor on a stable, level surface away from direct sunlight, heat sources, or areas with significant temperature fluctuations. Ensure adequate ventilation around the unit.
3. Allow the humidor to stand upright for at least 24 hours before plugging it in, especially if it was transported horizontally. This allows refrigerants to settle.

2.2 ابتدايي پاکول

• داخلي او بهرنۍ سطحې په نرم، d سره مسح کړئamp ټوکر. د کثافاتو پاکوونکو یا محلولونو څخه ډډه وکړئ.
• Ensure the Spanish cedar shelves and drawers are clean and free of any dust or debris.

2.3 د بریښنا نښلول

• د بریښنا تار د ځمکې لاندې بریښنایی پلورنځی سره وصل کړئ.
• Turn on the humidor using the main power switch, if present, or by interacting with the digital control panel.

2.4 Seasoning the Humidor

Before storing cigars, the Spanish cedar interior must be properly seasoned to prevent it from absorbing moisture from your cigars. This process typically takes 3-7 days.

1. Fill the water reservoir with distilled water. Ensure the water level alarm is not triggered.
2. Set the desired humidity level (e.g., 70%) and temperature (e.g., 68°F or 20°C) on the digital control panel.
3. Allow the humidor to run until the internal humidity stabilizes at the set level. This may take several days. Do not place cigars inside during this period.
4. Once stable, the humidor is ready for cigar storage.

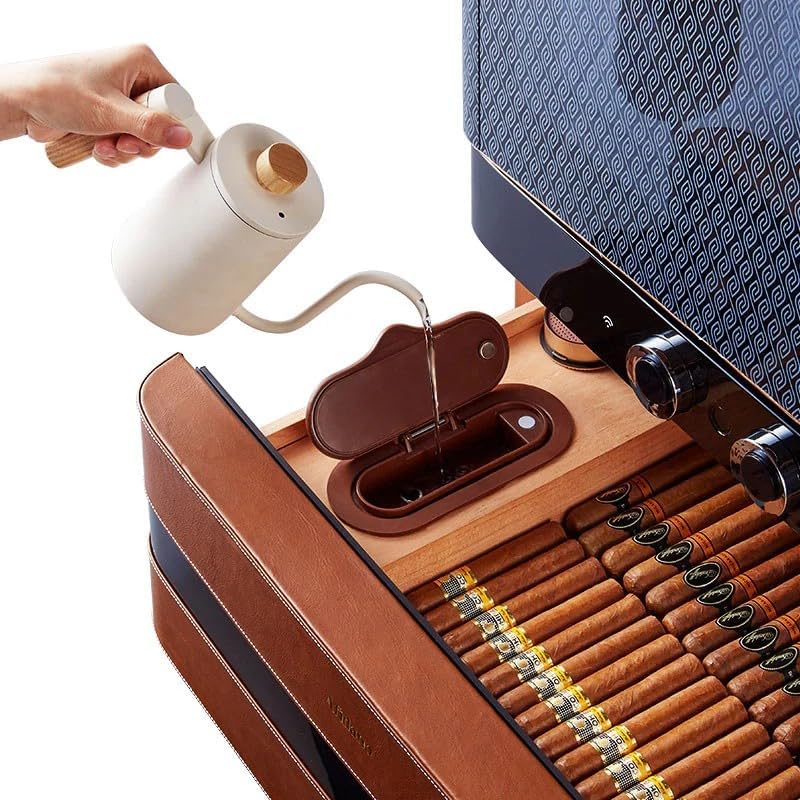

Figure 2: Illustration of filling the water reservoir with distilled water for humidification.

3. عملیاتي لارښوونې

3.1 ډیجیټل کنټرول پینل

The Afidano L6 features a smart digital control panel for precise management of the internal environment.

• د حرارت درجه ترتیب: Use the temperature controls to set your desired temperature between 60–71°F (16–22°C). The system will automatically maintain this range using PTC heating and fan cooling.
• د رطوبت ترتیب: Adjust the humidity controls to your preferred level, typically between 60–75%. The integrated humidity control and dehumidification functions will work to achieve and maintain this range.
• څارنه: The digital LED screen displays current temperature and humidity levels, allowing for easy monitoring.

Figure 3: Close-up of the digital control panel, showing temperature and humidity displays, and the fingerprint lock sensor.

3.2 د ګوتو نښې لاک

The humidor is equipped with a fingerprint lock for secure access.

• Refer to the separate fingerprint lock setup guide for initial registration of fingerprints.
• To unlock, place your registered finger on the sensor. The lock will disengage, allowing the door to be opened.

3.3 د APP کنټرول

Manage your humidor settings remotely using the dedicated mobile application.

• Download the Afidano app from your device's app store.
• Follow the in-app instructions to pair your humidor with your mobile device.
• Through the app, you can monitor current conditions, adjust temperature and humidity settings, and receive alerts.

Figure 4: The Afidano mobile application interface shown on a smartphone, demonstrating remote control capabilities.

3.4 Loading Cigars

• Arrange cigars on the Spanish cedar shelves and in the drawers. Ensure proper air circulation by not overcrowding the humidor.
• The cleverly arranged drawers and shelves, combined with designed openings, optimize air circulation for smooth airflow within the cabinet.

شکل 5: داخلي view of the humidor, displaying cigars neatly organized on Spanish cedar shelves and in drawers.

4. ساتنه

4.1 Water Reservoir Refilling

• Monitor the water level in the reservoir regularly. The unit may have a water level alarm to indicate when refilling is needed.
• Always use distilled water to prevent mineral buildup and ensure proper humidification.
• Carefully pour distilled water into the designated reservoir opening. Avoid overfilling.

4.2 پاکول

• بهر: بهرنۍ سطحې د نرم، وچ یا لږ څه وچو اوبو سره پاک کړئ.amp ټوکر د سختو کیمیاوي موادو څخه ډډه وکړئ چې کولی شي پای ته زیان ورسوي.
• داخلي: Periodically remove cigars, shelves, and drawers. Wipe the interior with a clean, damp cloth (distilled water only). Allow to air dry completely before returning components and cigars.
• Spanish Cedar: Do not use cleaning agents on Spanish cedar. If necessary, gently wipe with a cloth dampد تقطیر شویو اوبو سره مینځل شوی.

4.3 Odor Prevention

• The all-wood construction helps prevent odors. Avoid introducing items with strong scents into the humidor.
• If an unusual odor develops, remove all cigars and components, clean the interior as described above, and allow it to air out for a day before reassembling.

5. ستونزه حل کول

6. مشخصات

7. تضمین او ملاتړ

For detailed warranty information, please refer to the warranty card included with your product or contact Afidano customer support directly. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical assistance, troubleshooting beyond this manual, or spare parts, please contact the manufacturer's customer service department.
