1. پیژندنه

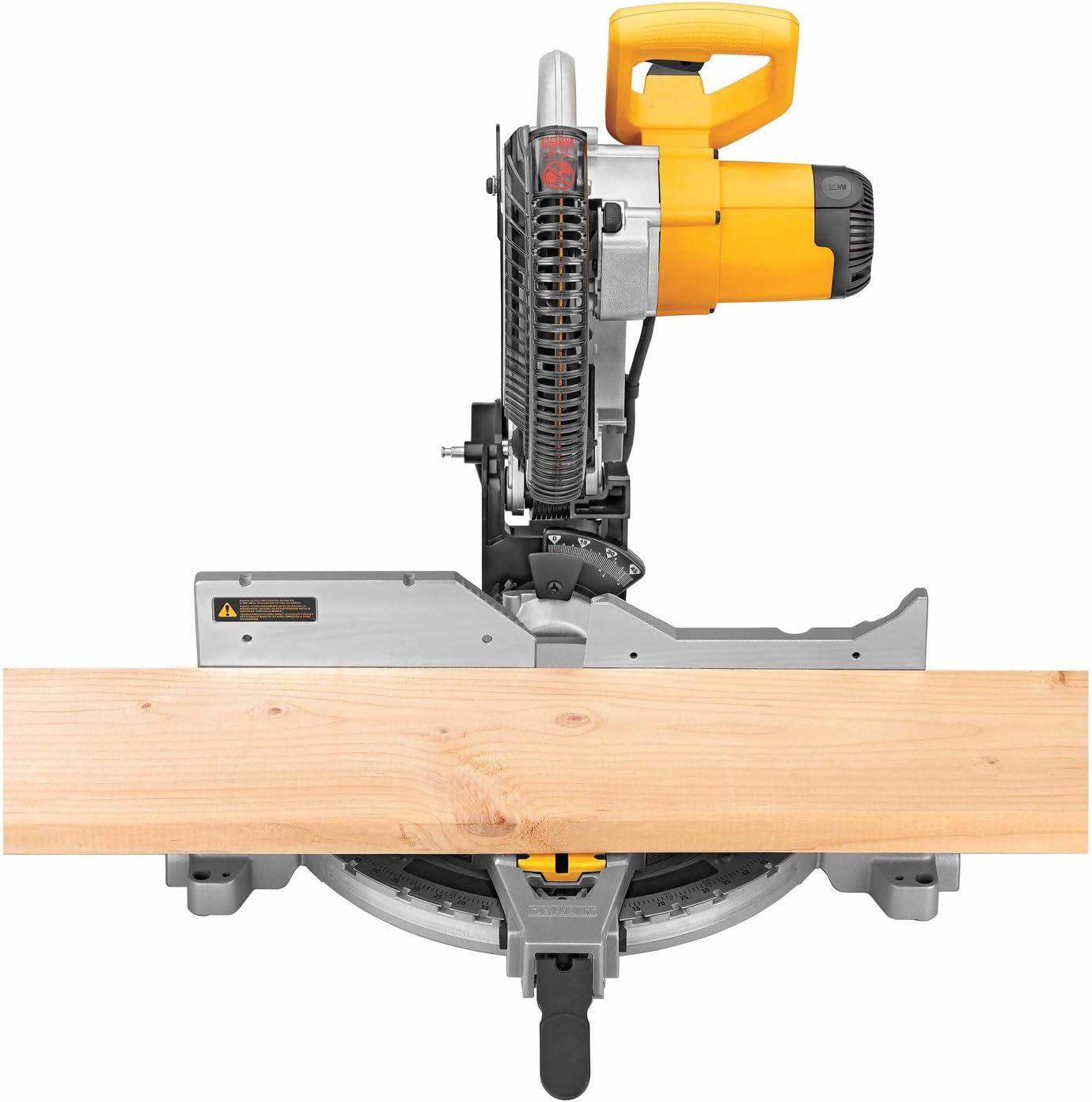

This manual provides essential instructions for the safe operation, setup, maintenance, and troubleshooting of your DEWALT DW715 12-Inch Compound Miter Saw. Designed for precision and durability, this saw is equipped with a powerful 15 Amp motor, delivering 4,000 rpm for efficient cutting of various materials. Please read this manual thoroughly before operating the saw to ensure proper use and to prevent injury.
د خوندیتوب مهم معلومات: For safe operation, always read and understand the instruction manual completely before using this product. Failure to follow all instructions may result in serious injury.
2. تنظیم او مجلس
Upon receiving your DEWALT DW715 miter saw, carefully unpack all components and inspect for any damage. Ensure all parts listed in the packing contents are present. The saw comes partially assembled, requiring minimal setup before use.
2.1 د تیغ نصب کول
The saw includes a carbide blade and a blade wrench for installation. Refer to the detailed instructions in the full manual for safe blade attachment and removal. Always ensure the saw is unplugged before performing any blade-related tasks.
۵.۱ د ارې خوندي کول
For stable and accurate operation, securely mount the miter saw to a workbench or a compatible miter saw stand. Ensure the mounting surface is level and capable of supporting the saw's weight and operational forces.
3. عملیاتي لارښوونې
The DEWALT DW715 is designed for precise cutting applications. Familiarize yourself with its controls and adjustments before making any cuts.
۴.۱ ځواک او فعالیت
The saw is powered by a 15 Amp motor, delivering a no-load speed of 4,000 revolutions per minute (rpm). This power is suitable for cutting framing lumber, molding, and other crosscutting and miter-cutting tasks.
3.2 Miter Angle Adjustments
The precise miter system features an adjustable stainless steel miter detent plate with 11 positive stops for common miter angles. To adjust the miter angle:
- Loosen the cam-lock miter handle.
- Rotate the turntable to the desired angle. The detent plate allows for quick stops at common angles.
- For angles between detents, use the detent override feature.
- Securely tighten the cam-lock miter handle to lock the angle in place.
The saw offers a wide miter capacity of 0 to 50 degrees to both the left and the right.
3.3 Bevel Angle Adjustments
The saw allows for bevel cuts with a capacity of 0 to 48 degrees to the left and 0 to 3 degrees to the right. Hardened steel bevel stops are provided at 0, 33.9, 45, and 48 degrees for quick and accurate settings.
3.4 Fence System
The tall sliding fence supports crown molding up to 5-1/4 inches nested vertically and base molding up to 6-1/2 inches vertically against the fence. For bevel cuts, the fence can be easily slid out of the way to accommodate the blade angle.
3.5 Cutting Capacity
The 12-inch blade allows for crosscuts through dimensional lumber up to 2x8 inches.
۴.۲ د لېږد وړتیا
Weighing approximately 42 pounds, the DW715 features a built-in carry handle for convenient transport around the jobsite or for storage.
4. ساتنه
Regular maintenance ensures the longevity and optimal performance of your DEWALT DW715 miter saw.
4.1 پاکول
After each use, disconnect the saw from power and clean sawdust and debris from the motor vents, blade guard, and table surface. The included dust bag should be emptied regularly to maintain efficient dust collection.
۵.۲ د تیغ پاملرنه او ځای پر ځای کول
Periodically inspect the blade for sharpness and damage. A dull or damaged blade can lead to poor cut quality and increased motor strain. Use the provided blade wrench for safe blade replacement. Always use a 12-inch blade compatible with your saw's specifications.
5. ستونزه حل کول
This section addresses common issues you might encounter during the operation of your miter saw.
- نه پیلېدل: Ensure the power cord is securely plugged into a functional outlet. Check for tripped circuit breakers.
- Poor cut quality (rough edges, burning): The blade may be dull, dirty, or incorrect for the material being cut. Replace or clean the blade as necessary. Ensure the material is properly supported and clamped.
- Inaccurate cuts: Verify that the miter and bevel scales are correctly set and locked. Check for any play in the saw's components or if the fence is misaligned. Calibration may be required.
- زیات فشار: Ensure the saw is securely mounted. Check if the blade is properly installed and not warped.
For issues not covered here, or if problems persist, contact DEWALT customer support or a qualified service technician.
6. مشخصات
| فیچر | مشخصات |
|---|---|
| د ماډل شمیره | DW715 |
| د بریښنا سرچینه | د بریښنا تار شوی |
| والیtage | 120 ولټه |
| Ampزمانه | 15 Amps |
| د نه بارولو سرعت | 4000 RPM |
| د تیغ قطر | ۷۸۷ انچه |
| Miter Capacity (Left/Right) | 0-50 درجې |
| Bevel Capacity (Left/Right) | 0-48 degrees Left, 0-3 degrees Right |
| د توکي وزن | ۱.۸۱ پونډه (تقریبا ۰.۸۲ کیلوګرامه) |
| د محصول ابعاد | ۷۱"لیتر x ۲۳.۶"واټه x ۲۴.۴"هوا |
| د تیغ مواد | Stainless Steel (Carbide blade included) |
| د موادو سمبالول | المونیم |
7. تضمین او ملاتړ
Your DEWALT DW715 12-Inch Compound Miter Saw is backed by a comprehensive warranty package:
- ۳ کلن محدود تضمین: په موادو یا کاریګرۍ کې نیمګړتیاوې پوښي.
- د یو کلن وړیا خدماتو قرارداد: Provides free maintenance for one year from the date of purchase.
- د 90 ورځو پیسو بیرته ورکولو تضمین: Allows for a full refund within 90 days if you are not completely satisfied.
For warranty claims, service, or technical support, please refer to the contact information provided with your product packaging or visit the official DEWALT webسایټ
