1. پیژندنه
This manual provides detailed instructions for the installation, operation, and maintenance of your Lutron Maestro MSCLV-600M-SW Magnetic Low Voltage Digital Dimmer. This dimmer is designed for use with 600-watt magnetic low voltage lighting applications and supports multi-location dimming from up to ten locations when paired with coordinating Maestro Accessory Dimmers.
کلیدي ځانګړتیاوې عبارت دي له:
- Multi-location dimming capability (up to nine accessory dimmers).
- One tap on/off to selected light level.
- Two taps for full brightness.
- Press and hold for a 10-second fade to off.
- Delayed off feature provides light as you exit the room.
- Rocker switch for precise light level adjustment.
۱.۱. د خوندیتوب مهم معلومات
خبرداری: د بریښنا شاک خطر.
- Turn off power at the circuit breaker or fuse box before installing or servicing the dimmer.
- Installation must be performed by a qualified electrician or trained personnel in accordance with all local and national electrical codes.
- Do not use with standard incandescent, LED, or electronic low voltage lighting. This dimmer is specifically for magnetic low voltage بار.
- ټول واټ ډاډمن کړئtage of the connected lighting does not exceed the dimmer's maximum rating of 600 watts.
- Ground the dimmer in accordance with local and national electrical codes.
3. د بسته محتويات
Your Lutron Maestro MSCLV-600M-SW package should include:
- One (1) Lutron Maestro MSCLV-600M-SW Digital Dimmer
- د نصبولو لارښود (دا سند)
- د سکرو نصب کول
Note: Wall plates and coordinating accessory dimmers (for multi-location control) are sold separately.
4. د نصبولو لارښوونې
Before beginning, ensure power is turned off at the circuit breaker. This dimmer is designed for single-pole or multi-location applications. For multi-location control, you will need one Maestro MSCLV-600M-SW dimmer and up to nine Maestro Accessory Dimmers.
4.1 Wiring Diagram (Typical Single-Pole Installation)
Refer to the diagram below for a typical single-pole wiring configuration. For multi-location wiring, consult the specific instructions provided with your Maestro Accessory Dimmers.

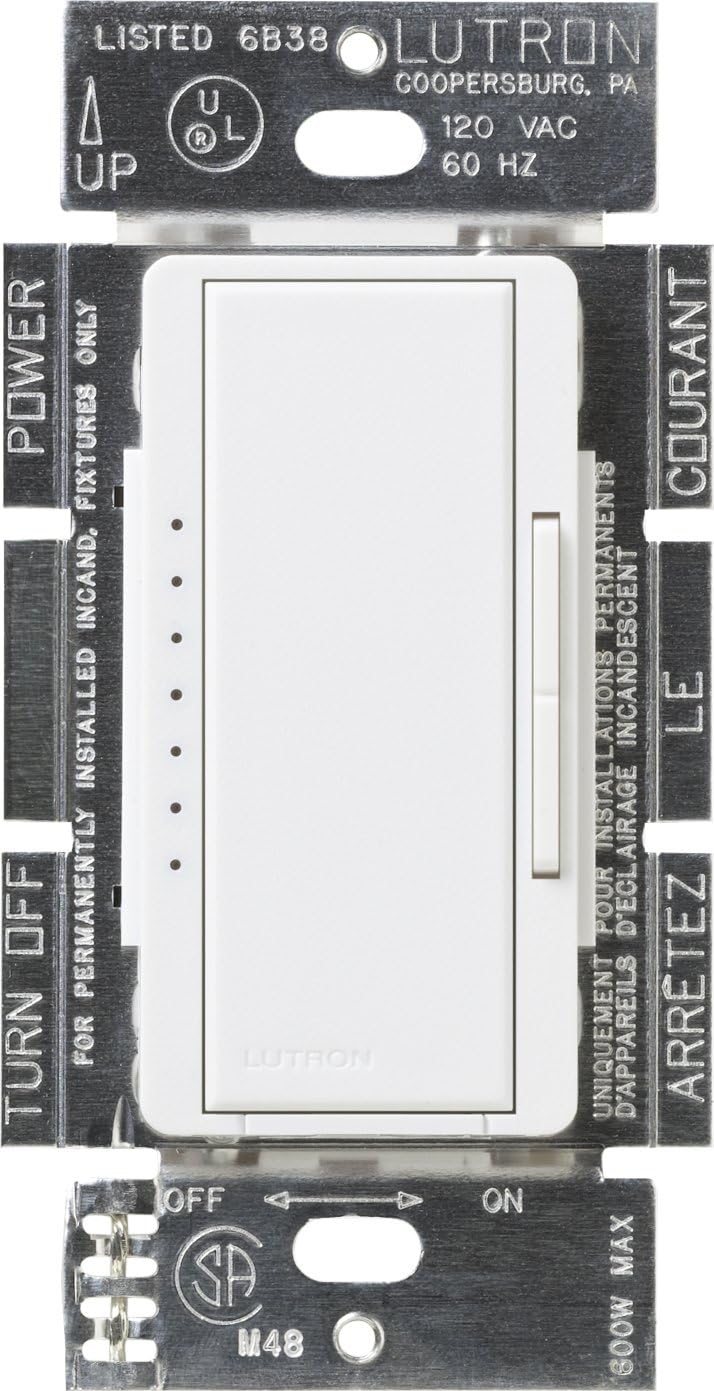

د انځور تفصیل: This image displays the Lutron Maestro MSCLV-600M-SW dimmer module from the front, showing its internal components and wiring terminals. Labels indicate 'POWER', 'TURN OFF', 'UP', 'ON', 'OFF', and '800W MAX' (note: product is 600W, this label might be generic for the series). The dimmer has a main rocker switch and a smaller vertical slider for dimming control, along with a row of indicator lights. The metal mounting straps are visible with regulatory markings.
- د بریښنا بندول: Locate the circuit breaker that controls the lighting circuit and switch it to the OFF position. Verify power is off at the switch location using a voltage ټیسټر.
- موجوده سویچ لرې کړئ: په احتیاط سره د دیوال پلیټ لرې کړئ او موجوده سویچ د دیوال بکس څخه خلاص کړئ. تارونه د زاړه سویچ څخه جلا کړئ.
- د تارونو پیژندنه: Identify the following wires in the wall box:
- Hot/Line Wire: The wire bringing power from the circuit breaker.
- د بار تار: هغه تار چې د رڼا فکسچر ته ځي.
- ځمکني تار: Bare copper or green insulated wire.
- بې طرفه تار: (If present, typically white) This dimmer does not require a neutral wire.
- ډیمر تار کړئ: Connect the wires from the wall box to the dimmer's terminals as follows:
- سره وصل کړئ Hot/Line wire to the dimmer's designated line terminal (usually black).
- سره وصل کړئ بار wire to the dimmer's designated load terminal (usually red).
- سره وصل کړئ ځمکه wire to the dimmer's green ground screw.
- For multi-location installations, connect the traveler wires according to the accessory dimmer instructions.
- ډیمر نصب کړئ: Carefully fold the wires into the wall box and secure the dimmer to the wall box using the provided screws.
- وال پلیټ نصب کړئ: Attach the coordinating wall plate (sold separately) over the dimmer.
- د بریښنا بیرته راګرځول: په سرکټ بریکر کې بریښنا بیرته فعاله کړئ.
5. عملیاتي لارښوونې
The Lutron Maestro Digital Dimmer offers intuitive control over your magnetic low voltage رڼا اچول.
د انځور تفصیل: This image shows the Lutron Maestro MSCLV-600M-SW dimmer installed with a white faceplate. The main rocker switch and the smaller vertical slider are clearly visible, along with the row of five small LED indicator lights on the left side, with one light illuminated in yellow, indicating the current dimming level.
5.1 بنسټیز عملیات
- آن/بندول: Tap the main rocker switch once to turn the lights on to your previously selected level, or off.
- بشپړ روښانتیا: Tap the main rocker switch twice quickly to turn the lights on to full brightness.
- کم/روښانه کول: Use the small vertical rocker switch on the right side to adjust the light level up or down. The LED indicator lights on the left will show the current brightness level.
- ځنډول شوی بند: Press and hold the main rocker switch for approximately 10 seconds. The lights will gradually fade to off, providing time to exit the room before the lights extinguish completely.
6. ساتنه
Your Lutron Maestro dimmer is designed for long-lasting performance with minimal maintenance.
- پاکول: To clean the dimmer and wall plate, wipe with a soft, damp ټوکر. د کثافاتو پاکوونکي، محلولونه، یا کیمیاوي سپرې مه کاروئ، ځکه چې دا کولی شي پای یا داخلي برخو ته زیان ورسوي.
- د کارونکي د خدمت وړ برخې نشته: There are no user-serviceable parts inside the dimmer. Do not attempt to open or repair the unit.
7. ستونزه حل کول
If your Lutron Maestro dimmer is not functioning as expected, consult the following common issues and solutions:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| څراغونه نه خلاصیږي. | په سرکټ بریکر کې برېښنا بنده ده. د لوز تار نښلول. بلبونه وسوځېدل. | Check the circuit breaker and turn it ON. ډاډ ترلاسه کړئ چې د ټولو تارونو اتصالونه خوندي دي (لومړی ډاډ ترلاسه کړئ چې بریښنا بنده ده). بلبونه بدل کړئ. |
| Lights do not dim or flicker. | Incorrect bulb type (not magnetic low voltagاو). ټول واټtage exceeds dimmer capacity. لوڅ تارونه. | Ensure you are using magnetic low voltage bulbs/fixtures. ټول واټ کم کړئtagد ۲۰۰ واټو څخه کم بریښنا پورې تړلي څراغونه. د تارونو اتصالونه وګورئ (ډاډ ترلاسه کړئ چې لومړی بریښنا بنده ده). |
| ډیمر د لمس کولو لپاره ګرم دی. | عادي عملیات. | It is normal for dimmers to feel warm during operation. If it is excessively hot or emits smoke/odor, turn off power immediately and contact support. |
| Multi-location control not working. | Incorrect wiring for multi-location. Accessory dimmer not compatible or faulty. | Review multi-location wiring diagrams for the Maestro system. Ensure you are using genuine Lutron Maestro Accessory Dimmers. |
If the problem persists after trying these solutions, please contact Lutron Customer Support.
8. مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل شمیره | MSCLV-600M-SW |
| برانډ | لوټرون |
| واټtage | 600 Watts (Magnetic Low Voltage) |
| د عملیاتو Voltage | 120 وولټ AC، 60 Hz |
| د عملیاتو حالت | بند |
| د کنټرول ډول | Touch with Dimmer Control |
| د فعالیت ډول | تڼۍ فشار کړئ |
| د سرکټ ډول | 9-way (for multi-location with accessory dimmers) |
| رنګ | واوره |
| ابعاد (L x W x H) | 1.5 x 2.2 x 4.2 انچه |
| د توکي وزن | 4 اونس |
| د ارتباط پروتوکول | X-10 |
| ځانګړي ځانګړتیاوې | Deep Back Cover |
9. د تضمین معلومات
Specific warranty details for the Lutron Maestro MSCLV-600M-SW dimmer are typically provided with the product packaging or can be found on the official Lutron website. Lutron generally offers a limited warranty covering defects in materials and workmanship. Please retain your proof of purchase for warranty claims.
10. د پیرودونکي ملاتړ
For additional assistance, technical support, or troubleshooting not covered in this manual, please contact Lutron Customer Support.
10.1 Lutron 24/7 Support Video
د ویډیو تفصیل: This video highlights Lutron's commitment to customer support, emphasizing that help is available 24/7. It shows a person installing a Lutron product and then a customer service representative assisting a customer, conveying the ease of getting projects done with Lutron's continuous support.
Lutron 24/7 Support Phone: 844-588-7661
You can also visit the official Lutron website for more resources, FAQs, and product information.
