پیژندنه
Thank you for choosing the Casio TQ-140-1EF Analog Alarm Clock. This compact and reliable alarm clock is designed for simplicity and ease of use, providing accurate timekeeping and a clear alarm function. This manual will guide you through the setup, operation, and maintenance of your new alarm clock.

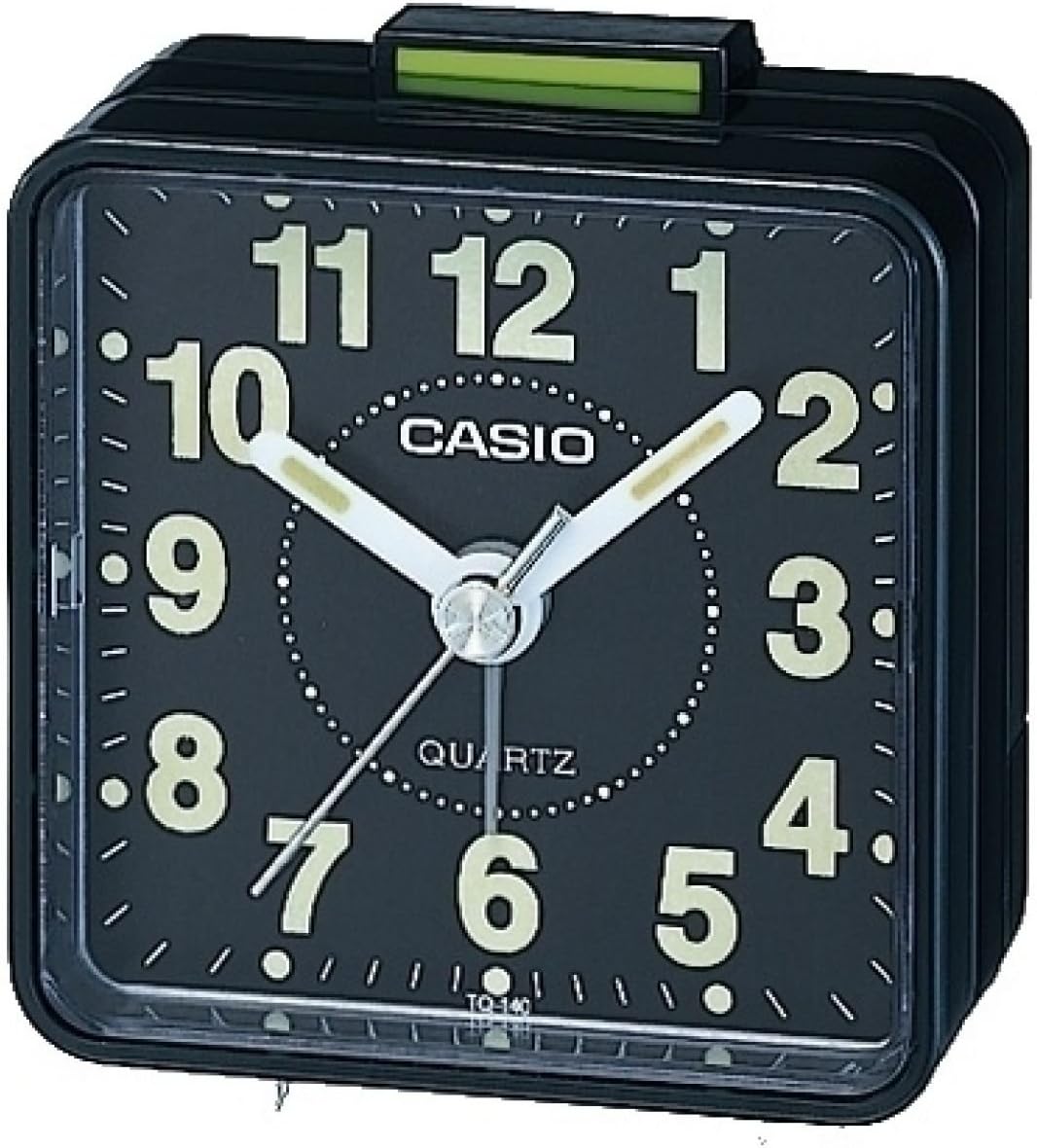

شکل 1: مخکی view of the Casio TQ-140-1EF Analog Alarm Clock. It features a black square body, a black dial with large white luminous Arabic numerals, and white luminous hour and minute hands. A thin white second hand is also visible. The alarm on/off switch is located on top, colored green.
محصول پای ته ورسیدview
The Casio TQ-140-1EF is a compact analog alarm clock with a simple, functional design. Key components include:
- د وخت ټاکلو نوب: Located at the back, used to adjust the current time.
- د الارم تنظیم کولو نوب: Located at the back, used to set the desired alarm time.
- الارم آن/بند سویچ: Located on the top, slides to activate or deactivate the alarm.
- د بیټرۍ کڅوړه: Located at the back, holds one AA battery.
- Luminous Hands and Numbers: Allow for visibility in low-light conditions.
چمتو کول
1. د بیټرۍ نصب کول
- Open the battery compartment cover located on the back of the alarm clock.
- Insert one AA battery (included) into the compartment, ensuring the correct polarity (+/-) as indicated inside the compartment.
- د بیټرۍ کمپارټ پوښ په خوندي ډول وتړئ.
۱. د اوسني وخت ټاکل
- د ساعت په شا کې د وخت تنظیم کولو دستګاه ومومئ.
- Rotate the knob in either direction to move the hour and minute hands until the correct current time is displayed.
عملیاتي لارښوونې
د الارم وخت تنظیم کول
- د ساعت په شا کې د الارم تنظیم کولو دستګاه ومومئ.
- دا غوټۍ وګرځوئ ترڅو د کوچني الارم لاس ستاسو د مطلوب ویښیدو وخت ته واړوئ.
د الارم فعالول/غیر فعالول
- To activate the alarm, slide the alarm ON/OFF switch (green tab) on the top of the clock upwards.
- To deactivate the alarm, slide the alarm ON/OFF switch downwards. The alarm will sound at the set time if activated.
ساتنه
پاکول
ساعت په نرم، وچ ټوکر سره پاک کړئ. د کثافاتو پاکوونکي یا محلولونه مه کاروئ، ځکه چې دوی ممکن پای ته زیان ورسوي.
د بیټرۍ بدلول
When the clock starts to lose time or the alarm sound weakens, it is time to replace the battery. Follow the battery installation steps in the "Setup" section.
د ستونزو حل کول
| ستونزه | د حل لاره |
|---|---|
| Clock is not running or running slowly. | Check if the battery is inserted correctly. Replace the battery with a new AA battery. |
| الارم نه غږېږي. | Ensure the alarm ON/OFF switch is in the 'ON' (upwards) position. Verify the alarm time is set correctly. Replace the battery if the alarm sound is weak. |
| Luminous hands/numbers are not glowing. | The luminous material requires exposure to light to charge. Expose the clock to bright light for a period to recharge the glow. Note that the glow intensity may diminish over time. |
مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل شمیره | TQ-140-1EF |
| برانډ | کاسیو |
| رنګ | تور |
| ابعاد (L x W x H) | ۱۰ x ۱۰ x ۱۰ سانتي متره (تقریبا ۳.۹۴ x ۳.۹۴ x ۳.۹۴ انچه) |
| وزن | ۲۸۰ ګرامه (تقریبا ۹.۹ اونس) |
| مواد | رال |
| د ښودلو ډول | انلاګ |
| د بریښنا سرچینه | 1 x AA بیټرۍ |
| ځانګړي ځانګړتیاوې | Neo-display (luminous hands/numbers), Acoustic alarm sound |
تضمین او ملاتړ
Your Casio TQ-140-1EF Alarm Clock comes with a 2 کلن تضمین د پیرود نیټې څخه. مهرباني وکړئ د تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.
For technical support or warranty service, please contact your local Casio authorized service center or visit the official Casio webد اړیکو معلوماتو لپاره سایټ.
تاسو کولی شئ په رسمي کاسیو کې نور معلومات او ملاتړ ومومئ. webسایټ: www.casio.com
