پیژندنه
This manual provides detailed instructions for the installation, operation, and maintenance of your OSD Audio SVC205 In-Wall Volume Control. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The OSD Audio SVC205 is a high-quality in-wall volume control designed to manage audio levels for a pair of speakers in a multi-room audio system. It features a 12-step linear rotary knob for precise volume adjustment and an integrated on/off switch for complete audio control.
د خوندیتوب معلومات
- تل د نصب یا خدمت کولو دمخه بریښنا قطع کړئ.
- ډاډ ترلاسه کړئ چې د تارونو ټولې اړیکې خوندي دي او د ځایی بریښنایی کوډونو سره مطابقت لري.
- Do not exceed the maximum power rating of 100 Watts per channel.
- دا وسیله یوازې د داخلي کارونې لپاره ډیزاین شوې.
- که تاسو د نصبولو د کومو ګامونو په اړه ډاډه نه یاست، نو د وړ بریښنایی متخصص سره مشوره وکړئ.
د محصول ځانګړتیاوې
- د بریښنا اداره کول: Rated at 100 Watts per channel with minimal bass roll-off.
- د حجم کنټرول: 12-step linear rotary-style knob for precise volume adjustment.
- آن/بند سویچ: Integrated switch for completely turning off audio.
- د خنډ ساتنه: Assists in stabilizing the ohm load to prevent amplifier damage when multiple speakers are connected.
- Adjustable Jumpers: Front-mounted adjustable jumpers for easy impedance adjustment.
- ډیزاین: Décor plates designed for easy installation into a standard single gang box (2.9” depth).
- تارونه: Accepts up to 14 gauge wiring.
د بسته محتويات
- OSD Audio SVC205 In-Wall Volume Control Unit
- Matching Wall Plate
- د سکرو نصب کول
تنظیم او نصب کول
Proper installation is crucial for optimal performance and safety. If you are not comfortable with electrical wiring, please consult a professional installer.
اړین وسایل:
- سکریو ډرایور (فیلپس او فلیټ هیډ)
- د تار پټونکي
- بریښنایی ټیپ (اختیاري)
- والیtagد ای ټیسټر (سپارښتنه شوی)
Wiring Diagram and Connections:
The SVC205 features screw terminals for secure wire connections. Ensure proper polarity (positive to positive, negative to negative) for all connections.

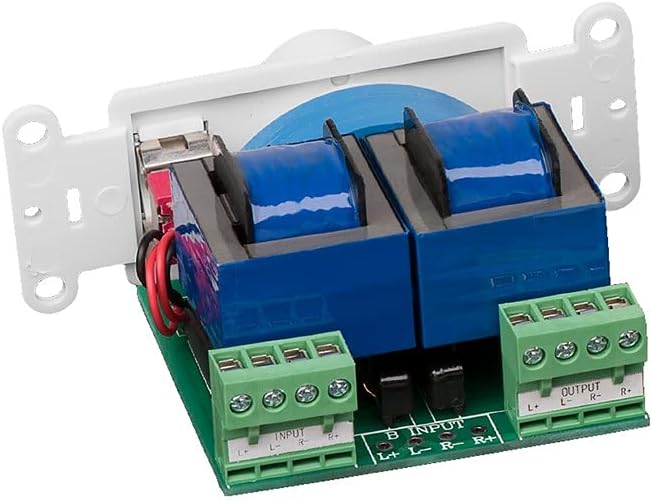

انځور: شاته view of the SVC205 showing the input and output screw terminals for speaker wire connections. The green terminal blocks are clearly labeled for Left and Right channels, and positive (+) and negative (-) connections.
Image: A visual representation of speaker wire (red and black) being connected to the input terminals of the SVC205 volume control. This illustrates the type of wiring accepted by the unit.
- د بریښنا بندول: Before beginning any wiring, ensure that the power to the audio system and the circuit where you are installing the volume control is completely turned off at the main breaker.
- تارونه چمتو کړئ: Strip approximately 1/2 inch of insulation from the ends of your speaker wires. The SVC205 accepts up to 14 gauge wiring.
- د ان پټ تارونه وصل کړئ: د خپل څخه د سپیکر تارونه وصل کړئ amplifier or receiver to the "INPUT" terminals on the SVC205. Match the positive (+) and negative (-) terminals for both Left (L) and Right (R) channels.
- د وتلو تارونه وصل کړئ: Connect the speaker wires leading to your speakers to the "OUTPUT" terminals on the SVC205. Again, ensure correct polarity for Left (L) and Right (R) channels.
- Adjust Impedance Jumpers (if applicable): The SVC205 includes front-mounted adjustable jumpers for impedance matching. Refer to the diagram below for typical settings. Adjust these jumpers based on the total impedance of your connected speakers to prevent overheating and damage to your ampلايف
- پورته کول: Carefully push the wired SVC205 unit into a standard single gang electrical box. The unit requires a minimum depth of 2.9 inches. Secure the unit to the electrical box using the provided mounting screws.
- وال پلیټ نصب کړئ: Attach the matching wall plate over the installed volume control unit.
- د بریښنا بیرته راګرځول: Once all connections are secure and the unit is mounted, restore power to the circuit.
Image: A close-up diagram illustrating the location and configuration of the impedance protection jumpers on the SVC205 circuit board. These jumpers allow for adjustment to match the impedance of connected speakers.
عملیاتي لارښوونې
The OSD Audio SVC205 is simple to operate:
انځور: مخکینۍ برخه view of the OSD Audio SVC205 In-Wall Volume Control, showing the prominent rotary volume knob and the smaller on/off toggle switch located below it.
- پاور آن/بند: Use the small toggle switch located below the rotary knob to turn the audio on or off. Flipping the switch will completely mute or unmute the sound.
- د حجم سمون: Rotate the large knob clockwise to increase the volume and counter-clockwise to decrease it. The 12-step linear design provides precise control over the audio level.
Image: A graphic illustrating the 12-step linear rotary action of the volume knob, indicating the range of precise volume control available.
ساتنه
The OSD Audio SVC205 requires minimal maintenance.
- پاکول: Use a soft, dry cloth to clean the surface of the wall plate and knob. Do not use abrasive cleaners or solvents.
- معاینه: Periodically check the wall plate for any signs of damage or loose connections. If any issues are found, disconnect power and address them promptly.
- د کارونکي د خدمت وړ برخې نشته: The internal components of the SVC205 are not user-serviceable. Do not attempt to open or repair the unit.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| د سپیکرو څخه هیڅ غږ نشته. |
|
|
| Distorted or low-quality sound. |
|
|
| Unit does not fit in electrical box. |
|
|
مشخصات
| د ماډل نوم | د SVC205 |
| د بریښنا سمبالول | 100 Watts per channel (300 Watts total) |
| Volume Control Type | 12-step linear rotary |
| Impedance Protection | Yes, with adjustable jumpers |
| د تارونو مطابقت | Up to 14 gauge |
| د نصب کولو ډول | In-Wall (fits standard single gang box) |
| لږترلږه د بکس ژوروالی | 2.9 انچه |
| رنګ | سپین |
| ابعاد (محصول) | 6 x 3 x 3 انچه (تقریبا) |
| د توکي وزن | 0.01 اونس |
| د کور دننه / بهر کارول | دننه |
تضمین او ملاتړ
OSD Audio products are designed for reliability and performance. For warranty information and technical support, please visit the official OSD Audio webسایټ یا د دوی د پیرودونکي خدماتو څانګې سره اړیکه ونیسئ.
جوړونکی: د OSD آډیو
Webسایټ: www.osdaudio.com
For further assistance, refer to the contact information provided on the manufacturer's webسایټ
