UNITED STATES STOVE Co G26 Small Cast Iron Grate for Logwood - Instruction Manual

پیژندنه

The UNITED STATES STOVE Co G26 Small Cast Iron Grate is designed to enhance the performance and longevity of your wood-burning stove, specifically for use with US Stove model 1261. This grate elevates the fire, promoting better airflow for more efficient combustion, faster start-up, and easier ash removal. It also serves to protect the cast iron base of your stove from direct heat exposure.

شکل ۱: پورته څخه ښکته view of the US Stove G26 Small Cast Iron Grate.

محصول پای ته ورسیدview

The G26 Cast Iron Grate is a robust accessory for your wood-burning appliance. Its primary function is to create a space beneath the burning wood, allowing air to circulate freely. This improved airflow is crucial for maintaining a hot, efficient fire and ensuring that wood burns more completely, reducing the amount of unburnt fuel and facilitating ash management.

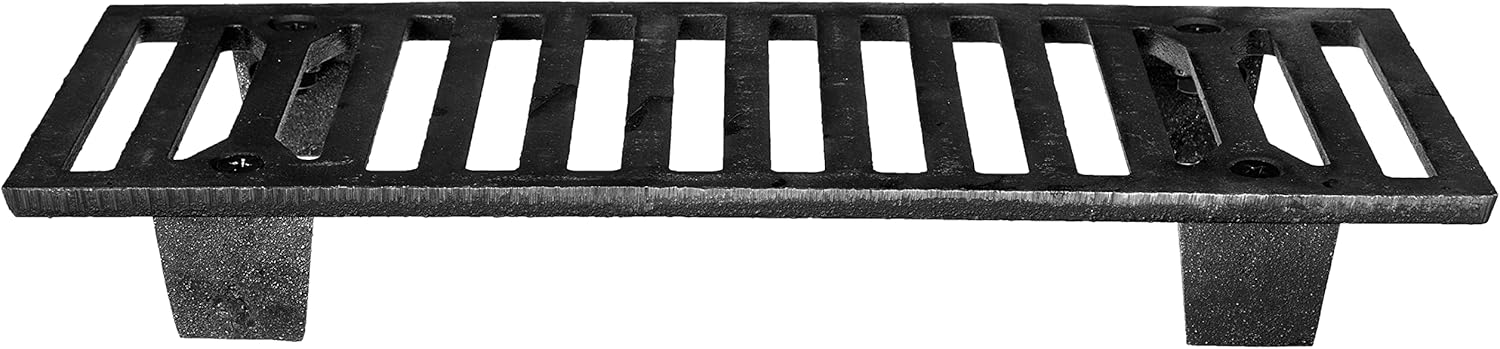

شکل ۳: زاویه لرونکی view of the grate, highlighting its sturdy legs for elevation.

Figure 3: The G26 grate positioned within a brick fireplace, ready for use.

تنظیم او نصب کول

The G26 Cast Iron Grate is designed for straightforward placement. No assembly of the grate itself is required; it is a single, solid unit. Ensure your stove or fireplace is completely cool and free of any burning materials before installation.

1. Open the cabinet door (if applicable) and the feed door/ash door of your wood-burning appliance.
2. Carefully place the G26 grate inside the firebox, ensuring it sits flat on the base. The legs of the grate should provide sufficient elevation.
3. Position the grate centrally or as desired to support your logwood.
4. Close all doors securely before starting a fire.

Visual Guide: Grate Replacement (Applicable for Installation)

عملیات

The G26 grate is designed to optimize your wood-burning experience. Once installed, place your logwood directly on the grate. The elevated design allows air to flow underneath the wood, which is essential for efficient combustion. This helps the fire start faster and burn hotter, ensuring more complete burning of the fuel.

• Arrange logs on the grate to allow for maximum airflow between them.
• Ensure the fire is contained within the firebox and does not extend beyond the grate's capacity.
• Monitor the fire and adjust air intakes on your stove as needed to maintain desired burn rate.

ساتنه

Regular maintenance will ensure the longevity and optimal performance of your G26 Cast Iron Grate.

• د خښتو لرې کول: After each use, once the stove is completely cool, remove accumulated ash from beneath the grate. The elevated design makes this process easier.
• معاینه: Periodically inspect the grate for any signs of wear, warping, or cracking. Cast iron can eventually show signs of stress from extreme heat.
• پاکول: If necessary, clean the grate with a wire brush to remove any stubborn residue. Avoid using harsh chemicals that could damage the cast iron finish.

د ستونزو حل کول

While the G26 grate is built for durability, certain issues may arise over time due to the extreme conditions of a firebox.

• Warping or Cracking: Over extended periods of high heat, cast iron grates can sometimes warp or crack. This is a natural wear process. If significant warping or cracking occurs, the grate should be replaced to ensure safe and efficient operation.
• د هوا ضعیف جریان: If your fire is not burning efficiently, ensure that ash is not obstructing the space beneath the grate. Regular ash removal is crucial for maintaining proper airflow.

مشخصات

د تضمین معلومات

Specific warranty details for the G26 Small Cast Iron Grate are not provided in the available product data. Please refer to the official UNITED STATES STOVE Co webد جامع تضمین معلوماتو لپاره د دوی د پیرودونکي ملاتړ سایټ یا اړیکه ونیسئ.

ملاتړ

For additional questions, further assistance, or to inquire about replacement parts, please contact UNITED STATES STOVE Co directly:

• تلیفون: 1-800-750-2723
• Webسایټ: usstove.com
