پیژندنه
The OSD Audio AB12 is an in-wall speaker selector A/B switch designed to manage audio output between two amplifiers and one pair of speakers, or one amplifier and two pairs of speakers. This device allows for convenient selection of audio sources or destinations within a dedicated audio zone. It is rated for up to 100 watts per channel and features a push-button control for easy operation.
د خوندیتوب احتیاطونه
- تل د بریښنا سره وصل کړئ amplifier and any connected audio equipment before installation or wiring.
- Ensure all wiring connections are secure to prevent short circuits or damage to equipment.
- Do not exceed the maximum power rating of 100 watts per channel.
- Consult a qualified electrician if you are unsure about any electrical wiring procedures.
تنظیم او نصب کول
اړین وسایل
- سکرو ډرایور (د فیلیپس سر)
- واير سټرپرېز
- برقي ټیپ (اختیاري)
- Standard single-gang junction box (if not already installed)
د تار لګولو لارښوونې
The AB12 features removable, solderless terminals for easy wiring. It accepts speaker wire up to 14 gauge. For optimal sound quality, 14-16 gauge wire is recommended.
- تارونه چمتو کړئ: Strip approximately 1/4 to 1/2 inch of insulation from the ends of your speaker wires. Twist the bare wire strands tightly.
- د ترمینلونو پیژندنه: The AB12 has clearly labeled terminals for 'OUTPUT' (to speakers) and 'AMP A INPUT' / 'AMP B INPUT' (from amplifiers). Each input/output has terminals for Left (+) and (-), and Right (+) and (-).
- سپیکرونه وصل کړئ: Connect your speaker wires to the 'OUTPUT' terminals. Ensure correct polarity (positive to positive, negative to negative).
- نښلول Ampژوند کونکي: Connect the speaker output wires from your primary ampته ژوندی کوونکی 'AMP A INPUT' terminals. Connect the speaker output wires from your secondary amplifier (if used) to the 'AMP B INPUT' terminals. Maintain correct polarity.

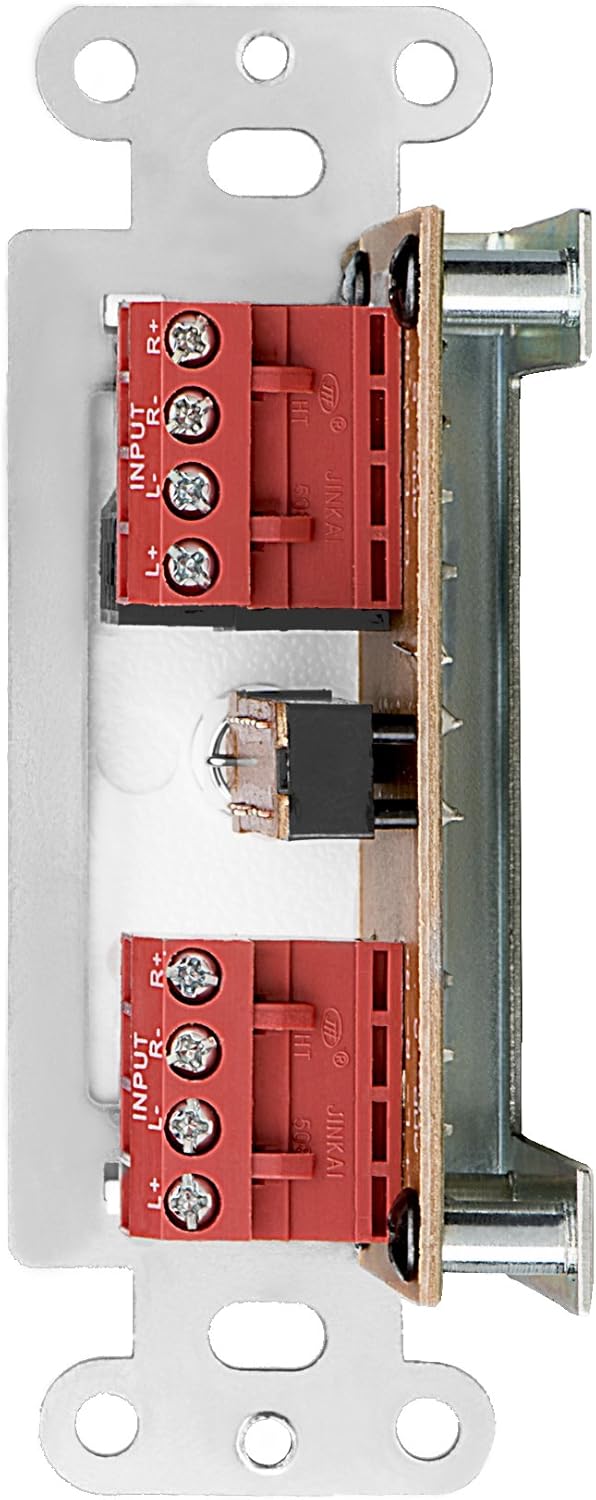

شکل 1: شاته view of the AB12 switch with clearly labeled input and output terminals for wiring.
شکل 2: مثالample of speaker wire connections to the removable solderless terminals.
د سویچ نصب کول
The AB12 is designed to fit into a standard single-gang junction box with a minimum depth of 2.9 inches. The dimensions of the selector are approximately 1 inch (W) x 2.75 inches (H) x 1.75 inches (D).
- د جنکشن بکس چمتو کړئ: Ensure the junction box is securely installed in the wall.
- سویچ داخل کړئ: Carefully push the wired AB12 switch into the junction box. Ensure wires are not pinched.
- خوندي مخ پلیټ: Attach the desired color faceplate (white, beige, or light almond options are typically included) over the switch and secure it to the junction box using the provided screws.
Figure 3: Mounting brackets for securing the switch within a standard gang box.
Figure 4: The AB12 switch typically includes multiple faceplate colors for aesthetic integration.
عملیاتي لارښوونې
The OSD Audio AB12 switch provides a simple push-button mechanism to select between two audio configurations.
فعالیت
- دوه Amplifiers to One Speaker Pair: دوه سره وصل کړئ amplifiers to 'AMP A INPUT' and 'AMP B INPUT' respectively. Connect one pair of speakers to 'OUTPUT'. Press the button to switch between Ampژوندی کوونکی الف او Amplifier B playing through the single speaker pair.
- یو Amplifier to Two Speaker Pairs: یو وصل کړئ amplifier to 'AMP A INPUT'. Connect two pairs of speakers to 'OUTPUT' (one pair wired to the 'A' side of the output terminals, the other to the 'B' side, if applicable, or use the switch to select between two distinct output paths). Press the button to switch between Speaker Pair A and Speaker Pair B playing from the single ampلايف
The switch is designed to allow power to flow to speakers from either A or B, but not from both simultaneously. This prevents potential damage to amplifiers or speakers due to conflicting signals.
Figure 5: The AB12 switch integrated into an audio system, allowing selection between different sources or destinations.
ساتنه
The OSD Audio AB12 In-Wall Speaker Selector requires minimal maintenance.
- پاکول: To clean the faceplate, gently wipe it with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish.
- اړیکې: Periodically check all wiring connections to ensure they remain secure. Loose connections can lead to signal loss or poor audio quality.
- چاپیریال: Ensure the switch is installed in a dry environment, away from excessive heat or moisture.
د ستونزو حل کول
If you encounter issues with your AB12 speaker selector, refer to the following troubleshooting steps:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| د سپیکرو څخه هیڅ غږ نشته | لوڅ تارونه نښلول د غلط سویچ موقعیت Amplifier or speaker issue | Check all speaker wire connections at the AB12 switch and at the amplifier/speakers. Ensure the switch is fully engaged in the desired A or B position. Verify amplifier and speakers are functioning correctly by bypassing the switch temporarily. |
| Sound from only one speaker (left or right channel) | د تارونو غلط قطبیت Loose connection for one channel د سویچ میکانیزم خراب دی | Verify correct positive (+) and negative (-) wiring for both left and right channels. Check connections for the affected channel. If the issue persists, the internal switch mechanism may be faulty; contact support. |
| Difficulty fitting into standard gang box | Insufficient depth or width in junction box Excessive wiring inside box | Ensure the junction box meets the minimum depth requirement (2.9 inches). Carefully arrange wires to minimize bulk. Some older or non-standard boxes may require minor modification (e.g., widening the opening) or a deeper box. |
| تحریف شوی یا خراب غږیز کیفیت | Incorrect wire gauge تړلې اړیکې Exceeding power rating | Use recommended 14-16 gauge speaker wire. Check all connections. Ensure the amplifier output does not exceed the 100-watt rating of the switch. |
مشخصات
| فیچر | مشخصات |
|---|---|
| ماډل | AB12 |
| د عملیاتو حالت | A/B سویچ |
| د بریښنا درجه | په هر چینل کې 100 واټ |
| د تعدد ځواب | له 20Hz څخه تر 20KHz پورې |
| د سپیکر تار ګیج | Up to 14 gauge (14-16 gauge recommended) |
| د نښلونکي ډول | بې سولډر ټرمینلونه |
| د فعالیت ډول | تڼۍ فشار کړئ |
| د پوستونو شمیر | 2 |
| د نصب کولو ډول | Standard Single-Gang Box Mount |
| د محصول ابعاد (L x W x H) | 4.5 x 2.75 x 2.5 انچه |
| د توکي وزن | 6.4 اونس |
| مواد (کور جوړونه) | پلاستیک |
| د تماس مواد | فلزي |
| رنګ | White (with additional faceplate options) |
تضمین او ملاتړ
OSD Audio products are designed for reliability and performance. For warranty information or technical support, please refer to the official OSD Audio webسایټ ته مراجعه وکړئ یا د دوی د پیرودونکو خدماتو څانګې سره اړیکه ونیسئ. د هر ډول تضمین ادعا لپاره د پیرود ثبوت په توګه د پیرود رسید وساتئ.
آنلاین ملاتړ: www.osdaudio.com
