This manual provides detailed instructions for the installation, operation, and maintenance of your Lutron Toggler TG-600PR-WH 600-watt Single Pole Dimmer. Please read these instructions carefully before beginning installation to ensure proper function and safety.
د خوندیتوب معلومات
خبرداری: To avoid fire, shock, or death, turn off power at the circuit breaker or fuse box and test that power is off before wiring. Installation should be performed by a qualified electrician or a person with experience in electrical wiring.
- Do not use with standard 3-way or 4-way switches.
- Use only with incandescent or halogen loads.
- د 600 واټونو څخه ډیر مه کوئ.
- Ground the dimmer according to national and local electrical codes.
تنظیم او نصب کول
Follow these steps for proper installation of your dimmer switch.
1. د نصب لپاره چمتو کول
- بریښنا بنده کړئ at the circuit breaker or fuse box.
- Remove the existing wallplate and switch.
- Carefully pull the existing switch out from the wall box.
2. د تار لګولو لارښوونې
The Lutron Toggler TG-600PR-WH is designed for single-pole applications. Identify the wires in your wall box:
- Hot/Line Wire: معمولا تور، د سرکټ بریکر څخه بریښنا راوړي.
- د بار تار: معمولا تور، د رڼا فکسچر ته ځي.
- ځمکني تار: Bare copper or green.
Connect the dimmer wires to the house wires using wire connectors:
- سره وصل کړئ شین ground wire from the dimmer to the house ground wire.
- یو له یو سره وصل کړئ تور dimmer wires to the hot/line wire from the circuit breaker.
- بل سره وصل کړئ تور dimmer wire to the load wire going to the light fixture.
- ډاډ ترلاسه کړئ چې ټولې اړیکې خوندي دي.
۳. نصب او بشپړول
- Carefully push all wires back into the wall box.
- Mount the dimmer into the wall box using the provided screws.
- وال پلیټ ضمیمه کړئ.
- بریښنا بیرته راګرځول په سرکټ بریکر کې.

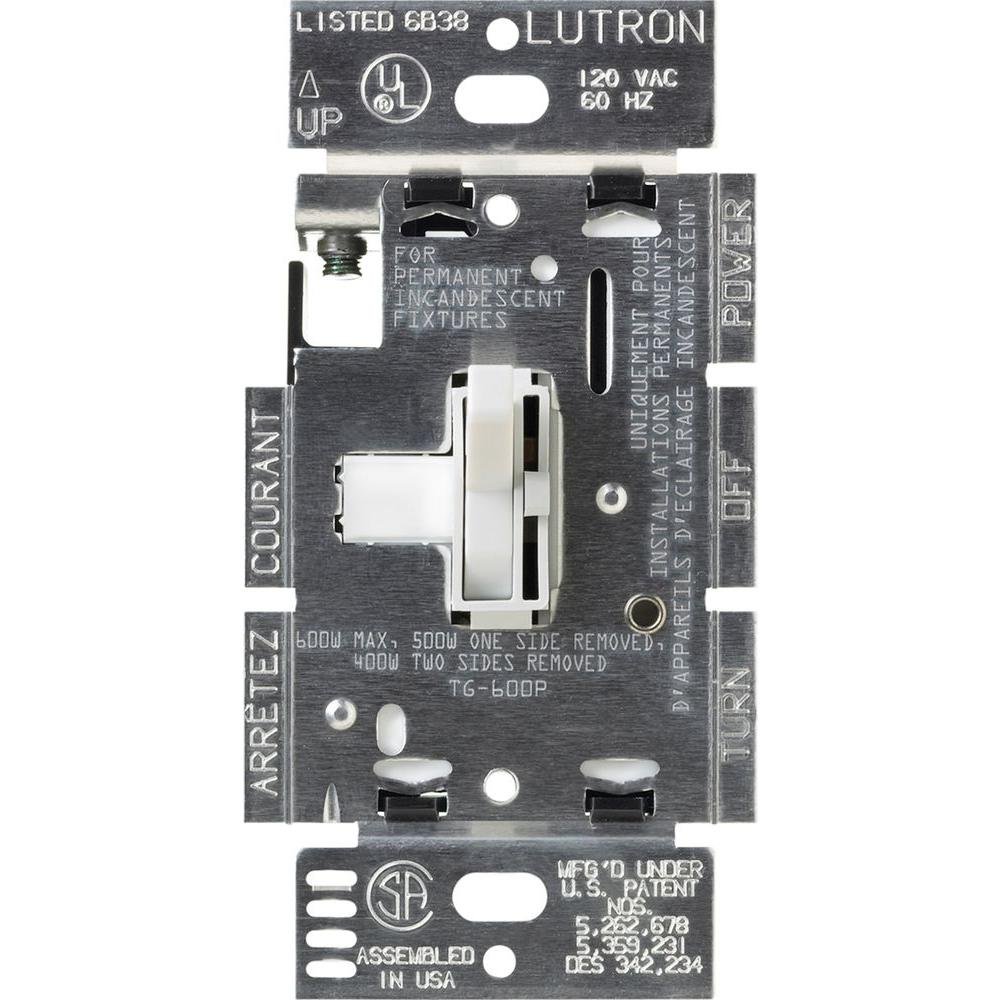

دا انځور مخکینۍ برخه ښیي view of the Lutron Toggler dimmer switch. It features a large white toggle switch for on/off control and a smaller, vertical slider on the right side for dimming functionality. The word 'LUTRON' is subtly embossed at the bottom of the faceplate.
عملیاتي لارښوونې
The Lutron Toggler dimmer provides simple control over your lighting.
- آن/بندول: Use the large toggle switch to turn the lights on or off.
- کم/روښانه کول: Use the small slider control to adjust the light level. Move the slider up to brighten and down to dim.
ساتنه
Your Lutron dimmer is designed for long-lasting performance with minimal maintenance.
- پاکول: Clean the dimmer and wallplate with a soft, damp ټوکر د کثافاتو پاکوونکي یا محلول مه کاروئ.
- د کارونکي د خدمت وړ برخې نشته: د ډیمر دننه د کاروونکي لپاره د خدمت وړ برخې نشته. د واحد د خلاصولو یا ترمیم کولو هڅه مه کوئ.
د ستونزو حل کول
که تاسو د خپل ډیمر سره ستونزې تجربه کوئ، لاندې عامې ستونزې او حل لارې وګورئ:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| څراغونه نه خلاصیږي. | Power is off at the breaker; incorrect wiring; bulb is burned out. | د سرکټ ماتونکی وګورئ؛ د تارونو اتصالونه تایید کړئ؛ بلب بدل کړئ. |
| څراغونه ځلېږي یا غږېږي. | Incompatible bulb type; loose wiring connection; dimmer overloaded. | Ensure bulbs are incandescent/halogen; check wiring; reduce total wattage. |
| Dimmer does not dim. | Incorrect wiring; incompatible bulb type. | Verify wiring for load and line; ensure bulbs are dimmable incandescent/halogen. |
مشخصات
- ماډل: TG-600PR-WH
- واټtage: 600 watts (incandescent/halogen only)
- والیtage: معیاري کورنۍ voltage (120V AC، 60Hz)
- د بدلولو ډول: Single Pole Dimmer Switch
- د فعال ډول: ټګګلر
- رنګ: سپین
- مواد: فلزي
- د توکي وزن: 3.2 اونس
- UPC: 027557631525
د تضمین معلومات
Lutron products are designed for quality and reliability. This product is covered by a limited warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Lutron webسایټ
ملاتړ
د نورو مرستو لپاره، تخنیکي ملاتړ، یا view additional product information, please visit the official Lutron webسایټ:
You may also contact Lutron customer service for direct support.
