فلوک 28IIEX/ETL داخلي خوندي ریښتیني RMS ډیجیټل ملټي میټر کارونکي لارښود

1. پیژندنه

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of the Fluke 28IIEX/ETL Intrinsically Safe True-RMS Digital Multimeter. This device is engineered for precise electrical measurements in potentially hazardous environments, offering robust performance and advanced safety features.

2. د خوندیتوب معلومات

WARNING: Read and understand all safety information before using this product. Failure to do so may result in serious injury or death.

2.1 عمومي خوندیتوب لارښوونې

• Always use the multimeter with the specified test leads and accessories.
• که چیرې ملټي میټر خراب ښکاري یا په غیر معمولي ډول کار کوي نو مه یې کاروئ.
• ټول محلي او ملي خوندیتوب کوډونه مراعات کړئ.
• ډاډ ترلاسه کړئ چې د اندازه کولو دمخه سم فعالیت او حد غوره شوی.
• Avoid working alone in hazardous environments.

2.2 Intrinsically Safe Operation

The Fluke 28IIEX/ETL is designed for use in hazardous locations classified as:

• ATEX: II 2 G Ex ia IIC T4 Gb, II 2 D Ex ia IIIC T130°C Db, I M1 Ex ia I Ma
• NEC-500: Class I, Div 1, Groups A-D, 130 °C
• IEXEx: Ex ia IIC T4 Gb, Ex ia IIIC T130°C Db, Ex ia I Ma

These ratings ensure the device will not ignite explosive atmospheres under normal or fault conditions. Always ensure the device is used within its specified environmental and electrical limits for intrinsically safe operation.

2.3 Electrical Safety Ratings

The multimeter meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for:

• Category III 1000V: For measurements on building circuit installations (e.g., service panel parts, branch circuits, fixed installations).
• Category IV 600V: For measurements at the origin of the installation (e.g., electricity meters, primary over-current protection equipment).
• د ککړتیا درجه 2: د داخلي کارونې لپاره.

2.4 د چاپیریال ساتنه

The device is Ingress Protection (IP) certified IP67, meaning it is waterproof, dust-proof, and drop-proof, suitable for harsh industrial environments.

3. محصول ختم شوview

The Fluke 28IIEX/ETL is a robust digital multimeter designed for reliability and accuracy. It features a large LCD display with a two-level bright white backlight for visibility in various lighting conditions.

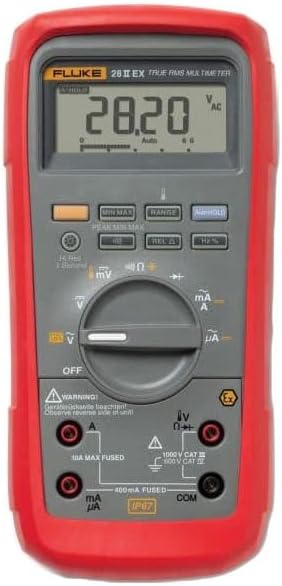

شکل 1: مخکی view of the Fluke 28IIEX/ETL Digital Multimeter. The image displays the device with its red protective holster, gray body, LCD screen showing '28.20 V AC', and the rotary dial for function selection. Below the dial are the input jacks for current, voltage, and common connections, along with safety warnings and certifications.

3.1 کلیدي ځانګړتیاوې

• True-RMS measurements for accurate readings on linear and non-linear loads.
• Auto- and manual-ranging capabilities.
• تدبیرونه voltage, current, resistance, capacitance, frequency, temperature, conductance, and duty cycle.
• Performs continuity and diode tests.
• Low-pass filter for accurate voltage and frequency measurements on variable-speed motor drives.
• MIN/MAX/AVG and Peak Capture functions to record transients and measurement variations.
• Relative mode to remove test lead interference.
• Backlit keypad buttons and display for low-light conditions.
• Audible alarm for incorrect test lead connection.

4. ترتیب کول

4.1 د بیټرۍ نصب کول

The Fluke 28IIEX/ETL requires four (4) AA alkaline batteries for operation. To install or replace batteries:

1. ډاډ ترلاسه کړئ چې ملټي میټر بند دی.
2. محافظتي ربړ هولسټر لرې کړئ.
3. Locate and open the battery compartment cover on the rear of the device.
4. Insert four new AA alkaline batteries, observing the correct polarity markings.
5. Securely close the battery compartment cover and reattach the holster.

۶.۲ د ټیسټ لیډونو نښلول

Always connect test leads to the appropriate input jacks for the measurement being performed. The multimeter will sound an alarm if leads are connected incorrectly for the selected function.

• COM جیک: Connect the black test lead to the common (COM) jack for all measurements.
• VΩHz جیک: Connect the red test lead to this jack for voltage, resistance, frequency, capacitance, and diode tests.
• mAµA Jack: Connect the red test lead to this jack for current measurements up to 400mA. This input is fused.
• 10A Max Fused Jack: Connect the red test lead to this jack for current measurements up to 10A. This input is fused.

5. عملیاتي لارښوونې

Turn the rotary switch to the desired function. The multimeter defaults to auto-ranging mode, automatically selecting the correct measurement range. Press the 'RANGE' button to switch to manual ranging.

5.1 اندازه کول حجمtage (AC/DC)

1. Connect the black lead to COM and the red lead to VΩHz.
2. Turn the rotary switch to V~ (AC Voltage) یا V- (DC Voltagاو).
3. د ازموینې لیډونه د سرکټ یا برخې په اوږدو کې وصل کړئ ترڅو اندازه شي.

5.2 Measuring Current (mA/A/µA)

WARNING: Never attempt to measure current by connecting the multimeter in parallel with a voltage source. This can damage the meter and cause injury.

1. Connect the black lead to COM. Connect the red lead to mAµA for small currents or 10A Max Fused for larger currents.
2. Turn the rotary switch to mA/A~ (AC Current) or mA/A- (DC Current).
3. Open the circuit and connect the multimeter in series with the load.

۶.۲ د مقاومت اندازه کول (Ω)

1. Connect the black lead to COM and the red lead to VΩHz.
2. Turn the rotary switch to Ω.
3. Ensure the circuit is de-energized. Connect the test leads across the component.

5.4 د دوام ازموینه

1. Connect the black lead to COM and the red lead to VΩHz.
2. Turn the rotary switch to the continuity symbol (speaker icon).
3. Ensure the circuit is de-energized. Connect the test leads across the component. An audible tone indicates continuity.

5.5 د ډایډ ټیسټ

1. Connect the black lead to COM and the red lead to VΩHz.
2. Turn the rotary switch to the diode symbol.
3. Ensure the circuit is de-energized. Connect the test leads across the diode. The display shows the forward voltage غورځول.

۶.۷ د ظرفیت اندازه کول (F)

1. Connect the black lead to COM and the red lead to VΩHz.
2. Turn the rotary switch to the capacitance symbol.
3. Ensure the capacitor is discharged before connecting the test leads.

5.7 Measuring Frequency (Hz) and Duty Cycle (%)

1. Connect the black lead to COM and the red lead to VΩHz.
2. Turn the rotary switch to Hz.
3. Connect the test leads across the signal source. Press the '%' button to view د دندې دوره

5.8 Measuring Temperature (°C/°F)

1. Connect the K-type thermocouple (included) to the VΩHz and COM jacks, observing polarity.
2. Turn the rotary switch to the temperature symbol.
3. Place the thermocouple tip on the object to be measured.

5.9 ځانګړې دندې

• لږترلږه اعظمي: Press to record minimum, maximum, and average readings over time.
• PEAK MIN MAX: Captures fast transients.
• REL Δ (نسبي حالت): Subtracts the stored reading from subsequent readings, useful for nulling out test lead resistance.
• هولډ: د اوسني ښودنې لوستل کنګل کوي.

6. ساتنه

6.1 پاکول

قضیه د اعلان سره پاک کړئamp ټوکر او نرم صابون. د کثافاتو یا محلولونو څخه کار مه اخلئ. ډاډ ترلاسه کړئ چې وسیله د کارولو دمخه وچه ده.

6.2 د بیټرۍ بدلول

Refer to Section 4.1 for battery replacement instructions. Replace batteries when the low battery indicator appears on the display.

6.3 د فیوز بدلول

WARNING: To prevent injury or damage to the multimeter, use only specified replacement fuses with the correct ampایرج ، ټوکtage، او مداخله درجه بندي.

The Fluke 28IIEX/ETL has two internal fuses:

• 10A Max Fused: For the 10A current input.
• 400mA Fused: For the mA/µA current input.

Fuse replacement should only be performed by qualified personnel. Consult the full service manual or contact Fluke customer support for detailed instructions.

7. ستونزه حل کول

If the multimeter is not functioning as expected, review لاندې عامې ستونزې:

• هیڅ ښودنه یا کمزوری ښودنه نشته: بیټرۍ چیک کړئ او د اړتیا په صورت کې یې بدل کړئ.
• ناسم لوستل: Ensure test leads are correctly connected, the function and range are appropriate for the measurement, and the circuit is de-energized for resistance/continuity/diode tests.
• اوسنی اندازه کول کار نه کوي: Check the fuses for the respective current input (10A or 400mA). Replace if blown.
• Multimeter does not respond: Turn the unit off and then on again. If the issue persists, remove batteries for a few minutes and reinsert.

For persistent issues or complex problems, contact Fluke customer support.

8. مشخصات

9. تضمین او ملاتړ

Fluke Corporation products are designed for reliability and performance. For warranty information, technical support, or service, please visit the official Fluke website or contact your local Fluke representative.

رسمي فلوک Webسایټ: www.fluke.com
