1. محصول ختم شوview
This manual provides detailed instructions for the installation, operation, and maintenance of the Legrand Sound Speaker Basic, Model 351000. This device is an audio door speaker module designed for 2-wire sound systems, specifically for use with BUS technology intercom systems.
The module supports up to 4 control buttons and is intended for undercover mounting.
2. ترتیب او نصب کول
د غوره فعالیت او خوندیتوب لپاره مناسب نصب کول خورا مهم دي. سپارښتنه کیږي چې نصب کول د یو وړ تخنیکین لخوا ترسره شي.
2.1 اجزا
- Legrand Sound Speaker Basic Module (Model 351000)
- Mounting hardware (not included, refer to system requirements)
- 2-wire BUS system cabling
2.2 پورته کول
The module is designed for undercover mounting. Ensure the mounting location is secure and provides adequate space for wiring connections.

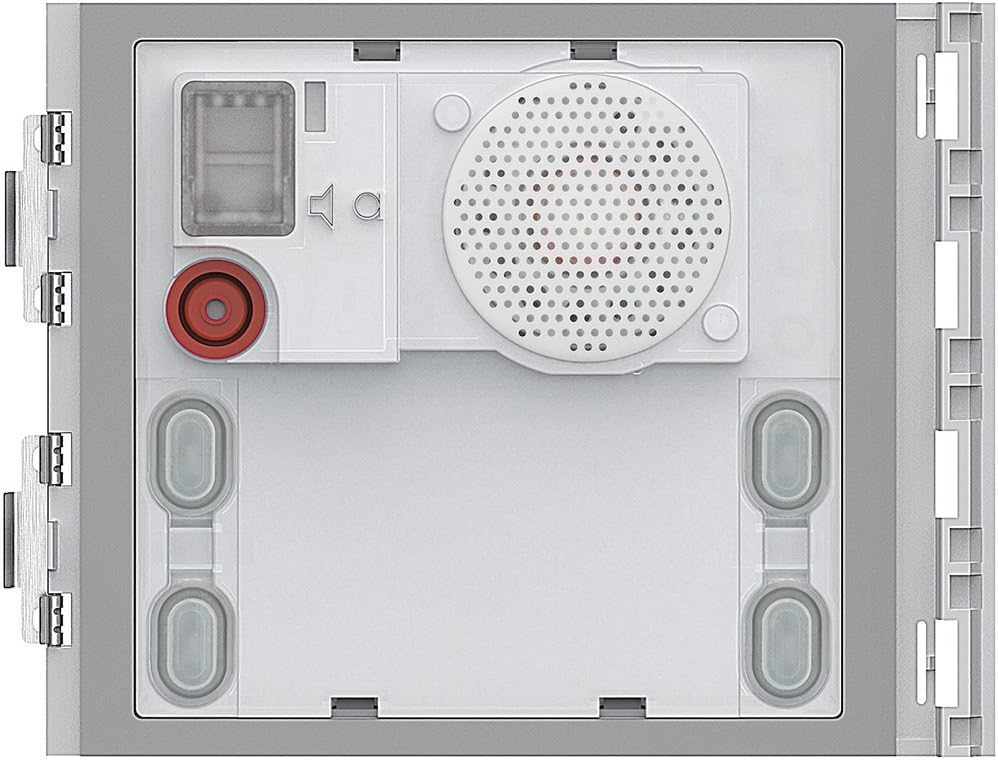

شکل 1: مخکی view of the Legrand 351000 Audio Door Speaker Module. This image displays the speaker grille, microphone, and connection points for control buttons, indicating the internal layout for installation.
2.3 د تارونو نښلول
- د بریښنا قطع کول: Before making any connections, ensure that the power to the BUS system is completely disconnected to prevent electrical shock.
- BUS Connection: Connect the 2-wire BUS system cables to the designated terminals on the speaker module. Refer to the BUS system's main unit manual for specific wiring diagrams.
- Button Connections: If using external control buttons (e.g., for door release or additional functions), connect them to the appropriate terminals on the module. The module supports up to 4 buttons.
- خوندي اړیکې: ډاډ ترلاسه کړئ چې ټول تارونه خوندي او په سمه توګه موصل شوي دي.
After all connections are made, restore power to the BUS system.
3. عملیاتي لارښوونې
The Legrand 351000 module functions as an audio interface within a 2-wire BUS intercom system. Its operation is primarily controlled by the main intercom unit and associated call buttons.
۵.۱ اساسي فعالیت
- آډیو اړیکه: When a call is initiated from an indoor unit or a visitor presses a call button connected to this module, two-way audio communication is established.
- د غږ محصول: The integrated speaker provides clear audio output from the indoor unit.
- د مایکروفون داخلول: The integrated microphone captures audio from the visitor's side.
3.2 Call Buttons
If external call buttons are connected, pressing a button will initiate a call to the corresponding indoor unit(s) as configured in the BUS system.
4. ساتنه
The Legrand 351000 module requires minimal maintenance to ensure long-term performance.
4.1 پاکول
- په نرمۍ سره بهرنۍ سطحې د نرم، وچ ټوکر سره پاک کړئ.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or internal components.
- Avoid spraying liquids directly onto the module.
4.2 تفتیش
Periodically inspect the module for any visible damage or loose connections. If any issues are found, consult a qualified technician.
5. ستونزه حل کول
This section addresses common issues that may arise during the use of the Legrand 351000 module.
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| د سپیکر څخه هیڅ غږ نشته | Loose wiring connection; Faulty speaker; System power issue. | Check all wiring connections. Verify system power. If problem persists, contact support. |
| مایکروفون غږ نه پورته کوي | Obstructed microphone; Loose wiring connection; Faulty microphone. | Ensure microphone is clear. Check wiring. If problem persists, contact support. |
| Call buttons not responding | Incorrect wiring of buttons; Faulty buttons; System configuration issue. | Verify button wiring. Test buttons. Check BUS system configuration. |
| موقتي عملیات | Unstable power supply; Loose BUS connection; Environmental interference. | Ensure stable power. Secure BUS connections. Consult system manual for interference mitigation. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Legrand customer support or a qualified service technician.
6. تخنیکي مشخصات
- ماډل: لیګرانډ ۰۵۰۱۷۹
- د محصول ډول: Audio Door Speaker Module
- د سیسټم مطابقت: 2-wire BUS technology
- Control Buttons Supported: تر 4 پورې
- د نصب کولو ډول: Undercover / Wall mount
- د محصول ابعاد: ۳۷.۵ x ۲۶.۵ x ۳۴ سانتي متره (تقریبا ۱۴.۷۶ x ۱۰.۴۳ x ۱۳.۳۹ انچه)
- د توکي وزن: ۳۰۰ ګرامه (۰.۳ کیلوګرامه)
- د سپیکر اعظمي تولید ځواک: 80 واټ
- د سپیکر اندازه: ۷۸۷ انچه
شکل 2: Dimensional drawing of the Legrand 351000 module, showing a width of 115 mm and a height of 91 mm. This provides precise measurements for installation planning.
7. تضمین او ملاتړ
For warranty information, technical support, or service inquiries, please refer to the official Legrand website or contact your local Legrand distributor. Keep your purchase receipt as proof of purchase.
