Singtrix Portable Karaoke Machine Instruction Manual

1. محصول ختم شوview

The Singtrix Portable Karaoke Machine (Model SGTX2) is an all-in-one vocal effects system designed to enhance singing performance. It features studio-quality vocal effects, including pitch correction, harmonies, reverb, and delay. The system is compatible with various music sources, including YouTube karaoke videos and MP3s, and includes a voice-cancellation option for standard songs.

Figure 1: Singtrix Portable Karaoke Machine System Components.

کلیدي ځانګړتیاوې:

• Advanced Vocal Effects: Over 375 professional vocal effects, including natural pitch-correction, hard-tune, harmonies, reverb, and delay.
• 4-Part Harmonies: Instant 4-part harmonies and choir effects via the "HIT" button.
• Integrated PA System: 40-Watt 2.1 Stereo PA speaker with built-in subwoofer for immersive sound.
• Versatile Music Compatibility: Works with YouTube karaoke videos, MP3s, and streaming music via a 3.5mm audio input.
• Voice Cancellation: Option to create karaoke tracks from standard songs.
• Adjustable Skill Levels: Settings for beginner, intermediate, and professional users.

2. د بسته محتويات

Verify that all the following items are included in your Singtrix Stadium Bundle:

• Studio Controller with 350+ built-in effects
• 1 Singtrix Microphone with Hit Effect button
• 1 40-Watt 2.1 Stereo Speaker with Subwoofer
• 1 Full-sized Microphone Stand with boom-arm
• 1 Mobile Device Holder stand attachment
• Cable Package (includes necessary audio and power cables)

Figure 2: The Singtrix Studio Controller, featuring an LCD screen, effect, skill level, and volume controls.

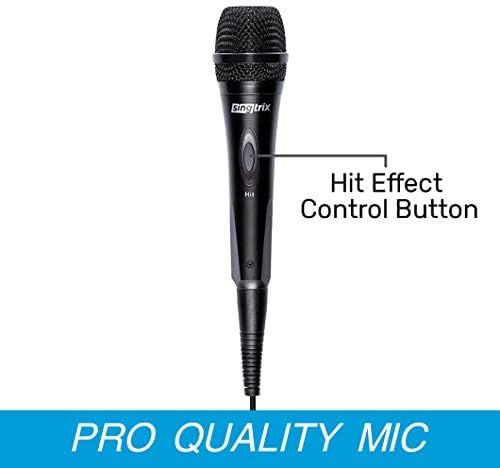

Figure 3: The Singtrix Pro Quality Microphone, equipped with a dedicated Hit Effect control button.

Figure 4: The 40-Watt 2.1 Stereo Speaker, featuring an integrated subwoofer for enhanced audio.

۴. د تنظیم لارښوونې

Follow these steps for a quick and easy setup of your Singtrix system:

1. د مایکروفون سټینډ راټول کړئ: Securely assemble the full-sized microphone stand and attach the mobile device holder.
2. Position Components: Place the 40-Watt speaker on a stable surface. Position the Studio Controller within easy reach, ideally attached to the microphone stand using the provided holder.
3. مایکروفون سره وصل کړئ: Plug the Singtrix Microphone into the Microphone Input 1 on the Studio Controller.
4. سپیکر سره وصل کړئ: Connect the speaker to the Studio Controller using the appropriate audio cable from the cable package. Ensure a secure connection.
5. Connect Music Source: Use the 3.5mm audio input on the Studio Controller to connect your music device (smartphone, tablet, computer, MP3 player).
6. پاور آن: Connect the power adapters to the Studio Controller and the speaker, then plug them into a power outlet. Turn on the power for both units.

Figure 5: Visual guide for the 5-minute setup process, showing all components ready for connection.

4. عملیاتي لارښوونې

4.1 Studio Controller Functions

The Studio Controller is the central hub for managing your vocal effects and system settings.

• د اغیزو کنډک: Rotate to browse and select from over 375 vocal effects. The LCD screen will display the selected effect.
• Skill Level Knob: Adjusts the level of pitch correction and vocal enhancement. Options typically include Beginner, Intermediate, and Professional.
• Song Voice Knob: Reduces or removes original vocals from a music track when using the voice-cancellation feature.
• د مایک حجم نوب: Controls the volume of your microphone input.
• د حجم اصلي غوټۍ: د سیسټم ټولیز محصول حجم تنظیموي.
• HIT Effect Button: Activates instant harmonies or other designated "HIT" effects, transforming your voice with a single press.

۶.۴ د مایکروفون کارول

The Singtrix microphone is designed for optimal vocal performance and includes a dedicated button for quick effect activation.

• Hold the microphone approximately 2-4 inches from your mouth for best sound capture.
• فشار ورکړئ HIT button on the microphone to activate the pre-assigned "HIT" effect on the Studio Controller. This often triggers harmonies or other dramatic vocal changes.

4.3 Connecting Music Sources

The Singtrix system is designed to work with a wide range of audio sources.

• Connect your smartphone, tablet, or computer to the 3.5mm audio input on the Studio Controller using the provided cable.
• Play karaoke tracks from YouTube, MP3 files, or streaming music services through your connected device.
• Adjust the volume on your music device and the Singtrix Main Volume knob for balanced sound.

5. ساتنه

Proper care will ensure the longevity and optimal performance of your Singtrix system.

• پاکول: Wipe down the Studio Controller, microphone, and speaker with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials.
• ذخیره کول: When not in use, store the system in a clean, dry place away from direct sunlight and extreme temperatures. Consider packing it away to prevent dust accumulation.
• د کیبل پاملرنه: Avoid sharp bends or kinks in the cables. Store them neatly to prevent damage.
• بندول: Always power off and unplug the system when not in use for extended periods.

6. ستونزه حل کول

If you encounter issues with your Singtrix system, refer to the following common problems and solutions:

7. مشخصات

8. تضمین او ملاتړ

For product inquiries, service, or support, please contact Singtrix directly. They are committed to resolving any issues and ensuring customer satisfaction.

Note: Specific warranty details may vary. Please refer to your product packaging or the official Singtrix webد تضمین په اړه د تازه معلوماتو لپاره سایټ.
