1. پیژندنه
The BSIDE EMT01 is a handheld digital wood moisture meter designed for accurate moisture measurement in various wood species. This conductivity moisture meter is an essential tool for professionals and hobbyists in the wood industry, offering reliable performance for assessing timber conditions.
This manual provides detailed instructions for the proper use, setup, and maintenance of your EMT01 meter to ensure years of reliable service.

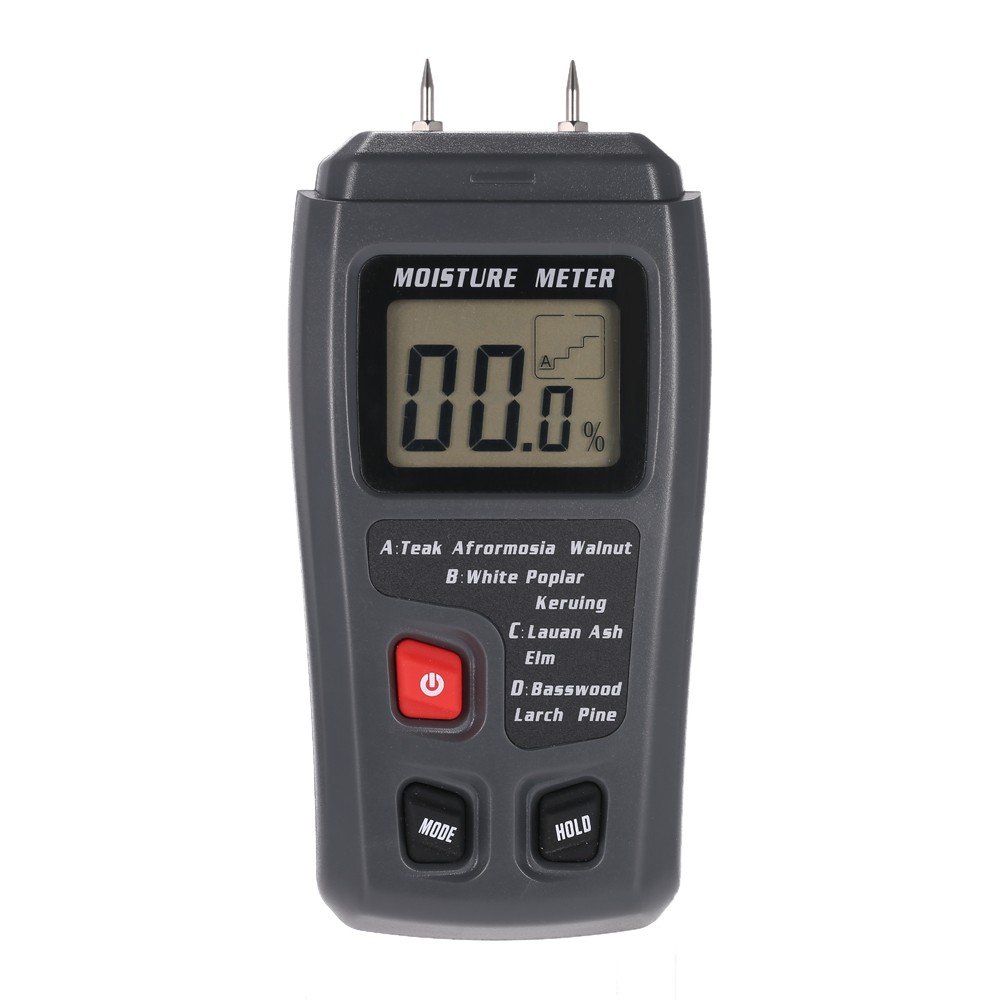

Image 1.1: The BSIDE EMT01 meter being used to measure moisture in a piece of wood.
2. ځانګړتیاوې
The EMT01 wood moisture meter incorporates several features for efficient and accurate moisture detection:
- لوی LCD نندارې: Clearly shows wood moisture percentage.
- د اندازه کولو لړۍ: 0% to 99.9% for wood.
- لوړ دقت: Up to ±0.5%.
- قرارداد: ± 0.1..
- څو اړخیز غوښتنلیک: Suitable for wood, paper, cardboard, and other materials.
- Wood Group Calibration: Contains 4 wood groups with calibrations for approximately 50 species of wood.
- د معلوماتو ساتل فعالیت: ښودل شوی اندازه کول د اسانه لوستلو لپاره کنګل کوي.
- اتومات بریښنا بند: Automatically shuts down after approximately 15 minutes of inactivity to conserve battery life.
- د ټیټ بیټرۍ شاخص: Displays an icon when the battery needs replacement.
- Integrated Electrode Pins: Durable 10mm (0.4") pins for direct measurement.
انځور ۲.۱: ګڼ شمېر views of the EMT01 meter, showing its design and integrated pins.
3. ترتیب کول
3.1 د بیټرۍ نصب کول
The EMT01 meter requires one 9V 6F22 battery for operation. Follow these steps to install or replace the battery:
- ډاډ ترلاسه کړئ چې میټر بند دی.
- د میټر په شا کې د بیټرۍ د برخې پوښ ومومئ.
- د خونې د خلاصولو لپاره پوښ ښکته خوا ته وغورځوئ.
- د بیټرۍ کلپ سره یو نوی 9V بیټرۍ وصل کړئ، سم قطبي حالت وګورئ.
- Place the battery into the compartment and slide the cover back into place until it clicks securely.
Image 3.1: The battery compartment of the EMT01 meter with the cover removed, ready for battery insertion.
3.2 Protective Cap Removal
Before taking measurements, carefully remove the protective cap covering the electrode pins. This cap also serves as a calibration check block.
4. عملیاتي لارښوونې
4.1 بریښنا کول / بندول
- To power on the meter, press the red پاور button. The LCD will display the current moisture reading.
- To power off the meter, press the red پاور button again. The meter will also automatically power off after approximately 15 minutes of inactivity.
4.2 Selecting Wood Group
The EMT01 meter has four pre-calibrated wood groups (A, B, C, D) to ensure accurate readings for different wood species. Refer to the list below and the meter's label to select the appropriate group:
- الف ګروپ: Teak, Afromosia, Walnut, Rubber Tree, Imbuia, Kokrodua, Niangon, Bidinkala, Cork
- ب ګروپ: White Poplar, Keruing, Beech, Cedar, Tola
- ګروپ ج: Lauan, Ash, Elm, Fir, Maple, Padauk, Oak, Cherry
- ګروپ D: Basswood, Larch, Pine, Birch
To select a wood group, press the موډ button repeatedly until the desired group (A, B, C, or D) is displayed on the LCD.

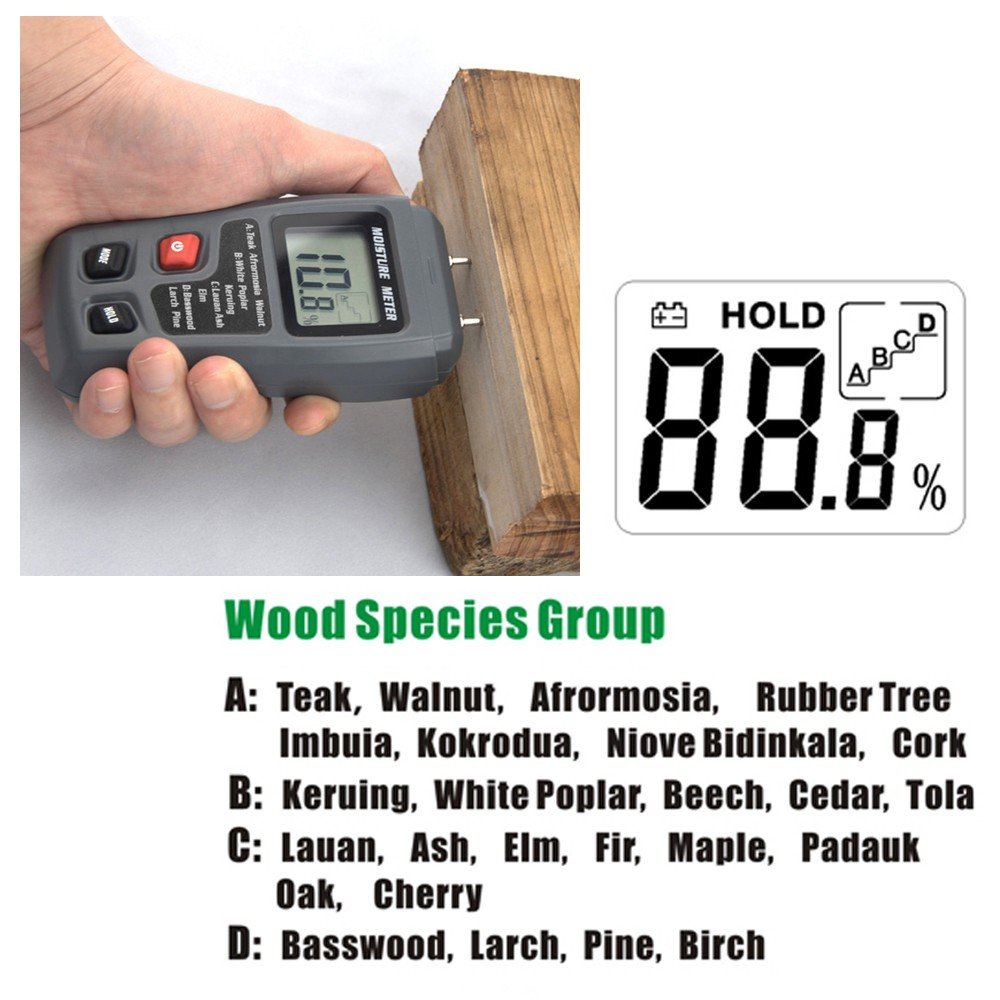

Image 4.1: Detailed breakdown of wood species categorized into groups A, B, C, and D for accurate measurement.
4.3 اندازه کول
- Power on the meter and select the correct wood group.
- Carefully push the electrode pins into the wood surface to be measured. Ensure both pins penetrate the material sufficiently for good contact.
- د رطوبت سلنه ولولئtage displayed on the LCD.
- د اوسني لوستلو د ساتلو لپاره په ښودنه کې، فشار ورکړئ هوډ button. Press it again to release the hold function.
- After measurement, gently pull the pins out of the wood and replace the protective cap.
یادونه: For best results, take multiple readings in different spots on the material and average them.
5. ساتنه
- پاکول: د میټر سی پاک کړئasing د وچ، نرم ټوکر سره. د کثافاتو پاکوونکي یا محلول مه کاروئ.
- Electrode Pins: Keep the pins clean and free from debris. If pins become dull or damaged, they may need replacement (replacement pins not included with standard package).
- ذخیره کول: When not in use, always replace the protective cap over the pins. Store the meter in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods to prevent leakage.
6. ستونزه حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| میټر نه چالانېږي. | مړ یا په غلط ډول نصب شوی بیټرۍ. | د بیټرۍ نصب کول وګورئ. د نوي 9V بیټرۍ سره بدل کړئ. |
| ناسم لوستل. | Incorrect wood group selected; pins not fully inserted; pins dirty or damaged. | Ensure correct wood group is selected. Push pins firmly into the material. Clean or replace pins if necessary. |
| Display shows 'Lo' or 'Hi'. | Moisture content is outside the meter's measurement range. | The material is either too dry or too wet for the meter to provide a specific reading. |
| Meter powers off unexpectedly. | Auto power off activated; low battery. | This is normal behavior after 15 minutes of inactivity. If it happens during use, check for low battery indicator and replace battery. |
7. مشخصات
| پیرامیټر | ارزښت |
|---|---|
| ښودل | Large LCD characters display |
| د اندازه کولو اصول | بریښنایی مقاومت |
| Range (Wood) | 0% ~ 99.9% |
| قرارداد | 0.1% |
| دقت | ±0.5% |
| Electrode Pin Length | ۱۶.۵ ملي متره (۰.۶۴ انچه) |
| Electrode Pins | یوځای شوی |
| د اتومات بریښنا بند | تقریبا وروسته. 15 دقیقې |
| د بریښنا رسول | 1 x 9V 6F22 battery |
| Instrument Enclosures | ABS پلاستيک |
| د عملیاتي حرارت درجه | له 0°C څخه تر 40°C (32°F څخه تر 104°F) |
| عملیاتي رطوبت | 85% Relative Humidity Maximum |
| ابعاد | 145 x 67 x 32mm (5.7 x 2.6 x 1.3in) |
| وزن | 200 ګرامه (7.0 اوز) |
Image 7.1: Visual summary of the EMT01's key technical specifications.
8. تضمین او ملاتړ
This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided with your purchase or contact BSIDE customer support.
For technical assistance, troubleshooting, or inquiries about replacement parts, please contact BSIDE customer service through their official webسایټ یا پرچون پلورونکی چیرې چې محصول اخیستل شوی و.
