Juskys Montreal Racing Desk Chair User Manual

1. پیژندنه

Thank you for choosing the Juskys Montreal Racing Desk Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use and retain them for future reference.

The Juskys Montreal Racing Desk Chair is designed for comfort and ergonomic support, suitable for office, study, or gaming environments. It features a sporty design with a faux leather cover, thick padding, and adjustable functions to enhance your seating experience.

2. د خوندیتوب معلومات

• د اعظمي بار ظرفیت: This chair is designed to support a maximum weight of 120 kg. Do not exceed this limit to prevent damage or injury.
• مجلس: Ensure all components are correctly assembled and tightened according to the instructions before use. Regularly check all screws and bolts for tightness.
• ثبات: Always sit centrally on the chair. Avoid standing on the chair or using it as a step stool.
• حرکت: Use caution when moving the chair, especially on uneven surfaces. Ensure no obstacles are in the path of the wheels.
• ماشومان: Keep small children away from the chair during assembly. This product contains small parts that could be a choking hazard.
• پاکول: Refer to the maintenance section for proper cleaning procedures. Avoid using harsh chemicals that may damage the faux leather.

3. د بسته محتويات

Before beginning assembly, verify that all the following components are present in the box:

• د څوکۍ شاته
• د څوکۍ اډه
• وسله (2)
• د ګاز سلنډر
• Star Base (with five arms)
• څرخونه (5)
• د میکانیزم پلیټ
• Hardware (screws, washers, Allen key)

Note: The chair includes 360° wheels, armrests, a high back, and a padded seat as main components.

۴. تنظیم (د اسمبلۍ لارښوونې)

Assembly is required for this product. Please follow these general steps. For detailed diagrams, refer to the separate assembly sheet included in your package.

1. Attach Wheels to Star Base: Insert each of the five wheels into the sockets at the end of each arm of the star base until they click securely into place.
2. د ګازو لفټ داخل کړئ: Place the gas lift cylinder into the central hole of the assembled star base.
3. د څوکۍ سره د میکانیزم پلیټ وصل کړئ: Secure the mechanism plate to the underside of the seat using the provided screws. Ensure the front of the mechanism plate aligns with the front of the seat.
4. Attach Armrests to Seat and Backrest: Connect the armrests to both the seat base and the backrest using the designated screws. Do not fully tighten all screws until all components are aligned.
5. څوکۍ د ګازو لفټ سره وصل کړئ: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the central hole of the mechanism plate aligns with the top of the gas lift.
6. وروستی کلکوالی: Once all parts are in place and aligned, fully tighten all screws.

5. عملیاتي لارښوونې

Your Juskys Montreal Racing Desk Chair offers several adjustable features for personalized comfort:

• د لوړوالی سمون: To adjust the seat height, locate the lever under the seat on the right side. While seated, pull the lever up to lower the chair. To raise the chair, stand up and pull the lever up. The seat height is adjustable between 46 cm and 56 cm.
• د ۱۸۰ درجې څرخیدونکی فعالیت: The chair is designed to rotate 360 degrees, allowing for easy movement and access to your workspace without needing to reposition the entire chair.
• د شا کږوالی: The backrest can be tilted to provide a more flexible seating position. Use the lever on the left side under the seat to unlock and recline the backrest. Push the lever back in to lock the backrest in your desired position.
• لاسونه: The padded armrests provide additional comfort and support for your arms.

6. ساتنه

Proper care and maintenance will extend the life of your Juskys Montreal Racing Desk Chair:

• پاکول: The faux leather material can be cleaned by wiping it with a damp ټوکر. د سختو داغونو لپاره، د نرم صابون محلول وکاروئ او بیا یې د پاک، داغ سره پاک کړئamp ټوکر. د کثافاتو پاکوونکو یا محلولونو څخه ډډه وکړئ.
• منظم چکونه: په دوره یي ډول ټول پیچونه او بولټونه معاینه کړئ ترڅو ډاډ ترلاسه شي چې دوی کلک دي. که اړتیا وي نو بیا کلک کړئ.
• د څرخونو پاملرنه: Keep the wheels free from hair, dust, and debris to ensure smooth movement.
• د مستقیم لمر وړانګو څخه ډډه وکړئ: Prolonged exposure to direct sunlight can cause the faux leather to fade or crack. Position the chair away from direct sunlight when possible.

7. ستونزه حل کول

که تاسو د خپلې څوکۍ سره ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:

• څوکۍ لوړوالی نه تنظیموي: Ensure the height adjustment lever is fully engaged. Check if the gas lift cylinder is properly seated in the mechanism and base. If the issue persists, the gas lift may need replacement.
• څرخونه په اسانۍ سره نه ګرځي: Inspect the wheels for any trapped debris, hair, or dust. Clean them thoroughly. Ensure the wheels are securely inserted into the star base.
• څوکۍ بې ثباته یا په ټپه ولاړه احساس کوي: Check all assembly screws and bolts, especially those connecting the armrests, seat, and backrest, as well as the mechanism plate to the seat. Tighten any loose fasteners. Ensure the star base is fully assembled and the gas lift is correctly inserted.
• د چیغو غږونه: Apply a small amount of silicone lubricant to moving parts, such as the gas lift mechanism or wheel axles. Avoid oil-based lubricants on plastic components.

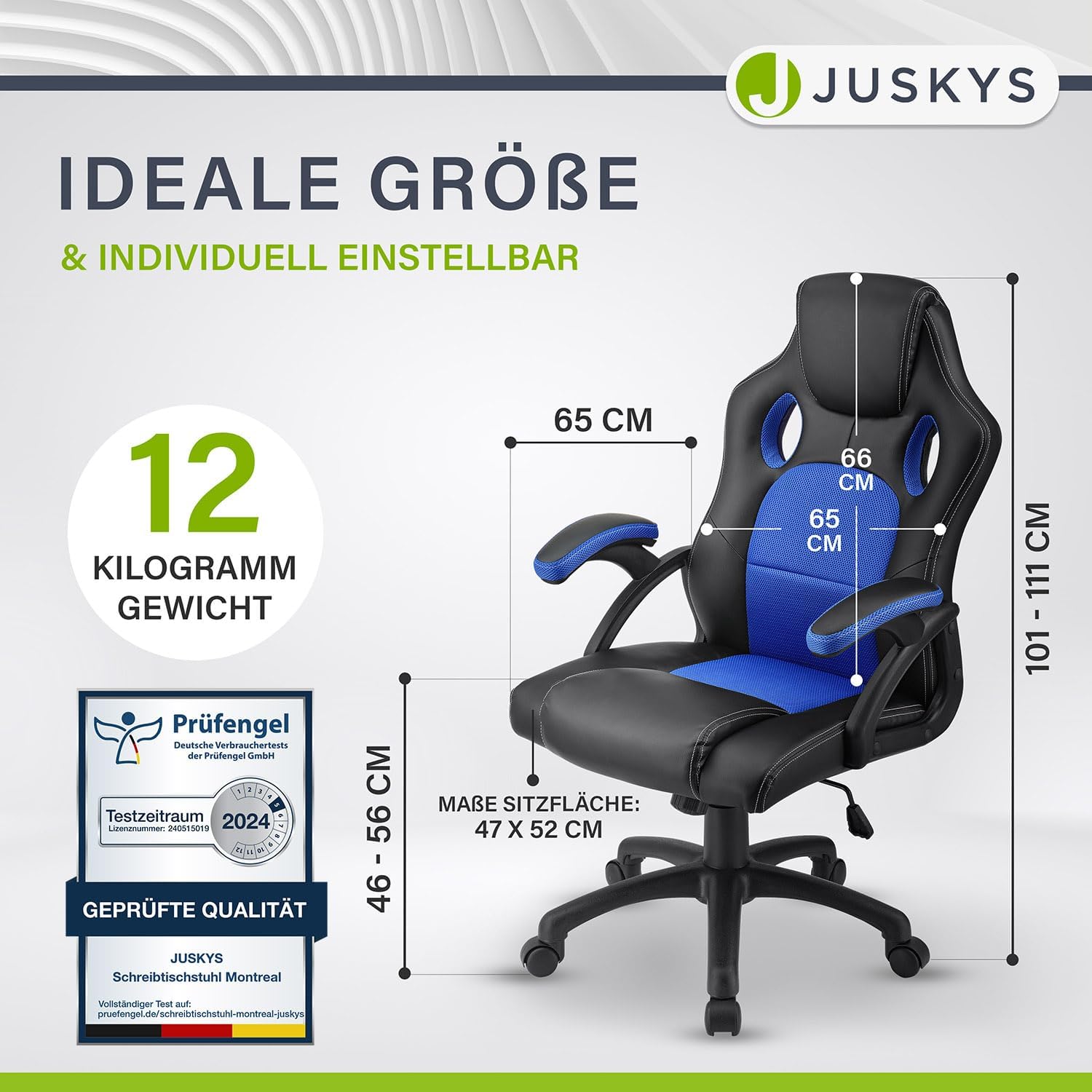

8. مشخصات

9. تضمین او ملاتړ

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Juskys provides quality products, and any warranty claims should be directed to the point of purchase or the manufacturer directly.

If you require further assistance or have questions not covered in this manual, please contact the retailer where you purchased the chair or visit the official Juskys website for customer support contact details.
