1. پیژندنه او وروستهview
This manual provides essential information for the safe and efficient operation of your Haier HCF100HTQ Single Door Hard Top Deep Freezer. Please read these instructions carefully before using the appliance and retain them for future reference.
The Haier HCF100HTQ is designed for reliable freezing and storage of food items. Key features include:
- Up to 40% energy saving for reduced electricity consumption.
- پراخه ټوکtage range (160-260V) for stable operation with less reliance on a voltage ثبات لرونکی.
- Three-layered trapezoid door design to minimize cold air leakage and enhance cooling retention.
- Molecular foaming with high-density PUF insulation to prevent cold air loss.
- Net storage volume of 66 litres.
2. د خوندیتوب معلومات
د خوندي عملیاتو ډاډ ترلاسه کولو او د ټپي کیدو یا زیان مخنیوي لپاره، مهرباني وکړئ لاندې خوندیتوب احتیاطي تدابیر په پام کې ونیسئ:
- بریښنایی خوندیتوب: ډاډ ترلاسه کړئ چې د بریښنا رسولو حجم سره سمون لريtage requirements of the appliance. Do not use extension cords or adapters. Always plug into a grounded outlet.
- د اور وژنې مواد: Do not store explosive substances or flammable materials such as ether, benzene, alcohol, or LPG in the freezer.
- وینټیلیشن: د ډیر تودوخې مخنیوي لپاره د وسیلې شاوخوا مناسب هوا ورکول وساتئ. د هوا د تودوخې خلاصې مه بندوئ.
- ماشومان: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure they do not play with the appliance.
- ساتنه: د پاکولو یا هر ډول ساتنې ترسره کولو دمخه وسیله د بریښنا رسولو څخه جلا کړئ.
- تاوان: که د بریښنا تار خراب شوی وي، دا باید د تولید کونکي، د خدماتو اجنټ، یا ورته وړ اشخاصو لخوا بدل شي ترڅو د خطر څخه مخنیوی وشي.
3. ترتیب او نصب کول
3.1 پیک کول
Carefully remove all packaging materials, including tape and protective films. Inspect the freezer for any signs of damage during transit. Report any damage to your retailer immediately.
3.2 ځای پرځای کول
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., stoves, radiators). Ensure there is sufficient space around the freezer for proper air circulation. A minimum of 10 cm (4 inches) clearance should be maintained on all sides and at the back.
Place the freezer on a firm, level surface to prevent vibrations and ensure efficient operation. Adjust the leveling feet if necessary.
Image: The Haier HCF100HTQ Deep Freezer shown with its dimensions: 835 mm height, 560 mm width, and 440 mm depth. This illustrates the compact size for placement considerations.
3.3 ابتدايي پاکول
Before first use, clean the interior and exterior of the freezer with a soft cloth dampened with a mild detergent solution. Wipe dry thoroughly.
3.4 د بریښنا نښلول
Plug the freezer into a dedicated, grounded electrical outlet. Do not switch on the appliance immediately after plugging it in. Allow it to stand upright for at least 2-4 hours before powering on to allow the refrigerant to settle.
۳.۴ لومړنۍ سړه کول
After the settling period, switch on the freezer. Allow it to operate empty for 2-3 hours to reach its optimal operating temperature before loading food items.
4. عملیاتي لارښوونې
4.1 د تودوخې کنټرول
The freezer is equipped with a temperature control dial, typically located at the bottom front. Rotate the dial to adjust the internal temperature. Higher numbers usually indicate colder settings. For general use, a medium setting is often sufficient. Monitor the indicator lights (green for power, orange for cooling, red for high temperature warning) to ensure proper operation.
Image: The Haier HCF100HTQ Deep Freezer with its top lid open, revealing various frozen food packages stored inside. This demonstrates the internal capacity and how items are typically stored.
۵.۳ د فریزر بارول
When loading food, avoid blocking the air vents inside the freezer. Do not overload the freezer, as this can hinder air circulation and reduce cooling efficiency. For best results, allow hot food to cool down before placing it in the freezer.

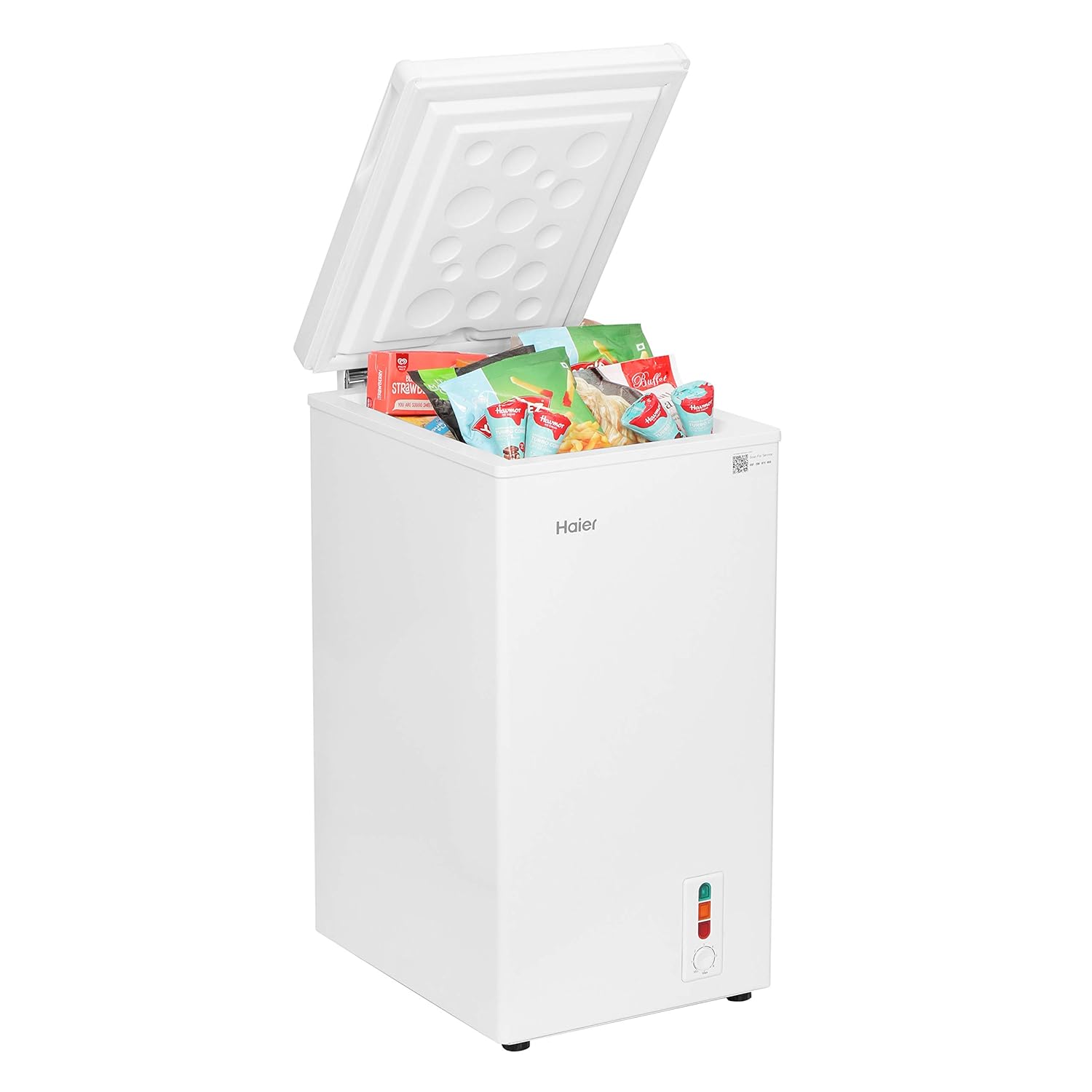

انځور: یو زاویه لرونکی view of the Haier HCF100HTQ Deep Freezer with its lid open, showcasing the interior filled with various frozen items. This perspective highlights the depth and storage arrangement.
4.3 د انرژۍ سپمولو لارښوونې
- Do not open the freezer door frequently or leave it open for extended periods.
- Ensure the door seal is clean and intact to prevent cold air leakage.
- Defrost the freezer regularly when ice buildup exceeds 5mm.
- Place the freezer in the coolest part of the room, away from heat-producing appliances or direct sunlight.
5. ساتنه او پالنه
5.1 د کور دننه پاکول
Before cleaning, unplug the freezer. Remove all food items and store them in another freezer or cooler. Clean the interior with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly with a soft cloth. Do not use abrasive cleaners, harsh chemicals, or sharp objects.
5.2 د بهر پاکول
بهرنۍ سطحې د نرم ټوکر سره پاک کړئampened with a mild detergent. Keep the door gasket clean to ensure a proper seal.
5.3 ډیفروسټ کول
Defrost the freezer when the ice layer on the interior walls reaches approximately 5mm (1/4 inch) thickness. To defrost:
- فریزر د بریښنا له سایټ څخه خلاص کړئ.
- ټول خوراکي توکي لرې کړئ او په کولر یا بل فریزر کې یې ځای په ځای کړئ.
- Leave the freezer lid open to allow the ice to melt naturally. Place towels or a shallow pan at the bottom to collect water.
- کله چې ټوله یخ اوبه شي، داخلي برخه یې په ښه توګه پاکه او وچه کړئ.
- Plug the freezer back in and allow it to cool for 2-3 hours before returning food items.
Do not use sharp objects or heating devices to speed up defrosting, as this can damage the freezer's interior and cooling system.
5.4 بریښناtage
د بریښنا په صورت کېtage, keep the freezer lid closed to maintain the internal temperature for as long as possible. Food can remain frozen for several hours depending on the ambient temperature and how full the freezer is.
6. ستونزه حل کول
د خدماتو سره د تماس نیولو دمخه، مهرباني وکړئ لاندې عامې ستونزې او حل لارې وګورئ:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| فریزر کار نه کوي. | برېښنا نشته؛ د برېښنا تار نه دی ولګول شوی؛ سرکټ بریکر ټکر شوی دی. | د برېښنا ساکټ وګورئ؛ ډاډ ترلاسه کړئ چې تار په خوندي ډول ولګول شوی دی؛ سرکټ بریکر بیا تنظیم کړئ. |
| فریزر کافي سړه نه دی. | Temperature setting too high; door opened too frequently; excessive ice buildup; poor ventilation. | Adjust temperature dial to a colder setting; minimize door openings; defrost the freezer; ensure adequate clearance around the unit. |
| ډیر شور. | یخچال په مساوي ډول نه وي؛ د واحد په وړاندې د شیانو اهتزاز؛ د کمپرسور نورمال عملیات. | د پښو برابرول تنظیم کړئ؛ ډاډ ترلاسه کړئ چې هیڅ شی یخچال ته نه لمس کوي؛ یو څه عملیاتي شور نورمال دی. |
| سور شاخص څراغ روښانه دی. | د لوړ حرارت خبرداری. | Check if door is fully closed; ensure freezer is not overloaded; allow time for temperature to stabilize after loading new items. |
که چیرې د دې ټکو له کتلو وروسته ستونزه دوام ومومي، مهرباني وکړئ د پیرودونکو خدماتو سره اړیکه ونیسئ.
7. مشخصات
| برانډ | هایر |
| د ماډل نوم | HCF100HTQ |
| د ماډل شمیره | HCF-100 HTQ |
| ډول | Single Door Hard Top Deep Freezer |
| Net Storage Volume | 66 لیتره |
| رنګ | سپین |
| د توکي وزن | 25 کیلو ګرامه |
| د محصول ابعاد (LxWxH) | ۲۷ x ۷۰ x ۳۲۲ ملي متره |
| والیtage حد | 160-260 وولټونه |
| د دروازې د موادو ډول | پلاستیک |
8. تضمین او ملاتړ
Your Haier HCF100HTQ Deep Freezer comes with a comprehensive warranty:
- 1 کلن جامع تضمین په ټول وسیله.
- 3 Years Additional Compressor Warranty, covering the compressor unit.
For service, support, or warranty claims, please contact Haier customer service. A pan-India service network is available.
Haier Customer Service Toll-Free Numbers:
Please have your model number (HCF-100 HTQ) and purchase details ready when contacting support.
