SOBO WP-3000F

SOBO WP-3000F Aquarium Internal Filter Pump Instruction Manual

Model: WP-3000F

1. پیژندنه

Thank you for choosing the SOBO WP-3000F Aquarium Internal Filter Pump. This internal filter is designed to provide efficient filtration and water circulation for your aquarium, contributing to a healthy aquatic environment. It is fully submersible and engineered for high performance with low energy consumption, ensuring clear water and easy maintenance.

2. د خوندیتوب لارښوونې

Please read all safety instructions carefully before operating the filter. Failure to follow these instructions may result in damage to the product or injury.

  • احتیاط: Always ensure the pump is fully submerged in water during operation. Running the pump dry can cause damage.
  • احتیاط: Disconnect the filter from the electrical socket before performing any maintenance, cleaning, or handling.
  • The power supply cord provided for this appliance cannot be replaced. If the cord is damaged, the appliance should be discarded.
  • This is a submersible pump. Ensure that water does not reach above the wire connection to the electrical socket.
  • Do not use solvents or harsh chemicals for cleaning any part of the filter.
  • د ماشومانو د لاسرسي څخه لرې وساتئ.

3. د بسته محتويات

ډاډ ترلاسه کړئ چې ټول توکي په کڅوړه کې شتون لري:

  • 1 x SOBO WP-3000F Internal Filter Pump
  • 1 x Filter Sponge (pre-installed or separate)
  • د نصبولو لپاره سکشن کپونه

۴. د تنظیم لارښوونې

  1. فلټر خلاص کړئ: Carefully remove the filter pump and all accessories from the packaging.
  2. د زیانونو لپاره معاینه کول: Check the filter for any signs of damage during transit. Do not use if damaged.
  3. د اجزاو راټولول: Ensure the filter sponge is correctly placed inside the filter housing. Attach any necessary output nozzles or accessories.
  4. موقعیت: Place the filter inside your aquarium, ensuring it is fully submerged in water. The filter can be easily mounted to the aquarium glass using its powerful suction cups.
  5. خوندي ځای پرځای کول: Press the suction cups firmly against the clean inner surface of the aquarium glass to secure the filter in place.
  6. Adjust Flow Direction: The filter features an adjustable direction of water flow. Position the outlet to create optimal water circulation within your aquarium.
  7. بریښنا وصل کړئ: Once the filter is securely placed and fully submerged, connect the power plug to a suitable electrical socket.
SOBO WP-3000F Internal Filter Pump
Image 1: SOBO WP-3000F Internal Filter Pump, showing its compact design.

5. عملیاتي لارښوونې

The SOBO WP-3000F filter is designed for continuous operation to maintain water quality. Once plugged in, the pump will begin to circulate and filter the aquarium water.

  • دوامداره فلټریشن: Allow the filter to run continuously for optimal water clarity and health of aquatic life.
  • د جریان اندازه تنظیمول: If your model includes a flow rate adjustment feature, you can modify the water flow to suit the needs of your aquarium inhabitants. If low flow is desired, adjust the flow rate accordingly.
  • د اوبو جریان: The filter helps create natural currents in both freshwater and marine aquariums, which is beneficial for fish and plant health.
SOBO WP-3000F Internal Filter Pump with components

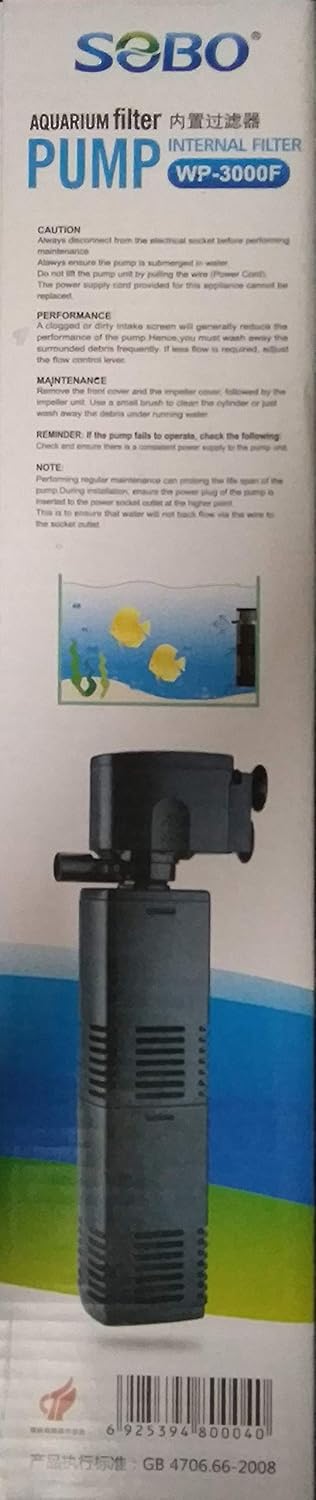

Image 2: SOBO WP-3000F Internal Filter Pump, illustrating its submersible design and components.

6. ساتنه

Regular maintenance is crucial for the longevity and efficient performance of your SOBO WP-3000F filter. Performing regular maintenance can prolong the lifespan of the pump.

  1. د بریښنا قطع کول: Always unplug the filter from the electrical outlet before beginning any maintenance.
  2. Remove from Aquarium: Carefully remove the filter from the aquarium.
  3. جلا کول: Gently open the filter housing to access the internal components.
  4. Clean Filter Sponge: Remove the filter sponge and rinse it thoroughly with clean aquarium water (not tap water, to preserve beneficial bacteria) to remove accumulated debris and restore proper water flow.
  5. Clean Impeller and Cover: Clean the impeller cover and the impeller assembly. Remove any debris, algae, or mineral buildup that may hinder its rotation.
  6. د پاک انټیک سکرین: The specially designed intake screen should also be cleaned. While it reduces cleaning frequency, it may become obstructed, especially in heavily stocked aquariums.
  7. بیا یوځای کول: Once all components are clean, reassemble the filter, ensuring all parts are securely in place.
  8. بیا لګول: Place the filter back into the aquarium, ensuring it is fully submerged before reconnecting power.

یادونه: The frequency of cleaning depends on the bioload of your aquarium. It is recommended to check the filter sponge weekly and clean as needed.

7. ستونزه حل کول

If the SOBO WP-3000F filter pump fails to operate, perform the following checks:

  1. ځواک نشته:
    • Check if the power plug is securely connected to the electrical socket.
    • Verify that there is a normal power supply to the pump and motor by testing the outlet with another appliance.
  2. Reduced Flow or No Flow:
    • Disconnect power and remove the filter from the aquarium.
    • Check if the outlet and intake ports are clear of any obstructions.
    • Inspect the impeller for any debris, hair, or foreign objects that might be preventing it from spinning. Clean the impeller and its housing thoroughly.
    • Examine the filter sponge and intake screen for excessive clogging. Clean or replace the filter sponge if necessary.
  3. غیر معمولي شور:
    • Disconnect power and check the impeller for any foreign objects or damage.
    • Ensure the filter is fully submerged and securely mounted, as vibrations can cause noise.

که چیرې د دې چکونو ترسره کولو وروسته ستونزه دوام ومومي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.

8. مشخصات

فیچرتفصیل
د ماډل شمیرهWP-3000F
ډولAquarium Internal Filter Pump
ابعاد (L x W x H)8 x 5 x 10 سانتي متره
وزن540 ګرامه
د فلټریشن میډیاFilter sponge (absorbs dirt and clears water)
د زیرمو وړFully submersible
پورته کولPowerful suction cups
د اصلي هیوادچین

یادونه: Specific power consumption (W) and flow rate (L/H) are not explicitly provided for the WP-3000F model in the available data. Please refer to the product packaging for precise details if available.

9. تضمین او ملاتړ

SOBO products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or contact your retailer.

For technical support, spare parts, or any inquiries, please visit the official SOBO webسایټ یا د دوی د پیرودونکي خدماتو څانګې سره اړیکه ونیسئ.

رسمي Webسایټ: http://www.newsobo.com
