پیژندنه
The Intermec PB51 is a rugged, 4-inch direct thermal mobile receipt printer designed for demanding field service, route accounting, and point-of-service applications. It offers fast, reliable printing performance to enhance productivity for mobile workers.
This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your PB51 printer.

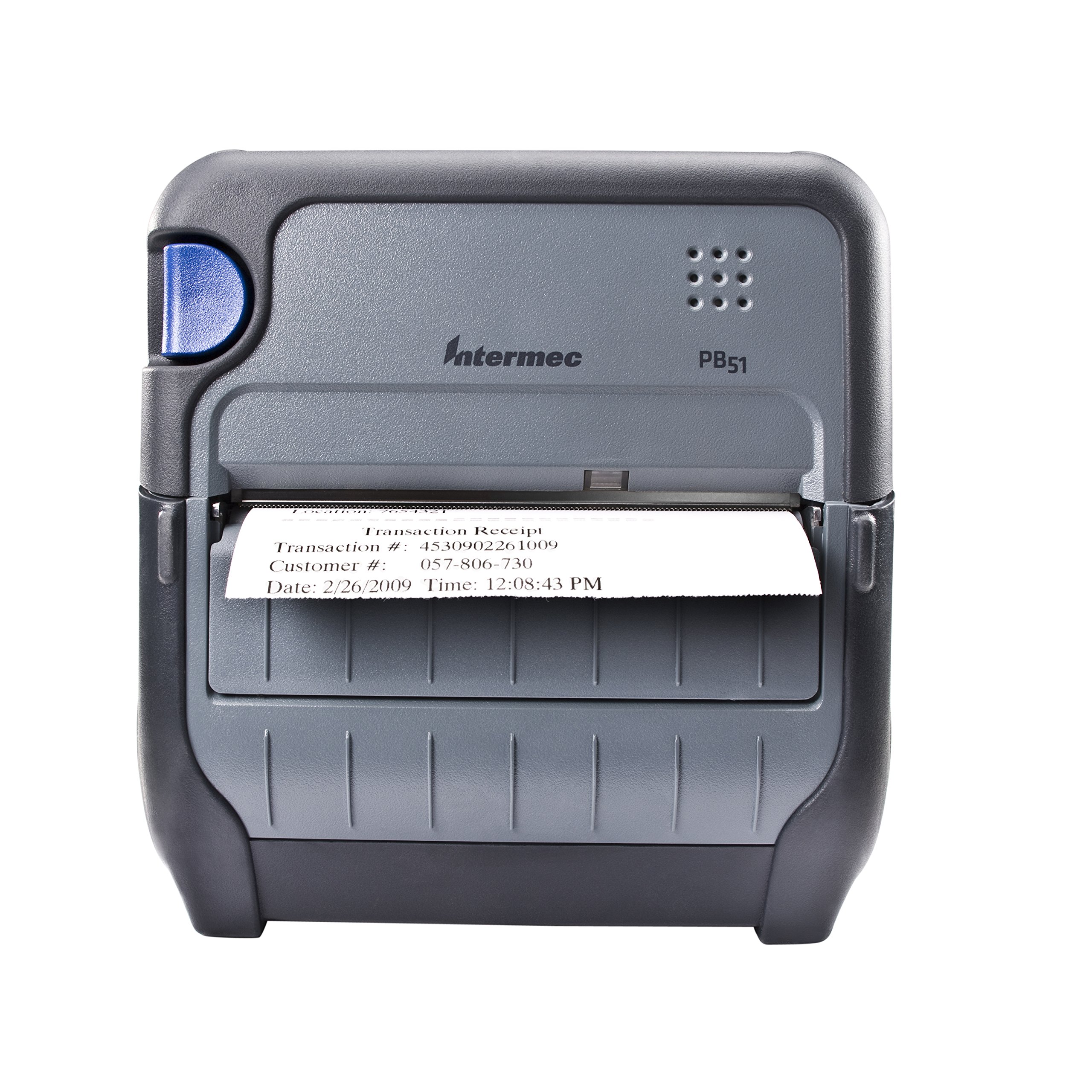

شکل 1: مخکی view of the Intermec PB51 mobile receipt printer. A receipt is partially ejected from the front slot, displaying "Transaction Receipt", "Transaction #: 4530902261009", "Customer #: 057-806-730", and "Date: 2/26/2009 Time: 12:08:43 PM". The printer features a dark gray casing with a blue button on the left side and the "Intermec PB51" logo on the top panel.
چمتو کول
1. خلاصول او معاینه کول
- پرنټر او ټول لوازم په احتیاط سره له بسته بندۍ څخه لرې کړئ.
- ډاډ ترلاسه کړئ چې د بسته بندۍ په سلپ کې لیست شوي ټول اجزا شتون لري.
- Inspect the printer for any visible damage. If damage is found, contact your supplier immediately.
۱. د بیټرۍ نصب او چارج کول
- ډاډ ترلاسه کړئ چې پرنټر بند دی.
- په پرنټر کې د بیټرۍ کڅوړه ومومئ.
- Insert the battery, ensuring proper alignment with the contacts.
- د بیټرۍ کڅوړه په خوندي ډول وتړئ.
- Connect the AC adapter to the printer and a power outlet. The battery indicator light will show charging status. Allow the battery to fully charge before first use.
۲.۲. د تودوخې کاغذ بارول
- د کاغذ کڅوړه پوښ خلاص کړئ.
- Insert the thermal paper roll with the print-side facing the print head.
- Pull a small amount of paper out past the print mechanism.
- Close the paper compartment cover firmly until it latches.
- The printer's paper sensors will detect the paper, minimizing lost transactions.
4. Connectivity Setup (Bluetooth / USB / Serial)
- بلوتوث: Turn on the printer and enable Bluetooth on your host device (e.g., smartphone, tablet, or computer). لټون available devices and select the PB51. Pair using the default PIN (refer to the printer's display or documentation for the specific PIN).
- USB: Connect the printer to your host device using a standard USB cable. Install the necessary printer drivers on your host device if prompted.
- لړۍ: Connect the printer to your host device using a serial cable. Configure the serial port settings (baud rate, data bits, parity, stop bits) on both the printer and the host device to match.
عملیاتي لارښوونې
1. بریښنا کول/بندول
- د بریښنا د فعالولو لپاره، د بریښنا تڼۍ فشار کړئ او وساتئ تر هغه چې نندارې روښانه نشي.
- To power off, press and hold the power button until the display indicates shutdown, then release.
2. د رسید چاپول
- Ensure the printer is powered on and connected to your host device.
- Open the application on your host device that generates receipts or invoices.
- Initiate the print command from your application. The PB51 is designed for 20-30% faster time-to-receipt printing.
- The printer will automatically feed and print the receipt.
- Tear off the receipt along the serrated edge.
3. Using the LCD Display
The standard LCD display provides important information about the printer's status, battery level, connectivity, and error messages. Use the navigation buttons (if present) to scroll through menu options and settings.
ساتنه
۴.۱. د چاپ سر پاکول
- Power off the printer and disconnect it from any power source.
- د کاغذ کڅوړه پرانیزئ.
- Gently wipe the print head surface with a lint-free cloth dampد isopropyl الکول سره ختم شوی.
- د چاپ سر ته اجازه ورکړئ چې په بشپړه توګه وچ شي مخکې لدې چې پوښ وتړئ او پرنټر چالان کړئ.
- Perform this cleaning regularly, especially if print quality degrades.
2. د بیټرۍ پاملرنه
- د بیټرۍ د ژوند د اعظمي کولو لپاره، د بیټرۍ په مکرر ډول د بشپړ چارج کولو څخه ډډه وکړئ.
- Store the printer and battery in a cool, dry place when not in use for extended periods.
- Use only genuine Intermec replacement batteries.
3. عمومي پاکول
د پرنټر بهرنۍ برخه د نرم، d سره پاک کړئamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no liquid enters the printer's openings.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| پرنټر نه چالانېږي | Low or dead battery; faulty power adapter; loose battery connection. | Charge the battery; check power adapter connection; re-seat the battery. |
| د چاپ محصول نشته | No paper; paper loaded incorrectly; connectivity issue; print head dirty. | Load paper correctly; check Bluetooth/USB/Serial connection; clean print head. |
| د چاپ کیفیت خراب دی | Dirty print head; incorrect paper type; low battery. | Clean print head; ensure thermal paper is used; charge battery. |
| د ارتباط مسلې | Incorrect pairing; driver issues; out of range. | Re-pair Bluetooth; reinstall drivers; move closer to host device. |
If the problem persists after attempting these solutions, please contact Intermec customer support.
مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل نوم | PB51B33004100 |
| د چاپ ټیکنالوژي | مستقیم حرارتي |
| د چاپګر محصول | مونوکروم |
| د رسنیو اعظمي اندازه | 4 انچه |
| د ارتباط ټیکنالوژي | USB, Serial, Bluetooth |
| د توکي وزن | 42 Ounces (approx. 2.63 lbs) |
| د کڅوړې ابعاد | 10.2 x 10 x 5 انچه |
| د کنټرولر ډول | اندروید (مطابق) |
| جوړونکی | انټرمیک |
تضمین او ملاتړ
Specific warranty information for the Intermec PB51 printer is not available in this document. Please refer to the warranty card included with your product or visit the official Intermec (now Honeywell) webد تضمین د تفصيلي شرایطو او مقرراتو لپاره سایټ.
For technical support, service, or to purchase accessories, please contact your authorized Intermec/Honeywell dealer or visit their official support portal.
