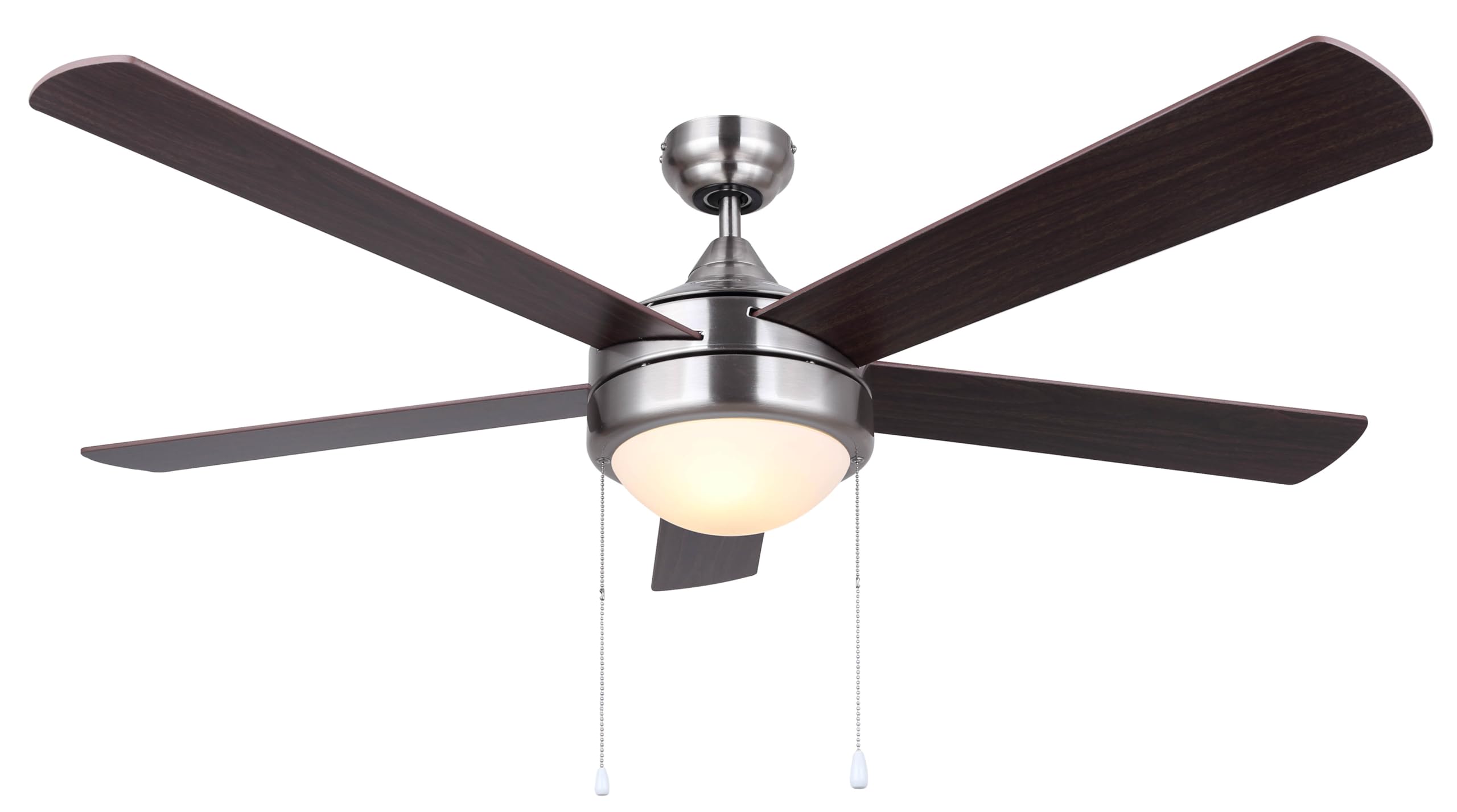

The Canarm Preston III 52-Inch Ceiling Fan is designed to enhance the comfort and style of your living space. Featuring a brushed nickel finish and five reversible blades (walnut/silver oak), this fan offers versatile aesthetics to complement various interior designs. It includes an integrated light kit with an opal glass shade for ambient illumination and operates via pull chains for fan speed and light control. The downrod mount ensures stable installation, making it suitable for medium to large rooms.
Image: Canarm Preston III 52-Inch Ceiling Fan with walnut blades installed in a modern living room setting.
د خوندیتوب معلومات
Before beginning installation, read all instructions carefully. Ensure all electrical connections comply with local codes and ordinances. Disconnect power at the main circuit breaker before working on the fan. Consult a qualified electrician if you are unfamiliar with electrical wiring. Do not install the fan on a sloped ceiling without appropriate adapter kits. Ensure the mounting structure can support the fan's weight.
د بسته محتويات
د اسمبلۍ پیل کولو دمخه ډاډ ترلاسه کړئ چې ټولې برخې شتون لري. که کومه برخه ورکه یا زیانمنه وي، د پیرودونکي ملاتړ سره اړیکه ونیسئ.
- د موټرو هستوګنې مجلس
- Fan Blades (5, reversible walnut/silver oak)
- بلیډ بریکٹ
- ډاونروډ
- کانپو
- د خولو لگول
- Light Kit Assembly with Opal Glass Shade
- Light Bulbs (included)
- د زنځیرونو کشول (د فین سرعت او رڼا لپاره)
- د هارډویر کڅوړه (پیچونه، واشیرونه، د تار مغز)
- د لارښوونې لارښود
تنظیم او نصب کول
Professional installation is recommended for safety and optimal performance. Ensure the power is OFF at the circuit breaker before starting.
- د بریکٹ نصبول: د چت د جنکشن بکس سره د نصب کولو بریکٹ وتړئ. ډاډ ترلاسه کړئ چې د جنکشن بکس په خوندي ډول د ودانۍ جوړښت سره تړل شوی او د پنکې وزن ملاتړ کولی شي.
- د ښکته کولو مجلس: Insert the downrod through the canopy and motor housing. Secure with the provided pin and screw.
- تارونه: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full manual. Use appropriate wire nuts.
- د کینوپی نصبول: Lift the fan assembly and hang it on the mounting bracket. Secure the canopy to the mounting bracket with screws.
- د تیغ ضمیمه: Attach each of the five fan blades to the blade brackets using the provided screws. Ensure they are firmly secured.
- د رڼا کټ نصبول: Connect the light kit wiring to the fan motor wiring. Secure the light kit assembly to the bottom of the fan motor housing.
- Glass Shade and Bulbs: Install the included light bulbs into the sockets. Attach the opal glass shade by twisting or securing it into place.
- Pull Chain Attachment: Attach the decorative pull chains for fan speed and light operation.
انځور: تفصیلي view of the brushed nickel motor housing and downrod connection, showing the sturdy construction.
Image: The fan assembly with the light kit and pull chains visible, ready for blade attachment.
عملیاتي لارښوونې
Once installed and power is restored, operate the fan using the pull chains.
- د فین سرعت کنټرول: Pull the chain with the fan icon (or shorter chain) to cycle through fan speeds (High, Medium, Low, Off).
- د رڼا کنټرول: Pull the chain with the light bulb icon (or longer chain) to turn the light On or Off.
- د بیرته راګرځیدونکي تیغونه: The blades are reversible, offering walnut on one side and silver oak on the other. To change the blade finish, remove the blades, flip them, and reattach.
- موسمي عملیات: Most ceiling fans have a reverse switch on the motor housing. In warm weather, set the switch to circulate air downwards (counter-clockwise rotation) for a cooling effect. In cool weather, set the switch to circulate air upwards (clockwise rotation) to redistribute warm air from the ceiling.

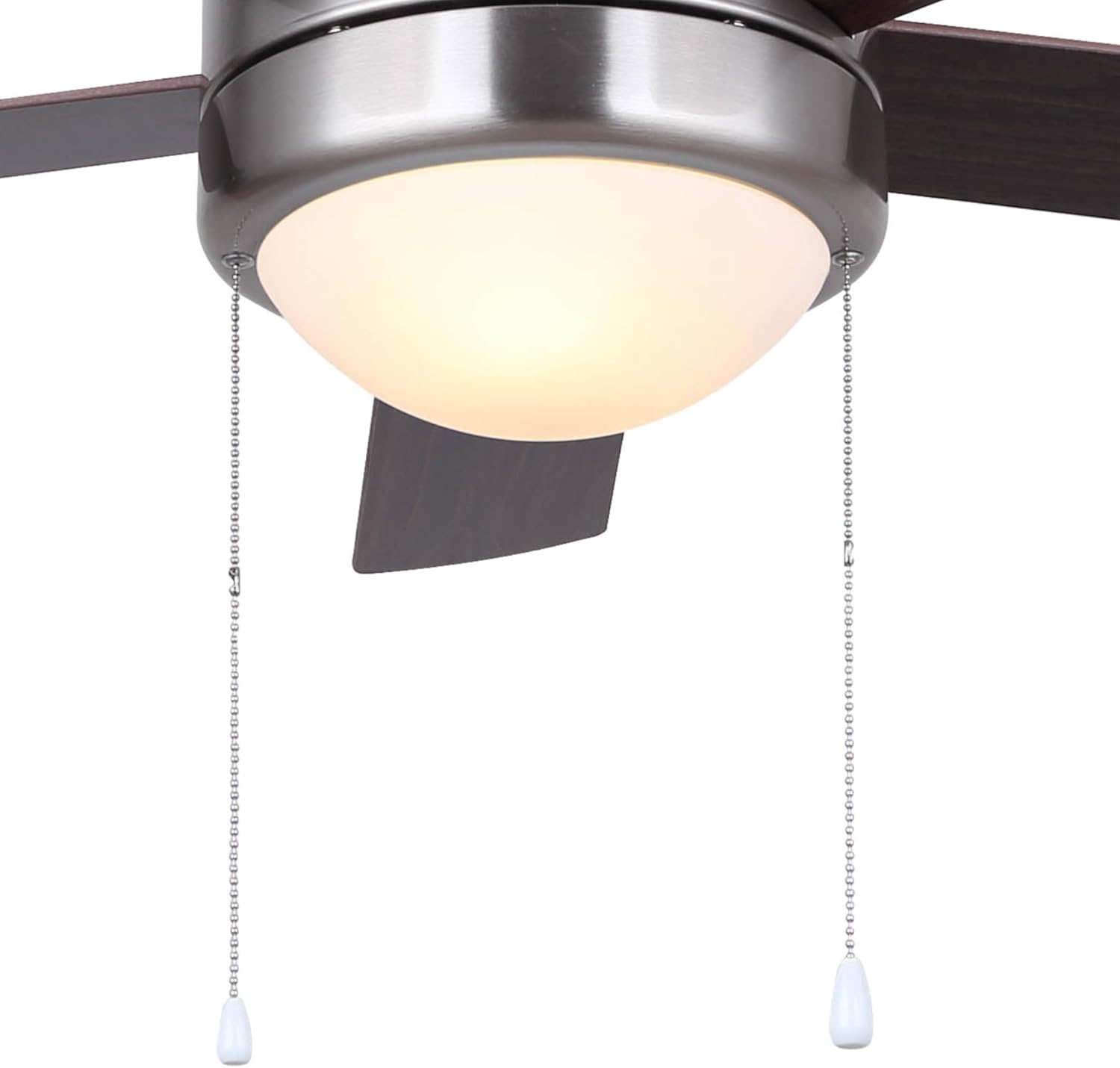

Image: The two pull chains for controlling the fan speed and the integrated light kit.
ساتنه
Regular maintenance ensures long-lasting performance and safety.
- پاکول: په دوره یي ډول د فین تیغونه او د موټرو کور د نرم، ډ سره پاک کړئamp ټوکر د کثافاتو پاکوونکي یا محلول مه کاروئ.
- د تیغ ټینګښت: Check blade screws periodically to ensure they are tight. Loose blades can cause wobbling and noise.
- د رڼا بلب بدلول: When replacing bulbs, ensure the power is off. Use bulbs of the same type and wattage as specified in the full manual or on the fixture.
- د دوړو راټولېدل: Dust can accumulate on the blades and motor, potentially affecting performance. Clean regularly.
د ستونزو حل کول
که تاسو له ستونزو سره مخ شئ، نو دې عام حلونو ته مراجعه وکړئ:
- فین نه پیل کیږي:
- وګورئ چې سرکټ بریکر فعال دی که نه.
- ډاډ ترلاسه کړئ چې د تار ټولې اړیکې خوندي دي.
- Verify the pull chain for the fan is in the ON position.
- رڼا کار نه کوي:
- Check if the light pull chain is in the ON position.
- Ensure light bulbs are correctly installed and not burnt out.
- Verify wire connections to the light kit.
- د فین ټپونه:
- ډاډ ترلاسه کړئ چې ټول تیغ پیچونه کلک دي.
- Check that the downrod is securely fastened to the mounting bracket and motor housing.
- Verify the mounting bracket is securely attached to the ceiling.
- شورماشور عملیات:
- Check for loose screws on the blades or motor housing.
- Ensure the fan is properly balanced.
- Allow a break-in period for new fans; some noise may diminish over time.
د دوامداره ستونزو لپاره، د پیرودونکو ملاتړ سره اړیکه ونیسئ.
مشخصات
| برانډ | کنارم |
| د ماډل نوم | PRESTONIII 52 inch Ceiling Fan |
| د ماډل شمیره | CF52PR35BN |
| اندازه | 52 انچه |
| ختم | Brushed Nickel (matte) |
| د تیغ مواد | Oak (reversible Walnut/Silver Oak) |
| د تیغونو شمیر | 5 |
| سپک کټ | Integrated with Opal Glass Shade, 2 Light Sources |
| د بلب اساس | E26 |
| د کنټرول طریقه | سلسله کش کړئ |
| د نصب کولو ډول | د Downrod غره |
| د کور دننه / بهر کارول | دننه |
| د توکي وزن | ۲.۴۵ پونډه |
| د محصول ابعاد | 52 x 52 x 16 انچه |
تضمین او ملاتړ
د تضمین معلوماتو یا تخنیکي ملاتړ لپاره، مهرباني وکړئ د تولید کونکي چارواکي ته مراجعه وکړئ webسایټ ته مراجعه وکړئ یا د دوی د پیرودونکو خدماتو څانګې سره اړیکه ونیسئ. د تضمین ادعاوو لپاره خپل د پیرود رسید وساتئ.
