1. پیژندنه
The Zebra DS2208-Series SR is a corded handheld standard range imager designed for efficient barcode scanning. This kit includes the DS2208 scanner, a stand, and a shielded USB cable. It is capable of reading both 1D and 2D barcodes, including those displayed on mobile devices, printed coupons, and loyalty cards. The device features an ergonomic design for comfortable use in various environments, from retail to hospitality.
This manual provides instructions for the proper setup, operation, and maintenance of your DS2208-Series SR barcode scanner.
2. د بسته محتويات
ډاډ ترلاسه کړئ چې ټولې برخې په بسته کې شتون لري:
- Zebra DS2208-Series SR Handheld Barcode Scanner
- د سکینر موقف
- Shielded USB Cable
- د چټک پیل لارښود (ممکن په جلا توګه شامل شي)
Figure 2.1: Zebra DS2208-Series SR Handheld Barcode Scanner
This image shows the main unit of the Zebra DS2208-Series SR handheld barcode scanner, a black device with an ergonomic grip and scanning window.

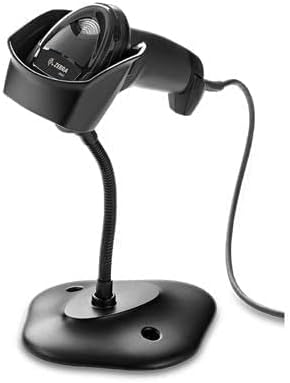

Figure 2.2: Zebra DS2208-Series SR Barcode Scanner with Stand
This image displays the Zebra DS2208-Series SR barcode scanner placed in its flexible stand, connected by a cable.
3. ترتیب او نصب کول
The DS2208-Series SR is designed for plug-and-play simplicity. Follow these steps to set up your scanner:
- د USB کیبل سره وصل کړئ: Insert the smaller end of the shielded USB cable into the port at the base of the DS2208 scanner.
- د کوربه وسیلې سره وصل شئ: Plug the larger USB end of the cable into an available USB port on your computer or Point of Sale (POS) system.
- اتوماتیک ترتیب: The scanner features auto-host detection and will typically configure itself automatically with your POS interface.
- Place in Stand (Optional): If using the stand, place the scanner securely into the stand. The stand allows for hands-free scanning.
No additional drivers are usually required for basic operation. If issues arise, refer to the troubleshooting section or the official Zebra support webسایټ
4. عملیاتي لارښوونې
4.1 په لاسي سکیننګ
- Hold the Scanner: Grip the scanner comfortably in your hand.
- Aim at Barcode: Point the scanning window towards the barcode you wish to scan. The scanner features an aim line to guide you.
- Press Trigger: Press and hold the trigger button located on the handle. The scanner will emit a scanning beam.
- Confirm Scan: Upon successful scan, the scanner will provide feedback through a blinking laser line (Direct Decode Indicator), a beep tone, a red/green LED indicator, or a combination of these, depending on its configuration.
- د خوشې کولو محرک: د محرک تڼۍ خوشې کړئ.
4.2 Presentation Scanning (with Stand)
When the scanner is placed in its stand, it can operate in presentation mode, allowing for hands-free scanning.
- Place Scanner in Stand: Ensure the scanner is securely seated in the stand.
- Present Barcode: Hold the barcode in front of the scanner's window. The scanner will automatically detect and scan the barcode.
- Confirm Scan: Successful scans are indicated by the same feedback mechanisms as handheld scanning.
4.3 Scanning 1D and 2D Barcodes
The DS2208 is capable of reading a wide range of 1D and 2D barcodes, including those on physical labels and digital displays (e.g., mobile phones). Ensure the barcode is clear and well-lit for optimal performance.
5. ساتنه او پالنه
- د سکین کولو کړکۍ پاکول: د نرم، لینټ پاک ټوکر څخه په روښانه توګه کار واخلئampened with water or a mild glass cleaner to clean the scanning window. Avoid abrasive materials or harsh chemicals.
- د کیبل پاملرنه: Do not bend or twist the USB cable excessively. Ensure it is not pinched or placed under heavy objects.
- ذخیره کول: Store the scanner in a clean, dry environment when not in use.
- د غورځیدو ساتنه: While designed for durability, avoid unnecessary drops or impacts to prolong the life of the device.
6. ستونزه حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| سکینر نه چالانېږي. | USB cable not properly connected or power issue. | ډاډ ترلاسه کړئ چې USB کیبل په خوندي ډول د سکینر او کوربه وسیلې دواړو سره وصل دی. یو بل USB پورټ هڅه وکړئ. |
| سکینر بارکوډونه نه لولي. | Barcode damaged, scanner window dirty, incorrect symbology enabled, or scanner not configured. |
|
| Scanned data appears incorrectly. | Incorrect keyboard layout or data formatting. |
|
| سکینر غږ کوي خو هیڅ معلومات نه لیږدول کیږي. | Host device not recognizing the scanner as an input device. |
|
7. مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل شمیره | د DS2208-SR معرفي کول |
| برانډ | زیبرا ټیکنالوژي |
| د ارتباط ټیکنالوژي | USB Cable, RS232 (via compatible cable, not included in this kit) |
| د بریښنا سرچینه | Corded Electric (via USB host) |
| مطابقت لرونکې وسیلې | Desktop, Laptop, Point of Sale (POS) Systems |
| د محصول ابعاد | 3.35 x 2.5 x 7.3 انچه |
| د توکي وزن | 14.1 اونس |
| د سکینر ډول | 1D/2D Area Imager |
| د کټ منځپانګې | Scanner, Stand, Shielded USB Cable |
8. د تضمین معلومات
For detailed warranty information, please refer to the warranty card included with your product or visit the official Zebra Technologies website. Standard warranty terms typically cover manufacturing defects for a specified period from the date of purchase. Keep your proof of purchase for warranty claims.
9. تخنیکي ملاتړ
If you encounter issues not covered in this manual or require further assistance, please contact Zebra Technologies technical support.
- آنلاین ملاتړ: Visit the official Zebra Technologies support website for drivers, documentation, and FAQs.
- د اړیکو معلومات: Refer to the contact details provided in your product packaging or on the Zebra Technologies webد تلیفون یا بریښنالیک ملاتړ لپاره سایټ.
