Instruction Manual for EVERGREEN X-13 Furnace Blower Motor

محصول پای ته ورسیدview

The Evergreen EM X-13 Direct Replacement Motor is designed to replace all X13 Style Constant Torque ECM Motors in residential and light commercial indoor furnaces, air handlers, and package systems. This motor offers a multi-speed, constant torque, brushless DC operation, providing efficient and reliable performance. Its fully encapsulated, one-piece design ensures a lower profile and simplifies installation. The motor features bi-directional CW and CCW rotation sensing technology and requires no programming for replacement.

د خوندیتوب معلومات

• د بریښنا خطر: Always disconnect power to the furnace or air handler before installing or servicing the motor. Failure to do so can result in serious injury or death.
• وړ پرسونل: Installation and servicing should only be performed by qualified HVAC technicians or electricians.
• سمه ځمکه کول: Ensure the motor is properly grounded according to local electrical codes.
• د موټرو مطابقت: Verify that this motor is the correct replacement for your existing unit. This motor is designed to replace X13 style constant torque ECM motors and DOES NOT REPLACE EON, 3.0, 2.3, and 2.5 ECM Motors.
• Shaft Handling: Be cautious when handling the motor shaft, especially if the old motor shaft is rusted or seized, as specialized tools may be required for removal.

اجزا او ځانګړتیاوې

• د موټرو بدن: Fully encapsulated, one-piece design.
• شافټ: 5-inch long, 1/2 inch diameter shaft.
• پورته کول: NEMA 48-frame (5.6 inch diameter) belly band mount.
• د بریښنا قوي کیدل: Includes necessary electrical connectors for direct replacement.
• د کنټرول ماډل: Integrated control for multi-speed operation and rotation sensing.

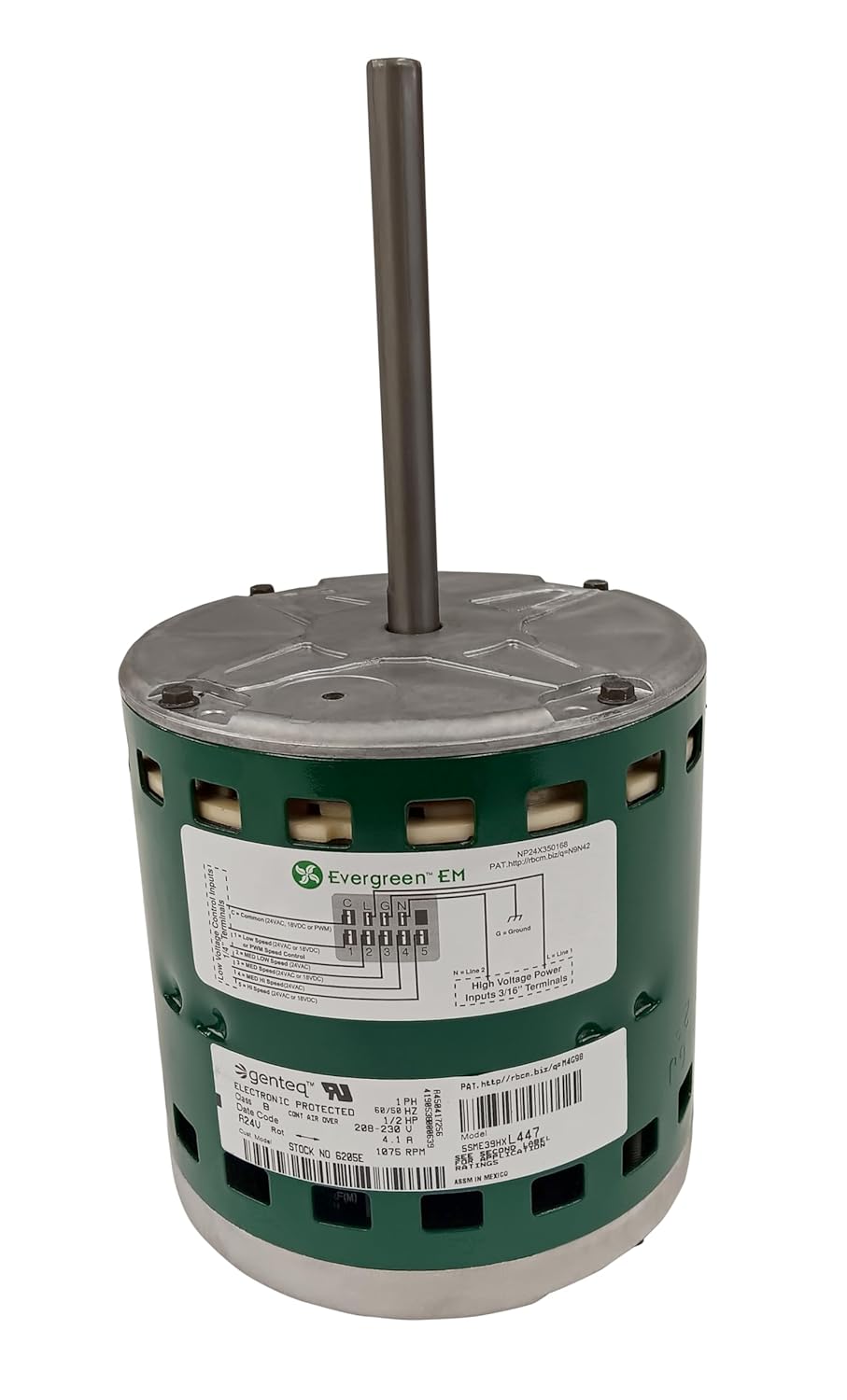

شکل 1: مخکی view of the Evergreen EM X-13 Furnace Blower Motor, showing its compact design and integrated control module.

شکل 2: اړخ view of the motor, highlighting the robust casing and shaft.

شکل 3: پورته view of the motor, showing the mounting points and shaft.

شکل 4: لاندې view of the motor, displaying the product label with model and electrical specifications.

Figure 5: Included wiring harness and a sample of the technical documentation for the motor.

د نصبولو لارښود

This motor is designed for direct replacement of existing X-13 style constant torque ECM motors. No programming is required for installation.

1. د بریښنا قطع کول: Before beginning, ensure all power to the HVAC unit (furnace or air handler) is completely disconnected at the circuit breaker.
2. Access Old Motor: Locate and access the existing blower motor within the HVAC unit. This may involve removing panels or the blower assembly.
3. د تارونو نښلول: Carefully disconnect the electrical wiring from the old motor. Note the connections or take pictures for reference if needed, although this motor is designed for direct plug-and-play replacement.
4. زوړ موټور لرې کړئ: Unmount and remove the old motor. The blower wheel may need to be detached from the old motor shaft. If the shaft is seized, a specialized puller tool may be necessary.
5. نوی موټور نصب کړئ: Mount the new Evergreen EM X-13 motor in the same position as the old one. Ensure it is securely fastened using the NEMA 48-frame belly band mount.
6. Attach Blower Wheel: Reattach the blower wheel to the shaft of the new motor, ensuring it is properly aligned and secured.
7. د تار نښلول: Connect the new motor's wiring harness to the HVAC unit's electrical system. The connectors are designed to match existing X-13 setups.
8. خوندي تختې: Replace all access panels and ensure they are securely closed.
9. د بریښنا بیرته راګرځول: Restore power to the HVAC unit at the circuit breaker.
10. ابتدايي عملیات: Upon initial startup, the motor will perform a rotation sensing sequence (rotating in both directions for a few seconds) to determine the correct operational direction. Allow a few minutes for this process to complete before normal operation begins.

عملیاتي لارښوونې

The Evergreen EM X-13 motor operates automatically in conjunction with your HVAC system's thermostat and control board. It is a constant torque motor, meaning it maintains consistent airflow across varying static pressures.

• د سرعت کنټرول: The motor offers four discrete speeds using 24VAC signals, plus an automatic continuous fan speed. An additional three speeds are available using 18VDC. These speeds are typically controlled by the furnace or air handler's control board based on heating, cooling, or continuous fan demands.
• د هوا جریان تنظیم کول: The motor's ability to maintain constant torque and its multiple speed settings allow for adjustment of airflow, which can compensate for faulty duct systems and designs, optimizing system performance.
• Rotation Sensing: The integrated CCW/CW Rotation Sensing Technology automatically detects and sets the correct rotation direction upon startup, eliminating the need for manual configuration.

ساتنه

The Evergreen EM X-13 motor is designed for minimal maintenance. However, regular inspection of your HVAC system is recommended.

• پاکوالی: Ensure the motor and surrounding area within the blower compartment remain free of dust, debris, and obstructions. Excessive buildup can hinder performance and lead to overheating.
• بلور ویل: Periodically inspect and clean the blower wheel. A dirty blower wheel can reduce airflow and put strain on the motor.
• د هوا فلټرونه: Regularly replace or clean your HVAC system's air filters. Clogged filters restrict airflow, forcing the motor to work harder.
• مسلکي معاینه: It is advisable to have your entire HVAC system, including the blower motor, inspected by a qualified technician annually.

د ستونزو حل کول

If you experience issues with your Evergreen EM X-13 motor, consider the following common troubleshooting steps:

For issues not listed here or if troubleshooting steps do not resolve the problem, contact a qualified HVAC professional.

مشخصات

تضمین او ملاتړ

For specific warranty information and technical support, please refer to the official Evergreen or Genteq manufacturer's website or contact their customer service directly. Warranty terms typically cover manufacturing defects and may vary. It is recommended to retain your purchase receipt for warranty claims.

For additional resources and support, you may visit TheDealerToolbox.com, as indicated on some product labels.
