EJEAS V8 Bluetooth Intercom Motorcycle Helmet Headset

1. پیژندنه

Thank you for choosing the EJEAS V8 Bluetooth Intercom Motorcycle Helmet Headset. This device is designed to enhance your riding experience by providing seamless communication and entertainment. It supports full-duplex communication among up to 5 riders simultaneously, with a communication range of up to 1200 meters under ideal conditions. Featuring Bluetooth 3.0, NFC functionality, FM radio, and a convenient remote control, the V8 offers a comprehensive solution for motorcycle communication.

2. د خوندیتوب معلومات

Please read all safety information carefully before using the EJEAS V8. Improper use may result in damage to the device or personal injury.

• تل د سړک خوندیتوب ته لومړیتوب ورکړئ. وسیله په داسې ډول مه چلوئ چې تاسو د موټر چلولو څخه ګډوډ کړي.
• Adjust volume to a safe level. Excessive volume can damage your hearing and prevent you from hearing important traffic sounds.
• د وسیلې د جلا کولو یا بدلولو هڅه مه کوئ. دا ممکن تضمین باطل کړي او زیان ورسوي.
• Keep the device away from extreme temperatures, moisture, and corrosive substances.
• Ensure the device is securely mounted to your helmet and the remote control to your handlebar to prevent detachment during riding.

3. د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په بسته کې شامل دي:

• 1 x EJEAS V8 Intercom Unit
• 1 x ریموټ کنټرول
• 1 x Stereo Speaker with Microphone
• 1 x Clamp غره
• 1 x سکرو ډرایور
• 2 x پیچ
• 2 x Velcro Tapes (for speaker/microphone attachment)
• 1 x د USB چارج کیبل
• 1 x د کارونکي لارښود

Figure 3.1: Contents of the EJEAS V8 Intercom package. This image displays the main intercom unit, the remote control, the stereo speaker and microphone assembly, mounting clamps, a screwdriver, screws, Velcro tapes, a USB cable, and the user manual, all neatly arranged.

4. محصول ختم شوview

Familiarize yourself with the main components and controls of your EJEAS V8 intercom system.

4.1. Intercom Unit

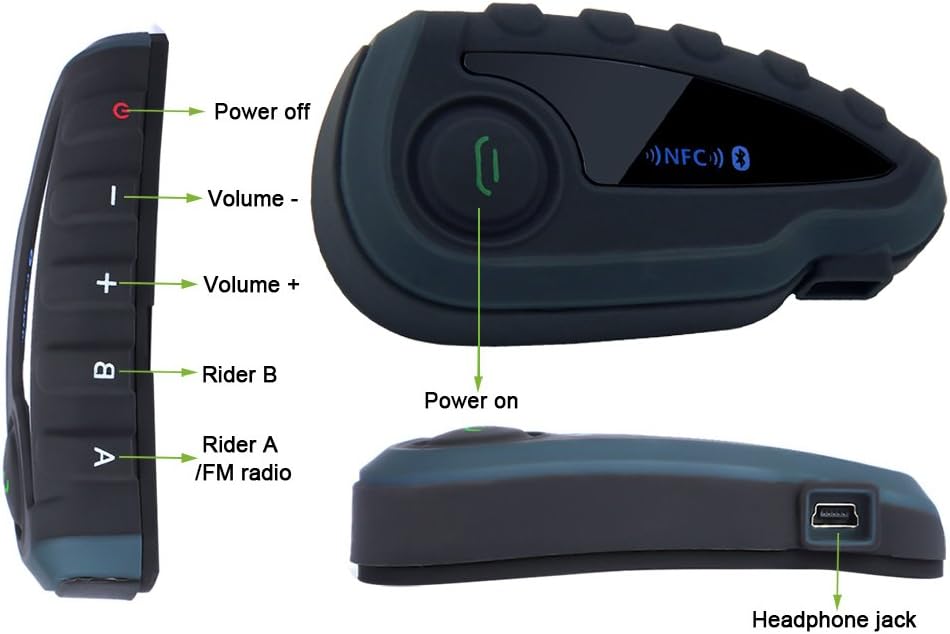

شکل ۱: مخ او اړخ views of the EJEAS V8 intercom unit with key controls labeled. Labels include Power off, Volume -, Volume +, Rider B, Rider A/FM radio, Power on, and Headphone jack.

4.2 شکل: چاودلی view of the EJEAS V8 intercom unit connected to its headset and microphone. Labels indicate Rider A, Rider B, Volume+, Phone/Play button, Volume-, Power off button, Headphone jack, Earpiece, and Microphone.

4.2. ریموټ کنټرول

Figure 4.3: The EJEAS V8 remote control unit, designed for handlebar mounting. It features large, easy-to-press buttons for safe operation while riding.

5. ترتیب کول

5.1. د وسیلې چارج کول

Before first use, fully charge the V8 intercom unit. Connect the supplied USB cable to the charging port on the intercom unit and plug the other end into a USB power adapter (not included) or a computer USB port. The charging indicator will show the charging status. A full charge takes approximately 3 hours.

۱. د خولۍ نصبول

1. cl ضمیمه کړئamp mount to the side of your helmet. Ensure it is securely fastened.
2. Slide the V8 intercom unit onto the clamp mount until it clicks into place.
3. Position the stereo speakers inside the helmet, aligning them with your ears. Use the provided Velcro tapes to secure them.
4. Attach the microphone to the inside of the helmet, ensuring it is close to your mouth for clear audio pickup.
5. Connect the speaker and microphone cable to the headphone jack on the V8 intercom unit.

Figure 5.1: The EJEAS V8 intercom unit securely mounted on the side of a motorcycle helmet, ready for use.

5.3. د ریموټ کنټرول نصب کول

Install the remote control on your motorcycle's handlebar for easy access during rides.

1. cl خلاص کړئamp په ریموټ کنټرول کې.
2. Position the remote control on a suitable section of your handlebar.
3. په خوندي ډول cl کلک کړئamp to ensure the remote control does not move during operation.

Figure 5.2: The EJEAS V8 remote control unit mounted on a motorcycle handlebar, providing convenient access to controls while riding.

6. عملیاتي لارښوونې

6.1. بریښنا فعال/بند

• پاور آن: Press and hold the Power On button (refer to Figure 4.1) until the indicator light illuminates.
• بندول: Press and hold the Power Off button (refer to Figure 4.1) until the indicator light turns off.

6.2. د بلوتوث جوړه کول

The V8 supports pairing with smartphones, GPS devices, and MP3 players via Bluetooth.

• د NFC جوړه کول: If your smartphone supports NFC, enable NFC on your phone and simply tap it against the NFC area on the V8 intercom unit. The devices will automatically recognize and pair.
• لاسي جوړه کول: Put the V8 into pairing mode (refer to specific instructions in the included user manual for button combinations). On your device (phone, GPS, MP3), search for Bluetooth devices and select "EJEAS V8" from the list.

۳. د انټرکام اړیکه

The V8 allows full-duplex communication among up to 5 riders. The communication range is up to 1200 meters in open terrain.

• To initiate an intercom call with Rider A, press the 'Rider A' button.
• To initiate an intercom call with Rider B, press the 'Rider B' button.
• Follow the specific pairing instructions in the detailed user manual to connect multiple V8 units for group intercom.

6.4. د تلیفون زنګونه

Once paired with your smartphone, the V8 supports hands-free calling.

• زنګ ووهئ: Press the Phone/Play button once.
• ټلیفون پای: Press the Phone/Play button once during a call.
• زنګ رد کړئ: Press and hold the Phone/Play button.
• وروستنۍ شمیره بیا ولیکئ: Double-press the Phone/Play button.

6.5. د میوزیک غږول

Control music from your paired device directly through the V8.

• پلی کول / ودرول: Press the Phone/Play button once.
• بله لار: د حجم + ت buttonۍ فشار ورکړئ.
• مخکینی لار د حجم - تڼۍ فشار ورکړئ.

6.6. ایف ایم راډیو

The V8 features a built-in FM radio.

• Turn On/Off FM Radio: Press the 'Rider A/FM radio' button (refer to Figure 4.1) to toggle the FM radio on or off.
• سکین چینلونه: Refer to the detailed user manual for specific button combinations to scan and save FM channels.

6.7. د حجم کنټرول

Adjust the volume for all audio outputs.

• حجم زیات کړئ: د حجم + ت buttonۍ فشار ورکړئ.
• حجم کم کړئ: د حجم - تڼۍ فشار ورکړئ.

7. ساتنه

Proper maintenance ensures the longevity and optimal performance of your EJEAS V8 intercom.

• پاکول: یو نرم استعمال کړئ، دamp cloth to wipe the surface of the intercom unit and remote control. Do not use harsh chemicals or abrasive cleaners.
• ذخیره کول: کله چې د اوږدې مودې لپاره نه کارول کیږي، وسیله په یخ، وچ ځای کې وساتئ، د مستقیم لمر وړانګو او سختې تودوخې څخه لرې.
• د بیټرۍ پاملرنه: To preserve battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use.

8. ستونزه حل کول

If you encounter issues with your EJEAS V8, refer to the following common troubleshooting steps:

که چیرې د دې حل لارو هڅه کولو وروسته هم ستونزه دوام ومومي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.

9. مشخصات

Detailed technical specifications for the EJEAS V8 intercom system:

10. تضمین او ملاتړ

EJEAS provides a warranty for the V8 Bluetooth Intercom Motorcycle Helmet Headset.

• د تضمین موده: دا محصول د پیرود نیټې څخه د 12 میاشتو تضمین سره راځي.
• د تضمین پوښښ: The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
• د پیرودونکي ملاتړ: If you experience any issues with your product or have questions not covered in this manual, please contact EJEAS customer support through the retailer where you purchased the product or visit the official EJEAS website for contact information. Please have your purchase receipt and product model number ready when contacting support.
