1. پیژندنه
This manual provides detailed instructions for the installation, operation, and maintenance of your TOTO K300 Electronic Bidet Toilet Seat (Model SW3036#01). The K300 WASHLET is an advanced electronic bidet toilet seat designed to provide a refreshing and hygienic cleansing experience with warm water. Key features include instantaneous water heating, PREMIST technology, a deodorizer, a warm air dryer, and a comfortable heated seat. The unit is controlled via an illuminated remote, offering personalized settings for multiple users.

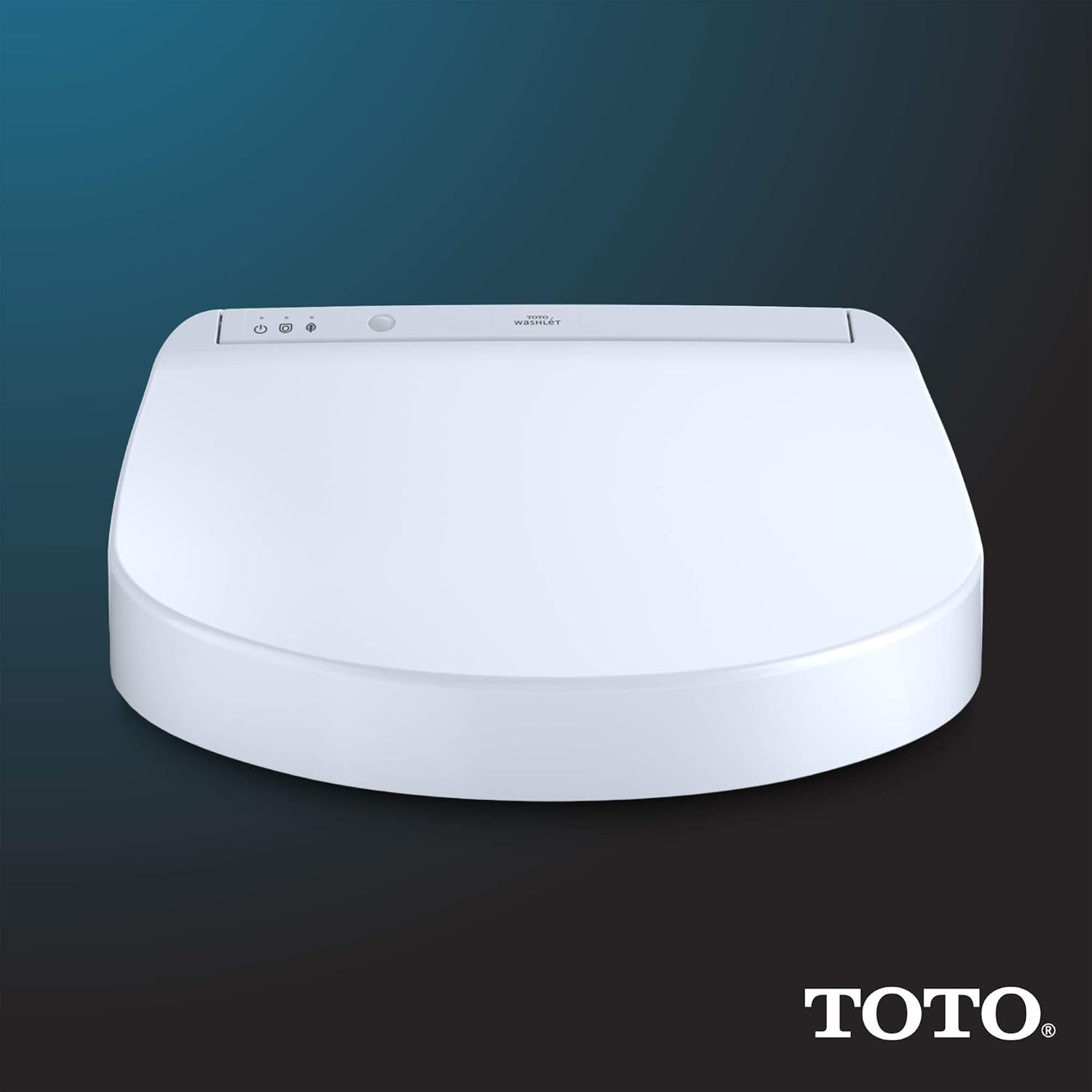

Figure 1: TOTO K300 Bidet Seat with highlighted features.
2. د خوندیتوب معلومات
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or injury. Keep this manual for future reference.
- Ensure the electrical outlet is a 120V GFCI (Ground Fault Circuit Interrupter) outlet and is properly grounded.
- واحد په اوبو کې مه ډوبوئ یا په مستقیم ډول په بریښنایی برخو باندې اوبه مه سپری کوئ.
- د اوبو رسولو بند کړئ او د هر ډول ساتنې یا پاکولو دمخه یونټ خلاص کړئ.
- Do not allow children or individuals with reduced physical, sensory, or mental capabilities to operate the unit without supervision.
3. د بسته محتويات
د نصبولو پیل کولو دمخه ډاډ ترلاسه کړئ چې ټولې برخې شتون لري:
- Electronic bidet seat (WASHLET)
- د خولو لگول
- د بیټرۍ سره ریموټ کنټرول
- Tee-connector
Figure 2: Included components and required tools.
4. ترتیب او نصب کول
The TOTO K300 WASHLET is designed for easy, do-it-yourself installation. For a comprehensive visual guide, download the BILT app for interactive 3D instructions.
4.1 د نصب کولو دمخه چکونه
- Ensure your toilet is an elongated model. The K300 is specifically designed for elongated toilets.
- Confirm a 120V GFCI electrical outlet is available near the toilet. The power cord length is approximately 48 inches.
- Turn off the water supply to the toilet before starting.
4.2 د نصبولو مرحلې
- د تشناب موجوده څوکۍ لرې کړئ: Unscrew and remove your current toilet seat and lid.
- د نصب کولو بریکٹ نصب کړئ: Secure the provided mounting bracket onto the toilet bowl using the screws and washers. Adjust its position to ensure proper alignment.
- د اوبو رسولو نښلول: Turn off the water supply to the toilet. Disconnect the existing water supply hose from the toilet tank. Install the provided tee-connector between the toilet tank fill valve and the water supply hose. Connect the bidet's water supply hose to the tee-connector.
- Attach WASHLET: Slide the WASHLET unit onto the mounting bracket until it clicks into place.
- بریښنا وصل کړئ: Plug the WASHLET into the 120V GFCI electrical outlet.
- د اوبو رسولو بیا رغونه: په تدریجي ډول تشناب ته د اوبو رسولو سیسټم چالان کړئ او د لیکو لپاره یې وګورئ.
Figure 3: Visual guide for TOTO K300 installation steps.
Figure 4: Improved Tee Connector for leak-free installation.
۵.۵ د نصبولو ویډیو لارښود
Video 1: This video provides a detailed demonstration of the TOTO K300 WASHLET installation process, guiding users through each step for a successful setup.
4.4 اختیاري لوازم
For toilets with difficult-to-reach fill valves, optional accessories such as a 2-inch extender (9AU321-A) or a 6-inch hose (THU9090R) may be required.
Figure 5: Optional accessories for installation.
5. عملیاتي لارښوونې
The TOTO K300 WASHLET is operated using the included remote control. Familiarize yourself with the remote's functions for optimal use.
5.1 ریموټ کنټرول اوورview
Figure 6: TOTO K300 Remote Control functions.
- ودرول: Stops all washing or drying functions.
- REAR/SOFT REAR: Initiates rear cleansing. Press once for a softer stream, twice for added pressure.
- مخ: Activates front cleansing for delicate areas.
- څرخېدل: Moves the wand back and forth for a wider cleansing area.
- موقف: Adjusts the forward or backward position of the wand.
- وچونکی: د ګرمې هوا وچونکی فعالوي.
- فشار: Adjusts the water pressure of the spray.
- USER 1/2: Allows two users to save and quickly access personalized settings.
۵.۲ د پاکولو دندې
The K300 offers multiple spray settings for a thorough and comfortable clean:
- د شا پاکول: Standard rear wash.
- Soft Rear Cleansing: Gentle rear wash.
- د مخ پاکول: Soft stream for feminine hygiene.
- څرخیدونکی سپری: The wand moves back and forth during cleansing.
- د نبض سپرې: Provides a massaging effect during cleansing.
Figure 7: Adjustable water spray and pressure options.
5.3 Water Stream Options Video
Video 2: This video demonstrates the various water stream options and adjustments available on the TOTO K300 WASHLET.
۴.۱ ګرمه څوکۍ
The seat provides consistent warmth across its entire surface. The temperature can be adjusted to your preference using the remote control.
5.5 Heated Seat Video
Video 3: This video highlights the comfortable heated seat feature of the TOTO K300 WASHLET.
۴.۷ د ګرمې هوا وچونکی
After cleansing, the warm air dryer provides a comfortable and effective drying experience. The air temperature is adjustable.
5.7 Warm Air Dryer Video
Video 4: This video demonstrates the warm air dryer function of the TOTO K300 WASHLET.
5.8 PREMIST Function
Before each use, PREMIST technology sprays the toilet bowl with water, creating a slick surface that helps prevent waste from sticking and keeps the bowl cleaner.
5.9
The built-in air deodorizer neutralizes bathroom odors using powerful air filters, enhancing the overall experience.
6. ساتنه
Regular cleaning and maintenance will ensure the longevity and optimal performance of your TOTO K300 WASHLET.
- د ځان پاکولو ویښته: The cleansing wand automatically cleans itself both inside and outside before and after each use.
- د بد بوی کولو فلټر: The deodorizing filter should be removed and cleaned monthly with a soft brush (e.g., a toothbrush) to remove dust and maintain effectiveness.
- د واحد پاکول: Wipe the exterior of the WASHLET with a soft, damp ټوکر او یو نرم، غیر خارښ کوونکی پاکونکی. سخت کیمیاوي مواد یا خارښ کوونکی پیډونه مه کاروئ.
Figure 8: Self-cleaning wand mechanism.
7. ستونزه حل کول
Refer to the following common issues and solutions. If the problem persists, contact TOTO customer service.
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| Wand extends unexpectedly. | Self-cleaning function initiated. | This is normal operation. The wand extends to clean itself before and after use. |
| Spray function does not activate. | Seat sensor not engaged. | The WASHLET features a seat sensor to prevent the wand from spraying when no one is seated. Ensure you are seated properly. To test, press the seat down until you hear the sensor click, then cover the spray from the wand with a cup. |
| Water pressure is too soft. | Low pressure setting or insufficient water supply. | Adjust the water pressure setting on the remote control. Ensure the water supply valve is fully open. The rear spray has two options: soft (single press) and strong (double press). |
| ګرمې اوبه نشته. | Temperature setting too low or power saving mode. | Adjust the water temperature setting on the remote. Check if the power saving mode is active and adjust if necessary. |
8. مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل شمیره | SW3036#01 |
| رنګ | سپین پنبه |
| مواد | پلاستیک |
| سټایل | Self-Cleaning Wand |
| شکل | اوږد شوی بیضوي |
| د محصول ابعاد | ۴.۴"لیتر x ۲.۲"واټه |
| د توکي وزن | 14.5 پونډه |
| والیtage | 120 ولټه |
| Temperature Range (Water) | ۲۰۰ - ۴۵۰ درجې فارنهایټ |
| شاملې برخې | Electronic bidet seat, Mounting bracket, Remote control with batteries, Tee-connector |
| بیټرۍ | 2 AA بیټرۍ ته اړتیا ده (شامل) |
Figure 9: TOTO K300 Elongated Measurements.
9. تضمین او ملاتړ
د تضمین توضیحات: Manufacturer One Year Limited Warranty.
For customer service and technical support, please contact TOTO directly. For assistance with installation, you can also refer to the BILT app.
Figure 10: Download the BILT app for interactive 3D instructions.
TOTO Customer Service: 1-888-295-8134 (ext. 1347)
