Keramag myDay Illuminated Mirror Element User Manual

1. پیژندنه

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Keramag myDay Illuminated Mirror Element. Please read this manual thoroughly before installation and retain it for future reference.

The Keramag myDay Illuminated Mirror Element is designed to enhance your bathroom with its integrated lighting and anti-fog features, providing both functionality and modern aesthetics.

2. د خوندیتوب معلومات

تل د لاندې خوندیتوب احتیاطي تدابیرو ته غاړه کیږدئ ترڅو محصول ته زیان ونه رسیږي.

• بریښنایی خوندیتوب: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected before any installation or maintenance work.
• اوبه او رطوبت: This product is rated IP44, indicating protection against splashing water. However, do not immerse the product in water or expose it to direct water jets.
• سمبالول: Mirrors are fragile. Handle with care to avoid breakage. Wear appropriate protective gear, such as gloves, during installation.
• پاکول: یوازې نرم استعمال کړئ، دamp cloths and mild, non-abrasive cleaners. Avoid harsh chemicals or abrasive materials that could damage the mirror surface or frame.
• وینټیلیشن: Ensure adequate ventilation in the installation area to prevent condensation buildup, which can affect electronic components over time.

3. د بسته محتويات

د نصبولو پیل کولو دمخه ډاډ ترلاسه کړئ چې ټولې برخې شتون لري او زیانمن شوي ندي.

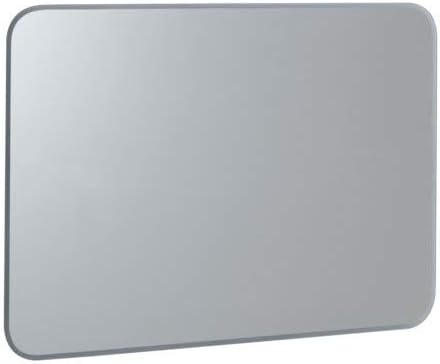

Figure 3.1: Keramag myDay Illuminated Mirror Element. This image displays the Keramag myDay Illuminated Mirror Element, a rectangular mirror with rounded corners, featuring an integrated lighting system and anti-fog functionality. The mirror has a sleek, modern design suitable for various bathroom aesthetics.

4. ترتیب او نصب کول

مهم: Installation must be carried out by a qualified electrician and comply with all local electrical codes and building regulations.

1. د نصب کولو ساحه چمتو کړئ: Choose a suitable wall location, ensuring it is structurally sound and free from hidden electrical wires or pipes. Mark the desired height and center point for the mirror.
2. د بریښنا قطع کول: Before proceeding, turn off the main power supply to the circuit where the mirror will be installed at the circuit breaker. Verify that the power is off using a voltage ټیسټر.
3. د نښه کولو د برمه کولو ځایونه: Using the provided mounting template (if applicable) or by measuring the mirror's mounting points, mark the drilling locations on the wall.
4. سوراخونه: Drill holes at the marked locations using an appropriate drill bit for your wall type (e.g., masonry bit for concrete, wood bit for studs). Insert wall plugs if necessary.
5. د نصبولو خوندي قوسونه: Attach the mounting brackets securely to the wall using the provided screws. Ensure they are level.
6. بریښنایی پیوستون: Connect the mirror's electrical wiring to the household wiring. Ensure correct polarity (Live, Neutral, Earth) and secure all connections within a suitable junction box. Refer to the wiring diagram provided with the product.
7. هنداره نصب کړئ: Carefully lift the mirror and align its mounting points with the brackets. Secure the mirror onto the brackets. Ensure it is firmly seated and stable.
8. د بریښنا بیرته راګرځول: Once the mirror is securely mounted and all electrical connections are properly insulated and enclosed, restore power at the circuit breaker.
9. د ازموینې فعالیت: Test the lighting and anti-fog functions to ensure they operate correctly.

5. عملیاتي لارښوونې

The Keramag myDay Illuminated Mirror Element is designed for simple operation.

• د رڼا کنټرول: The integrated LED lighting is typically controlled via a wall switch connected to the mirror's power supply. Flip the switch to turn the light on or off.
• د فوګ ضد دنده: The anti-fog feature activates automatically when the mirror's power is turned on, or it may have a separate touch sensor on the mirror surface. If a touch sensor is present, gently press it to activate or deactivate the anti-fog heating element. Allow a few minutes for the anti-fog effect to become fully effective.

6. ساتنه او پالنه

منظم پاکول او مناسبه پاملرنه به ستاسو د عکس اوږد عمر او غوره فعالیت ډاډمن کړي.

• د عکس د سطحې پاکول: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the edges or electrical components. Wipe gently to remove smudges and dirt.
• Cleaning the Frame/Edges: Wipe the frame and edges with a soft, damp ټوکر د سخت کیمیاوي موادو یا خړوبونکي موادو کارولو څخه ډډه وکړئ چې پای ته زیان رسوي.
• مه کاروئ: Avoid using ammonia-based cleaners, abrasive pads, or scouring powders, as these can scratch the mirror surface or damage the anti-fog coating.
• برقی اجزا: Ensure the mirror is disconnected from the power supply before cleaning any electrical components or areas near wiring. Do not spray water directly onto the mirror's back or electrical parts.

7. ستونزه حل کول

If you encounter issues with your Keramag myDay Illuminated Mirror Element, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact Keramag customer support or a qualified technician.

8. تخنیکي مشخصات

9. تضمین او ملاتړ

Keramag products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Geberit/Keramag webسایټ

For technical support, spare parts, or service inquiries, please contact your local Keramag or Geberit distributor or customer service center. When contacting support, please have your product model number (part_B07BPKD4B4) and purchase date available.

رسمي Webسایټ: www.geberit.com (Keramag is part of Geberit Group)
