1. پیژندنه
The OWC Mercury Elite Pro Quad is a versatile four-bay external storage enclosure designed for professionals requiring high capacity, performance, and data security. It offers broad compatibility with both Mac and Windows PCs through its powerful USB-C interface. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Mercury Elite Pro Quad.
2. کلیدي ځانګړتیاوې
- د لوړ سرعت ارتباط: Features a powerful USB-C interface delivering 10Gb/s USB 3.2 Gen 2 bandwidth, compatible with USB-C or Thunderbolt 3 equipped Mac or Windows PCs.
- استثنایی فعالیت: Achieves speeds of up to 947MB/s for rapid data transfer.
- Flexible Drive Bays: Equipped with four universal drive bays that support both 2.5" and 3.5" SATA drives, allowing for up to 48TB of storage capacity.
- Advanced RAID Capabilities: Includes SoftRAID XT software for creating, monitoring, and managing advanced RAID sets, offering options for massive capacity, maximum performance, or data redundancy.
- قوي ډیزاین: Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, and vibration-absorbing feet for quiet and reliable operation. Front-facing LEDs provide instant drive-activity status.
- امنیتي ځانګړتیاوې: Features a front panel access lock and a rear-mounted Kensington compatible lock slot to secure your drives and the enclosure.
محصول پای ته ورسیدview
3. د تنظیم کولو لارښود
3.1 د بسته محتويات
ډاډ ترلاسه کړئ چې ټولې برخې په بسته کې شتون لري:
- OWC Mercury Elite Pro Quad Enclosure
- USB-C ته USB-C کیبل
- USB-C to USB-A Cable (for backward compatibility)
- د بریښنا اډاپټر
- Keys for front panel lock
- SoftRAID XT Software License (if included with your model)
3.2 د ډرایو نصب کول
The Mercury Elite Pro Quad supports up to four 2.5-inch or 3.5-inch SATA hard drives or SSDs. Follow these steps to install your drives:

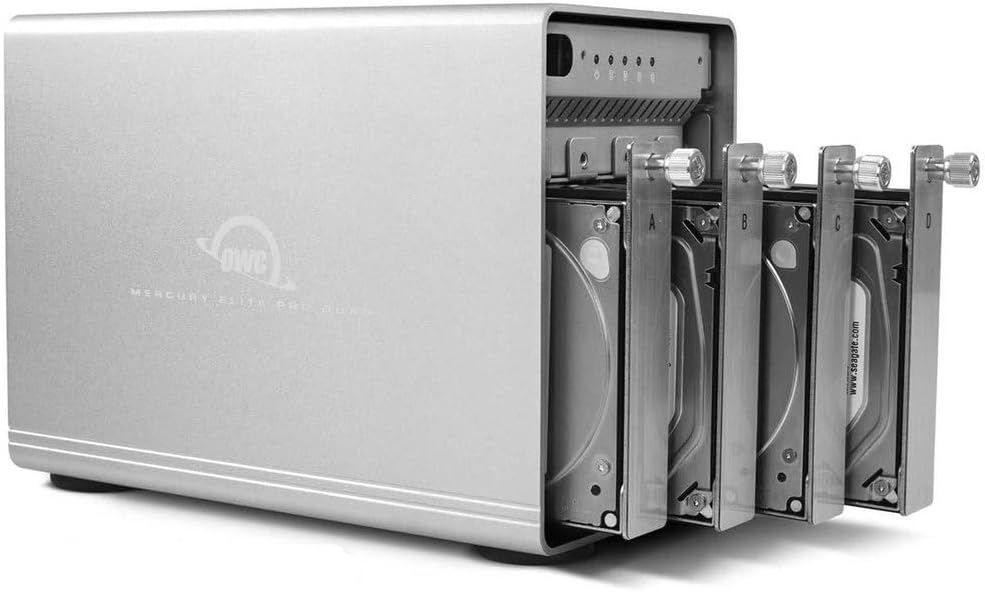

- Unlock the front panel using the provided key and open it.
- Pull out an empty drive tray.

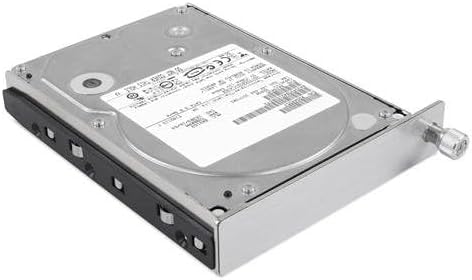

- For 3.5-inch drives: Align the drive with the screw holes on the tray and secure it with the provided screws.
- For 2.5-inch drives: Use the included adapter bracket (if necessary) to secure the 2.5-inch drive to the 3.5-inch tray, then secure the tray screws.
- Carefully slide the populated drive tray back into the enclosure until it clicks into place.
- Repeat for all desired drives.
- مخکینۍ تخته وتړئ او بند کړئ.
۴.۱ ستاسو کمپیوټر سره نښلول
- Connect the power adapter to the "AC IN" port on the rear of the enclosure and plug it into a power outlet.
- Connect one end of the USB-C cable to the "USB-C (USB 3.1 Gen 2)" port on the rear of the enclosure.
- Connect the other end of the USB-C cable to an available USB-C or Thunderbolt 3 port on your computer. If your computer only has USB-A ports, use the provided USB-C to USB-A cable.
- Flip the power switch on the rear of the enclosure to the "ON" position. The power indicator LED on the front will illuminate.
3.4 Software Installation (SoftRAID XT)
For optimal performance and advanced RAID configurations, install the SoftRAID XT software. Refer to the SoftRAID documentation or OWC's support website for detailed installation instructions specific to your operating system (Mac or Windows).
- Download the latest SoftRAID XT software from the OWC support webسایټ
- د سافټویر نصبولو لپاره د پردې پرامپټس تعقیب کړئ.
- Register your SoftRAID license if applicable.
- Restart your computer if prompted to ensure proper driver installation.
4. Operating the Mercury Elite Pro Quad
4.1 د RAID ترتیب
The Mercury Elite Pro Quad supports various RAID levels (e.g., RAID 0, RAID 1, RAID 5, RAID 10, JBOD, Span) via SoftRAID XT. The choice of RAID level depends on your needs for speed, capacity, and data redundancy.
- Launch the SoftRAID XT application.
- Select the drives you wish to include in your RAID array.
- Choose your desired RAID level and configure the volume settings.
- Follow the software's instructions to create and initialize your RAID volume.
Note: Incorrect RAID configuration can lead to data loss. Always back up important data before making changes to your RAID setup.
4.2 د معلوماتو لیږد
Once your RAID volume is configured and mounted, it will appear as a regular drive on your computer. You can drag and drop files, use it as a scratch disk for creative applications, or for general data storage and backup.
4.3 Safe Ejection and Power Off
Always safely eject the Mercury Elite Pro Quad from your operating system before disconnecting the cable or powering off the unit to prevent data corruption.
- macOS: Drag the drive icon to the Trash, or right-click the drive icon and select "Eject".
- وینډوز: Click the "Safely Remove Hardware and Eject Media" icon in the system tray and select the Mercury Elite Pro Quad.
- Once ejected, you can safely turn off the power switch on the rear of the enclosure.
5. ساتنه
5.1 پاکول
To maintain optimal performance and appearance, regularly clean the exterior of the enclosure with a soft, dry, lint-free cloth. Avoid using harsh chemicals or abrasive materials. Ensure the fan vents are clear of dust and debris to allow for proper airflow.
۵.۳ د فرم ویئر او سافټویر تازه معلومات
Periodically check the OWC support website for any available firmware updates for the Mercury Elite Pro Quad and software updates for SoftRAID XT. Keeping your device and software updated ensures the best performance, compatibility, and security.
6. ستونزه حل کول
If you encounter issues with your OWC Mercury Elite Pro Quad, refer to the following common problems and solutions:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| Enclosure does not power on. | د برېښنا کیبل په خوندي ډول نه دی وصل شوی؛ د برېښنا د رسولو ستونزه. | Ensure power cable is firmly connected to both the enclosure and the wall outlet. Try a different power outlet. |
| Enclosure not recognized by computer. | USB cable issue; driver issue; incorrect connection. | Verify USB cable connection. Try a different USB port or cable. Ensure SoftRAID XT drivers are installed and up to date. Restart your computer. |
| SoftRAID XT license or setup issues. | Software not properly installed or activated; compatibility issues. | Ensure you have the correct SoftRAID XT version for your OS. Re-download and reinstall the software. Contact OWC support for license activation issues. |
| Fan noise is excessive or constant. | Normal operation; dust accumulation; fan malfunction. | The fan is designed for continuous cooling. Ensure vents are clear. If noise is unusual or excessive, contact OWC support. |
| Drives not appearing in SoftRAID XT or Disk Utility. | Drives not properly seated; drive failure. | Ensure all drive trays are fully inserted and locked. Test drives individually if possible. |
7. مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل شمیره | OWCMEQCTSRT00 |
| برانډ | OWC (Other World Computing) |
| انٹرفیس | USB-C (USB 3.2 Gen 2, 10Gb/s), Thunderbolt 3 compatible |
| د ډرایو خلیج | 4 (Supports 2.5" and 3.5" SATA HDDs/SSDs) |
| اعظمي ظرفیت | Up to 48 TB (with compatible drives) |
| د معلوماتو د لیږد کچه | تر 947 MB/s پورې |
| د RAID ملاتړ | SoftRAID XT (various RAID levels) |
| مطابقت لرونکې وسیلې | Desktop computers (Mac and Windows PC) |
| د بریښنا رسول | External AC Adapter (12 Volts) |
| ابعاد (LxWxH) | ۴.۲۵" x ۱.۸۹" x ۱.۳۸" (۱۰.۸ سانتي متره x ۴.۸ سانتي متره x ۳.۵ سانتي متره) |
| وزن | ۱۱.۵۷ پونډه (۵.۲۵ کیلو ګرامه) |
| UPC | 812437029215 |
8. تضمین او ملاتړ
8.1 محدود تضمین
The OWC Mercury Elite Pro Quad is backed by a د 1 کلن OWC محدود تضمین. دا تضمین د عادي استعمال لاندې موادو او کاریګرۍ نیمګړتیاوې پوښي. مهرباني وکړئ د تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.
8.2 د پیرودونکي ملاتړ
For technical assistance, troubleshooting, or warranty inquiries, please contact OWC Customer Support. OWC offers 24/7 customer support to assist you with any product-related questions.
OWC (Other World Computing)
Visit OWC Support Webسایټ
