1. پیژندنه
This manual provides detailed instructions for the operation and maintenance of your Bside EMT01 Digital Wood Moisture Meter. This instrument is designed to accurately measure the moisture content in various wood materials, providing essential data for drying processes and quality control. Please read this manual thoroughly before using the device to ensure proper and safe operation.
2. د خوندیتوب معلومات
- Keep the device out of reach of children. The measurement probes are sharp and can cause injury.
- Do not attempt to measure live electrical circuits with this device. It is designed for wood moisture measurement only.
- د میټر د سختې تودوخې، لوړې رطوبت، یا مستقیم لمر وړانګو ته د افشا کولو څخه ډډه وکړئ.
- وسیله په اوبو یا نورو مایعاتو کې مه ډوبوئ.
- If the device is damaged, do not use it. Contact customer support for assistance.
- که چیرې وسیله د اوږدې مودې لپاره ونه کارول شي ترڅو د لیکیدو مخه ونیسي، نو بیټرۍ لرې کړئ.
3. د بسته محتويات
مهرباني وکړئ د ترلاسه کولو پرمهال د کڅوړې محتويات وګورئ. که کوم توکي ورک یا خراب وي، نو خپل پرچون پلورونکي سره اړیکه ونیسئ.
- 1 x Bside EMT01 Digital Wood Moisture Meter
- ۱ x د کارونکي لارښود (دا سند)
4. محصول ختم شوview
The Bside EMT01 features a clear LCD display, two sharp measurement pins, and intuitive buttons for mode selection and data hold. A protective cap covers the pins when not in use.
شکل 1: مخکی view of the Bside EMT01 Digital Wood Moisture Meter with the protective cap removed, showing the LCD display, measurement pins, and control buttons.

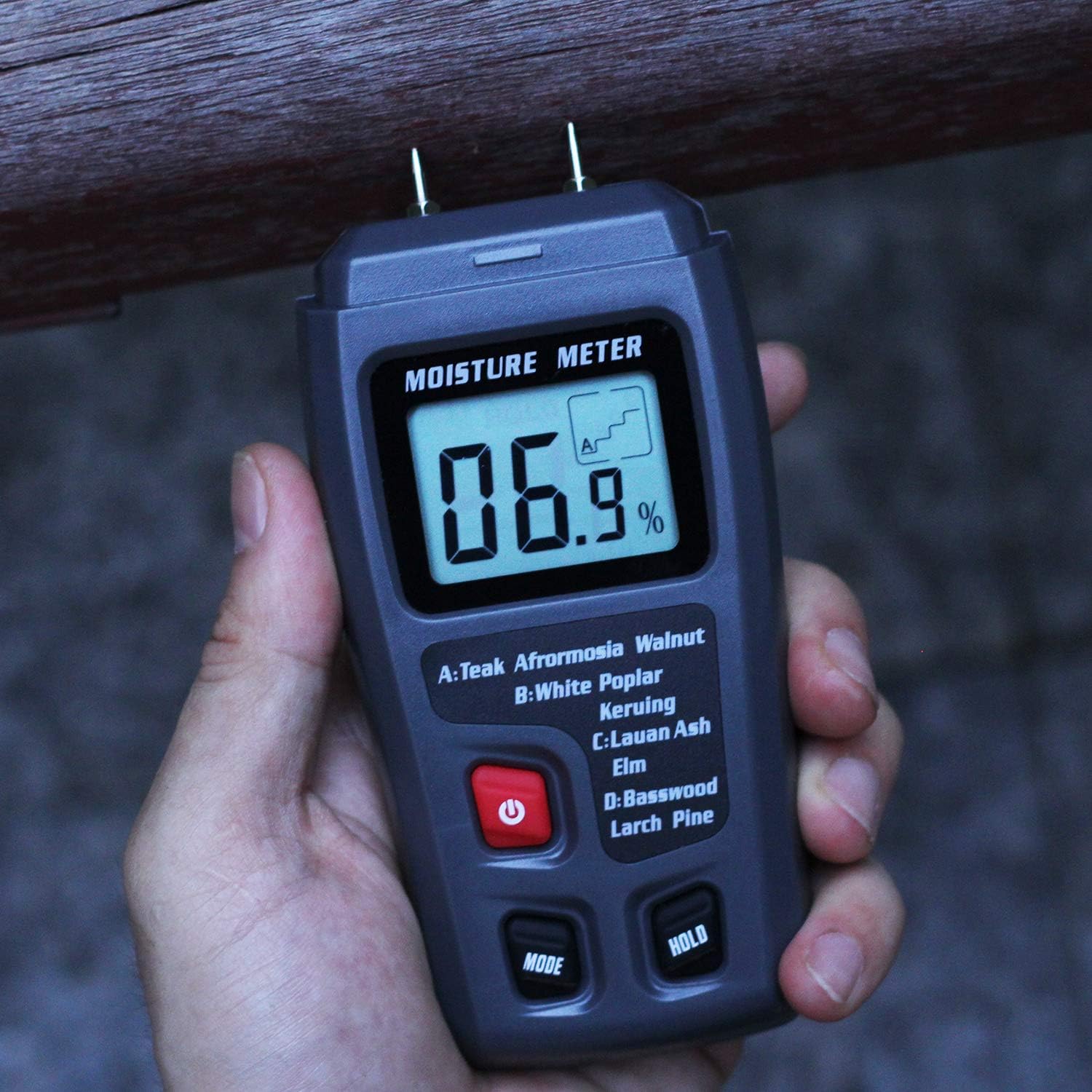

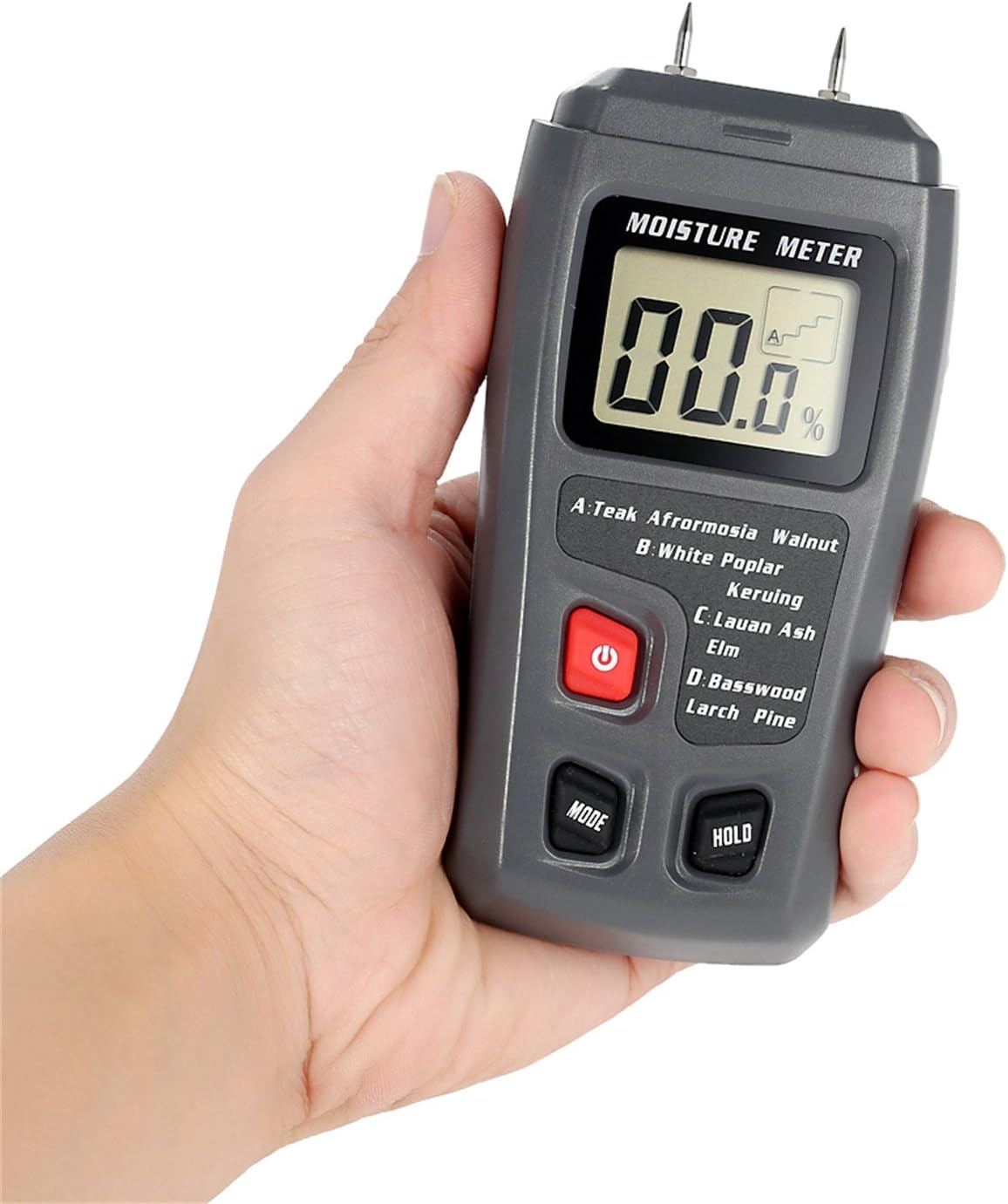

شکل 2: The Bside EMT01 Digital Wood Moisture Meter held in a hand, illustrating its ergonomic design and portability.
4.1. اجزاء
- Measurement Pins: Two sharp pins for penetrating wood surfaces to measure moisture.
- محافظتي خولۍ: Covers the measurement pins when the device is not in use.
- د LCD نندارې: Shows moisture content percentage and selected wood group.
- د چالانېدو تڼۍ (🏻): وسیله چالان او بندوي.
- د موډ تڼۍ: Selects the appropriate wood calibration scale (A, B, C, D).
- تڼۍ ونیسئ: په ښودنه کې اوسنی اندازه کول کنګل کوي.
5. مشخصات
| مواد | ABS |
| ښودل | د LCD نندارې |
| د اندازه کولو حد (لرګی) | 0-99.9٪ |
| قرارداد | 0.1% |
| دقت | 0.5% |
| د پلټنې اوږدوالی | 10mm |
| د بریښنا رسول | 1 x 9V Battery (not included) |
| د توکي ابعاد (L x W x H) | 14 x 6.5 x 3 سانتي متره (5.51 x 2.56 x 1.18 انچه) |
| د توکي وزن | 104 ګرامه (3.68 اوز) |
6. ترتیب کول
6.1. د بیټرۍ نصب کول
- د وسیلې په شا کې د بیټرۍ د برخې پوښ ومومئ.
- د خونې د خلاصولو لپاره پوښ سلائډ یا خلاص کړئ.
- Insert one 9V battery, ensuring the polarity (+/-) matches the diagram inside the compartment.
- د بیټرۍ کمپارټ پوښ په خوندي ډول وتړئ.
یادونه: A 9V battery is not included in the package and must be purchased separately.
7. عملیاتي لارښوونې
7.1. بریښنا فعال/بند
- To turn on the device, press the red Power button (🏻). The LCD display will illuminate.
- To turn off the device, press and hold the Power button (🏻) د څو ثانیو لپاره.
- The device features an auto-power-off function to conserve battery life if inactive for a period.
7.2. Selecting Wood Group
Before taking a measurement, it is crucial to select the correct wood calibration scale (group) for the material you are testing. This ensures accurate readings. Press the موډ button repeatedly to cycle through the four wood groups: A, B, C, and D. The selected group will be indicated on the LCD display.
د لرګیو ډولونو ګروپ جدول:
| ګروپ | د لرګیو ډولونه |
|---|---|
| A | Teak, Walnut, Afrormosia, Rubber Tree, Imbuia, Kokrodua, Niove Bidinkala, Cork |
| B | Keruing, White Poplar, Beech, Cedar, Tola |
| C | Lauan, Ash, Elm, Fir, Maple, Padauk, Oak, Cherry |
| D | Basswood, Larch, Pine, Birch |
7.3. اندازه کول
- د اندازه کولو پنونو څخه محافظتي خولۍ لرې کړئ.
- د بریښنا تڼۍ په فشارولو سره وسیله چالان کړئ.
- Select the appropriate wood group using the MODE button.
- Carefully insert the two measurement pins into the wood material. Ensure both pins penetrate the surface to obtain an accurate reading.
- د رطوبت سلنهtage به په LCD کې ښکاره شي.
- د اوسني لوستلو د ساتلو لپاره په ښودنه کې، فشار ورکړئ هوډ button. Press it again to release the hold function.
- After measurement, remove the pins from the wood and replace the protective cap.
شکل 3: The moisture meter in use, with its pins inserted into a piece of wood to measure moisture content.
مهم: The pins will leave small marks on the wood surface. Consider this when choosing the measurement location.
8. ساتنه
- پاکول: وسیله په نرم، وچ ټوکر سره پاک کړئ. د کثافاتو پاکوونکي یا محلولونه مه کاروئ.
- ذخیره کول: Store the meter in a cool, dry place, away from direct sunlight and extreme temperatures. Always replace the protective cap over the pins when storing.
- د بیټرۍ بدلول: When the battery indicator appears on the display, replace the 9V battery as described in the "Battery Installation" section.
9. ستونزه حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| وسیله فعاله نه ده. | بیټرۍ مړه شوې یا په غلط ډول نصب شوې ده. | د 9V بیټرۍ بدله کړئ یا یې قطبي حالت وګورئ. |
| No reading or "0.0%" displayed. | Pins not fully inserted into the wood, or wood is extremely dry. | Ensure pins penetrate the wood surface. If wood is very dry, "0.0%" may be an accurate reading. |
| ناسم لوستل. | Incorrect wood group selected; pins are dirty or damaged. | Verify the correct wood group is selected. Clean pins with a dry cloth. If pins are damaged, contact support. |
10. تضمین او ملاتړ
This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service inquiries, please contact the seller or manufacturer directly.
