پیژندنه
This manual provides essential information for the safe and effective use of your Medisana BS 460 Digital Body Analysis Scale. Please read these instructions thoroughly before first use and keep them for future reference. The Medisana BS 460 is designed to measure body weight, body fat, body water, muscle mass, and bone mass, calculate Body Mass Index (BMI), and provide an integrated calorie requirement analysis. It features a removable LCD display for enhanced convenience.
د خوندیتوب معلومات
- Always use the scale on a firm, flat surface to ensure accurate measurements. Uneven or soft surfaces can affect precision.
- Step onto the scale barefoot and ensure your feet make full contact with all four electrodes for body analysis functions to work correctly.
- The scale is not intended for medical diagnosis or treatment. Consult a healthcare professional for any health concerns.
- Keep the scale dry. Do not immerse it in water or expose it to excessive moisture.
- Do not use abrasive cleaning agents or harsh chemicals on the scale.
- بیټرۍ د ماشومانو له لاسرسي لرې وساتئ.
د بسته محتويات
ډاډ ترلاسه کړئ چې ټولې برخې په بسته کې شتون لري:
- Medisana BS 460 Digital Body Analysis Scale
- Removable LCD Display Unit
- 4 x AAA بیټرۍ
- د لارښود لارښود (دا سند)
محصول پای ته ورسیدview
The Medisana BS 460 scale is equipped with high-precision DMS sensors for accurate measurements. Its distinctive feature is the removable LCD display, which can be held in hand, placed on a stand, or mounted on a wall for convenient viewing. The display features modern LED backlighting.
چمتو کول
1. د بیټرۍ نصب کول
- د بیټرۍ کڅوړه د پیمانې په لاندې برخه کې ومومئ.
- د بیټرۍ کمپارټ پوښ خلاص کړئ.
- دوه AAA بیټرۍ دننه کړئ، د سم قطبیت ډاډ ترلاسه کړئ (+/-).
- د بیټرۍ کمپارټ پوښ په خوندي ډول وتړئ.
2. Initial Configuration (Unit and User Profiles)
Upon first use or after battery replacement, the scale may require initial setup.
- د واحد انتخاب: The scale allows weighing in kilograms (kg), pounds (lb), and stones (st). Use the unit selection button (usually on the back or underside of the scale, or via the display unit) to choose your preferred unit.
- د کارونکي پروfile چمتو کول: The scale can automatically recognize up to 8 users. To set up a user profile, follow the instructions in the display unit to enter personal data such as age, height, and gender. This information is crucial for accurate body analysis calculations.
عملیاتي لارښوونې
۱. اساسي وزن کول
- پیمانه په سخت، فلیټ سطح کې ځای په ځای کړئ.
- Gently tap the scale with your foot to activate it, or simply step on it if it has an instant-on feature.
- Wait for the display to show '0.0' or 'CAL'.
- په لوڅو پښو په پیمانه قدم ووهئ، ولاړ او په مرکز کې اوسئ.
- ستاسو وزن به وښودل شي.
2. Body Analysis Measurement
For body analysis (body fat, water, muscle, bone mass, BMI, calorie requirement), ensure your user profile is set up and you step on the scale barefoot.
- Activate the scale as described for basic weighing.
- Step onto the scale barefoot, ensuring both feet are firmly on the four electrode pads.
- Stand still until the measurement is complete. The display will cycle through your various body composition metrics.
- The scale will automatically identify the user based on previous measurements and stored data.
3. Removable Display Unit

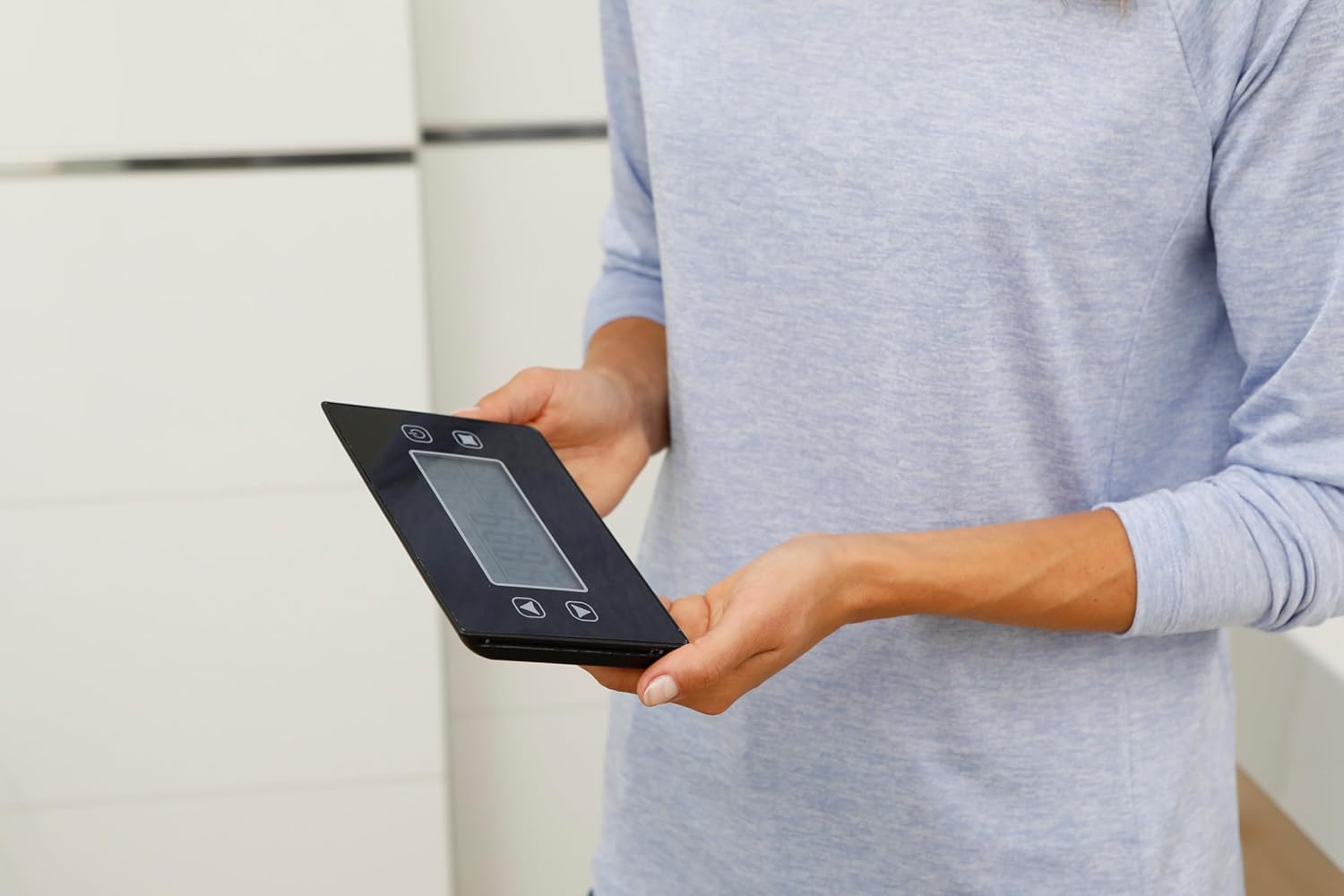

The display unit can be detached from the main scale body. This allows for flexible placement and viewing.
- تفتیش: Gently pull the display unit upwards from its magnetic base on the scale.
- د ځای پرځای کولو اختیارونه: The display can be held in hand, placed on a nearby surface, or mounted on a wall using appropriate fixtures (not included).
- بیا نښلول: Align the display unit with the magnetic base on the scale and gently push it down until it clicks into place.
ساتنه او پالنه
- Clean the scale regularly with a slightly damp ټوکر. د کثافاتو پاکوونکي مه کاروئ او یا هم پیمانه په اوبو کې مه ډوبوئ.
- که چیرې پیمانه د اوږدې مودې لپاره ونه کارول شي، نو د لیکیدو مخنیوي لپاره بیټرۍ لرې کړئ.
- پیمانه په یخ او وچ ځای کې وساتئ، د مستقیم لمر وړانګو او سختې تودوخې څخه لرې.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| Inaccurate readings / inconsistent results | Scale not on a flat, hard surface; first use calibration; feet not properly placed on electrodes. | Ensure scale is on a stable, hard floor. Allow for initial self-calibration (first few readings may vary). Step barefoot, covering all four electrodes. |
| Display not working / blank | بیټرۍ ټیټې دي یا په غلط ډول داخل شوي دي. | Replace all 4 AAA batteries. Check battery polarity. |
| Body analysis not functioning | Not stepping barefoot; user profile not set up; feet not making full contact with electrodes. | Always step on barefoot. Ensure a user profile is configured. Make sure both feet fully cover the electrode pads. |
| پیمانه نه فعالیږي | بیټرۍ مړه یا ورکې دي. | Install new batteries or check existing ones. |
مشخصات
- ماډل: Medisana BS 460 (Model Number: 40482)
- د اندازه کولو دندې: Weight, Body Fat, Body Water, Muscle Mass, Bone Mass, BMI, Calorie Requirement
- د وزن حد: ۱۸۰ کیلوګرامه (۳۹۶ پونډه / ۲۸ سټن)
- د اندازه کولو دقیقیت: 100 ګرامه
- د ښودلو ډول: LED
- د بریښنا سرچینه: 4 x AAA بیټرۍ (شامل دي)
- د محصول ابعاد (L x W x H): 4.1 x 35.6 x 34.7 سانتي متره
- د محصول وزن: 2.5 Grams (Note: This seems to be an error in the source data, typically scales weigh more than 2.5 grams)
- مواد: اکریلونیتریل بوټایډین سټرینه
- د کارونکي پروfiles: Automatic recognition for up to 8 users
تضمین او ملاتړ
Medisana products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Medisana website. For technical support or further assistance, please contact Medisana customer service through their official channels.
تاسو کولی شئ په دې اړه نور معلومات او ملاتړ ومومئ Medisana official webسایټ.
