پیژندنه
The BSIDE Smart Digital Multimeter ADMS6 is designed for ease of use, especially for beginners, by automatically identifying tested parameters and selecting the appropriate range. This eliminates the need for manual function knob switching, streamlining the measurement process. Its compact design and integrated probe holders enhance portability and safety.
Image: The BSIDE Smart Digital Multimeter ADMS6, showcasing its main unit and included test probes. The device features a clear digital display and a central rotary switch.
کلیدي ځانګړتیاوې
- Automatic Identification Design: Automatically identifies AC/DC voltage, AC/DC current, frequency (Hz), continuity, and resistance, eliminating manual range selection.
- Transparent "Hz" Button: This button illuminates green or red to indicate AC voltage strength, live wire detection, or continuity.
- Dual Side Probe Holder Design: Test probes can be securely fixed in integrated holders for convenient single-hand measurements or safely stored to prevent accidental contact with the tips.
Image: The multimeter demonstrating its dual-side probe holder design. One view shows probes extended and fixed for use, while another shows them retracted and hidden for safe storage.
- Recoverable Fuses Design: Features self-resetting fuses to protect the device and reduce repair time and costs.
- محافظتي قضیه: Durable case provides protection against shocks, friction, and bumps, and is easy to remove and replace.
- Backtop Stand: Integrated stand allows for convenient hands-free operation.
Image: The multimeter with its backtop stand partially extended, illustrating how it can be propped up for easier viewد کارونې پرمهال.
- کمپیکٹ او پورټ ایبل: Designed to be pocket-sized for easy carrying.
Image: The compact BSIDE multimeter shown fitting into a standard jeans pocket, highlighting its portability.
د بسته محتويات
د کڅوړې د پرانیستلو پر مهال، مهرباني وکړئ تصدیق کړئ چې لاندې لیست شوي ټول توکي شتون لري او په ښه حالت کې دي:
- 1 x BSIDE Smart Digital Multimeter ADMS6
- 1 x Set of Test Probes
- 1 x د کارونکي لارښود
Image: A visual representation of the package contents, showing the multimeter, its test probes, and the included user manual.
Note: Batteries (2 x AAA) are not included in the package due to aviation security regulations. Please purchase them separately.
چمتو کول
د بیټرۍ نصب کول
- د ملټي میټر په شا کې د بیټرۍ د برخې پوښ ومومئ.
- Use a screwdriver (not included) to open the battery compartment.
- Insert two 1.5V AAA batteries, ensuring correct polarity (+ and -) as indicated inside the compartment.
- د بیټرۍ کمپارټ پوښ بدل کړئ او د سکرو سره یې خوندي کړئ.
Connecting Test Probes
- Insert the red test lead into the "VΩHz" input jack.
- تور ټیسټ لیډ د "COM" (عام) ان پټ جیک کې دننه کړئ.
- For current measurements (mA), insert the red test lead into the "mA" input jack and the black test lead into the "COM" jack.
عملیاتي لارښوونې
The ADMS6 features an intelligent automatic identification system, simplifying most measurements. Turn the rotary switch to the desired general measurement mode (e.g., Multimeter, V-Alert, Live Check).
Automatic Measurement Mode (Multimeter)
When the rotary switch is set to "Multimeter", the device will automatically detect and measure:
- AC/DC حجمtage: Connect probes across the circuit or component.
- د AC/DC جریان: Connect probes in series with the circuit.
- مقاومت (Ω): Connect probes across the component.
- دوام: If resistance is less than 30Ω, the beeper will sound.
- فريکوينسي (Hz): The device will automatically detect frequency.
Image: The multimeter's display showing its smart identification feature, where it automatically detects the measurement type. The "Hz" button is illuminated, indicating its function.
V-Alert (Non-Contact Voltagای کشف)
Set the rotary switch to "V-Alert". Bring the top of the multimeter close to an AC voltage source. The device will beep and the "Hz" button will light up, indicating the presence of voltage. The intensity of the light (green/red) indicates voltagځواک.

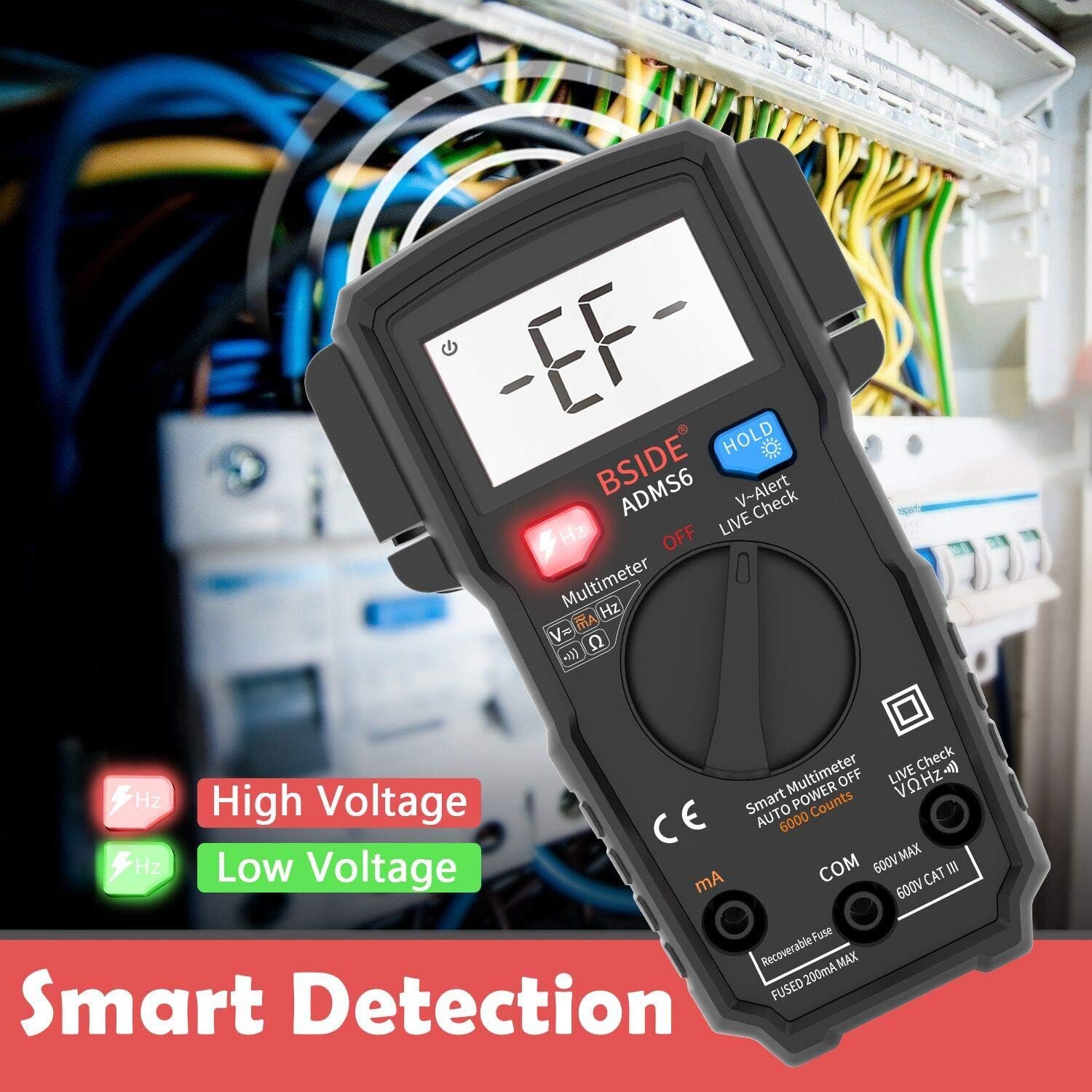

Image: The multimeter's display showing "-EF-" during V-Alert mode, with the "Hz" button illuminating red for high voltage and green for low voltage, indicating smart detection.
Live Wire Check
Set the rotary switch to "Live Check". Use the red probe to touch the wire. If it's a live wire, an alarm beep will sound, the LCD screen will display "LIVE", and the "Hz" button will light up.
د هولډ فنکشن
د "HOLD" تڼۍ کېکاږئ ترڅو په ښودنه کې اوسنی لوستل کنګل کړئ. بیا یې فشار ورکړئ ترڅو هولډ خوشې کړئ او ژوندۍ لوستل بیا پیل کړئ.
شاته څراغ
Press the "HOLD" button for a few seconds to turn the backlight on or off, improving visibility in low-light conditions.
مشخصات
| پیرامیټر | ارزښت |
|---|---|
| ښودل | 6000 شمېرې |
| DC اوسنی | 600uA/6000uA/60mA/200mA ±(1.2%+3) |
| AC اوسنی | 600uA/6000uA/60mA/200mA ±(1.5%+5) |
| DC Voltage | 60mV/600mV/6V/60V/600V ±(0.8%+3) |
| AC Voltage | 60mV/600mV/6V/60V/600V ±(1.2%+5) |
| مقاومت | 6Ω/60Ω/600Ω/6kΩ ±(1.2%+3) |
| فریکونسی | 10Hz/100Hz/1KHz ±(1.0%+5) |
| د دوام بیپر | که مقاومت < 30Ω وي نو غږونه |
| ځواک | 2 x 1.5V AAA بیټرۍ |
| ابعاد (L x W x H) | 139 x 83 x 36 mm (5.35 x 3.23 x 1.14 انچه) |
| وزن | 160 ګرامه (5.2 اونس) |
| د خوندیتوب درجه | 600V CAT III |
ساتنه
پاکول
د ملټي میټر پاکولو لپاره، کیس د اعلان سره پاک کړئamp cloth and a mild detergent. Do not use abrasives or solvents. Ensure the device is powered off and probes are disconnected before cleaning.
د بیټرۍ بدلول
When the battery indicator appears on the display, replace the batteries promptly to ensure accurate readings. Refer to the "Battery Installation" section for instructions.
د فیوز محافظت
The ADMS6 features recoverable fuses. In case of an overload, the fuse will trip to protect the circuit. Allow a short period for the fuse to reset. If the issue persists, ensure correct measurement procedures are followed.
Image: A close-up of the multimeter's internal circuit board, highlighting the "Smart Anti-burn" feature, which includes a recoverable fuse for circuit protection.
ذخیره کول
کله چې د اوږدې مودې لپاره نه کارول کیږي، نو د لیکیدو مخنیوي لپاره بیټرۍ لرې کړئ. ملټي میټر په یخ او وچ ځای کې وساتئ، د مستقیم لمر وړانګو او سختې تودوخې څخه لرې.
د ستونزو حل کول
- نه ښودنه/بریښنا فعاله ده:
- وګورئ چې بیټرۍ په سمه توګه نصب شوي او کافي چارج لري. که اړتیا وي نو بدل یې کړئ.
- Ensure the rotary switch is not in the "OFF" position.
- ناسم لوستل:
- Verify that the test probes are securely connected to the correct input jacks.
- Ensure the probes are making good contact with the circuit or component being tested.
- د بیټرۍ کچه وګورئ؛ ټیټ بیټرۍ کولی شي دقت اغیزمن کړي.
- "OL" (Overload) Displayed:
- The measured value exceeds the meter's maximum range for the selected function. Ensure you are within the specified limits.
- د دوام غږ نشته:
- Ensure the resistance is below 30Ω for the beeper to activate.
- Check for open circuits or poor connections.
تضمین او ملاتړ
BSIDE products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official BSIDE website. If you encounter any issues or require technical assistance, please contact BSIDE customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
د نورو مرستو لپاره، تاسو کولی شئ لیدنه وکړئ BSIDE Brand Store on Amazon.
