DEWALT ATOMIC 20V MAX* DCF809C1 Impact Driver Kit Instruction Manual

1. پیژندنه

This manual provides essential information for the safe operation, maintenance, and care of your DEWALT ATOMIC 20V MAX* DCF809C1 Impact Driver Kit. Please read and understand all instructions before using the tool.

The DEWALT ATOMIC 20V MAX* Compact Brushless Impact Driver is designed for driving screws and fasteners with high torque. Its compact size allows access to tight spaces, while the brushless motor ensures efficient performance.

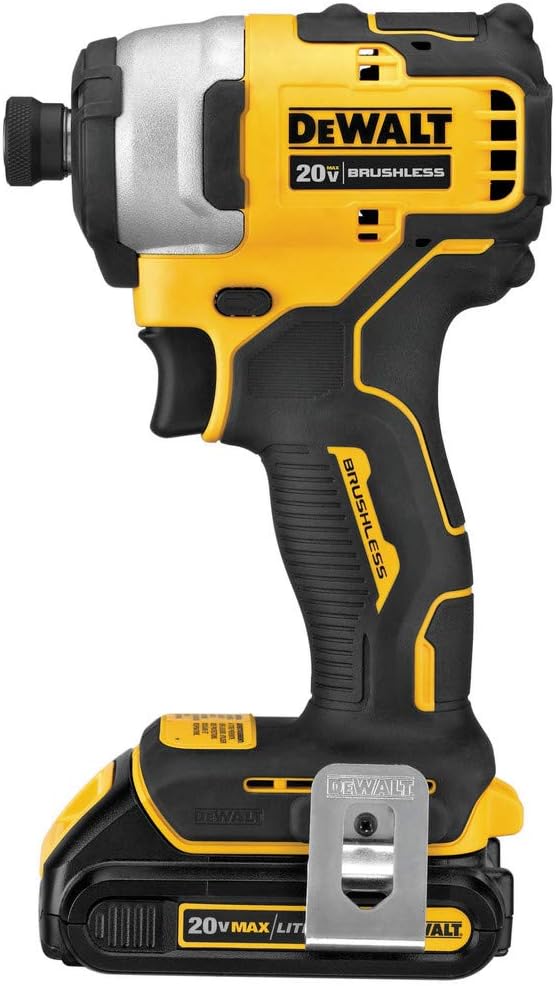

Image: The DEWALT ATOMIC 20V MAX* Impact Driver (DCF809C1) shown with a 20V MAX* Lithium Ion Battery attached.

2. د کټ مینځپانګه

Your DEWALT ATOMIC 20V MAX* DCF809C1 Impact Driver Kit typically includes the following components:

• DEWALT ATOMIC 20V MAX* Impact Driver (DCF809C1)
• One 20V MAX* Lithium Ion Battery
• One Battery Charger (DCB107)
• د بار وړلو کڅوړه
• Removable Belt Hook and Screw

Note: Kit contents may vary. Refer to your product packaging for exact details.

3. ترتیب کول

۵.۱ د بیټرۍ نصب او چارج کول

To install the battery, align the battery with the tool's base and slide it in until it clicks securely into place. To remove, press the battery release button and slide the battery out.

Before first use, fully charge the battery. Insert the battery into the charger until it clicks. The charger's indicator light will show the charging status. The DCB107 charger is included, which charges 20V MAX* batteries. Other 20V MAX* batteries are compatible.

Video: A user demonstrates installing and removing the battery from the DEWALT Impact Driver and placing the battery in the charger. The charger model DCB115 is mentioned as a faster alternative to the included DCB107.

3.2 Belt Hook Attachment

The kit includes a removable belt hook and a screw. Attach the belt hook to either side of the tool's base using the provided screw, depending on your preference for left or right-handed use.

د ۴.۲ بټ نصب او لرې کول

To install a 1/4-inch hex shank accessory, pull the collar forward and insert the accessory fully into the chuck. Release the collar to lock the accessory in place. To remove, pull the collar forward and pull the accessory out.

Video: A close-up demonstration of inserting and removing a drill bit from the DEWALT 1/4-inch impact driver's chuck.

4. عملیاتي لارښوونې

۶.۱ د متغیر سرعت محرک

The impact driver features a variable speed trigger, allowing you to control the speed and torque for precise applications. Press the trigger gently for lower speeds and apply more pressure for higher speeds and increased torque.

4.2 LED Work Lights

Three bright LED lights are integrated into the tool to illuminate your workspace, providing optimum visibility in dimly lit areas. The lights activate when the trigger is pressed.

Image: The DEWALT ATOMIC 20V MAX* Impact Driver being used in a tight space, demonstrating the effectiveness of its integrated LED work lights.

4.3 Impact Driver Functionality

An impact driver delivers high rotational force (torque) and rapid, short bursts of impact to drive fasteners. This mechanism helps prevent cam-out and reduces strain on the user compared to a standard drill, especially when driving long or large fasteners into dense materials.

ویډیو: تفصيلي بیاکتنهview of the DEWALT ATOMIC 20V MAX* Impact Driver Kit, explaining its features, components, and the difference between an impact driver and a drill.

5. Performance and Usage Examples

The DCF809C1 Impact Driver delivers 1700 in-lbs of torque, making it suitable for a wide range of applications. Its compact design (only 5.1 inches front to back) allows it to fit into tight spaces where larger tools cannot.

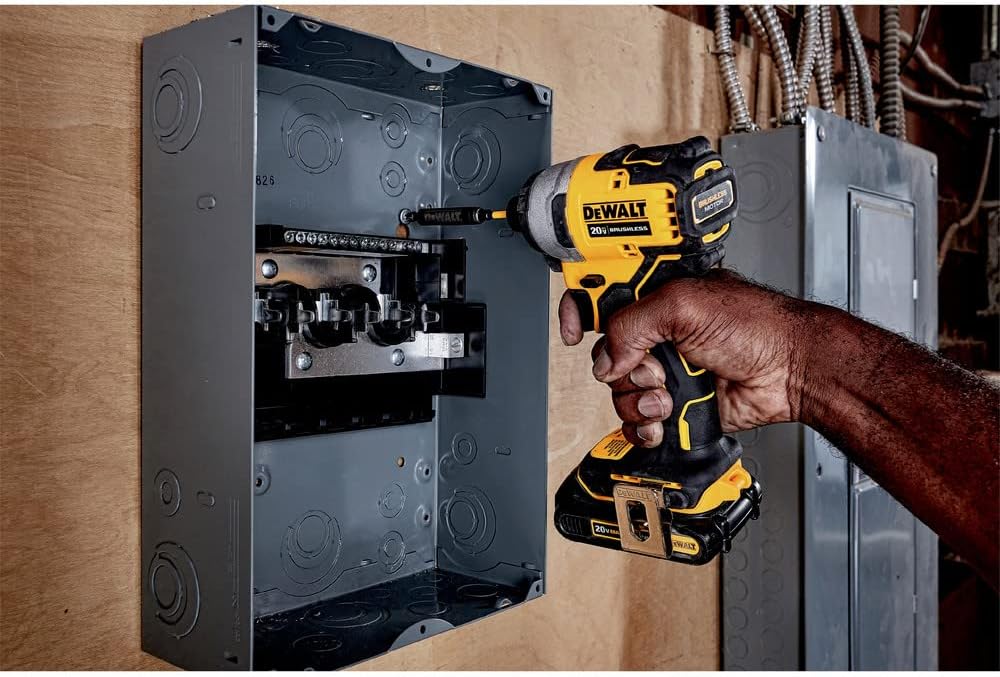

Image: The DEWALT ATOMIC 20V MAX* Impact Driver being used to drive a screw into an electrical panel, showcasing its power and versatility.

Image: The DEWALT ATOMIC 20V MAX* Impact Driver driving a lag bolt into a wooden post, demonstrating its high torque capability.

ویډیو: یو کاروونکی بیاviews the DEWALT 20V Impact Driver, highlighting its quality, performance, lightweight design, and suitability for home use.

Video: A user provides insights on what to consider before purchasing this DEWALT impact driver, discussing its features and benefits.

Video: A user describes the DEWALT 20V Cordless Compact Impact Driver as "awesome," highlighting its compact size and power.

6. ساتنه

• پاکول: Keep the tool clean and free of debris. Use a clean cloth to wipe down the exterior. Do not use solvents or harsh chemicals.
• د بیټرۍ پاملرنه: بیټرۍ په یخ او وچ ځای کې د مستقیم لمر وړانګو څخه لرې وساتئ. د اوږدې مودې لپاره بیټرۍ په داسې حالت کې مه ساتئ چې خارج شي.
• معاینه: Regularly inspect the tool for any signs of damage, loose parts, or wear. Ensure the chuck operates smoothly.
• بې برخی موټر: The brushless motor design requires less maintenance compared to brushed motors, as there are no carbon brushes to replace.

7. ستونزه حل کول

• وسیله کار نه کوي: Ensure the battery is fully charged and properly inserted. Check for any obstructions in the chuck or trigger mechanism.
• کم شوی فعالیت: A partially discharged battery can lead to reduced power. Ensure the battery is fully charged. Using incorrect or worn bits can also affect performance.
• ډیر ګرمول: If the tool feels excessively hot, allow it to cool down before further use. Avoid continuous heavy-duty operation without breaks.

For more detailed troubleshooting or repairs, contact DEWALT customer service or an authorized service center.

8. مشخصات

9. تضمین او ملاتړ

The DEWALT ATOMIC 20V MAX* Impact Driver Kit (DCF809C1) is backed by a DEWALT 3-year limited warranty. For warranty claims, service, or technical support, please refer to the official DEWALT webسایټ یا د دوی د پیرودونکي خدماتو څانګې سره اړیکه ونیسئ.

Always use genuine DEWALT replacement parts and accessories to maintain product performance and warranty validity.
