1. پیژندنه
Thank you for choosing the Kungfuking Surge Protector Power Strip with USB Ports. This device is designed to provide convenient power access and surge protection for your electronic devices. It features two AC outlets and two USB ports, along with a 6.56 ft extension cord and a flat plug for versatile placement. This manual provides essential information for safe installation, operation, and maintenance of your power strip.
Figure 1: Kungfuking Surge Protector Power Strip (Model: Kungfuking 2AC+2USB)
2. د خوندیتوب مهمې لارښوونې
مهرباني وکړئ د دې محصول کارولو دمخه د خوندیتوب ټولې لارښوونې ولولئ او پوه شئ. د دې لارښوونو په تعقیب کې پاتې راتلل ممکن د بریښنا شاک، اور، یا جدي ټپي کیدو لامل شي.
- مه کوئ exceed the electrical ratings of 120V, 12A, 60Hz, and 2.1A for USB ports.
- مه کوئ use in wet environments or near water.
- مه کوئ disassemble or modify the device.
- مه کوئ use with aquariums or other water-related products.
- مه کوئ د بل بې ځایه کیدونکي بریښنا نل ته ننوځئ.
- مه کوئ use if the cord or plug is damaged.
- د ماشومانو د لاسرسي څخه لرې وساتئ.
- ډاډ ترلاسه کړئ چې پلګ په بشپړ ډول د دیوال په ځای کې داخل شوی.
- دا محصول یوازې د داخلي کارونې لپاره دی.
3. د محصول ب Featuresې
The Kungfuking Surge Protector Power Strip is designed for convenience and safety, offering multiple power options in a compact form factor.
- 2 AC دکانونه: Provides standard power for electronic devices.
- دوه USB-A پورټونه: Delivers 5V/2.1A for charging smartphones, tablets, and other USB-powered devices.
- 6.56 FT Extension Cord: Offers flexibility in placement, reaching distant outlets.
- د فلیټ پلګ ډیزاین: Minimizes obstruction and allows furniture to be placed closer to the wall.
- د زیاتوالي ساتنه: وصل شوي وسایل د بریښنا سرجونو او سپکونو څخه ساتي.
- دوامدار ساختمان: Built with fireproof ABS+PC materials for enhanced safety.
- د نصب وړ ډیزاین: Can be easily mounted on or under desks, walls, or other surfaces.
شکل ۹: مهمې ځانګړتیاوې او مشخصات
Figure 3: All-in-One Charging Station in use
4. ترتیب او نصب کول
The power strip can be installed in various locations to suit your needs. Mounting screws are included for secure installation.
4.1 د نصبولو اختیارونه
The power strip offers flexible mounting options:
- Under Desk/Table: Mount horizontally or vertically under a desk or table to keep surfaces clear.
- وال ماونټ: Secure to a wall for convenient access, such as near a TV or bedside.
- Side of Cabinets/Headboards: Install vertically on the side of furniture for discreet power access.
Figure 4: Installation Options and Dimensions
4.2 د نصبولو مرحلې
- یو ځای غوره کړئ: Select a flat, stable surface for mounting, ensuring it is within reach of a wall outlet and your devices.
- د سکرو سوراخ په نښه کړئ: Place the power strip in the desired position and mark the locations for the mounting screws using a pencil.
- Drill Pilot Holes (Optional): For wood surfaces, you may pre-drill small pilot holes to prevent wood splitting.
- Secure the Power Strip: Use the provided screws to firmly attach the power strip to the surface. Ensure it is securely fastened before use.
- د بریښنا سره نښلول: Plug the power strip's flat plug into a standard 120V wall outlet. The flat plug design allows for placement behind furniture.
4.3 پخوانیampد نصبولو

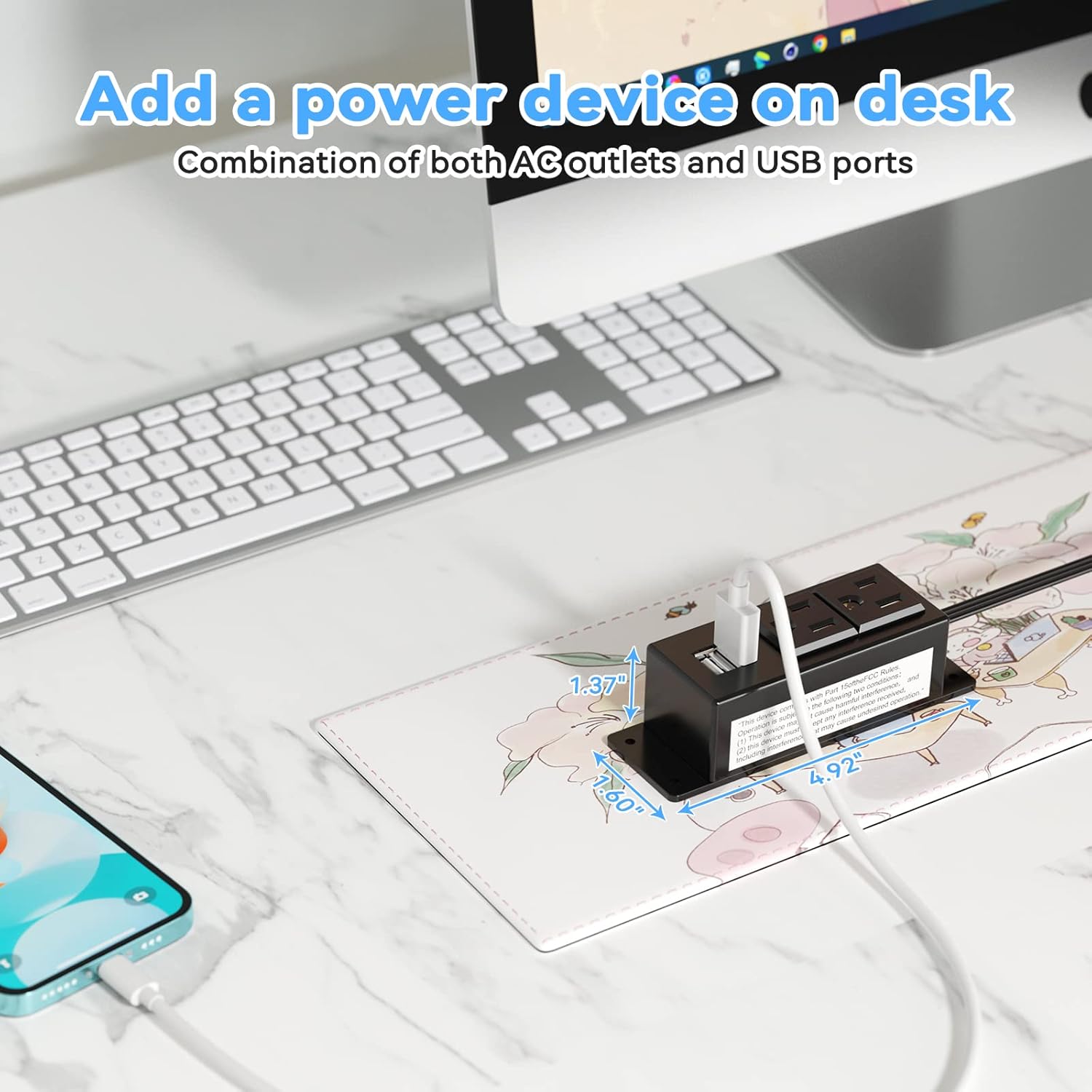

Figure 5: Desk Surface Installation
Figure 6: Under-Desk Installation
Figure 7: Wall-Mounted for TV
Figure 8: Nightstand Installation
Figure 9: Kitchen Cabinet Installation
Figure 10: Flat Plug for Space-Saving Placement
5. عملیاتي لارښوونې
Using your Kungfuking Surge Protector Power Strip is straightforward:
- د وال آوټ لیټ سره نښلول: Ensure the power strip's flat plug is securely connected to a grounded 120V AC wall outlet.
- Connect AC Devices: Insert the power cords of your electronic devices into the two AC outlets.
- د USB وسیلو سره وصل کړئ: Plug your USB charging cables into the two USB-A ports to charge compatible devices.
- پاور آن: The power strip is designed for continuous operation once plugged in. There is no on/off switch.
- د کارونې څارنه: Avoid overloading the power strip by ensuring the total power consumption of connected devices does not exceed the rated capacity (12A, 120V).
6. ستونزه حل کول
If you encounter issues with your power strip, refer to the following common problems and solutions:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| No power from AC outlets or USB ports. |
|
|
| د USB وسایل چارج نه کوي. |
|
|
| د برېښنا پټه ګرمه احساسوي. |
|
|
7. مشخصات
| فیچر | تفصیل |
|---|---|
| ماډل | Kungfuking 2AC+2USB |
| د AC سایټونه | 2 |
| USB بندرونه | ۱ (USB-A) |
| ننوتۍ جلدtage | 120V AC |
| د AC اوسنی درجه بندي | 12A |
| فریکونسی | 60Hz |
| د USB محصول | 5V / 2.1A (Total) |
| د تار اوږدوالی | ۱۰ فوټه (۳ متره) |
| د پلګ ډول | فلیټ پلګ |
| مواد | اور وژونکي ABS + PC |
| ابعاد (تقریبا) | 4.92 x 3.74 x 1.37 انچه (L x W x H) |
| وزن (نږدې) | 10.5 اونس |
| ځانګړي ځانګړتیاوې | Surge Protection, Mountable Design |
8. ساتنه
Proper maintenance ensures the longevity and safe operation of your power strip:
- پاکول: Disconnect the power strip from the wall outlet before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or sprays.
- معاینه: Periodically inspect the power cord, plug, and housing for any signs of damage, such as cuts, fraying, or cracks. If damage is found, discontinue use immediately.
- ذخیره کول: کله چې د اوږدې مودې لپاره نه کارول کیږي، د بریښنا پټه په یخ او وچ ځای کې د مستقیم لمر وړانګو او رطوبت څخه لرې وساتئ.
9. تضمین او ملاتړ
Kungfuking products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your product, please refer to the contact information provided at the point of purchase or visit the official Kungfuking webسایټ
مهرباني وکړئ د تضمین ادعاګانو لپاره د پیرود ثبوت وساتئ.
