Himoto EXB-16 4WD 1/6 Off-Road Buggy Chassis Instruction Manual

پیژندنه

This manual provides essential instructions for the assembly, setup, operation, and maintenance of your Himoto EXB-16 4WD 1/6 Off-Road Buggy Chassis. This product is a mechanical kit and requires the separate purchase and installation of electronic components (motor, ESC, servo, receiver, battery) to become a functional remote-controlled vehicle. Please read this manual thoroughly before proceeding with any steps.

د خوندیتوب مهم معلومات:

• Always operate the vehicle in a safe and open area, away from people, pets, and obstacles.
• ډاډ ترلاسه کړئ چې ټولې برخې د عملیاتو دمخه په خوندي ډول تړل شوي دي.
• لاسونه او لوڅې جامې له خوځنده برخو لرې وساتئ.
• This product is not a toy and is intended for users with experience in RC vehicle assembly and operation.

د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې لیست شوي ټول اجزا ستاسو په کڅوړه کې شتون لري:

• Himoto EXB-16 4WD 1/6 Off-Road Buggy Chassis (unassembled or partially assembled)
• Wheels and Tires (4x)
• Shock Absorbers (4x)
• Drive Shafts and Differentials
• Steering Linkages
• Hardware (screws, nuts, washers, pins)
• Pinion Gear and Motor Mount (if included)
• د لارښود لارښود (دا سند)

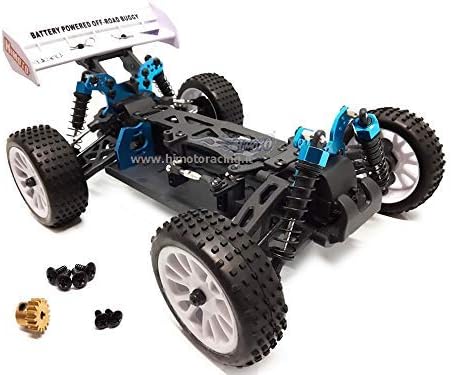

انځور 1: اوورview of the Himoto EXB-16 4WD 1/6 Off-Road Buggy Chassis. This image displays the main chassis, suspension, wheels, and body mounts.

تنظیم او مجلس

This section outlines the general steps for assembling the Himoto EXB-16 chassis and installing necessary electronic components. Refer to detailed diagrams for specific part identification.

1. د چیسس مجلس: Securely attach the front and rear suspension arms, shock towers, and bulkheads to the main chassis plate using the provided screws. Ensure all pivot points move freely without excessive play.
2. Differential and Drive Train Installation: Install the front and rear differentials into their respective bulkheads. Connect the center drive shaft between the front and rear gearboxes. Ensure smooth rotation of all gears.
3. Shock Absorber Installation: Fill the shock absorbers with appropriate shock oil (not included) and install them onto the shock towers and suspension arms. Adjust spring preload as desired.
4. د چلولو سیسټم: Assemble the steering linkages and connect them to the front knuckles. Install the steering servo (not included) onto the chassis and connect it to the steering bellcrank.
5. Motor and ESC Installation: Mount your chosen brushless or brushed motor (not included) to the motor mount. Install the pinion gear (provided or purchased separately) onto the motor shaft and adjust the gear mesh with the spur gear. Secure the Electronic Speed Controller (ESC, not included) to the chassis.
6. Receiver and Battery Tray: Install the RC receiver (not included) in a waterproof receiver box if available. Secure the battery tray and strap for your chosen battery pack (not included).
7. Wheel and Tire Mounting: Attach the wheels and tires to the wheel hexes. Ensure wheel nuts are tightened securely but not overtightened.
8. Body Mounting: Secure the body posts and attach the body shell (not included) using body clips.

انځور ۵.۱: اړخ view of the Himoto EXB-16 chassis, highlighting the suspension and drive train components.

عملیاتي لارښوونې

Once fully assembled with electronics, follow these general guidelines for operating your Himoto EXB-16 buggy.

• د چلولو دمخه چک: Before each use, inspect all screws, nuts, and linkages for tightness. Check tire condition and ensure the battery is fully charged.
• ابتدايي ځواک: Turn on the transmitter first, then the vehicle's ESC. Reverse this order when powering down.
• د موټر چلولو چاپیریال: Operate the buggy in open, clear areas. Avoid water, deep mud, or extremely dusty conditions unless the electronics are specifically rated for such environments.
• کنټرول: Practice smooth throttle and steering inputs. Avoid sudden, aggressive maneuvers that can damage components.
• د بیټرۍ مدیریت: Do not over-discharge your battery. Stop operation when you notice a significant drop in performance.

انځور ۲: پورته څخه ښکته view of the Himoto EXB-16 chassis, showing the layout for electronic components and the central drive shaft.

ساتنه

Regular maintenance is crucial for the longevity and performance of your Himoto EXB-16 buggy.

1. Post-Run Cleaning: After each use, especially in dirty conditions, clean the chassis with a soft brush or compressed air. Remove any debris from moving parts.
2. معاینه: Regularly inspect for worn or damaged parts, including tires, suspension components, gears, and drive shafts. Replace damaged parts promptly.
3. غوړول: Apply appropriate grease or oil to moving metal-on-metal parts, such as universal joints and differential gears, as needed. Avoid over-lubrication.
4. شاک جذبونکي: Check shock oil levels and replace if necessary. Inspect O-rings for leaks.
5. بندونکي: Periodically check and tighten all screws and nuts. Use thread-locking compound on metal-to-metal screws where appropriate (e.g., motor mount screws).

انځور 4: شاته view of the Himoto EXB-16 chassis, showing the rear wing mount and suspension.

د ستونزو حل کول

This section addresses common issues you might encounter with the mechanical aspects of your Himoto EXB-16 buggy.

مشخصات

Key specifications for the Himoto EXB-16 4WD 1/6 Off-Road Buggy Chassis:

• ماډل: EXB-16
• پیمانه: ۹/۹۷
• د موټر چلولو سیسټم: 4WD (څلور ویل ډرایو)
• د چیسس مواد: المونیم، نایلان
• ډول: Off-Road Buggy Chassis (Mechanical Kit)
• Required for Operation (Not Included): Motor, ESC, Steering Servo, RC Receiver, Transmitter, Battery, Charger, Body Shell.

Image 5: Close-up of the pinion gear and various screws included with the Himoto EXB-16 chassis. These are essential for motor installation and general assembly.

تضمین او ملاتړ

For warranty information and technical support, please refer to the official Himoto website or contact your authorized Himoto dealer. Keep your proof of purchase for any warranty claims.

د اړیکو معلومات:

• جوړونکی: هیموتو
• Webسایټ: www.himotoracing.it
• سوداګر: Refer to your point of purchase.
