1. پیژندنه
Thank you for choosing the Rowenta Swift Power Cyclonic vacuum cleaner. This appliance is designed for efficient and quick daily cleaning, combining powerful suction with a compact and maneuverable design. Its advanced cyclonic technology ensures optimal filtration and a healthier environment. Please read this manual carefully before using your appliance and keep it for future reference.
Image 1.1: The Rowenta Swift Power Cyclonic vacuum cleaner, model RO2933EA.
2. د خوندیتوب لارښوونې
To prevent accidents and damage to your appliance, please observe the following safety precautions:
- تل د حجم ډاډ ترلاسه کړئtagهغه چې په وسیله ښودل شوی ستاسو د اصلي حجم سره مطابقت لريtage.
- Do not use the appliance if the power cord is damaged. Contact an authorized service center.
- Do not vacuum water, liquids, hot ashes, large sharp objects, or flammable substances.
- دا وسیله د ماشومانو او هغو اشخاصو څخه لرې وساتئ چې فزیکي، حسي یا ذهني وړتیاوې یې کمې وي پرته لدې چې نظارت یې وشي.
- د پاکولو یا ساتنې څخه دمخه وسیله خلاص کړئ.
- هیڅکله وسیله په اوبو یا کوم بل مایع کې مه ډوبوئ.
3. محصول ختم شوview او اجزا
Familiarize yourself with the main parts of your Rowenta Swift Power Cyclonic vacuum cleaner:
- اصلي واحد: Contains the motor, dust bin, and filters.
- Dust Bin (1.2 L capacity): Transparent, easy-to-empty container for collected dust.
- نلی: د اصلي واحد او دوربین ټیوب ترمنځ انعطاف منونکی اړیکه.
- دوربین ټیوب: د آرامۍ پاکولو لپاره د تنظیم وړ اوږدوالی.
- Main Suction Head: High-efficiency two-position brush for various floor types.
- د پارکیټ برش: په ځانګړي ډول د نازکو سختو فرشونو لپاره ډیزاین شوی.
- د کریس وسیله: Convertible into a brush for tight spaces and upholstery.
- د بریښنا تڼۍ: آن/بند سویچ.
- د تار د راګرځولو تڼۍ: په اتوماتيک ډول د بریښنا تار بیرته راګرځوي.
Image 3.1: Compact dimensions of the vacuum cleaner for easy storage.
4. ترتیب کول
د خپل ویکیوم کلینر راټولولو لپاره دا مرحلې تعقیب کړئ:
- نلی ضمیمه کړئ: د نلی نښلونکی په اصلي واحد کې د سکشن انلیټ کې په کلکه دننه کړئ تر هغه چې دا په خپل ځای کې کلیک وکړي.
- د ټیلسکوپیک ټیوب سره وصل کړئ: Attach the handle end of the hose to the telescopic tube.
- د سکشن سر نصب کړئ: Connect your desired suction head (main brush or parquet brush) to the end of the telescopic tube.
- د بریښنا پیوستون: Unwind the power cord and plug it into a suitable electrical outlet.
5. عملیاتي لارښوونې
Using your Rowenta Swift Power Cyclonic vacuum cleaner is straightforward:
- پاور آن/بند: د ویکیوم کلینر د پیل یا بندولو لپاره په اصلي واحد کې موقعیت لرونکي د بریښنا تڼۍ فشار ورکړئ.
- د سکشن سمون: If the suction head adheres too strongly to the floor, open the small vent on the handle to adjust the pressure.
- د ضمیمو کارول: Select the appropriate suction head for your cleaning task. The main brush is versatile, while the parquet brush is ideal for delicate surfaces. The crevice tool is stored on the appliance for easy access.
- د چلولو وړتیا: The compact design and multi-directional wheels allow for easy movement around your home. The 7.6-meter operating radius provides extensive coverage without frequent outlet changes.
Image 5.1: The vacuum cleaner offers a wide cleaning range with its 7.6-meter cord.
Video 5.2: This video demonstrates the key features of the Rowenta Swift Power Cyclonic, including its powerful 900W motor, compact design, high filtration capabilities, and wide operating radius.
6. ساتنه او پاکول
منظم ساتنه غوره فعالیت تضمینوي او ستاسو د ویکیوم کلینر عمر اوږدوي.
۶.۱. د کثافاتو د صندوق خالي کول
The 1.2 L dust bin is designed for easy emptying without direct contact with dust.
- د دوړو بن خوشې کولو تڼۍ فشار کړئ.
- د اصلي واحد څخه د دوړو ډبه په احتیاط سره لرې کړئ.
- Position the dust bin over a waste bin and press the release button on the bottom to open the flap and empty the contents.
- Close the flap and reattach the dust bin to the vacuum cleaner until it clicks.
Image 6.1: Emptying the dust bin is a simple, hands-free process.
6.2. د فلټرونو پاکول
The vacuum cleaner features advanced cyclonic technology and a high-efficiency filtration system, capturing up to 99.98% of fine dust particles. Regular cleaning of the filters is crucial.

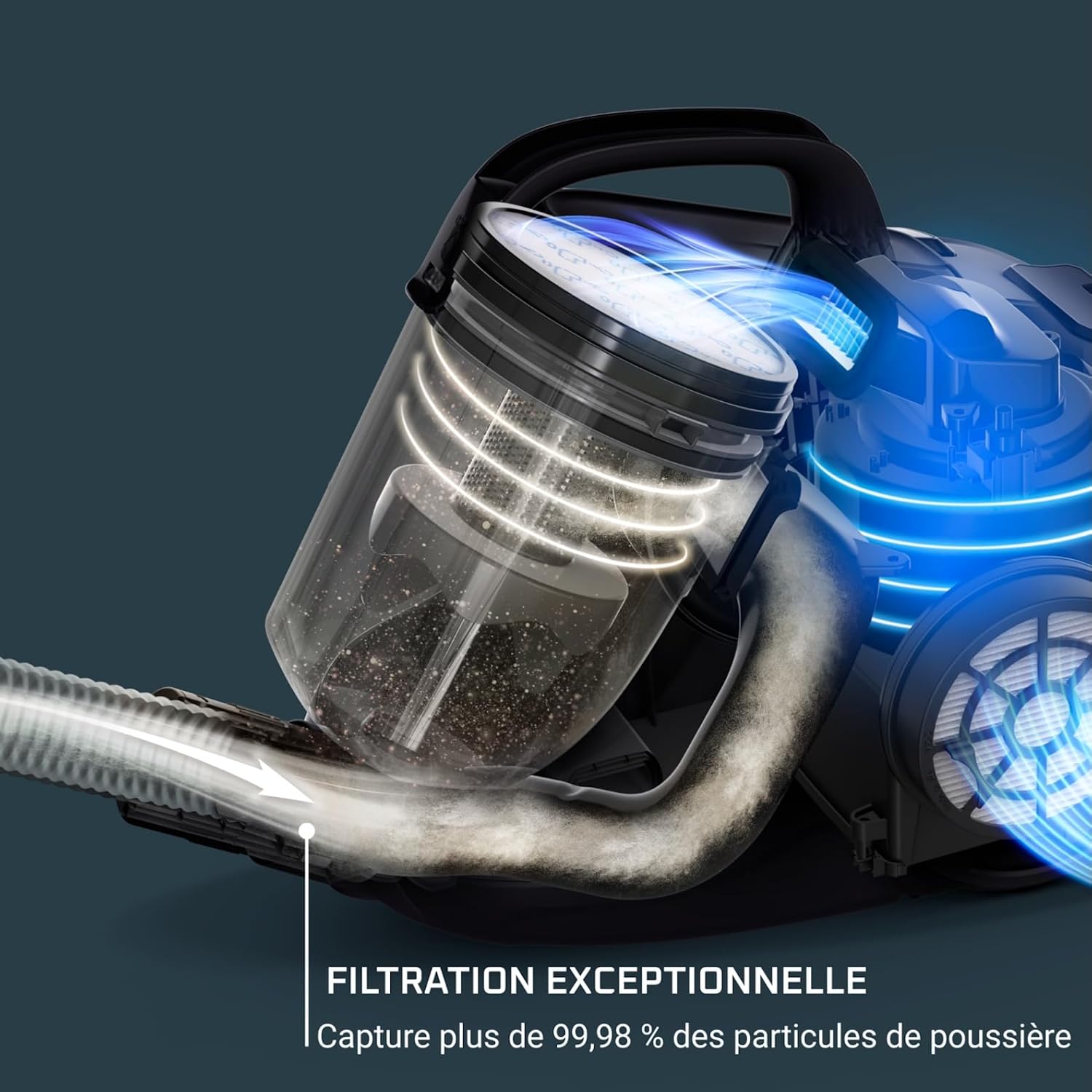

Image 6.2: The exceptional filtration system ensures a clean exhaust air.
- Cyclonic Filter: Located inside the dust bin. Rotate and pull to remove. Tap it gently to dislodge dust. If heavily soiled, rinse under cold water and ensure it is completely dry before reinserting.
- د فوم فلټر: Located behind the dust bin. Remove the filter cover, take out the foam filter, and rinse it under cold water. Squeeze out excess water and allow it to air dry completely for at least 24 hours before placing it back.
مهم: Never operate the vacuum cleaner without the filters properly installed and completely dry.
7. ستونزه حل کول
که تاسو د خپل ویکیوم کلینر سره ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| د کم سکشن ځواک | Dust bin full, filters clogged, hose/tube/brush blocked. | Empty dust bin. Clean filters. Check and clear any blockages. |
| ویکیوم کلینر نه پیل کیږي | Not plugged in, power outlet fault, power button not pressed. | Check power cord connection. Test outlet with another appliance. Press power button firmly. |
| غیر معمولي شور | Blockage in hose/tube/brush, motor issue. | د خنډونو لپاره وګورئ او لرې کړئ. که شور دوام ومومي، د پیرودونکو ملاتړ سره اړیکه ونیسئ. |
| د وسیلې څخه دوړې تیریږي | Dust bin not properly closed, filters not correctly installed or damaged. | Ensure dust bin is securely closed. Check filter installation and condition. |
که چیرې د دې حلونو هڅه کولو وروسته هم ستونزه دوام ومومي، مهرباني وکړئ د روینټا پیرودونکي ملاتړ سره اړیکه ونیسئ.
8. مشخصات
Key technical specifications for the Rowenta Swift Power Cyclonic RO2933EA:
- نښه: روینتا
- د موډل نوم: د چټک بریښنا سایکلونیک
- د ماډل شمیره: RO2933EA
- ځواک: 900 Watts (Effitech low consumption motor)
- ظرفیت: 1.2 Liters (dust bin)
- د فلټر ډول: Foam filter, Advanced Cyclonic Technology
- د شور کچه: ۴۵ ډیسیبلونه
- د کار وړانګې: 7.6 متره
- وزن: 3.6 کیلوګرامه
- ابعاد (L x W x H): 37 cm x 25.5 cm x 30.4 cm
- شاملې برخې: Vacuum cleaner, brushes, filter, user manual.
- د سطحې سپارښتنه: Hard floor, Carpet

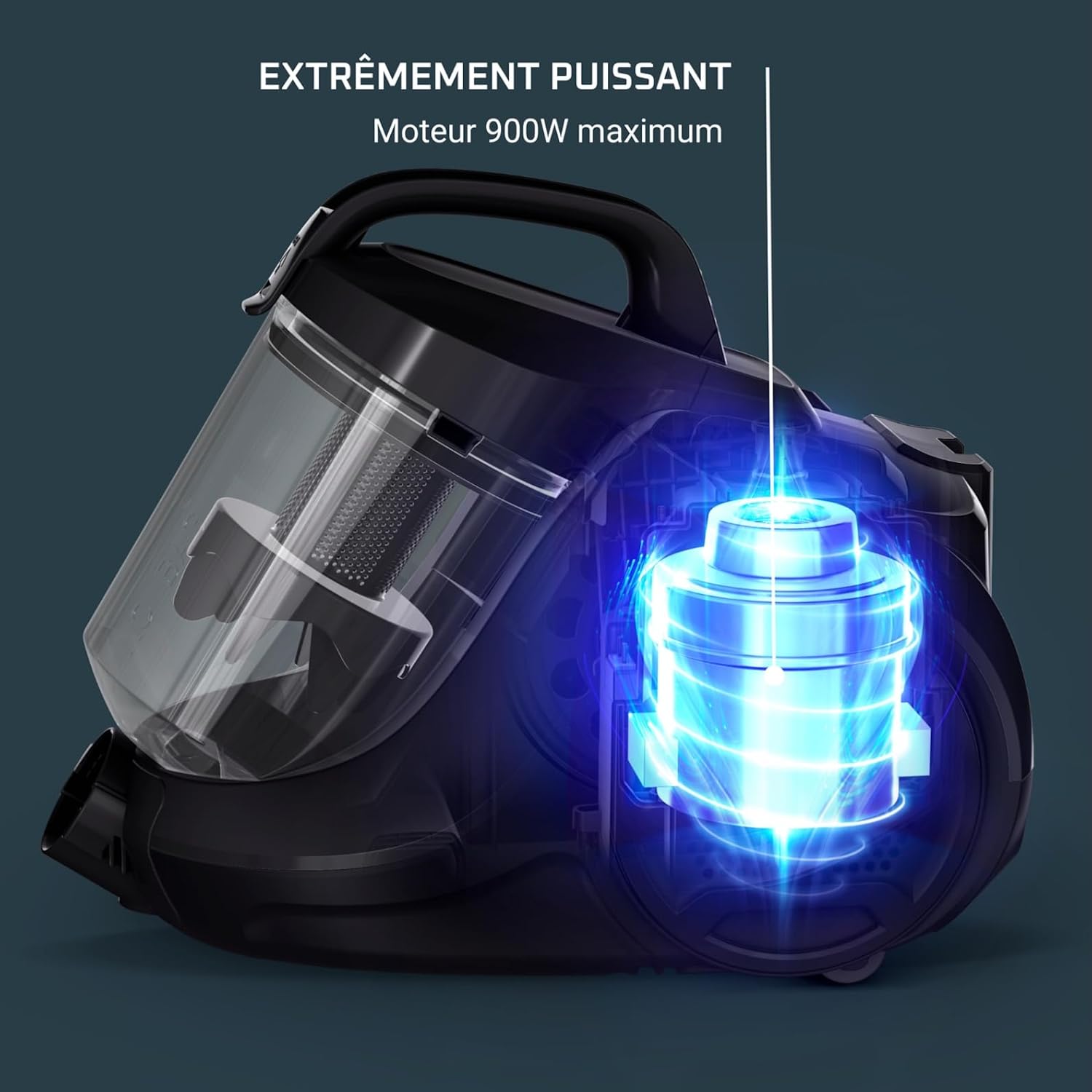

Image 8.1: The 900W motor provides powerful suction for effective cleaning.
9. تضمین او ملاتړ
Your Rowenta Swift Power Cyclonic RO2933EA vacuum cleaner comes with a manufacturer's warranty and commitment to repairability.
- د جوړونکي تضمین: 2 کاله.
- د ترمیم وړتیا: Rowenta is committed to making spare parts available for 15 years at a fair price, supported by a network of 6200 authorized repairers worldwide. This initiative aims to contribute to environmental protection and waste reduction.
Image 9.1: Rowenta's 15-year repairability commitment.
For warranty claims, technical assistance, or to find an authorized repair center, please refer to the contact information provided with your purchase or visit the official Rowenta webسایټ
