پیژندنه
Thank you for choosing the Trevi RC 85D8 DAB Digital Alarm Clock Radio. This compact device offers DAB/DAB+ and FM RDS radio reception, a large LED display, dual alarms, snooze, sleep functions, and a unique time projection feature. This manual provides detailed instructions to help you set up and operate your new alarm clock radio effectively.
د بسته محتويات
- Trevi RC 85D8 DAB Digital Alarm Clock Radio
- د بریښنا اډاپټر
- د کارونکي لارښود (دا لاسوند)
د خوندیتوب معلومات
Please read all safety instructions before using the device. Keep this manual for future reference.
- وسیله باران یا رطوبت ته مه ښکاره کوئ.
- Do not disassemble the device. Refer all servicing to qualified personnel.
- یوازې چمتو شوي بریښنا اډاپټر وکاروئ.
- ډاډ ترلاسه کړئ چې د وسیلې شاوخوا مناسب هوا ورکول.
- د مسؤلیت سره د بیټریو تصفیه کول.
محصول پای ته ورسیدview

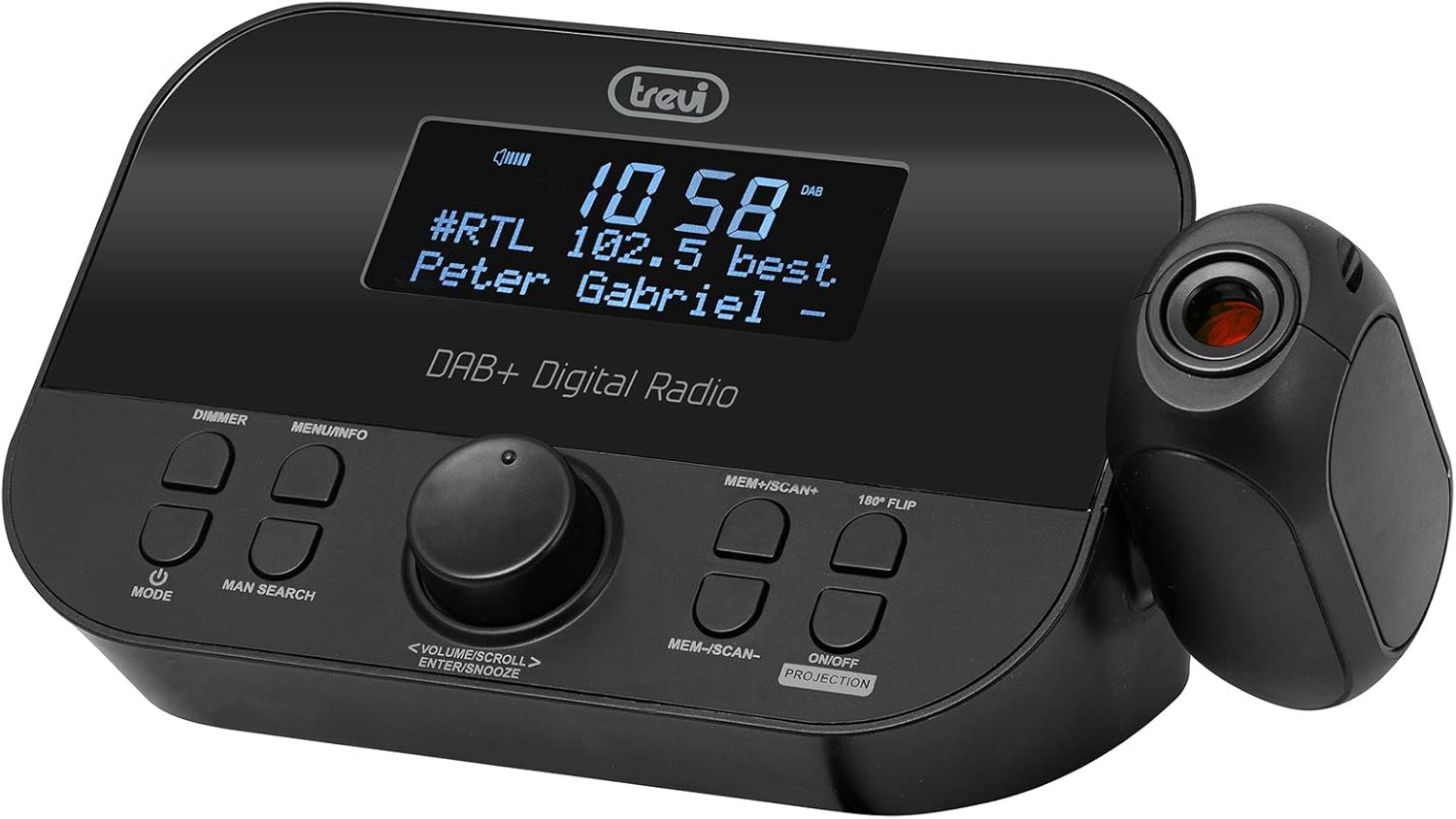

مخکی view of the Trevi RC 85D8 DAB Digital Alarm Clock Radio, showing the LED display, control buttons, and the time projector.
کنټرول او ښودنه:
- د LED ښودنه: Shows time, radio station, song title/artist, volume, and other information.
- د ډیمر تڼۍ: د ښودنې روښانتیا تنظیموي.
- MENU/INFO Button: Accesses menu options and displays radio information.
- د موډ تڼۍ: Switches between DAB, FM, and other modes.
- MAN SEARCH Button: Initiates manual station search.
- VOLUME/SCROLL/ENTER/SNOOZE Knob: Multi-function knob for volume control, menu navigation, selection, and snooze activation.
- MEM+/SCAN+ Button: Stores/recalls presets, scans forward.
- MEM-/SCAN- Button: Stores/recalls presets, scans backward.
- 180° FLIP Button: Rotates projected time display.
- ON/OFF PROJECTION Button: Turns the time projection on or off.
- د پروجیکشن لینز: Projects time onto a surface.
چمتو کول
1. د بریښنا پیوستون
- Connect the provided power adapter to the DC IN port on the back of the alarm clock radio.
- اډیپټر په معیاري دیوال ساکټ کې پلګ کړئ.
- The device will power on and the display will illuminate.
2. Battery Backup Installation (Optional)
The device has a battery compartment for anti-failure backup (2 AAA batteries, not included). This ensures time and alarm settings are retained during a power outage.
- د بیټرۍ د برخې پوښ د واحد په ښکته برخه کې خلاص کړئ.
- Insert 2 AAA batteries, observing the correct polarity (+/-).
- د بیټرۍ کمپارټ پوښ په خوندي ډول وتړئ.
3. د انتن تنظیمول
Extend the telescopic antenna fully for optimal DAB/DAB+ and FM radio reception. Adjust its position for the best signal.
اړخ view of the Trevi RC 85D8 DAB Digital Alarm Clock Radio, showing the extended telescopic antenna for improved reception.
۱. د لومړني وخت او نیټې ټاکل
Upon first power-on, the device will attempt to synchronize time and date automatically via DAB or FM RDS signal. If automatic synchronization fails or you wish to set it manually:
- فشار ورکړئ MENU / INFO مینو ته د ننوتلو لپاره تڼۍ.
- وګرځوئ VOLUME/SCROLL knob to navigate to "Time/Date" or "Settings".
- فشار ورکړئ ننوتل (push the knob) to select.
- Follow the on-screen prompts to set the time, date, and 12/24-hour format using the VOLUME/SCROLL knob او ننوتل تڼۍ
عملیاتي لارښوونې
1. بریښنا فعال/بند
- د فعالولو لپاره ، فشار ورکړئ موډ تڼۍ
- د بندولو لپاره، فشار ورکړئ او ونیسئ موډ تڼۍ
2. Radio Mode Selection (DAB/DAB+ / FM RDS)
- فشار ورکړئ موډ button repeatedly to cycle between DAB/DAB+ and FM radio modes.
3. Tuning and Scanning
DAB/DAB+ راډیو:
- په DAB حالت کې ، فشار ورکړئ MEM+/SCAN+ or MEM-/SCAN- to automatically scan for available stations.
- په بدیل سره، فشار ورکړئ MAN SEARCH to manually tune. Rotate the VOLUME/SCROLL knob to select a station, then press ننوتل.
FM RDS Radio:
- په FM حالت کې ، فشار ورکړئ MEM+/SCAN+ or MEM-/SCAN- د راتلونکي موجود سټیشن لپاره په اتوماتيک ډول سکین کولو لپاره.
- مطبوعاتي MAN SEARCH to manually tune. Rotate the VOLUME/SCROLL knob to adjust the frequency, then press ننوتل.
4. Storing and Recalling Presets
- خپل مطلوب سټیشن ته ټون کړئ.
- فشار ورکړئ او ونیسئ MEM+/SCAN+ or MEM-/SCAN- until the display shows "Preset Store".
- وګرځوئ VOLUME/SCROLL knob to select a preset number (e.g., P01, P02).
- مطبوعاتي ننوتل د سټیشن تایید او خوندي کولو لپاره.
- د پری سیټ یادولو لپاره، په لنډ ډول فشار ورکړئ MEM+/SCAN+ or MEM-/SCAN- د زیرمه شویو سټیشنونو له لارې سفر کول.
5. د حجم کنټرول
- وګرځوئ VOLUME/SCROLL د اوریدلو حجم تنظیمولو لپاره غوټۍ.
6. Setting Alarms (Dual Alarms)
The Trevi RC 85D8 supports two independent alarms (Alarm 1 and Alarm 2).
- فشار ورکړئ MENU / INFO مینو ته د ننوتلو لپاره تڼۍ.
- وګرځوئ VOLUME/SCROLL knob to navigate to "Alarm 1 Setup" or "Alarm 2 Setup".
- مطبوعاتي ننوتل غوره کول.
- Follow the on-screen prompts to set:
- د الارم وخت: Set the desired wake-up time.
- د الارم سرچینه: Choose between "Buzzer" or "Radio" (DAB or FM).
- د الارم حجم: د مطلوب الارم حجم تنظیم کړئ.
- د الارم فریکونسی: Select "Daily", "Weekdays", "Weekends", or "Once".
- د الارم حالت: Turn the alarm "On" or "Off".
- مطبوعاتي ننوتل د هر ترتیب تایید لپاره.
۴. د سنوز فعالیت
- کله چې الارم غږیږي، فشار ورکړئ VOLUME/SCROLL/ENTER/SNOOZE knob to activate snooze. The alarm will pause for a set period (usually 9 minutes) and sound again.
- To cancel snooze and turn off the alarm, press the موډ تڼۍ
8. Sleep Timer Function
د خوب ټایمر راډیو ته اجازه ورکوي چې د یوې ټاکلې مودې لپاره غږ وکړي مخکې لدې چې په اتوماتيک ډول بند شي.
- فشار ورکړئ MENU / INFO مینو ته د ننوتلو لپاره تڼۍ.
- وګرځوئ VOLUME/SCROLL knob to navigate to "Sleep Timer".
- مطبوعاتي ننوتل غوره کول.
- وګرځوئ VOLUME/SCROLL knob to choose the desired sleep duration (e.g., 15, 30, 60, 90 minutes, or Off).
- مطبوعاتي ننوتل تصدیق کول.
9. Time Projection Feature
The Trevi RC 85D8 DAB Digital Alarm Clock Radio projecting the time onto a surface, demonstrating the adjustable projection lens.
- Turn Projection On/Off: فشار ورکړئ ON/OFF PROJECTION تڼۍ
- د پروجیکشن زاویه تنظیم کړئ: Manually adjust the projection lens on the side of the unit to direct the time display onto your ceiling or wall.
- Rotate Projected Time: If the projected time is upside down or sideways, press the 180 ° فلپ button to rotate it for correct viewing.
- تمرکز تنظیم کړئ: Rotate the ring around the projection lens to sharpen the projected image.
۸. د ښودلو ډیمر
- فشار ورکړئ DIMMER button repeatedly to cycle through different brightness levels for the main LED display (e.g., High, Medium, Low, Off).
ساتنه
- پاکول: د وسیلې سطحه پاکولو لپاره نرم، وچ ټوکر وکاروئ. د کثافاتو پاکوونکي یا محلولونه مه کاروئ.
- د انتن پاملرنه: Handle the telescopic antenna gently to avoid damage.
- د بیټرۍ بدلول: If using battery backup, replace AAA batteries annually or when the low battery indicator appears.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| هیڅ بریښنا/ډیسپلی بند نه دی | Power adapter not connected; Power outlet faulty; DIMMER set to Off. | Ensure power adapter is securely connected and outlet is functional. Press DIMMER button to adjust display brightness. |
| د راډیو کمزوری استقبال (DAB/FM) | Antenna not extended; Weak signal area; Interference from other electronics. | Fully extend and adjust the telescopic antenna. Try repositioning the unit. Move away from other electronic devices. Perform a full scan for DAB stations. |
| الارم غږ نه کوي | Alarm not activated; Alarm volume too low; Incorrect alarm time/frequency. | Check alarm settings (Alarm 1/2 Setup) to ensure it is "On", time is correct, frequency is set, and volume is audible. |
| Projected time is blurry or unclear | Focus not adjusted; Projection distance too far/close. | Rotate the ring around the projection lens to adjust focus. Ensure the projection surface is within an optimal distance. |
| Projected time is upside down/sideways | Projection orientation incorrect. | فشار ورکړئ 180 ° فلپ button to rotate the projected image. |
| Display is too bright at night | Dimmer setting too high. | فشار ورکړئ DIMMER button repeatedly to select a lower brightness level or turn the display off. |
مشخصات
| فیچر | تفصیل |
|---|---|
| برانډ | ټریوی |
| د ماډل شمیره | RC 85D8 (0RC85D800) |
| رنګ | تور |
| د ټون کولو ټیکنالوژي | DAB, FM RDS |
| د راډیو بینډونو ملاتړ شوی | DAB/DAB+، FM |
| ځانګړي ځانګړتیاوې | Alarm, Snooze, Sleep Timer, Time Projection, Dual Alarms |
| د ارتباط ټیکنالوژي | 3.5 mm Jack (for headphones) |
| د بریښنا سرچینه | AC Power Adapter (included), Battery backup (2x AAA, not included) |
| د محصول ابعاد | 23L x 13W x 14H centimeters (approx.) |
| ښودل | LED Display with Dimmer |
تضمین او ملاتړ
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Trevi webسایټ. د تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.
جوړونکی: Trevi SpA
د اصلي هیواد: چین
