CIARRA CBCB4850 Island Range Hood User Manual

1. پیژندنه

Thank you for choosing the CIARRA CBCB4850 Island Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and retain them for future reference.

2. د خوندیتوب معلومات

Always adhere to basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is intended for domestic use only.

• ډاډ ترلاسه کړئ چې د بریښنا رسولو حجم سره سمون لريtage په درجه بندي پلیټ کې مشخص شوی.
• نصب کول باید د سیمه ایزو مقرراتو سره سم د وړ تخنیکین لخوا ترسره شي.
• که چیرې د بریښنا تار خراب شوی وي نو هډ مه چلوئ.
• Regularly clean the filters to maintain optimal performance and prevent grease buildup.
• د رینج هود لاندې فلمبی مه کوئ.
• ماشومان د عملیاتو په جریان کې د وسایلو څخه لرې وساتئ.

3. محصول ختم شوview

The CIARRA CBCB4850 is a modern, black cube-shaped island range hood designed for recirculation mode. It features powerful extraction, smart control options, and efficient LED lighting.

The CIARRA CBCB4850 Island Range Hood highlighting its key features: WiFi+APP Control, 4-Level Speed, 5-Layer Filter, Max 700m³/h airflow, and Touch Control.

کلیدي ځانګړتیاوې:

• Powerful Extraction: Up to 700 m³/h airflow with 4 speed levels, effectively removing cooking fumes and odors.
• سمارټ کنټرول: Integrated WiFi and APP control for convenient operation from your mobile device.
• د تکرار حالت: Designed for recirculation, utilizing included carbon filters (CBCF003) to purify air.
• د LED رڼا: Two long LED light strips provide bright illumination for your cooking area with 2 levels of brightness.
• خاموش عملیات: Low noise level of 59 dB for a more pleasant kitchen environment.
• د انرژي موثریت: Rated A+++ for energy efficiency.
• ځنډول شوی بند: A 5-minute delayed shutdown function ensures complete air purification after cooking.

4. ترتیب او نصب کول

The CIARRA CBCB4850 is designed for island mounting and operates in recirculation mode. Ensure you have all necessary components before beginning installation.

۲.۱ د بسته بندۍ او اجزاو خلاصول

Carefully unpack the range hood and check for all included components:

Image showing the included carbon filters, suspension cables, and mounting hardware (screws and wall plugs) for the CIARRA CBCB4850 island range hood.

۲.۱ ابعاد او ځای پر ځای کول

Refer to the dimension diagram for proper placement and clearance above your cooking surface. The hood is adjustable in height.

Diagram illustrating the adjustable height (up to 2000mm MAX), width (482mm), depth (318mm), and height of the hood body (332mm) for the CIARRA CBCB4850.

4.3 د نصبولو مرحلې

1. پورته کول: Securely attach the ceiling plate using the provided mounting hardware. Ensure it is capable of supporting the hood's weight.
2. تعلیق: Connect the suspension cables to the ceiling plate and the hood body, adjusting the height as desired.
3. بریښنایی پیوستون: Connect the hood to a suitable 220V power supply. This step should be performed by a qualified electrician.
4. د کاربن فلټر نصب کول: Install the CBCF003 carbon filters as per the instructions provided with the filters. These are essential for recirculation mode.

5. عملیاتي لارښوونې

The CIARRA CBCB4850 offers both touch control and smart app control for ease of use.

5.1 د کنټرول پینل ټچ کړئ

The touch control panel is located on the front of the hood. It allows direct control over fan speeds and lighting.

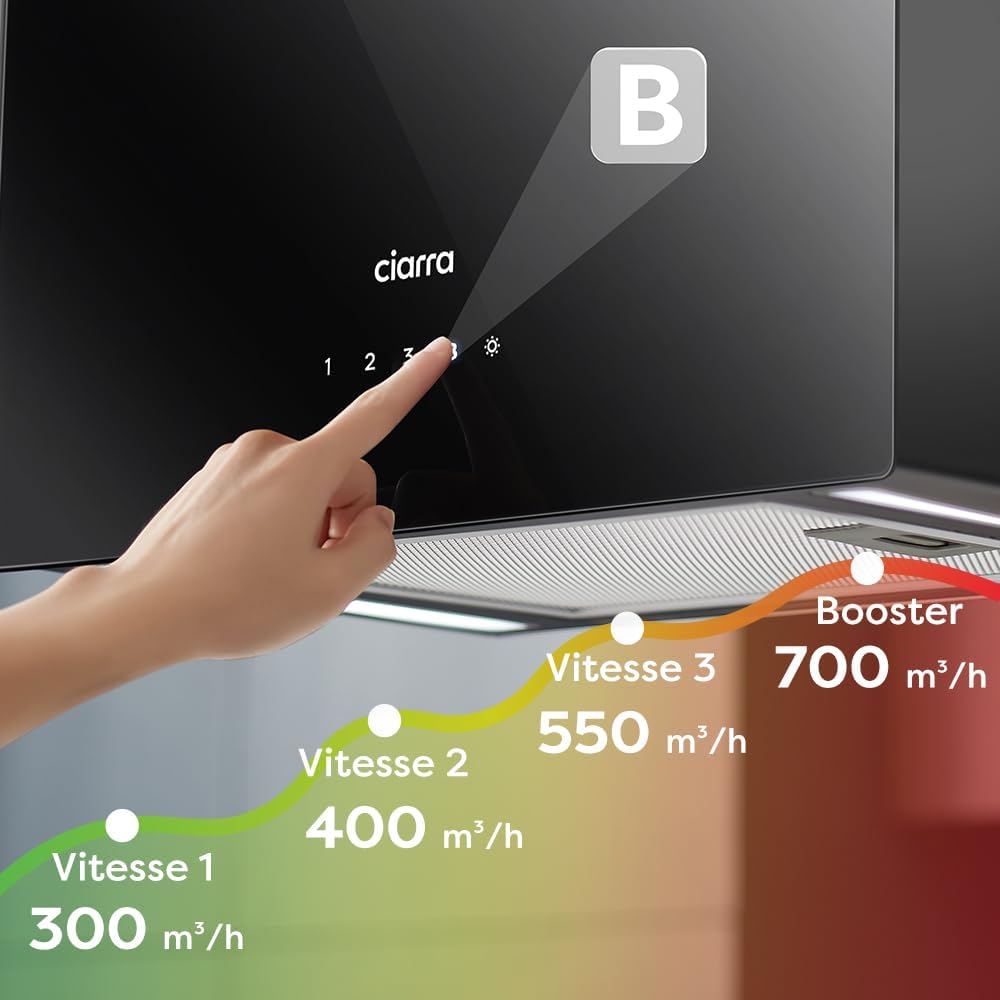

یو تړلی view of the touch control panel on the CIARRA CBCB4850, showing buttons for speeds 1, 2, 3, and a booster 'B' setting, along with a light control button. The image also illustrates the corresponding airflow rates: Speed 1 (300 m³/h), Speed 2 (400 m³/h), Speed 3 (550 m³/h), and Booster (700 m³/h).

• پاور آن/بند: د هود د فعالولو یا بندولو لپاره د بریښنا تڼۍ فشار ورکړئ.
• د فین سرعت: Select from 4 speed levels (1, 2, 3, Booster) to adjust extraction power.
• روښنايي: Press the light button to turn the LED lights on/off or adjust between 2 brightness levels.
• ځنډول شوی بند: Activate the 5-minute delayed shutdown function to clear residual fumes after cooking.

5.2 WiFi and APP Control

The hood can be controlled remotely via a dedicated mobile application. Follow the app's instructions for pairing and operation.

A person using a smartphone to control the CIARRA CBCB4850 island range hood, demonstrating the WiFi and app control functionality in a modern kitchen setting.

• Download the CIARRA smart app from your device's app store.
• Follow the in-app instructions to connect your hood to your home WiFi network.
• Once connected, you can control all functions of the hood from your smartphone.

6. ساتنه

منظم ساتنه ستاسو د رینج هود اوږد عمر او غوره فعالیت تضمینوي.

6.1 Cleaning the Hood

Clean the exterior surfaces regularly with a soft cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals.

A hand wiping the sleek black surface of the CIARRA CBCB4850 island range hood with a blue cloth, demonstrating easy cleaning.

۵.۳ د کاربن فلټر بدلول

The carbon filters (CBCF003) are crucial for odor removal in recirculation mode and should be replaced periodically, typically every 3-6 months depending on usage. Refer to the filter's specific instructions for replacement.

The CIARRA CBCB4850 island range hood shown alongside two circular carbon filters, emphasizing its recirculation design and the need for filter maintenance.

7. ستونزه حل کول

If you encounter issues with your range hood, refer to the following common troubleshooting steps:

• هود نه چالانېږي: Check if the power cord is securely plugged in and if there is power to the outlet. Verify the circuit breaker.
• ټیټ سکشن ځواک: Ensure the carbon filters are not clogged and are installed correctly. Replace filters if necessary.
• ډیر شور: Check for any loose components or obstructions in the fan. Ensure the hood is securely mounted.
• څراغونه کار نه کوي: Check if the LED lights are properly connected. If individual LEDs are replaceable, consult a technician.
• APP control issues: Ensure your mobile device is connected to the internet and the hood is properly paired with the app and WiFi network.

د دوامداره ستونزو لپاره، د پیرودونکو ملاتړ سره اړیکه ونیسئ.

8. مشخصات

9. تضمین او ملاتړ

For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or spare parts inquiries, please reach out to CIARRA customer service or your authorized dealer.
