پیژندنه
Thank you for choosing the Bestway Power Steel Oval Pool. This manual provides essential information for the safe assembly, operation, and maintenance of your pool. Please read all instructions carefully before setup and retain this manual for future reference.
The Bestway Power Steel Oval Pool is designed for easy setup in your garden, offering a compact swimming solution that combines space-saving design with quick assembly for a comfortable summer experience. Enjoy refreshing moments with family and friends.
د خوندیتوب معلومات
- خبرداری: Not suitable for children under 3 years of age. Adult supervision is required at all times when children are in or near the pool.
- Always ensure the pool is set up on a level, stable surface.
- په حوض کې مه غوټه وهئ یا مه ټوپ وهئ.
- Keep children away from the pool cover to prevent suffocation.
- Ensure all electrical components (e.g., filter pump) are connected to a grounded outlet and protected by a Residual Current Device (RCD).
- Regularly check and maintain water chemistry to ensure a safe swimming environment.
د بسته محتويات
مهرباني وکړئ تصدیق کړئ چې لاندې لیست شوي ټول اجزا ستاسو په کڅوړه کې شتون لري:
- One (1) Bestway Power Steel Oval Pool Liner
- One (1) Filter Pump (220-240V)
- One (1) ChemConnect Dispenser (compatible with cartridge 58093 (I))
- د فولادو چوکاټ اجزا (پښې، افقي بیمونه، نښلونکي)
- Self-adhesive repair patch
- د لارښود لارښود (دا سند)
د تنظیم کولو لارښوونې
Assembly is required for this product. It is recommended that two or more people assist with the setup.
- یو ځای غوره کړئ: Select a firm, level surface free of debris, sharp objects, and overhead power lines. The area should be able to support the weight of the filled pool (approximately 3,668 kg). Avoid setting up on soft ground or slopes.
- اجزا خلاص کړئ: Carefully remove all items from the packaging. Lay out the pool liner in the chosen area, ensuring it is oriented correctly.
- چوکاټ راټول کړئ: Follow the diagrams provided in the separate assembly guide (if included) or on the packaging. Connect the steel frame components according to the instructions, ensuring all pins and connectors are securely locked into place. The frame features an ultra-rigid structure with anti-corrosion protection for strength and durability.
- لاینر ضمیمه کړئ: Once the frame is assembled, carefully lift and attach the pool liner to the frame. Ensure the liner is centered and smooth, with no wrinkles on the bottom.
- د فلټر پمپ نصب کړئ: Connect the filter pump to the designated inlet and outlet ports on the pool liner. Refer to the filter pump manual for specific connection instructions.
- د اوبو ډکول: Begin filling the pool with water. As the water level rises, smooth out any remaining wrinkles on the bottom of the pool. Stop filling when the water reaches approximately 90% capacity (3,668 liters).
- Install ChemConnect Dispenser: Place the ChemConnect dispenser in the pool. This dispenser is designed to maintain proper chemical levels by slowly releasing chlorine tablets (not included).

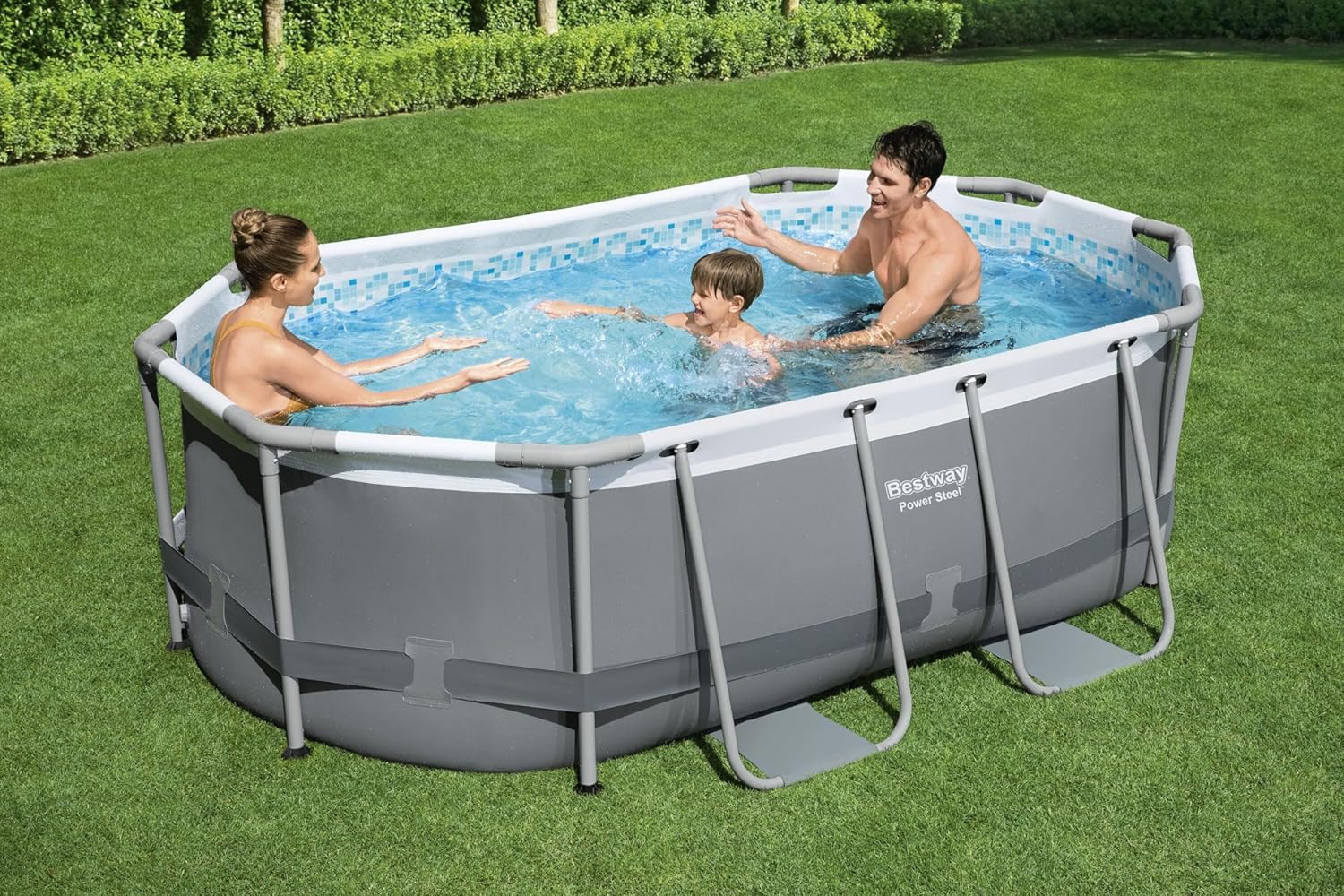

Image: The Bestway Power Steel Oval Pool assembled and filled, ready for use.
عملیاتي لارښوونې
د فلټر پمپ عملیات
- Ensure the filter pump is properly connected and the power cord is plugged into a grounded outlet.
- Turn on the pump to begin water circulation and filtration. Run the pump for several hours each day to keep the water clean. Consult the filter pump manual for recommended operating times.
- Regularly check the filter cartridge and clean or replace it as needed to maintain optimal filtration performance.
ChemConnect Dispenser Use
- Open the ChemConnect dispenser and insert appropriate chlorine or bromine tablets (not included).
- Adjust the dispenser's vents to control the release rate of chemicals into the pool water.
- Always follow the chemical manufacturer's instructions for dosage and safe handling.
Image: Users enjoying the pool, demonstrating its intended use.
د ساتنې لارښوونې
د اوبو پاملرنه
- Test pool water regularly (daily or every other day) for pH, chlorine, and alkalinity levels using a test kit (not included).
- Adjust chemical levels as needed to maintain a balanced and sanitary swimming environment.
- Shock treat the pool water periodically to eliminate bacteria and algae.
د حوض پاکول
- Use a pool skimmer net to remove leaves, insects, and other debris from the water surface.
- د حوض دیوالونه او لاندې برخې په منظم ډول برش کړئ ترڅو د الګیو وده مخه ونیسي.
- د حوض لاندې برخه د اړتیا سره سم ویکیوم کړئ ترڅو ځای پرځای شوي کثافات لرې کړئ.
- For the pool liner, care instructions specify hand washing.
ژمی کول او ذخیره کول
- Before storing for the winter, completely drain the pool water.
- Clean the pool liner thoroughly and allow it to dry completely to prevent mold and mildew.
- Disassemble the frame components and store them in a dry, protected area, away from extreme temperatures.
- Store the filter pump and other accessories according to their respective manuals.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| اوبه ورېځې دي | Insufficient filtration, unbalanced chemicals, high debris load | Run filter pump longer, clean/replace filter cartridge, test and adjust water chemistry, shock treat pool. |
| حوض کې اوبه څڅېږي | Puncture in liner, loose connections | Locate puncture and use included repair patch. Tighten all hose connections. |
| د فلټر پمپ کار نه کوي | No power, clogged impeller, airlock | Check power connection and RCD. Refer to filter pump manual for troubleshooting specific pump issues. |
| د الګا وده | Low chlorine, high pH, poor circulation | Shock treat pool, brush walls, ensure adequate filtration, adjust pH and chlorine levels. |
د محصول مشخصات
- د ماډل شمیره: 5614A
- د محصول ابعاد (L x W x H): 305 x 200 x 84 cm (10 ft x 6 ft 7 in x 33 in)
- د اوبو ظرفیت (۸۰٪ ډک): 3,668 لیټر (969 ګیلن)
- مواد: Plastic (Liner), Steel (Frame)
- د توکي وزن: 26.42 کیلو ګرامه
- Recommended Age by Manufacturer: 6 کاله او پورته
- مجلس ته اړتیا ده: هو
- بیټرۍ ته اړتیا ده: نه
- د پاملرنې لارښوونې: Hand wash (liner)
- شاملې برخې: Pool, Filter Pump (220-240V), ChemConnect Dispenser
تضمین او ملاتړ
For warranty information, technical support, or to purchase replacement parts, please contact Bestway customer service directly. Refer to the contact details provided on the product packaging or visit the official Bestway webسایټ
Please have your model number (5614A) and proof of purchase available when contacting support.
