1. پیژندنه
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Klimaire 15,000 BTU PTAC Heat Pump Air Conditioner with a 5 kW electric heater. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. د خوندیتوب مهمې لارښوونې
د اور، بریښنا شاک، یا ټپي کیدو خطر کمولو لپاره، لاندې خوندیتوب احتیاطي تدابیر په پام کې ونیسئ:
- تل د واحد د خدمت کولو یا پاکولو دمخه بریښنا قطع کړئ.
- ډاډ ترلاسه کړئ چې واحد په سمه توګه مینځل شوی.
- واحد د خراب شوي تار یا پلګ سره مه چلوئ.
- سوځیدونکي توکي له واحد څخه لرې وساتئ.
- Installation and repairs must be performed by qualified personnel.
- د هوا داخلې یا بهر مه بندوئ.
This unit uses R-32 refrigerant. Handle with care and ensure proper ventilation during installation and servicing.
3. د بسته محتويات
ډاډ ترلاسه کړئ چې ټول توکي په کڅوړه کې شتون لري:
- Klimaire 15,000 BTU PTAC Heat Pump Air Conditioner with 5 kW Electric Heater
- بې سیم ریموټ کنټرول
- 3-prong grounding plug (Type LCDI 6-30P)
- د ډرین کټ
- د کنټرول پینل سټیکر
- د کارونکي لارښود (دا لاسوند)
Image: Contents of the Klimaire PTAC package, including the main unit, remote, power plug, and drain kit.
4. ترتیب او نصب کول
The Klimaire PTAC unit is designed for seamless replacement in most standard 42" x 16" slide-in wall sleeves. For new installations, a wall sleeve and rear grille are required (not included).
۲.۱ مطابقت او ابعاد
The unit measures approximately 42" (Width) x 21" (Depth) x 16" (Height). Ensure your existing or new wall sleeve meets these dimensions for proper fit.
Image: Diagram illustrating the physical dimensions of the PTAC unit for installation reference.
4.2 بریښنایی اړتیاوې
This unit requires a 208-230V, single-phase, 60Hz power supply. It comes with a 30A, 3-prong grounding plug (Type LCDI 6-30P). Ensure your electrical outlet matches these specifications and is properly installed by a certified electrician.
انځور: تفصیلي view د 30 څخه Amp, 3-prong LCDI power plug and receptacle for the PTAC unit.
4.3 Drain Kit Installation
Install the included drain kit according to the separate instructions provided with the kit to ensure proper condensate drainage.
5. عملیاتي لارښوونې
5.1 د کنټرول پینل عملیات
The unit features a digital display control panel with push buttons for setting temperature, selecting modes, and adjusting fan speed. The LED display shows the set temperature and operational codes for troubleshooting.
Image: Close-up of the PTAC unit's digital control panel, showing temperature display and function buttons.
5.2 د ریموټ کنټرول فعالیتونه
Use the wireless remote control to conveniently adjust settings from a distance. Functions include ON/OFF, Mode selection (Cool, Heat, Fan, Dry), Temperature adjustment, and Fan Speed control (High, Medium, Low, Auto).
Image: The wireless remote control for the Klimaire PTAC unit, detailing its buttons and display.
5.3 Wi-Fi Smart Control (Optional)
For enhanced control, the unit supports Wi-Fi connectivity. Download the NetHome Plus App to manage your PTAC unit from your smartphone. This feature allows access to all comfort settings remotely and integrates with smart home systems like Google Home and Alexa.
Image: Illustration of smartphone app control for the PTAC unit, highlighting Wi-Fi smart features and compatibility.
6. ساتنه
6.1 د فلټر پاکول

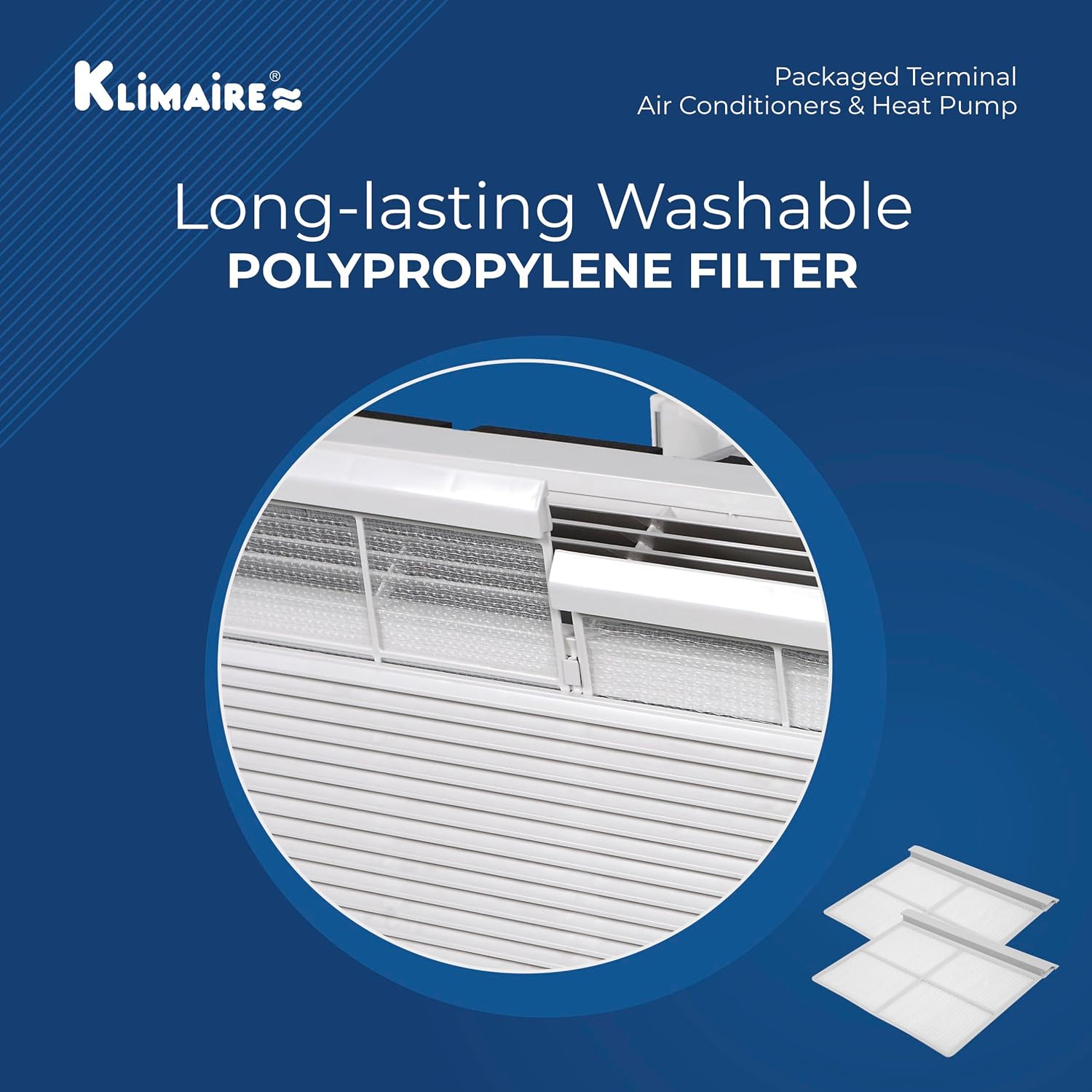

The unit is equipped with long-lasting, washable polypropylene filters. Regularly clean the filters to maintain optimal performance and air quality. To clean, remove the front grille, slide out the filters, wash them with mild soap and water, rinse thoroughly, and allow them to dry completely before reinserting.
Image: Demonstration of cleaning the washable polypropylene filter of the PTAC unit.
6.2 عمومي پاکول
د یونټ بهرنۍ برخه په نرمۍ سره مسح کړئamp ټوکر. سخت کیمیاوي مواد یا د کثافاتو پاکوونکي مه کاروئ. ډاډ ترلاسه کړئ چې د پاکولو دمخه یونټ خلاص شوی دی.
7. ستونزه حل کول
مخکې له دې چې له خدماتو سره اړیکه ونیسئ، بیاview لاندې عامې ستونزې او حل لارې:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| واحد نه خلاصیږي | No power, tripped breaker, loose connection | Check power cord, reset circuit breaker, ensure plug is fully inserted. |
| ناکافي یخول/تودوخه | Dirty air filter, blocked air vents, incorrect mode setting, room too large | Clean air filter, clear obstructions, select appropriate mode, ensure unit capacity matches room size. |
| غیر معمولي شور | Loose parts, foreign object, unit not level | Inspect for loose components, remove foreign objects, ensure unit is level. |
| د اوبو لیک | Blocked drain hose, improper installation of drain kit | Clear drain hose, verify drain kit installation. |
For issues not listed or if problems persist, contact Klimaire customer support.
8. مشخصات
| فیچر | تفصیل |
|---|---|
| برانډ | Klimaire |
| د ماډل شمیره | PTHP15H502-KC-3 |
| د یخولو ظرفیت | ۱۶۳۸۲/۱۲۲۸۵ BTU/ساعت |
| Heating Capacity (Heat Pump) | ۱۶۳۸۲/۱۲۲۸۵ BTU/ساعت |
| Auxiliary Electric Heating Capacity | 15,000/12,200 BTU/h (5.0 kW) |
| EER | 10.6 |
| د بریښنا اړتیاوې | 208-230V, Single-Phase, 60Hz |
| د پلګ ډول | 30A, 3-prong grounding plug (Type LCDI 6-30P) |
| یخچال | R-32 |
| ابعاد (W x D x H) | ۸۳.۸" x ۵۵.۷" x ۴۴.۱" |
| د توکي وزن | ۲.۴۵ پونډه |
| د شور کچه | 52.49 dB |
| ځانګړي ځانګړتیاوې | Anti Freeze Protection, Customization by Dip Switches, Easily Removable Filters, Fresh Air Intake, Quiet Operation, Wi-Fi Option |
For a complete list of specifications, refer to the detailed specification sheet available on the Klimaire website or the provided PDF user guide.
Image: Technical specifications table for Klimaire PTAC-KC Series, detailing performance and electrical data.
9. تضمین او ملاتړ
For warranty information, please refer to the warranty card included with your product or visit the official Klimaire website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Klimaire customer service.
د کارونکي رسمي لارښود (PDF): PDF ډاونلوډ کړئ
