1. پیژندنه
The HoldPeak HP-882C Digital Sound Level Meter is a portable device designed for measuring decibel noise. It features a wide measuring range, automatic backlight, and data hold functions, making it suitable for various acoustic measurements, including those in architectural acoustics and industrial safety. This manual provides essential information for the safe and effective operation of your device.
Figure 1: HoldPeak HP-882C Digital Sound Level Meter with its main components labeled. (1) MIC Enclosures Wind, (2) Automatic Backlight Sensor, (3) Power Switch, (4) FAST/SLOW Time Constant Selection, (5) Maximum and Minimum Value Button, (6) LCD Display.

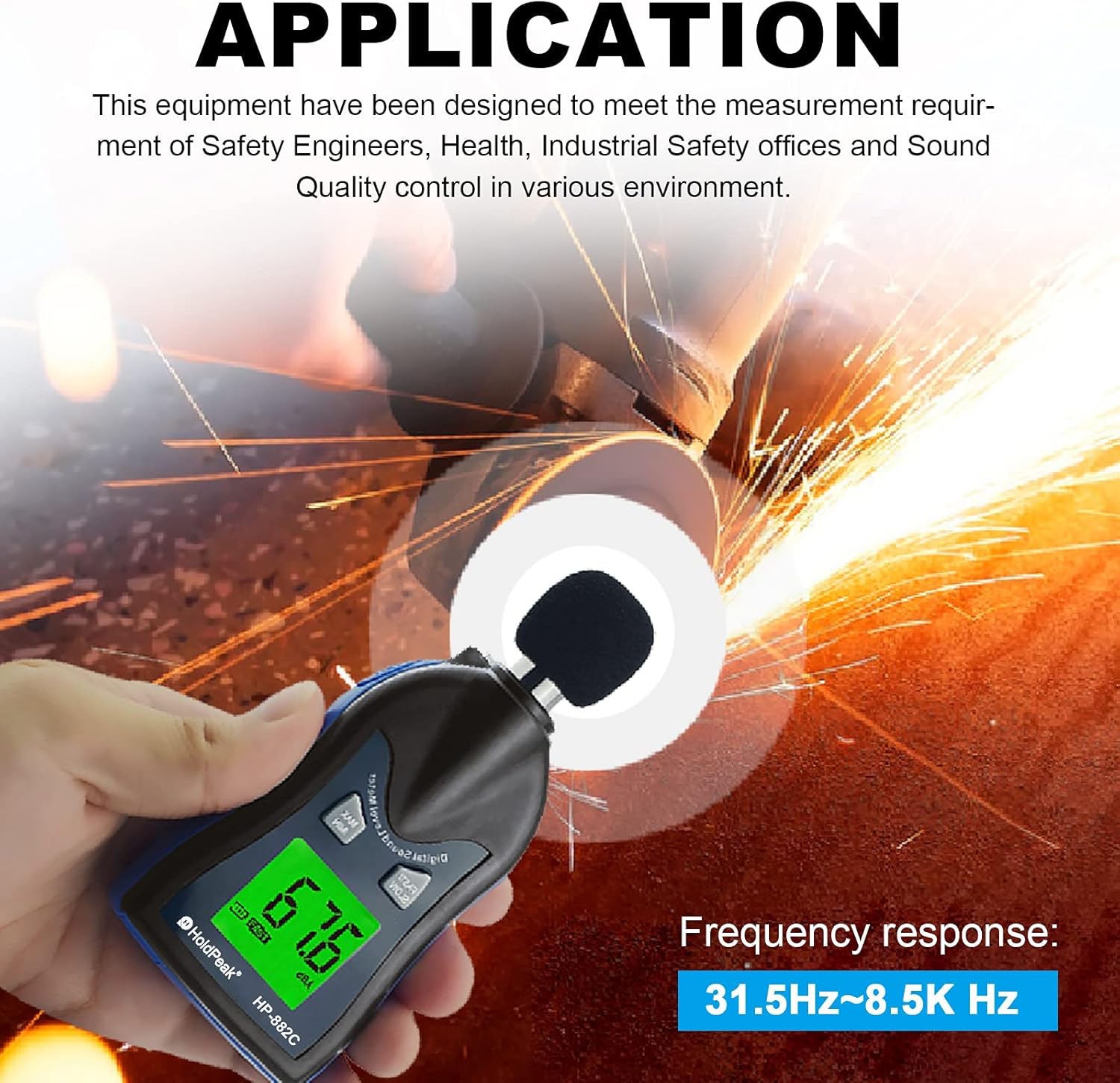

Figure 2: The HP-882C is designed to meet measurement requirements for safety engineers, health, industrial safety offices, and sound quality control in various environments.
2. ترتیب کول
2.1 د بیټرۍ نصب کول
- د وسیلې په شا کې د بیټرۍ د برخې پوښ ومومئ.
- د خونې د خلاصولو لپاره پوښ سلائډ یا خلاص کړئ.
- دوه (2) AAA 1.5V بیټرۍ دننه کړئ، د سم قطبیت ډاډ ترلاسه کول (+/-).
- د بیټرۍ کمپارټ پوښ په خوندي ډول بدل کړئ.
Note: Batteries are included with the device. Please ensure they are installed correctly before first use.
2.2 ابتدايي پاور آن
After installing the batteries, press the power switch (labeled '3' in Figure 1) to turn on the device. The LCD display will illuminate, and the device will be ready for measurement.
3. عملیاتي لارښوونې
۸ پاور آن/بند
- د فعالولو لپاره: فشار ورکړئ د بریښنا سویچ.
- د بندولو لپاره: فشار ورکړئ د بریښنا سویچ again. The device also features an automatic power-off function to conserve battery life.
3.2 اندازه کول
Hold the sound level meter with the microphone (1) pointed towards the sound source. The current decibel level will be displayed on the LCD screen (6).
3.3 FAST/SLOW Time Weighting
فشار ورکړئ چټک / ورو button (4) to select the desired time weighting:
- چټک: Measures sound levels with a 125ms time constant, suitable for capturing sudden noise changes.
- ورو: Measures sound levels with a 1-second time constant, suitable for averaging fluctuating noise levels.
۶.۴ اعظمي/منټ ارزښت ښودنه
فشار ورکړئ MAX/MIN button (5) to cycle through the display modes:
- Current real-time measurement.
- Maximum (MAX) decibel value recorded since power-on.
- Minimum (MIN) decibel value recorded since power-on.
3.5 Automatic Backlight
The device features an automatic LCD backlight sensor (2). The backlight will automatically illuminate in low-light conditions, making the display clearer and easier to read, especially at night or in dim environments.
Figure 3: The automatic backlight sensor ensures clear readability of the LCD display in various lighting conditions.
3.6 Windscreen Usage
When measuring in environments with wind speeds exceeding 10 meters per second, it is recommended to use a wind cover (MIC Enclosures Wind, 1) over the microphone. This helps to reduce wind noise interference and improve measurement accuracy.
3.7 Decibel Level Interpretation

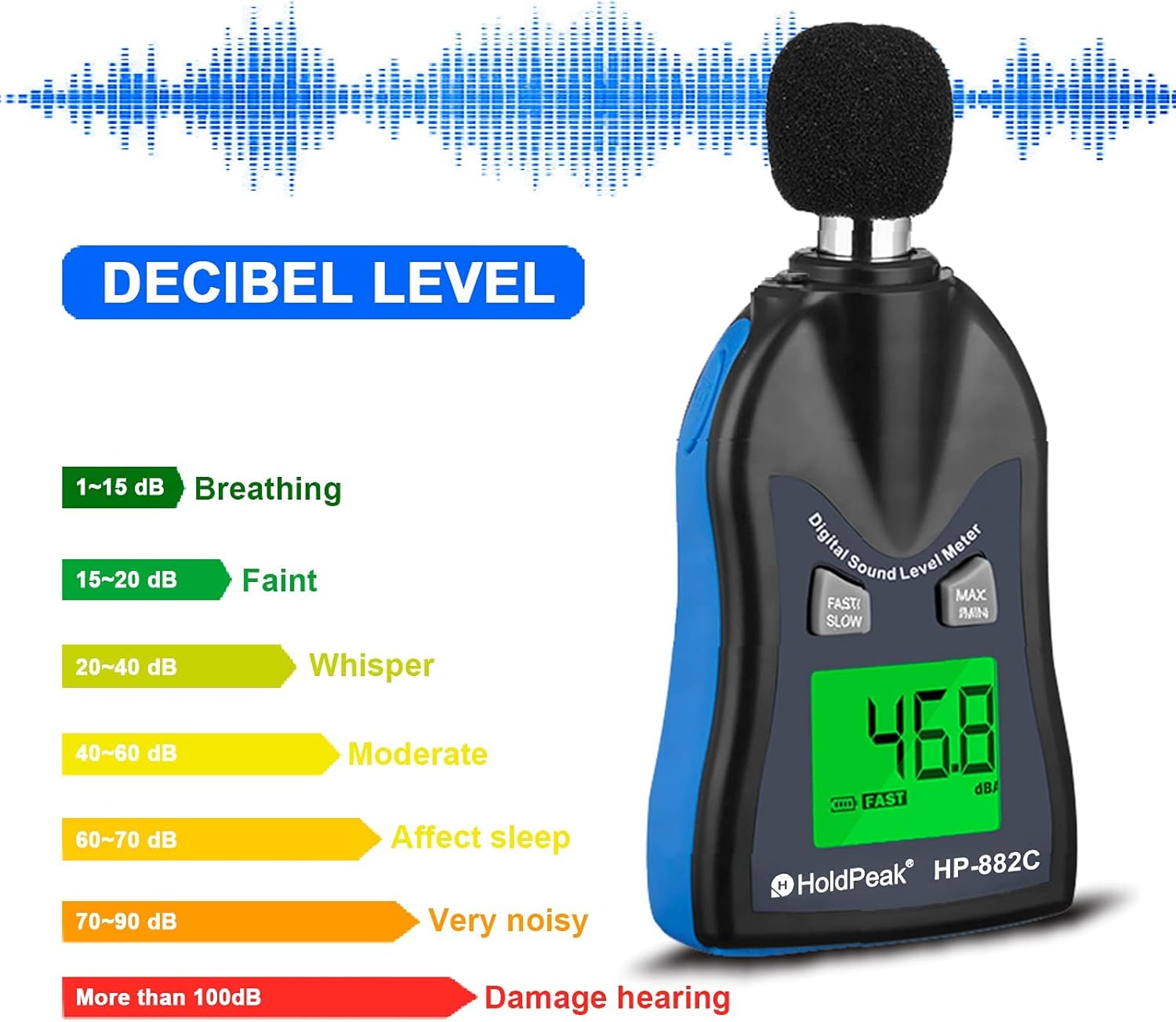

Figure 4: General guide for interpreting decibel levels.
- 1-15 dB: تنفس کول
- 15-20 dB: Faint
- 20-40 dB: Whisper
- 40-60 dB: اعتدال
- 60-70 dB: Affects sleep
- 70-90 dB: Very noisy
- د 100 dB څخه ډیر: Damage hearing
4. ساتنه
4.1 پاکول
To clean the device, use a soft, dry cloth. Do not use abrasive cleaners or solvents. Avoid immersing the meter in water or exposing it to excessive moisture.
4.2 د بیټرۍ بدلول
When the battery indicator on the LCD display shows low power, replace the batteries promptly to ensure accurate measurements. Follow the battery installation steps in Section 2.1.
4.3 ذخیره کول
When not in use for extended periods, remove the batteries from the device. Store the sound level meter in a cool, dry place with a storage temperature between -10°C and 60°C and relative humidity between 10% and 70%.
5. ستونزه حل کول
۷.۲ ناسم لوستل
- Check for wind interference: If measuring outdoors or in windy conditions, ensure the wind cover is properly installed.
- د بیټرۍ کچه: Low batteries can affect performance. Replace batteries if the indicator shows low power.
- د چاپیریال شرایط: Ensure operating temperature and humidity are within specified ranges (0~40°C, 10~80% RH).
- د وسیلې خرابوالی: If readings remain consistently inaccurate despite checking the above, the device may require service. Contact customer support.
۶.۱ وسیله نه فعالېږي
- د بیټرۍ نصب کول: Verify that batteries are inserted correctly with the right polarity.
- د بیټرۍ حالت: د تازه بیټریو سره ځای په ځای کړئ.
- د بریښنا سویچ: Ensure the power switch is fully pressed.
6. مشخصات
Figure 5: The HP-882C device, its packaging, and included AAA batteries.
| فیچر | مشخصات |
|---|---|
| د اندازه کولو رینج | 30 ~ 130 dB |
| دقت | ±1.5 dB |
| د تعدد ځواب | 31.5 Hz ~ 8 KHz |
| د فریکونسي وزن | A |
| ډیجیټل نندارې | 4 digits, 0.1 dB resolution |
| Sampد نرخ کچه | 2 ځله / ثانیه |
| مایکروفون | 1/2 انچ کنډنسر مایکروفون |
| ځواک | 2 x AAA 1.5،XNUMXV بیټرۍ |
| د بیټرۍ ژوند | نږدې ۸ ساعته (الکلین بیټرۍ) |
| د تودوخې / رطوبت عمليات | 0 ~ 40 ° C، 10 ~ 80٪ RH |
| د ذخیرې د حرارت درجه / رطوبت | -10 ~ 60 °C، 10 ~ 70٪ RH |
| متحرک خصوصیات | ګړندی / ورو |
| وزن | 144g (د بیټرۍ سره) |
| ابعاد | 20.5 x 56.5 x 125 mm |
7. تضمین او ملاتړ
7.1 د تضمین معلومات
This HoldPeak HP-882C Digital Sound Level Meter comes with a 365-day warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product functions as intended under normal use.
7.2 د پیرودونکي ملاتړ
If you encounter any problems with your device or have questions regarding its operation, please contact the seller directly. Our customer support team aims to respond to your inquiries as soon as possible, typically within 24 hours.
